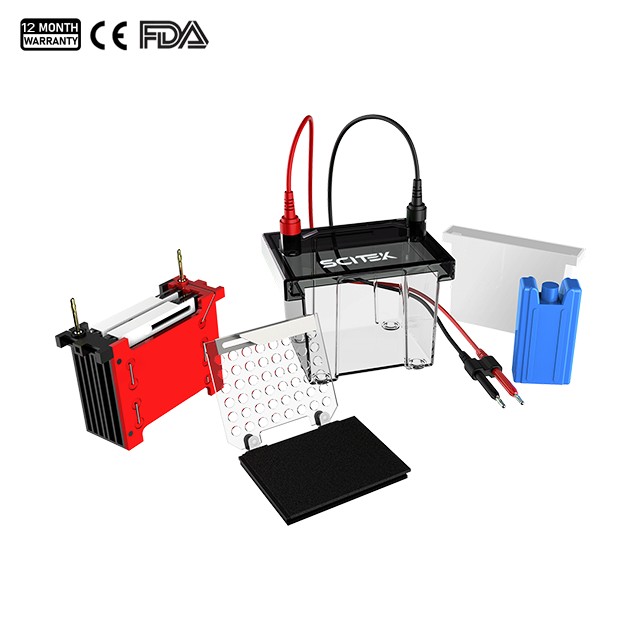

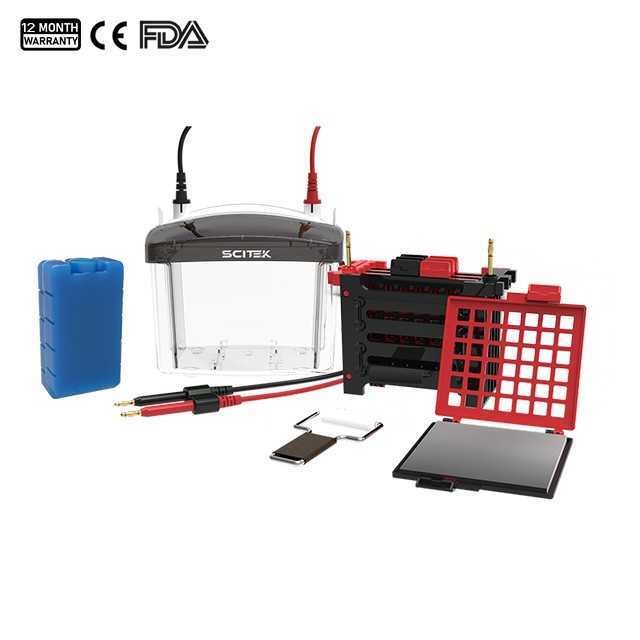

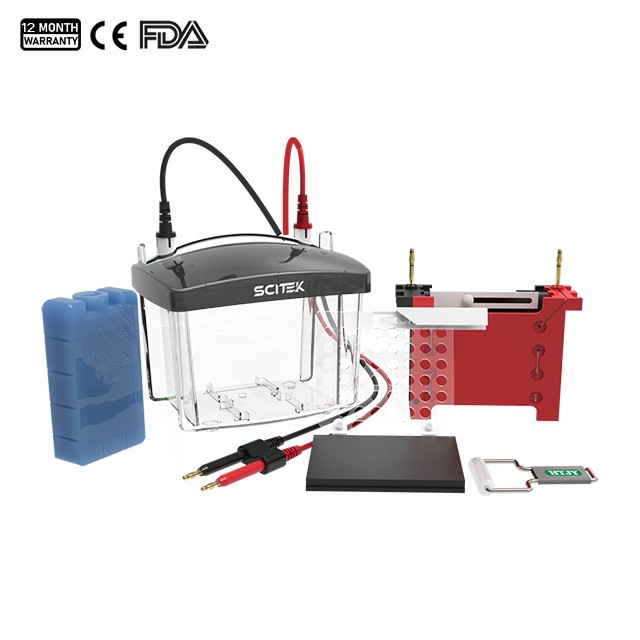

Vertical/Transfer gel electrophoresis tank are compatible with Western blotting experiments, enabling a complete workflow from protein separation to membrane transfer. Transfer electrophoresis tank is equipped with 4/5.5 cm short-pitch electrodes and a built-in cooling device, which can ensure efficient and uniform transfer of proteins onto the membrane. Suitable for high-quality protein detection and analysis in the lab.
Transfer Gel Electrophoresis Tank Feature:
Efficiently transfers small-sized proteins gels, adaptable to various specifications and throughput requirements.
Simultaneous transfer of 2 (ET-T02A, ET-T03A)/ 4 (ET-T04A) gel blocks, meeting different experimental needs and improving laboratory efficiency.
Highly transparent polycarbonate tank is durable, leak-proof, and impact-resistant, allowing for real-time monitoring of the transfer process.
99.99% high-purity platinum electrode, excellent conductivity, anti-aging properties, and corrosion resistance.
Efficient temperature control and defoaming design, with a built-in blue cooling device to prevent protein overheating and degradation, easily remove air bubbles, and ensure transfer effect.
The positive and negative electrode spacing is optimized to 4 cm (ET-T02A, ET-T03A)/5.5 cm (ET-T04A), generating a strong electric field to ensure efficient and high-fidelity protein transfer results.
Automatic power cut-off upon opening the cover.
Top cover limit switch prevents reverse polarity connection
Transfer Gel Electrophoresis Tank Specification:
Model | ET-T02A | ET-T03A | ET-T04A |
|---|
Transfer Area | 110×90 mm |
Effective Transfer Gel Area | 110×90 mm |
Used together with ET-V01A, ET-V04A for Western blot |
Equipped with a special bubble roller for easy removal of bubbles |

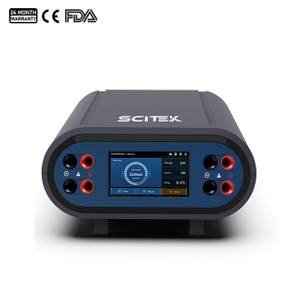

Electrophoresis Power Supply are also available in money-saving bundles with Gel Tank:
Electrophoresis Power Supply | Gel Tank | Application |
|---|
EPS-300A | Vertical tank ET-V01A | / | / | |
EPS-300HCA | Vertical tank ET-V04A | / | / | |
EPS-300A | Horizontal tank ET-H01A | / | / | |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | / | Can Be Used For Western Blotting |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | Horizontal tank ET-H01A | Can Be Used For Western Blotting |
