Electrophoresis, based on the characteristic directional migration of charged particles within an electric field, enables the separation, identification, and purification of substances. Widely applied in biology, medicine, chemistry, and food science, it has become an indispensable core instrument in both scientific research and industrial production.

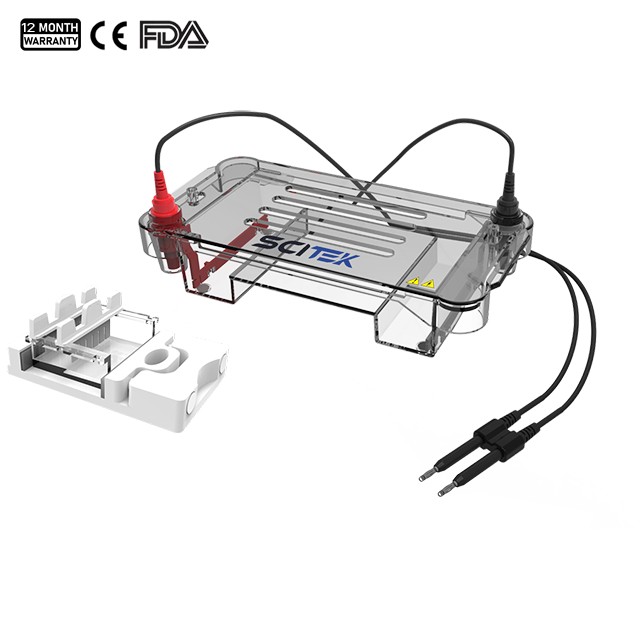

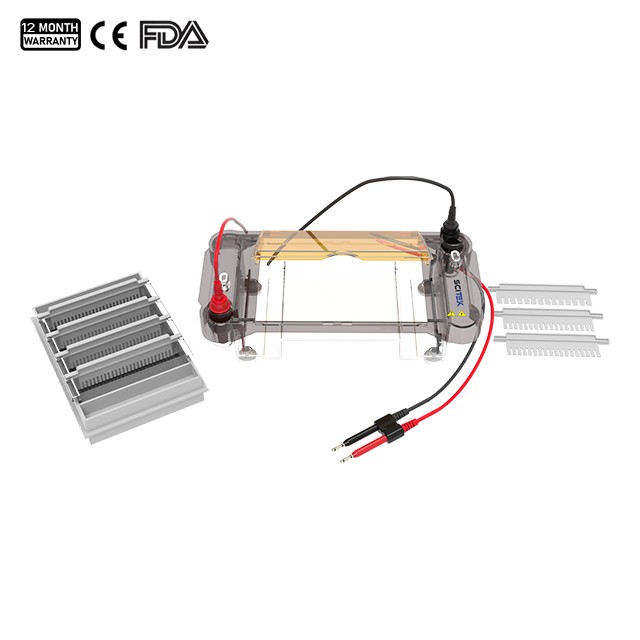

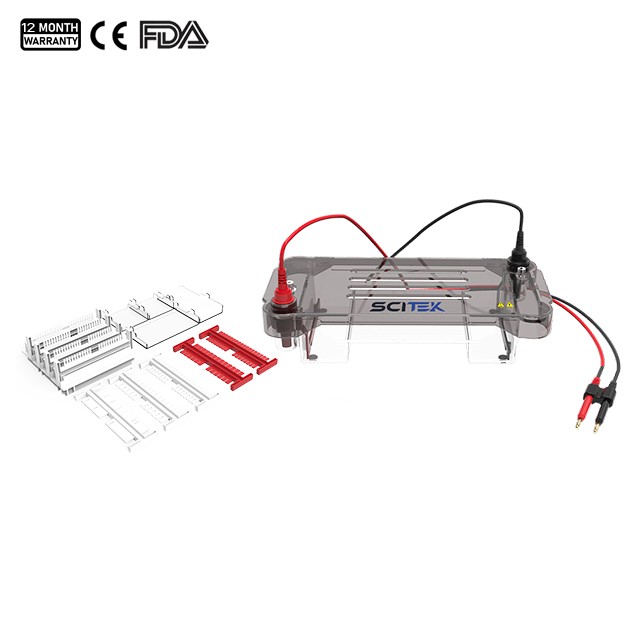

Horizontal Gel Electrophoresis Tank Feature:
Suitable for rapid isolation, identification of nucleic acids (DNA/RNA), meeting basic scientific research and high-throughput electrophoresis needs.
Flexible gel preparation method allows for the production of gels in up to 4 different sizes, meeting both routine and high-throughput needs
High-strength transparent polycarbonate (PC) injection molding, leak-free, impact-resistant, allows real-time observation.
99.99% high-purity platinum electrode, excellent conductivity, anti-aging properties, and corrosion resistance.
Electrode reverse connection protection limit and detachable design, making maintenance convenient and safer.
Ventilation holes/ blue light shielding flip cover to improve heat dissipation efficiency and ensure consistent electrophoresis results.
Leak-proof telescopic glue applicator with fluorescent scale/background strip for precise glue application and observation.
Horizontal Gel Electrophoresis Tank Specification:
Model | ET-H01A | ET-H02A | ET-H03A |
|---|
Gel size (W×L) | Small gel: 60×75 mm | Large gel: 120×120 mm; | Large gel: 130×200 mm, 130×150 mm |
Wide gel: 120×60 mm; |
Long gel: 60×120 mm; |
Small gel: 60×60 mm. |
Sample Comb | 1.0/1.5 mm, 6/11wells | 1.0/2.0 mm, 2, 3, 6, 8, 11, 13, 18, 25 wells | 1.0 mm, 14/18/26 well; |
1.5 mm 18 well; |
Buffer Volume | 300 mL | 700 mL | 700 mL |
Electrophoresis Power Supply are also available in money-saving bundles with Gel Tank:
Electrophoresis Power Supply | Gel Tank | Application |
|---|
EPS-300A | Vertical tank ET-V01A | / | / | |
EPS-300HCA | Vertical tank ET-V04A | / | / | |
EPS-300A | Horizontal tank ET-H01A | / | / | |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | / | Can Be Used For Western Blotting |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | Horizontal tank ET-H01A | Can Be Used For Western Blotting |
