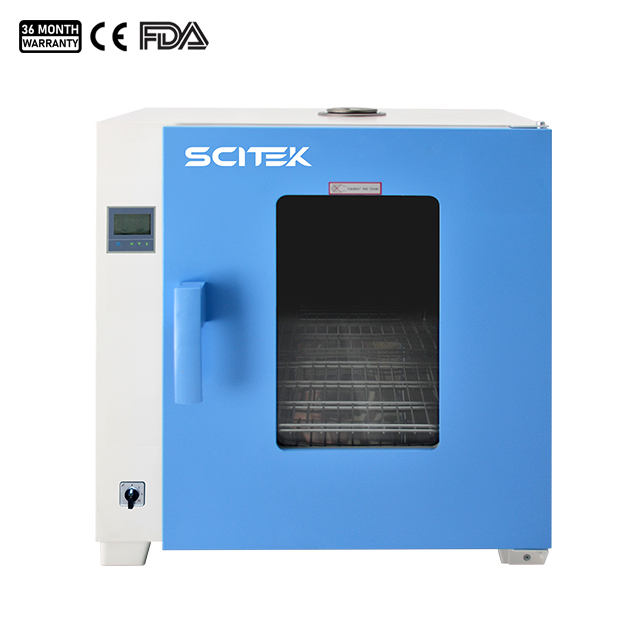

Far Infrared Fast Drying Oven

Model : IDO-70H; IDO-140H; IDO-270H

Capacity : 70 L/140 L/270 L
Temperature range : 50℃~250℃
Temperature uniformity : ≤ Max operating temperature ±3.5%
Timer(min) :
0-9999
Availability:
Quantity:

Far Infrared Fast Drying Oven Feature:

  1. External material: cold-rolled steel plate surface sprayed with plastic.

  2. Inner material: SUS stainless steel plate, designed with round arc structure, easy to clean.

  3. The top air vents are easy to switch on and off.

  4. With LED digital display, P.l.D temperature controller.

  5. With parameter memorization, the operation will be resumed automatically when powered on again.

Far Infrared Fast Drying Oven Specification:

ModelIDO-70HIDO-140HIDO-270H
Temperature range50°C~250°C
Temperature uniformity≤ Max operating temperature±3.5%
Temperature fluctuation±1°C
Internal circulation methodNatural convection
Security alarmOvertemperature alarm, temperature probe damage alarm
Internal dimensions (W×D×H)(mm)400×400×450500×500550600×600×750
Internal volume (L)70140270
External dimensions (W×D×H)(mm)730×565×702830×665×772930×765×972
Number of shelf(pcs)233
Timer(min)0-9999
Power (W)120016001900
Power supply220V/110V 50Hz/60Hz
Shipping Size (WxDxH)(mm)810×610×830920×740×8901030×850×1100
G.W.(kg)6687130
OptionalLCD screen temperature controller.
LCD screen temperature controller+ RS485 communication serial port.
LCD screen temperature controller+ micro dot matrix printer
