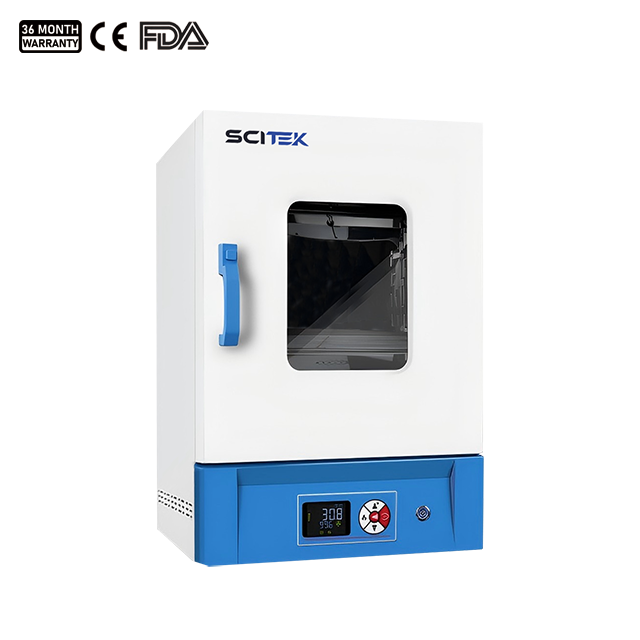

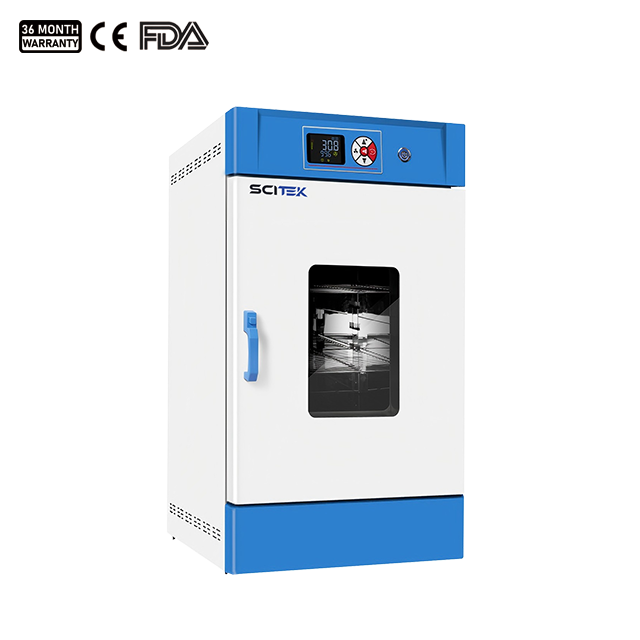

Drying Oven BE Series

Model : FDO-45BE; FDO-72BE; FDO-125BE; FDO-210BE;

Capacity : 45L; 72L; 125L; 210L;
Temperature Range : RT+10-300℃
Temperature Resolution : 0.1℃
Temperature Fluctuation : ±1℃
Temperature Uniformity : ±1℃
Availability:
Quantity:

Forced Drying Oven Feature:

  1. The shell is made of high-quality cold-rolled steel, and the surface is treated with electrostatic spraying technology. It has beautiful shape, corrosion resistance and durability.

  2. The inner chamber is made of 304 stainless steel plate or galvanized and anti-corrosion treated. The shelf height is adjustable, and the four corners are semicircular arcs for easy cleaning.

  3. Double-layer tempered glass observation window, the height of the test shelf in the studio is adjustable, the observation is clear and easy to use.

  4. The microcomputer intelligent digital display temperature control instrument has accurate temperature control, ensuring that the temperature does not overshoot, and has functions such as timing and over-temperature alarm.

  5. Good thermal insulation design, can operate at high temperature for a long time, has a long service life, is easy to replace, and is green, energy-saving and environmentally friendly to the greatest extent.

  6. Adopt high-temperature resistant silicone sealing strips, equipped with lock-type elastic adjustment door locks to ensure good sealing and prevent heat loss.

  7. Unique geometric cavity clean design to ensure active and perfect protection of samples.

Forced Drying Oven Specifications:

ModelFDO-45BEFDO-72BEFDO-125BEFDO-210BE
Capacity45L72L125L210L
Voltage/Frequency220V 50Hz
Temperature RangeRT+10-300℃
Temperature Resolution0.1℃
Temperature Fluctuation±1℃
Temperature Uniformity±1℃
Consumption (W)1000W1500W2000W3000W
Internal Size(WxDxH)(mm)350x350x350400x400x450450x500x550500x600x700
External Size(WxDxH)(mm)500x490x705580x530x800630x635x900730x675x1200
Package Size(WxDxH)(mm)550x600x790595x645x900685x720x1150760x785x1350
Shelves(Standard / Max)2/42/42/62/8
Gross Weight44kg48kg70kg91kg
Internal Material304 Stainless Steel
