Constant Temperature Incubator Shaker Specifications:
| Model | ICB-20TIS | ICB-30TIS |
| Circulation | Forced convection |
| Shake Mode | Convolution |
| Orbit Diameter(mm) | Φ20 |
Cyclotron
Frequency | Range (rpm/min) | 50-300 | 50-250 |
| Resolution (rpm) | 10 |
| Temperature | Range (℃) | RT+5~60 |
| Fluctuation (℃) | ≤±0.5(37°C) |
| Resolution (℃) | 0.1 |
| Uniformity (℃) | ≤±0.5°C(37°C) |
| Size(WxDxH) | External (mm) | 421x320x338 | 632x502x512 |
| Platform(mm) | 230x230 | 350x350 |
| Controller | Microcomputer |
| Display | Large high efinition LCD |
| Timer | 1min~99h59min/∞ |
| Safety Device | Running safely: Heating and shaking will be automatically stopped once
the lid is open. |
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz |
| Consumption (W) | 350 | 600 |
| N.W./G.W. (kg) | 18.5 | 41 |
| Shipping Size (WxDxH) (mm) | 565x470x460 | 750x620x695 |
Constant Temperature Incubator Shaker Features:
The constant temperature incubation shaker is a small bench-top shaking incubator that combines the functions of gas bath constant temperature and horizontal oscillation.
Its ingenious combination of precise temperature control and low frequency and high amplitude oscillation functions; And it has the characteristics of small size, convenient operation, simple maintenance and so on.
A variety of optional trays meet the placement and fixation of various flasks, beakers, petri dishes, test tubes and other containers.
Details of Constant Temperature Incubator Shaker:

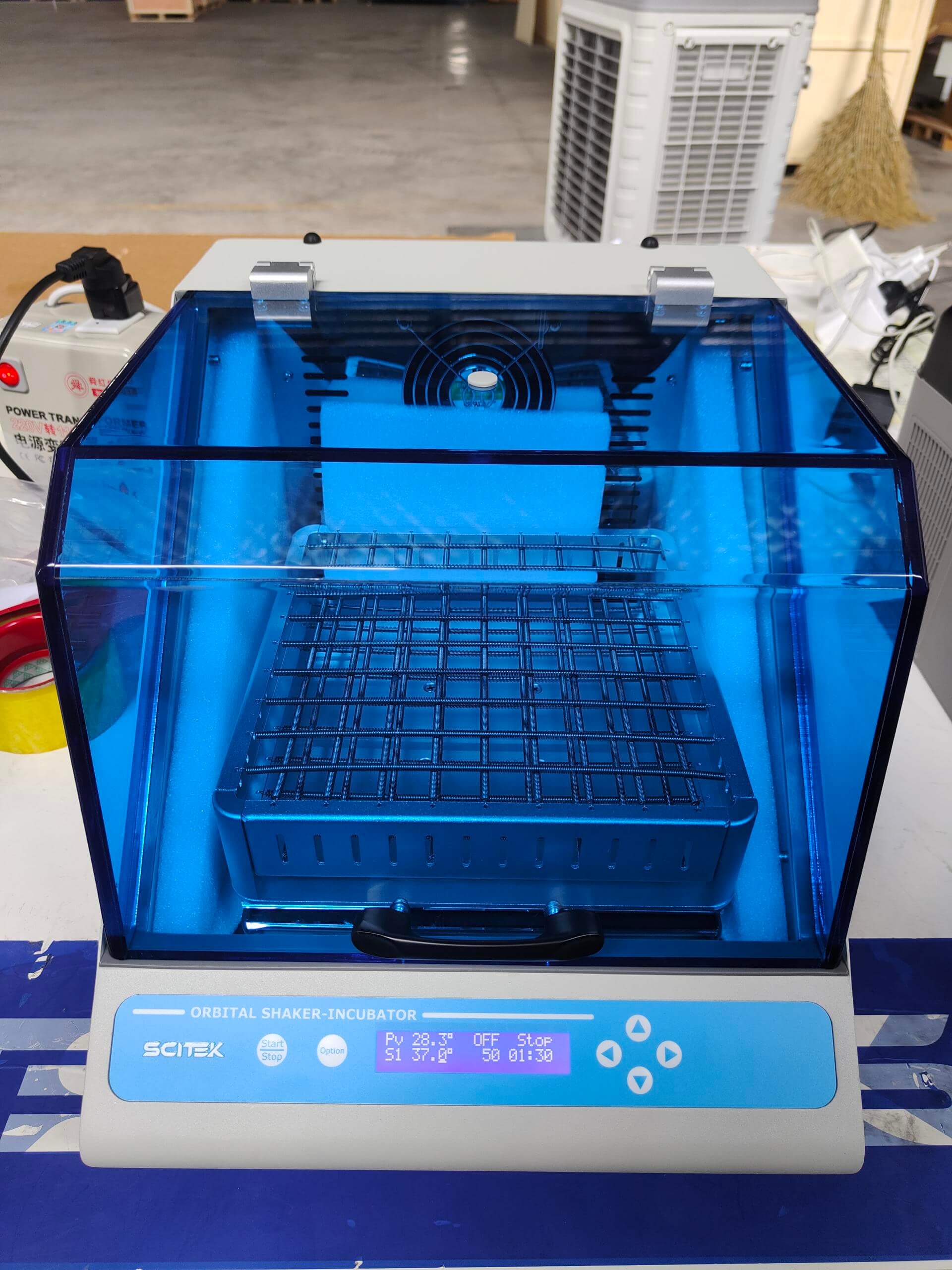

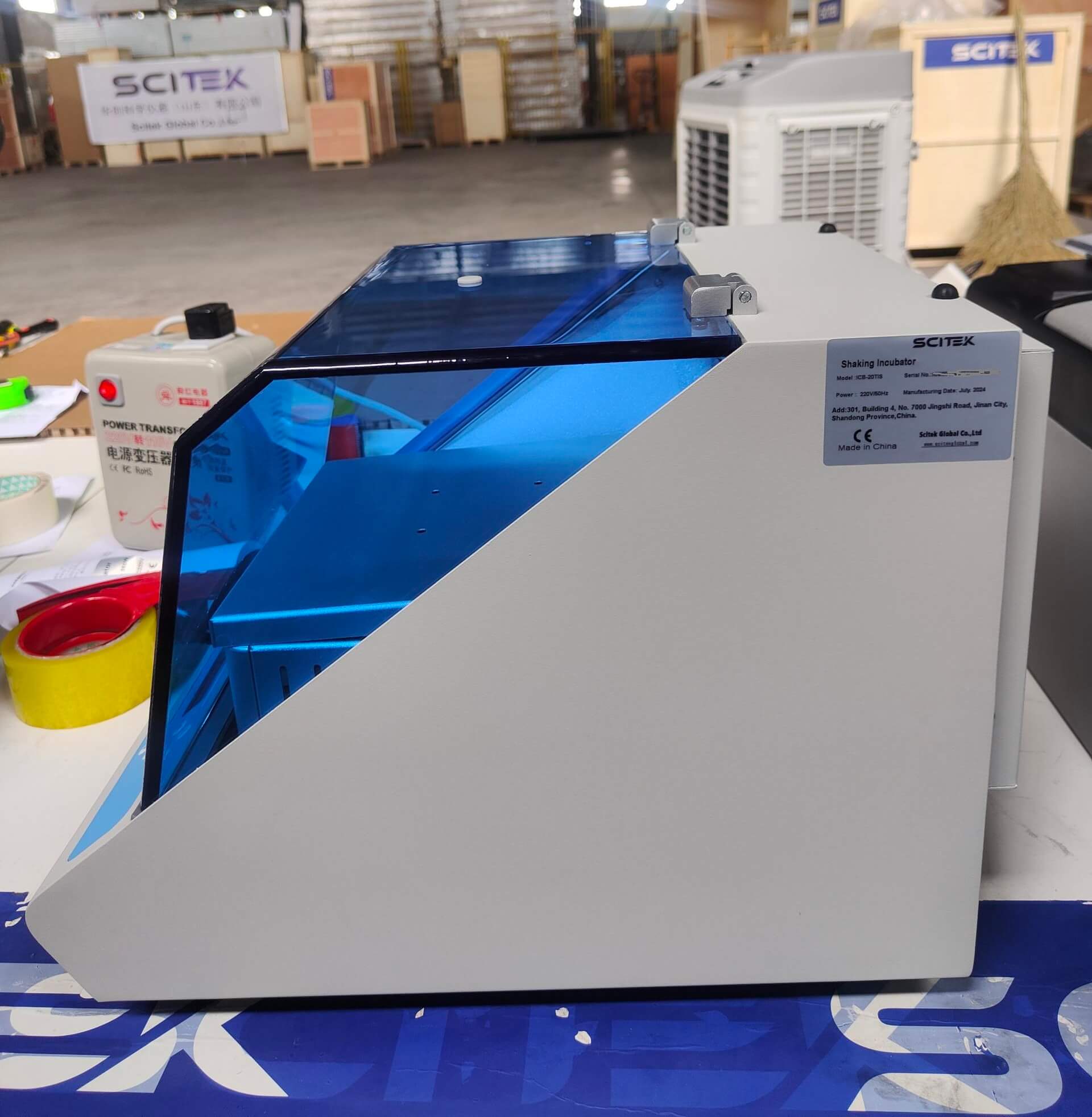

ICB-20TIS Incubator Shaker:
Clear control panel with display and buttons distributed below, users can easily set temperature and shaking parameters

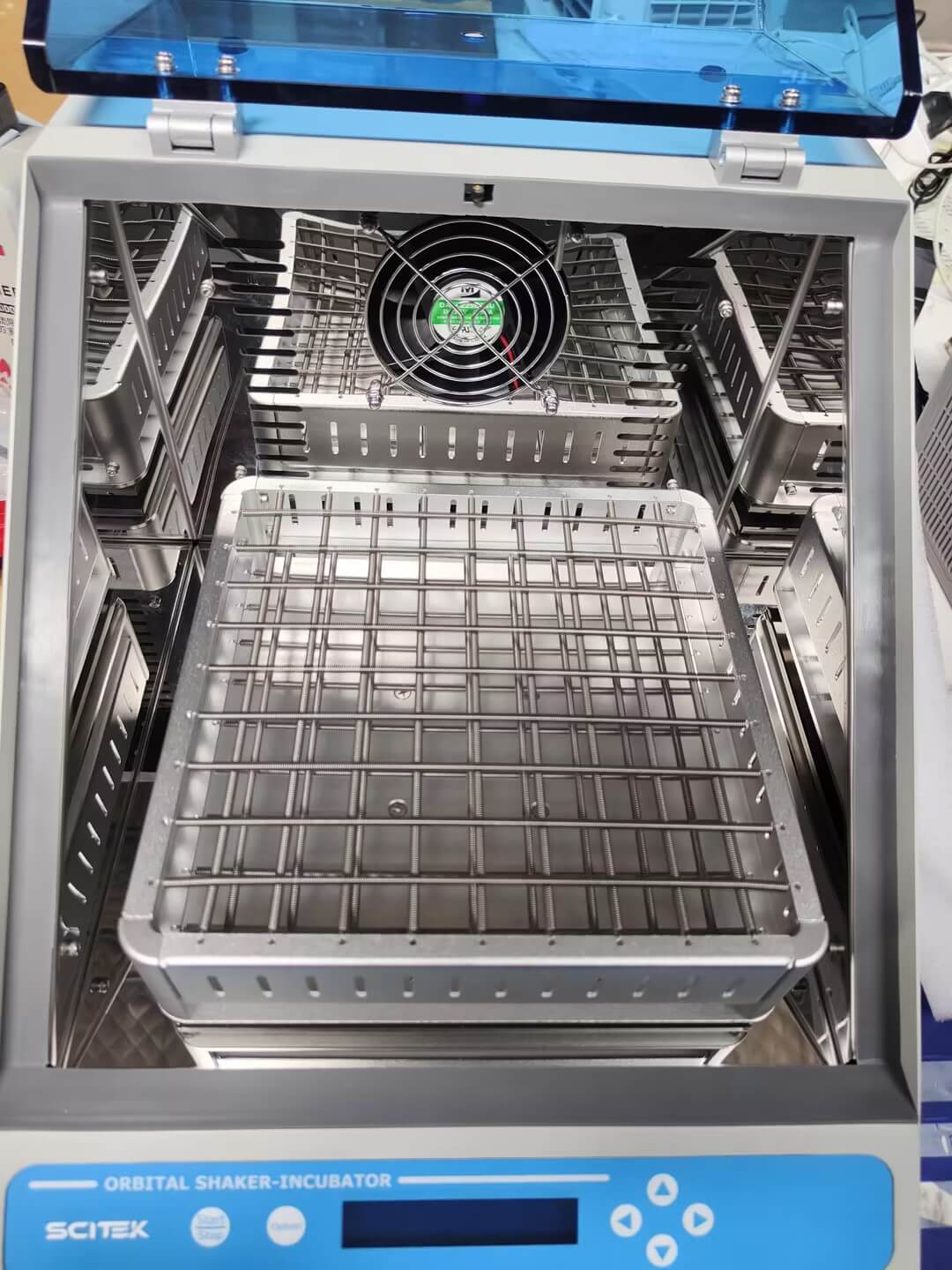

Rugged surface of the shaker platform for uniform placement of containers

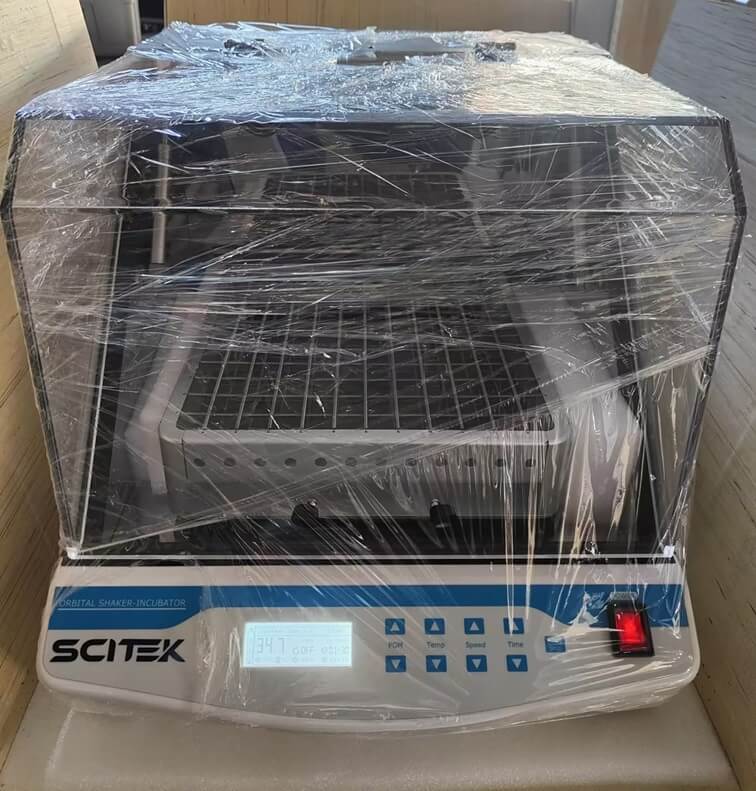

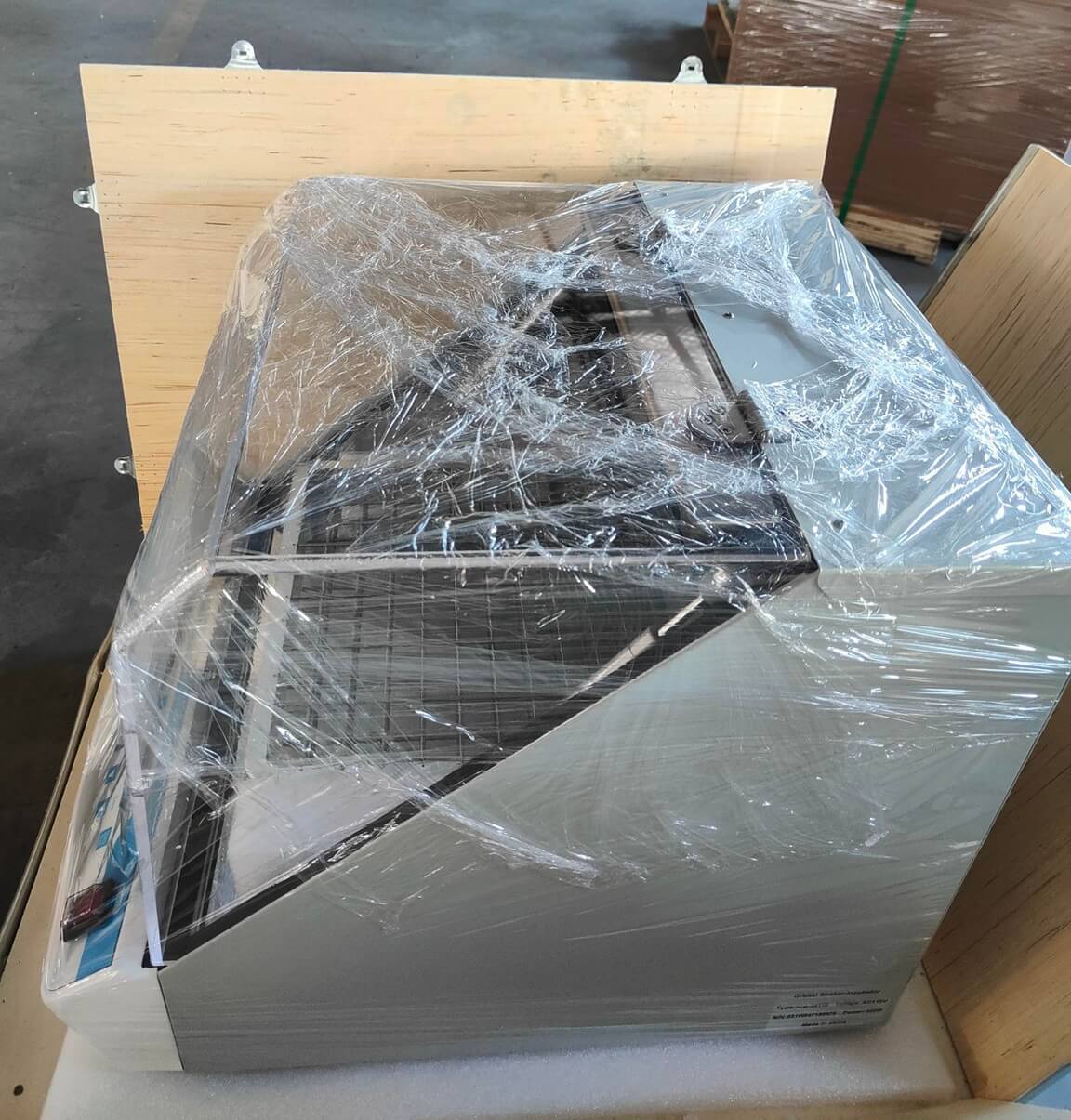

ICB-30TIS Constant Temperature Incubator Shaker:

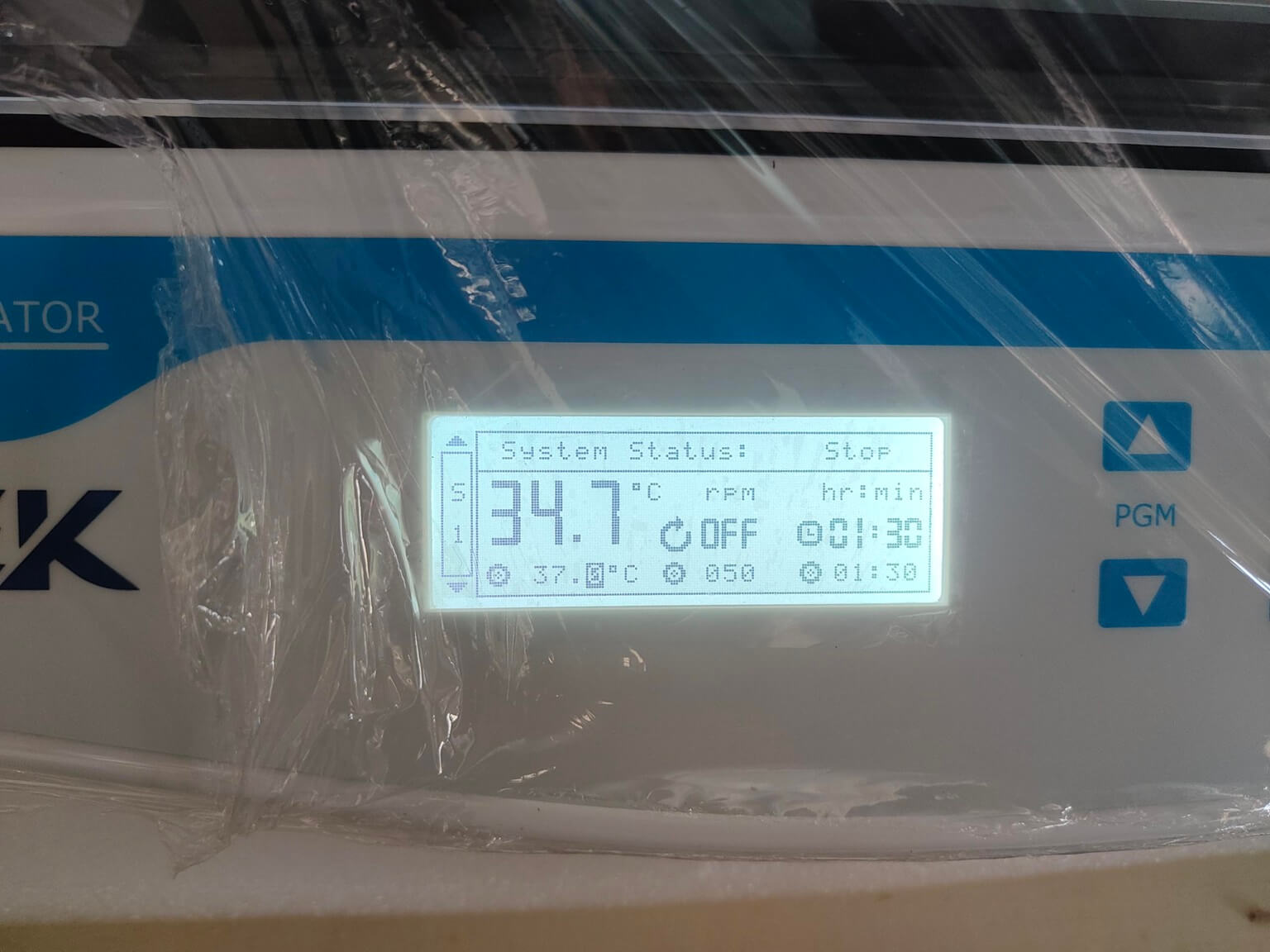

Displays current temperature and shaking setup parameters for quick reading and adjustment of the unit's operating status.
