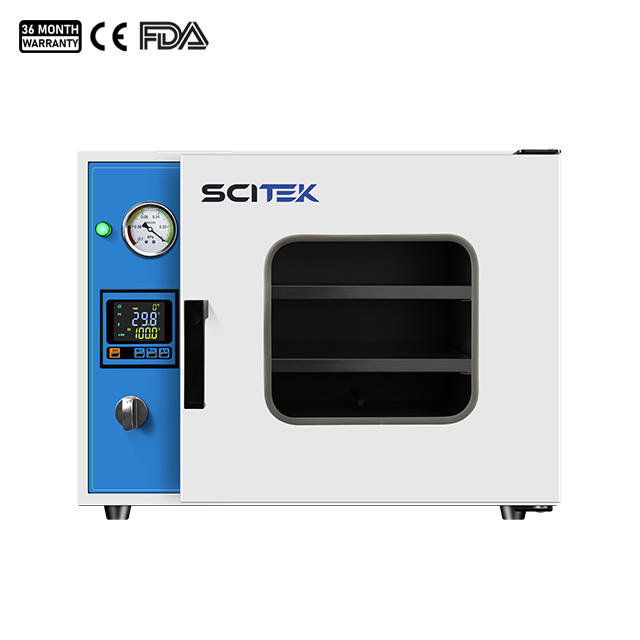

Vacuum Oven B/BE Series

Model : VO-20B/BE; VO-50B/BE; VO-90B/BE; VO-210B/BE

Temperature Range (℃) : RT+10~250℃
Display Resolution (℃) : 0.1℃
Temperature Fluctuation (℃) : ±1℃
Temperature Uniformity (℃) : ±1℃
These vacuum ovens have excellent heat transfer and fast heat-up times.
Availability:
Quantity:
Inquiry Add to Inquiry List

Vacuum Oven Feature:

  1. The shell of  the product is made of cold-rolled steel plate, the surface is electrostatically sprayed, and the inner tank is  surrounded by arc transition, which is easy to clean.

  2. The unique design of silicone sealing ring is used between the outer door and the cabinet to ensure the vacuum level of  the box. The door of the machine can be easily opened in a non-vacuum environment.

  3. The temperature control system adopts microcomputer PID design, which has the functions of temperature control, timing and over-temperature alarm.

  4. The studio is rectangular in structure with a large effective area.

  5. The unique design of the glass door not only ensures the tightness, but also allows the objects in the studio to be observed through the glass window.

Vacuum Oven Specifications:

ModelVO-20B/BEVO-50B/BEVO-90B/BEVO-210B/BE
Capacity (L)20L50L90L210L
Temperature Range (℃)RT+10~250℃
Display Resolution (℃)0.1℃
Temperature Fluctuation (℃)±1℃
Temperature Uniformity (℃)±1℃
Small vacuum pumpOptional
Vacuum Pressure＜133Pa
Shelves (Standard/Max)2/22/22/32/3
Internal MaterialVO-B (201 stainless steel) / VO-BE (304stainless steel)
External MaterialCold-rolled Steel Plate with Electrostatic Spraying
Power SupplyAC220/110V, 50/60Hz
Power(W)600W1400W2000W3000W
Chamber size(W×D×H)(mm)300x300x275370x415x345450x450x450600x550x650
Dimensions(W×D×H)(mm)415x590x460555x720x535610x790x665725x890x865
Shipping size(W×D×H)(mm)525x670x550840x685x685910x710x800910x107x1165
N.W/G.W. (kg)37/47kg60/70kg95/111kg170/189kg
OptionalProgram-controlled instruments, printer, 485 interface, USB storage


Previous:
Next:
Get Quotation/Become Distributor

Related Products

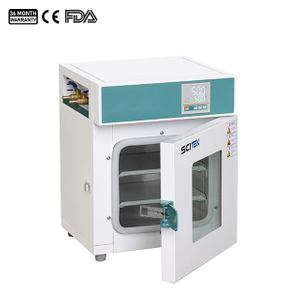

Vertical Vacuum Oven (With Digital Display)
