Drying Oven Feature:
The product shell is made of high-quality cold plate, and the surface is treated by spraying process.
The inner chamber is stainless steel.
Intelligent digital display PID temperature control instrument, with timing, over-temperature alarm indication, temperature deviation correction, temperature control self-tuning and other functions.
Super large double-layer tempered glass observation window, convenient for observing the changes of items in the box.
Adopt new synthetic silicone sealing strips, beautiful appearance, long-term high temperature operation, longer service life.
The hot air circulation system adopts low-noise self-heating fan to ensure longer service life of the fan and more uniform temperature in the box. The equipment is equipped with a fan speed switch, and the user can adjust the wind speed according to needs.
LCD instrument, program control instrument, printer, 485 interface, and other functions (optional).
Drying Oven Specification:
| Model | HDO-45B | HDO-70B | HDO-140B | HDO-210B | HDO-240B |
| Capacity | 42L | 70L | 136L | 210L | 245L |
| Voltage/Frequency | 220V 50Hz; 110V 60Hz |
| Temperature Range | RT+10-300℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Uniformity | ±1℃ |
| Consumption (W) | 1000W | 1500W | 2000W | 3000W | 3000W |
| Internal Size (W×D×H)(mm) | 340×345×345 | 340×450×450 | 440×545×545 | 500×600×700 | 490×695×695 |
| External Size (W×D×H)(mm) | 465×650×525 | 510×750×620 | 570×850×725 | 660×900×870 | 615×1000×880 |
| Package Size (W×D×H)(mm) | 580×720×600 | 565×805×705 | 675×900×800 | 720×970×950 | 720×1050×950 |
| Shelves (Standard/Max) | 2/4 | 2/6 | 2/8 | 2/10 | 2/10 |
| Gross Weight | 41kg | 47kg | 64kg | 80kg | 87kg |
| Internal Material | Stainless steel |
Details of Drying Oven (HDO-210B):

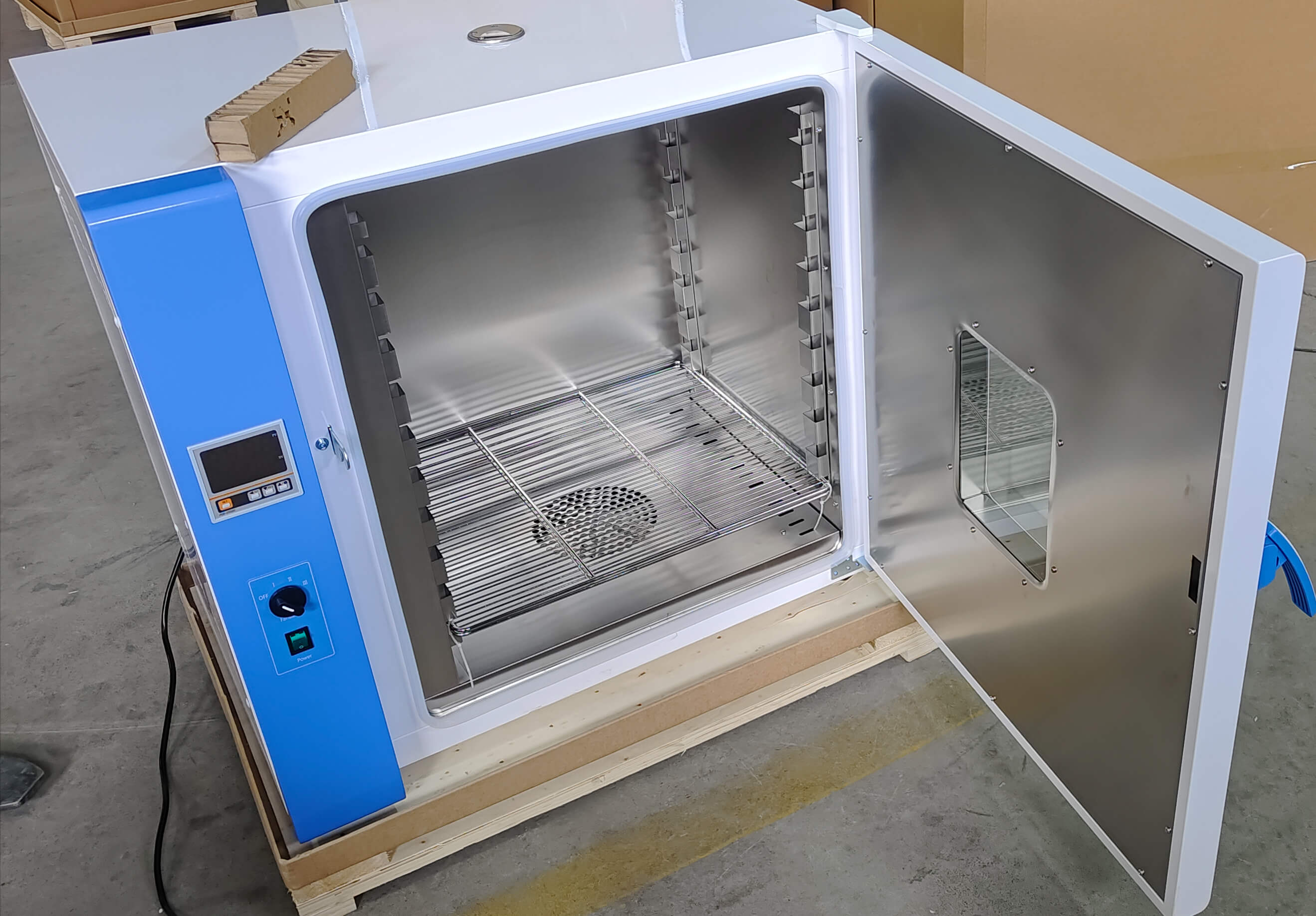

The inner cavity is made of stainless steel, with excellent corrosion resistance and easy to clean. The chamber is equipped with a transparent observation window, which makes it easy to check the status of the samples inside at any time, and the operation panel has a reasonable layout and precise temperature control.
The whole machine uses thick foam cotton to wrap the key parts for buffer protection. The outer layer is sealed in a reinforced wooden box to ensure pressure, shock and moisture resistance during transportation. Effectively avoid bumping and damage, to ensure that the equipment is delivered to the user in good condition.
