Temperature Range : -40 to -86 °C Temperature Display Accuracy : 0.1 °C Sensor : PT1000 Cooling Mode : Direct cooling Cooling Liquid : Green cooling liquids (R290/R170)
At the cutting edge of life science research, every door opening presents a test of sample security. Designed specifically for modern laboratories with high-frequency usage, the intelligent ULT freezer features a smart variable-frequency refrigeration compressor and employs a composite insulation structure that combines Vacuum Insulation Panel technology with high-pressure foaming of rigid polyurethane. While providing a secure and robust thermal defense for precious samples, it drastically minimizes cold loss, thereby achieving exceptional energy efficiency and power savings. The ultra low temperature freezer offers round-the-clock protection and ensures long-term, stable storage for your samples.
4. Intelligent computer temperature control system with digital temperature display.
5. LCD touch screen control system (UFZ-B series), real-time display of operating, set and ambient temperature, alarm statusand management, time and other parameter information .
6. Multiple security safeguards: face recognition + fingerprint recognition + NFC card recognition + passwordrecognition, equipped with electric plug lock (UFZ-B series).
7. Universal casters with locking feet design, easy and fast to move and fix.
8. Having obtained multiple international certifications, including ISO 9001, 13485, 14001, and 45001, support scientific research and clinical practice with reliable quality.

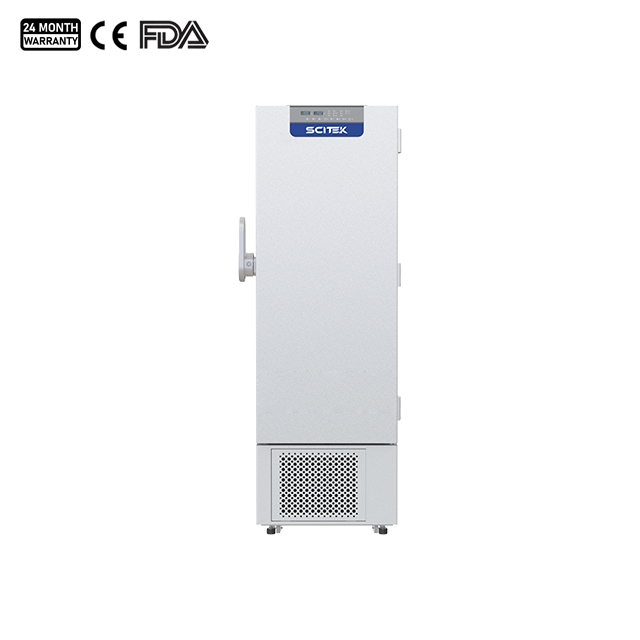

ULT Freezer Specification:
Model
UFZ-86V420EB
UFZ-86V430B/BP
UFZ-86V590B/BP
UFZ-86V860B/BP
Capacity (L)
420
425
585
860
Temperature Range
-40 to -86 °C
Temperature Display Accuracy
0.1 °C
Sensor
PT1000
Cooling Mode
Direct cooling
Cooling Liquid
Green cooling liquids (R290/R170)
Defrost Mode
Manual defrost
Compressor Qty
2
Stainless Steel Shelve
3
Inner Door
4
Rack
12 (5×5)
16 (5×5)
24 (5×5)
Storage Capacity (2 Inches Boxe)
300
400
600
Samples (2 mL)
30000
40000
60000
Consumption (W)
650
650
700
Daily Power Consumption (W)
7.85
8.05
9.45
Noise (dB)
39
39
42
Power Supply
220/110 V, 50/60 Hz
Display
Digital tube display
10.1-inch touch screen
Inside Material
SUS304
Outside Material
Zinc-iron alloy spray coating
Alarm
High/low temperature, Power failure, Abnormal voltage, Sensor error, Filter screen check, Thermostat failure, Low battery, Condenser clean, High ambient temperature, Door ajar, 24 h Power failure alarm (For controller)
Exterior Size (W×D×H)(mm)
750×988×1987
750×988×1987
900×988×1987
1172×988×1987
Package Size (W×D×H)(mm)
832×1110×2150
832×1110×2150
990×1110×2150
1254×1110×2150
Accessory
4 pcs Castor;
4 pcs Castor;
2/25mm Test hole QTY/diameter;
2/25mm Test hole QTY/diameter;
USB port;
USB port;
/
Chart recorder;
Data logger;
Data logger;
Remote alarm port;
Remote alarm port;
Optional Accessory
RS485 port;
CO2 back up system;
LN2 back up system;
N.W./G.W.（Kg)
292/332
292/332
325/370
380/436

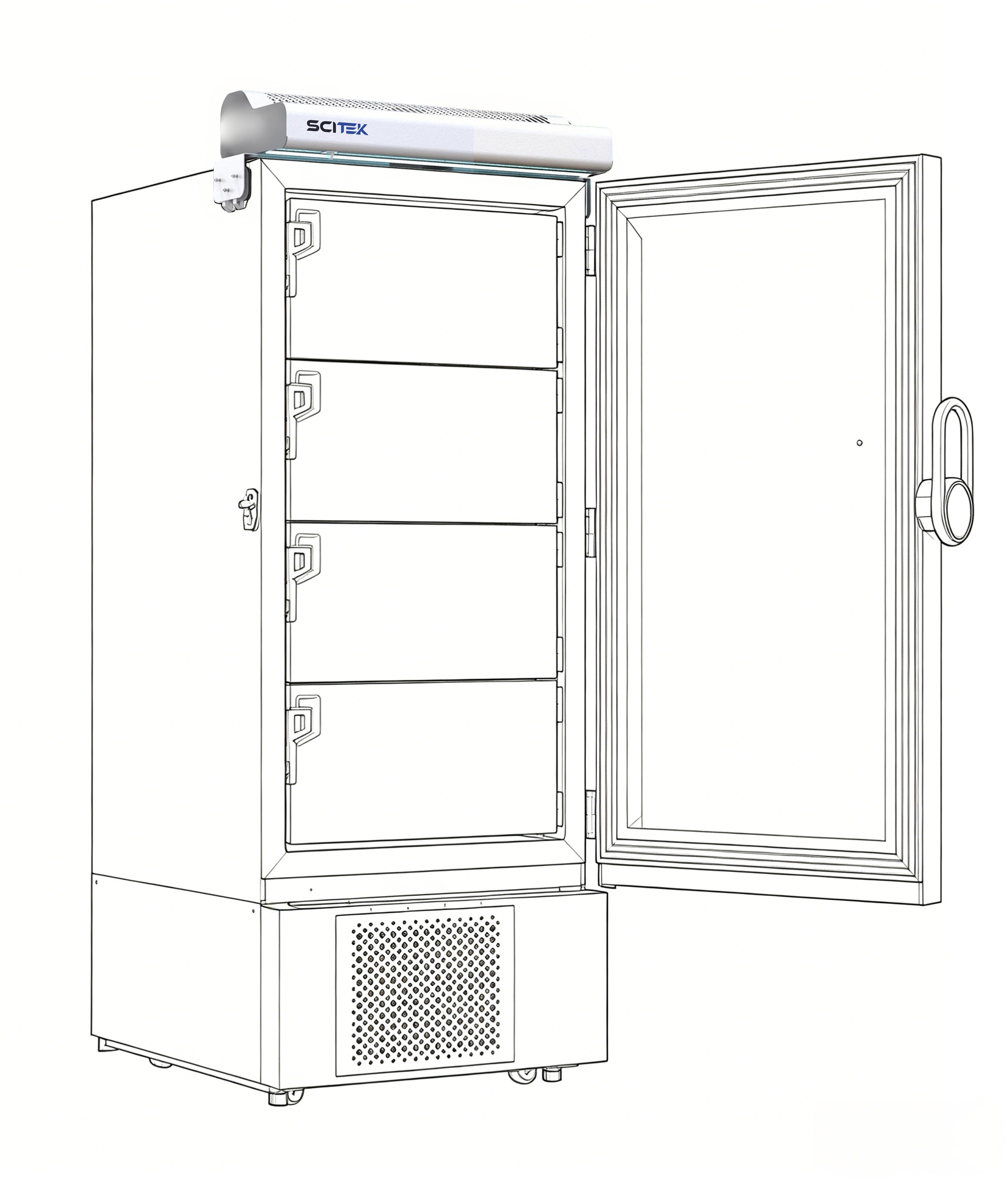

Q: Why do we recommend using an "Automatic Defroster" instead of traditional manual defrosting?
A:Traditional manual defrosting methods expose your laboratory to significant hidden risks and costs—such as the risk of sample exposure, potential physical damage to equipment, and high time costs. SCITEK’s innovative Automatic Defroster revolutionize the traditional reactive cleaning approach, fundamentally eliminating these hazards and ensuring the integrity and safety of stored samples.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
