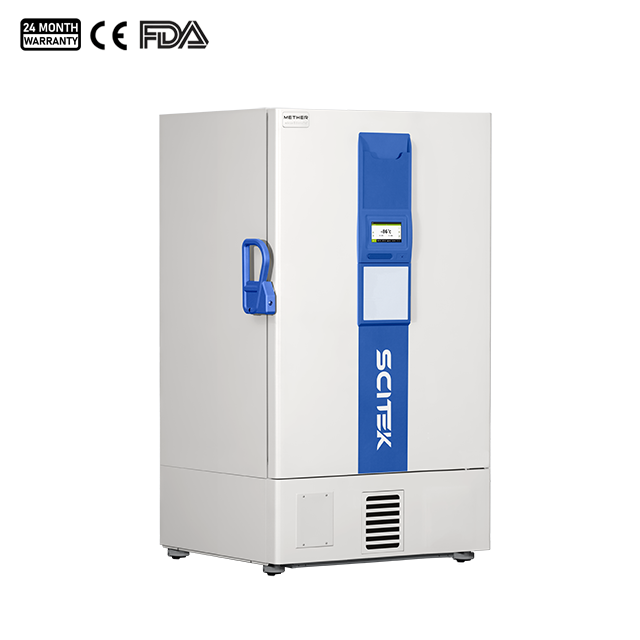

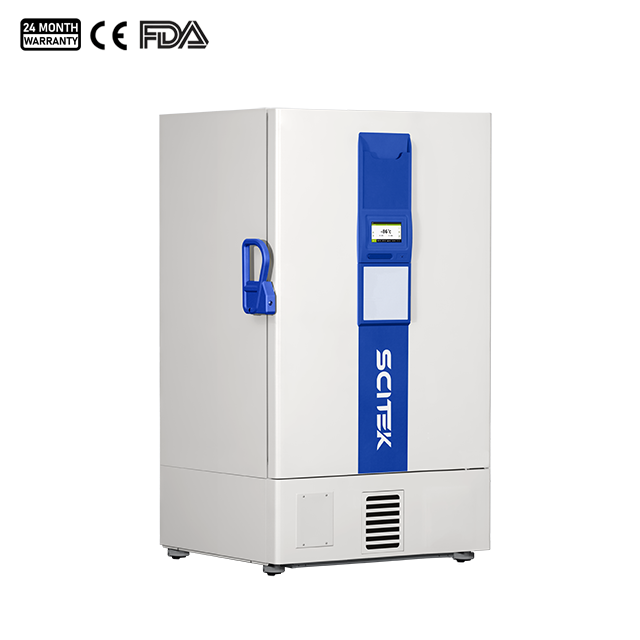

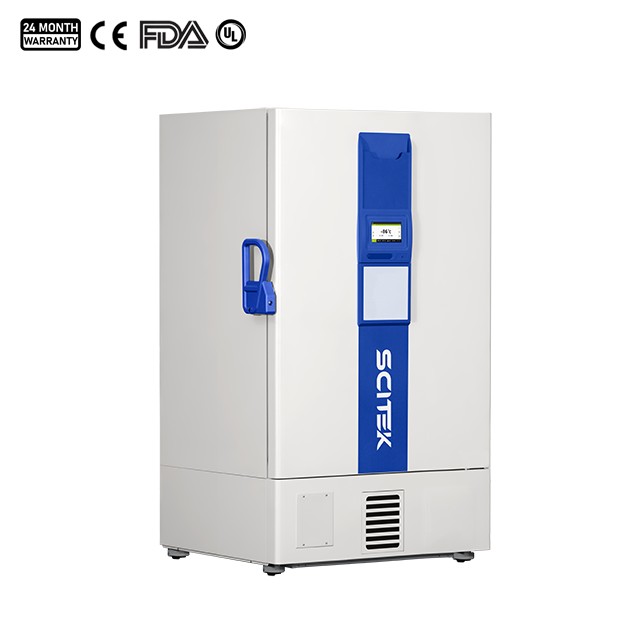

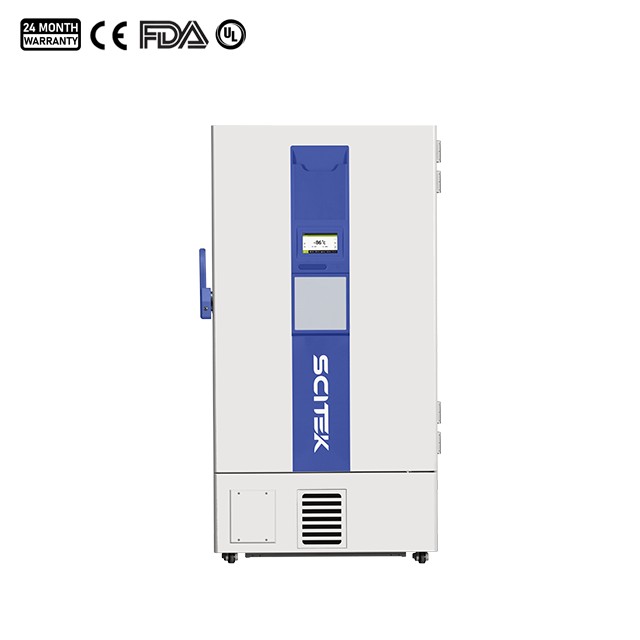

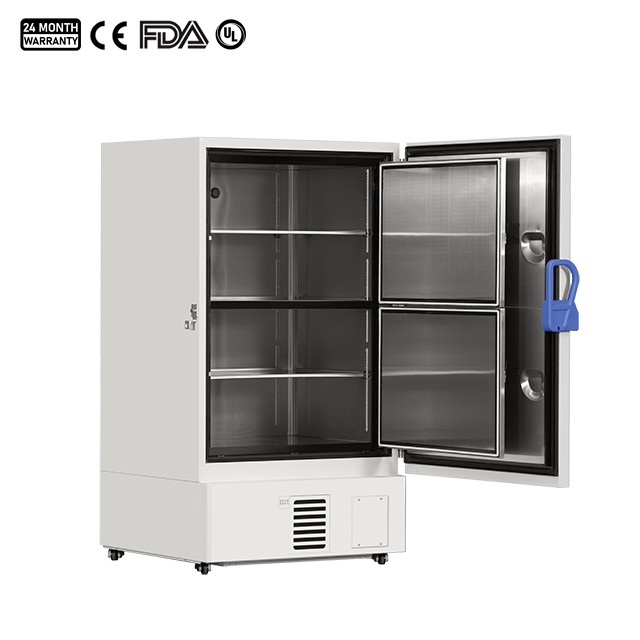

-86°C Ultra Low Temperature Freezer, Manual Defrost

Model : UFZ-86V340; UFZ-86V410; UFZ-86V590; UFZ-86V730; UFZ-86V840

Capacity (L) : 338 / 408 / 588 / 728 / 838
Temperature Range (℃) at RT.10~32℃ : -40~-86
Shelves / Drawers (Qty) : 3 Shelves/ 3 Shelves / 3 Shelves / 3 Shelves / 3 Shelves
Ideal for storing non-critical products such as media, reagents and proteins for the demanding daily use of research, clinical and industrial laboratories.
Availability:
Quantity:
Inquiry Add to Inquiry List

Ultra Low Temperature Freezer Specifications:

Model UFZ-86V340 UFZ-86V410 UFZ-86V590 UFZ-86V730 UFZ-86V840
Capacity (L) 338 408 588 728 838
Size (WxDxH) (mm) Internal 488x607x1140 606x575x1180 606x738x1310 963x571x1350 894x718x1310
External 854x1072x1907 891x992x1945 891x1155x1994 1248x975x1994 1179x1135x1994
Temperature Range (℃) at RT.10~32℃ -40~-86 -40~-86 -40~-86 -40~-86 -40~-86
Sensor PTC PTC PTC PTC PTC
Controller Microprocessor Microprocessor Microprocessor Microprocessor Microprocessor
Cooling System Refrigerant HC(CFC Free) HC(CFC Free) HC(CFC Free) HC(CFC Free) HC(CFC Free)
Defrost Manual Manual Manual Manual Manual
Compressor (Qty) SECOP/2 SECOP/2 SECOP/2 SECOP/2 SECOP/2
Display LCD display LCD display LCD display LCD display LCD display
Audible & Visible Alarm High/Low temperature, High ambient temperature, Sensor error, Abnormal voltage, Low battery, Door ajar, 72h Power failure backup system(alarm)
Material Internal Stainless steel, grade 304
External Electro-galvanized steel with antimicrobial powder coating
Inner Door Stainless steel, grade 304
Accessories Standard USB port, Casters, Remote alarm port, 25 Test hole
Optional Data logger, Back up system (CO₂/LN₂)
Chart Recorder Optional Optional Optional Optional Optional
Shelves / Drawers (Qty) Shelves/3 Shelves/3 Shelves/3 Shelves/3 Shelves/3
Optional Frozen Racks (Qty) Racks 12(4x4) 8(5x4)+8(4x4) 16(5x5) 18(5x4)+6(6x4) 24(5x5)
Boxes (2 Inches) 192 288 400 504 600
Samples (2ml) 19200 28800 40000 50400 60000
Sound Emission (dB) 50 50 53 53 53
Electricity Voltage / Frequency AC110/220V±10%, 50/60Hz
Consumption 14.13KWh/24h 16.21KWh/24h 14.95KWh/24h 15.99KWh/24h 17.07KWh/24h
N.W./G.W. (Kg) 286/306 292/317 307/368 360/401 397/430
Shipping Size (WxDxH) (mm) 950x1080x2190 954x955x2094 970x1138x2185 1320x970x2185 1262x1098x2185

Ultra Low Temperature Freezer Features:

  1. Accurate microprocessor-controlled system ensures temperature range of -86℃ to -40℃ for chamber space with 1℃ increment.

  2. Powerful cooling system with unique design supports rapidly temperature decrease.

  3. Safety inner door design gives more tight seal for freezer. Allow users to suit needs together with adjustable shelves.

  4. Chamber material made by 304 stainless steel for friendly cleaning.


Reliability

  1. Safety password protected control panel prevents unauthorized system modification.

  2. Audible buzzer and visible flashing temperature alarm system for high/low temperature, sensor error, thermostat failure alarm, power failure alarm, door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm.

  3. Door lock for storage safety.


Ergonomic Design

  1. Upright door with limit door hinge prevents collision when door opens.

  2. Controller password protected to avoid unauthorized system modification.

  3. Lockable universal caster wheels for easy moving.

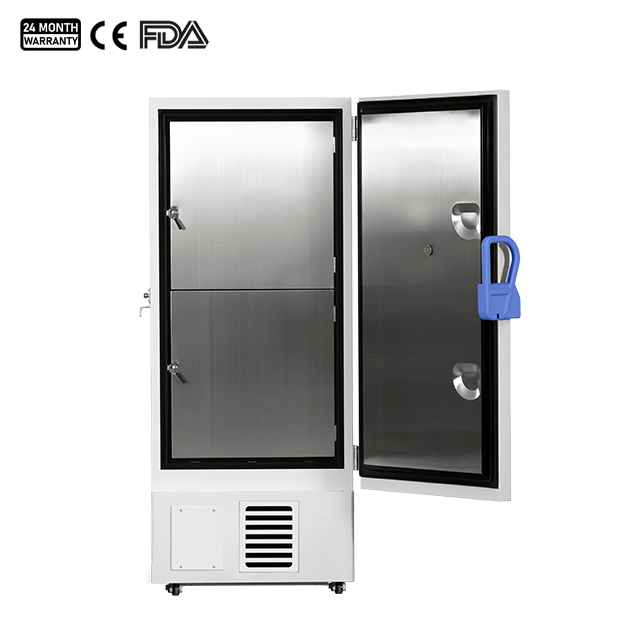

  4. Removable inner door for user to defrost and clean.

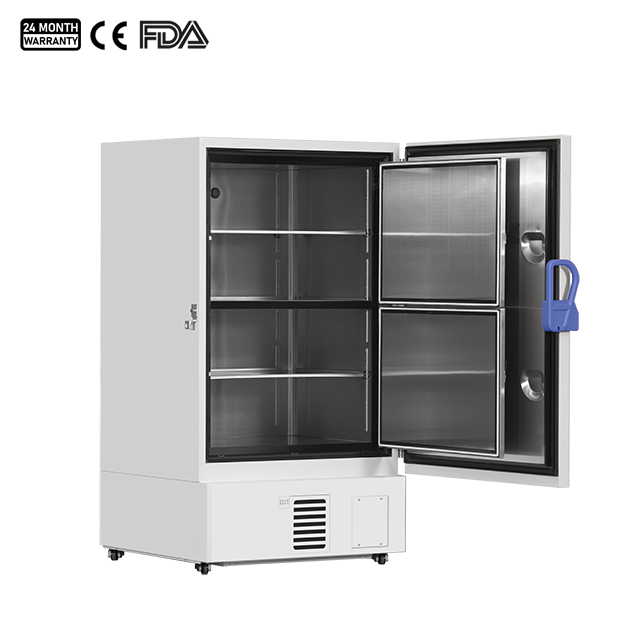

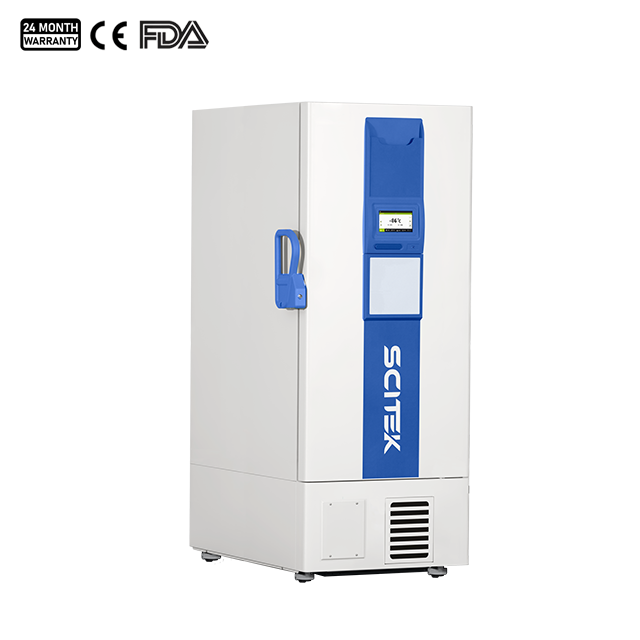

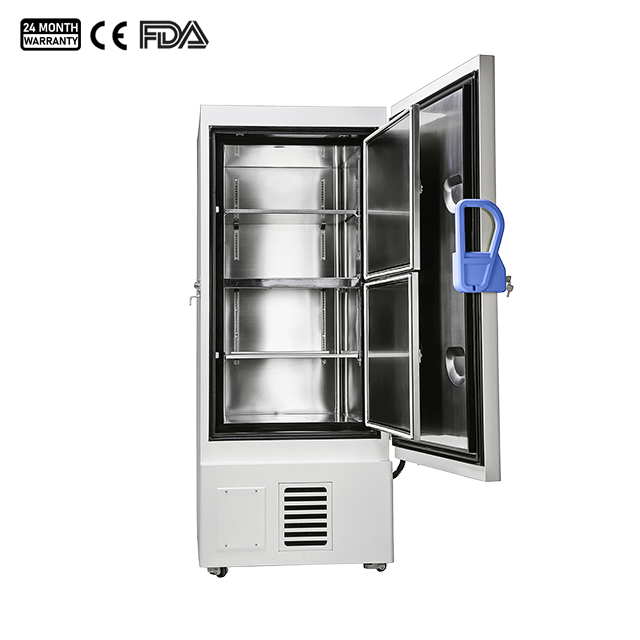

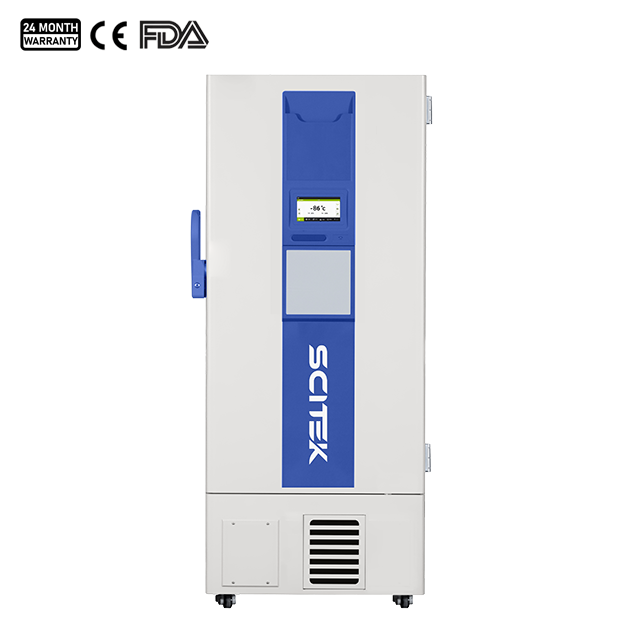

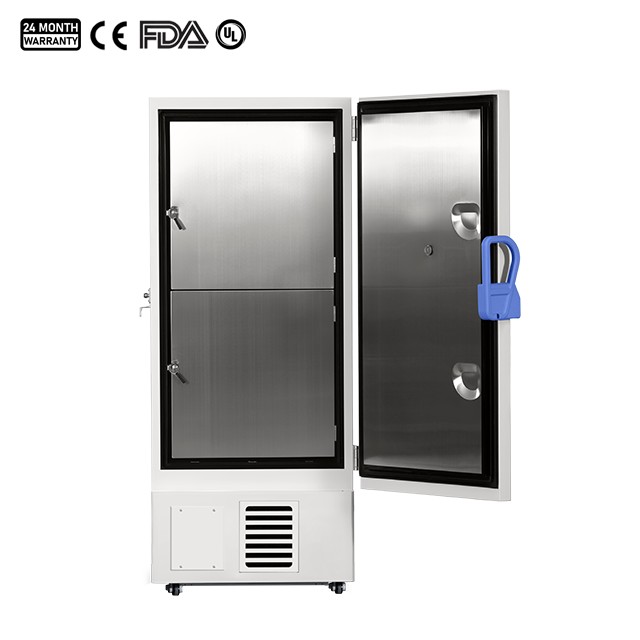

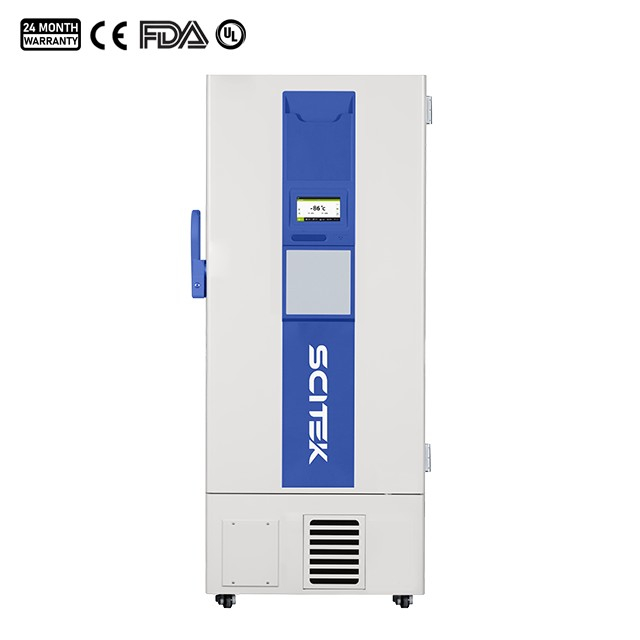

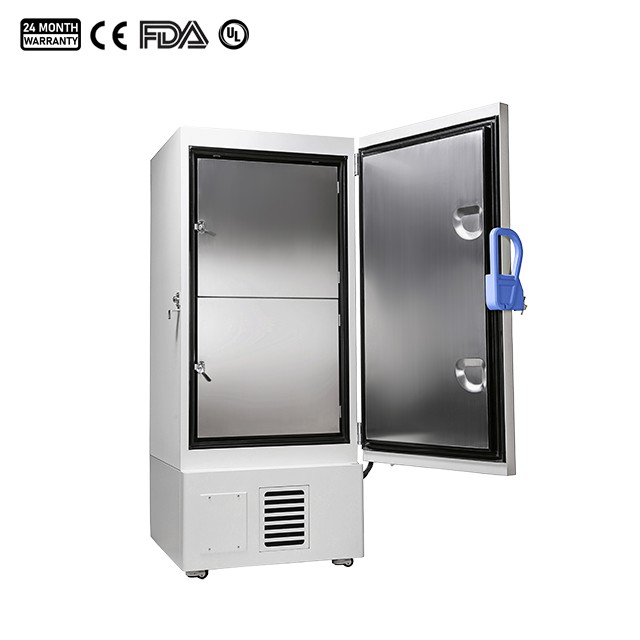

Details of Ultra Low Temperature Freezer(UFZ-86V590):

Ultra Low Temperature Freezer

UFZ-86V590 (2)

UFZ-86V590 (14)

Ultra Low Temperature Freezer

Ultra Low cold Freezer

UFZ-86V590 (6)

UFZ-86V590 (7)

Ultra Low Temperature Freezer package
