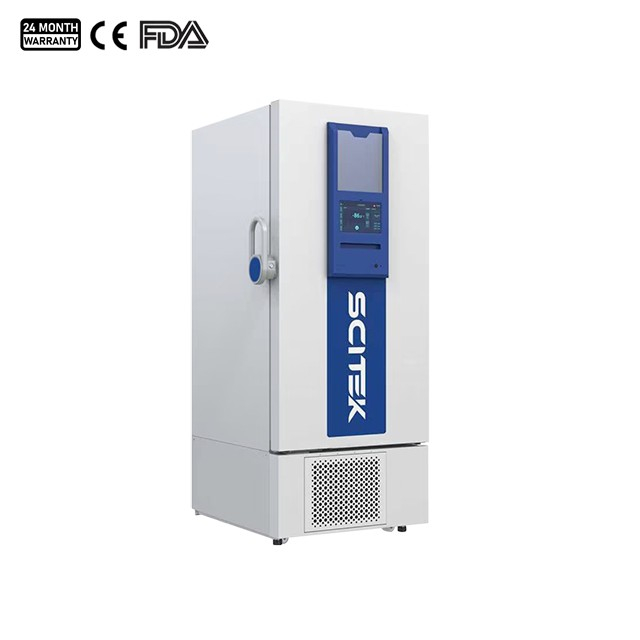

Blast Freezer

Model: PQF-420; PQF-590; PQF-860

Capacity : 425; 585; 860
Temperature Range : -40 to -86 °C
Sensor : PT1000
Temperature Controller : Electronic
Cooling Mode : Forced air
Availability:
Quantity:

The plasma blast freezer, also known as a plasma freezer or blast freezer, is a groundbreaking sample preparation device designed for the rapid freezing and preservation of active components such as plasma, vaccines and biological samples. It is tailored to meet the specific requirements of various settings, including plasma collection centers, hospital blood transfusion departments, CDC vaccine storage facilities, and laboratories requiring long-term sample preservation. Complying with GMP regulations and performing reliably in high-temperature, high-humidity environments.

Plasma Blast Freezer Feature:

  1. Forced-air cooling system, two compressors, and PT1000 sensors for precise temperature control, it maximises the preservation of sample viability.

  2. A VIP vacuum insulation panel combined with rigid thermal insulation delivers exceptional thermal performance. corrosion-resistant US304 interior, easy to clean.

  3. The stainless steel interior is corrosion-resistant and easy to clean.

  4. Multiple layers of protection, supports a power-on delay function to prevent accidental operation and eliminate potential safety hazards.

  5. Eco-friendly, pollution-free refrigerants, average daily power consumption 7.85–9.45 W, striking a balance between energy efficiency and operational comfort.

Plasma Blast Freezer Specification:

Model PQF-420 PQF-590 PQF-860
Capacity 425 585 860
Temperature Range -40 to -86 °C
Sensor PT1000
Temperature Controller Electronic
Cooling Mode Forced air
Cooling Liquid Green cooling liquids (R290/R170)
Compressor Qty 2 pcs
Shelf/Drawer Qty 3  pcs
Refrigerant Weight (g) 178 196 320
Consumption (W) 650 650 700
Daily Power Consumption  (W) 7.85 8.05 9.45
Noise 45 dB
Display Digital temperature display
Inside Material SUS304
Outside Material Zinc-iron alloy with spray coating
Alarm High/Low Temperature; Sensor Error;Door Ajar;
Power Supply 220/110 V, 50/60 Hz
Exterior Size (W×D×H) 750×988×2187 mm 900×988×2190 1172×988×1987
Package Size (W×D×H) 840×1120×2280 mm 990×1110×2380 1254×1110×2400
Accessory 4 pcs Caster; 2 pcs Foot; PadlockAdapter Kit; Built-in Key Door Lock;
N.W./G.W. 365/ 405 kg 410/455 kg 480/ 536

Q: Why do we recommend using an "Automatic Defroster" instead of traditional manual defrosting?

A:Traditional manual defrosting methods expose your laboratory to significant hidden risks and costs—such as the risk of sample exposure, potential physical damage to equipment, and high time costs. SCITEK’s innovative Automatic Defroster revolutionize the traditional reactive cleaning approach, fundamentally eliminating these hazards and ensuring the integrity and safety of stored samples.

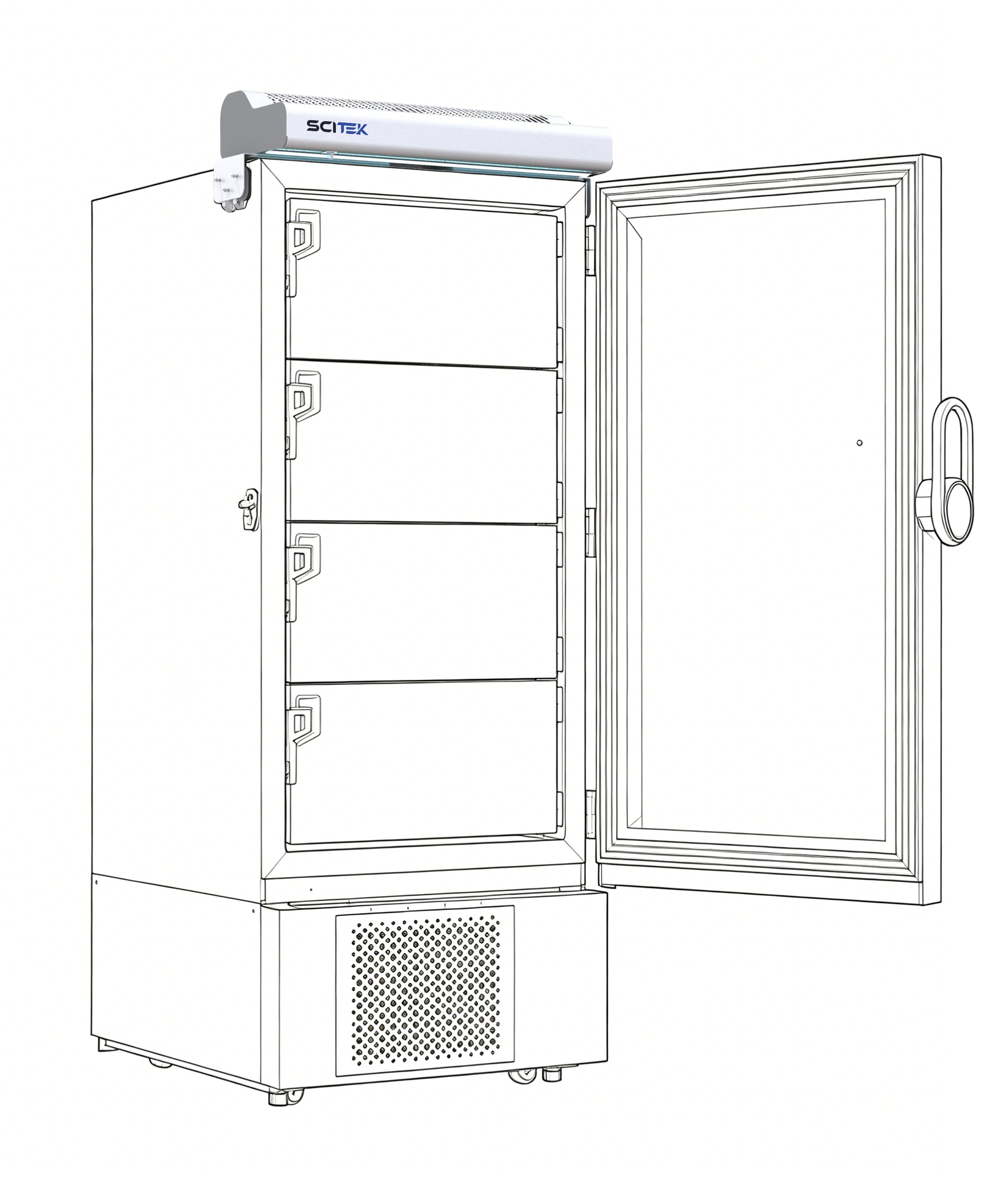

Application

Detail of -86°C Freezer:

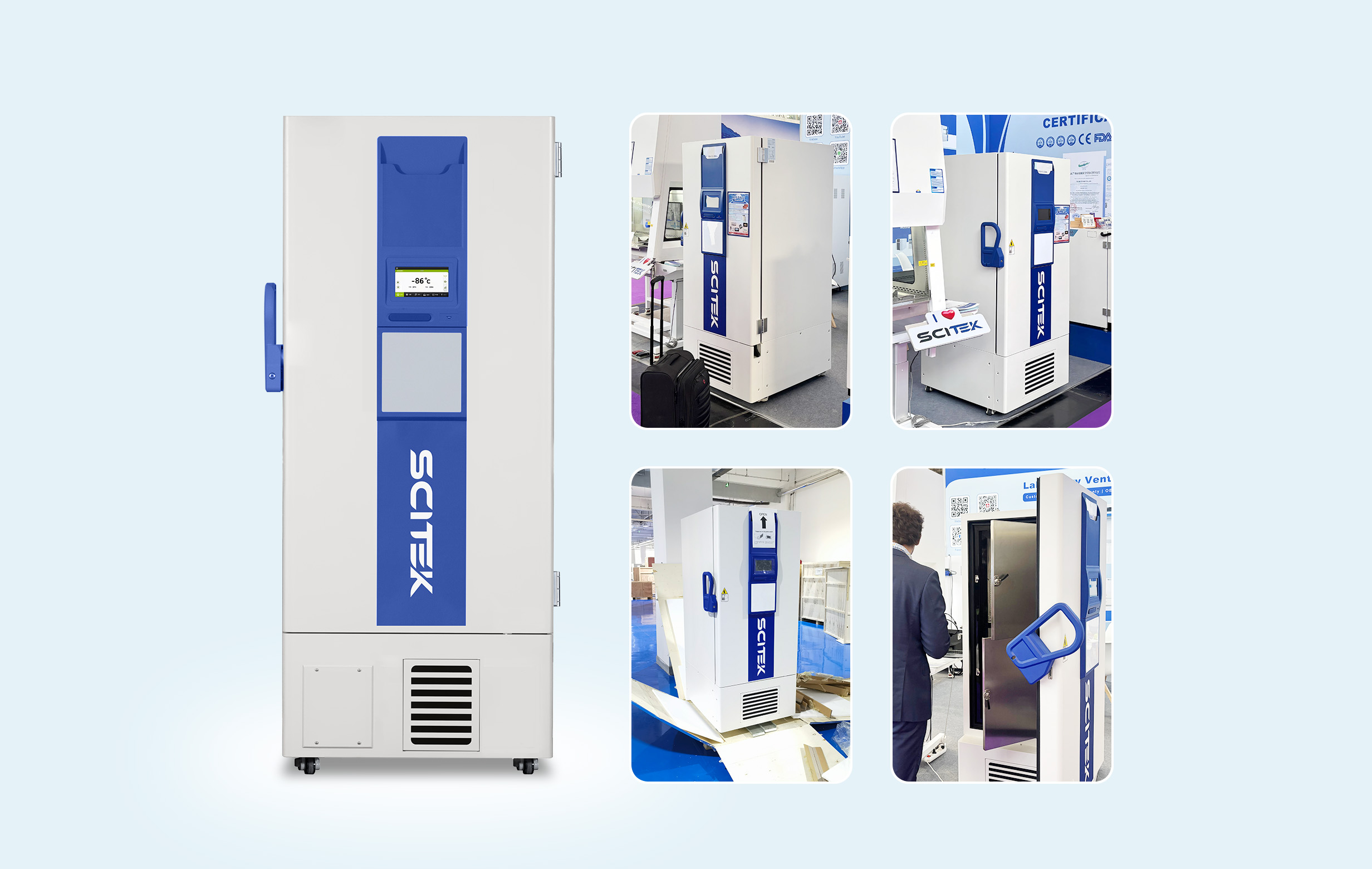

Application 2
