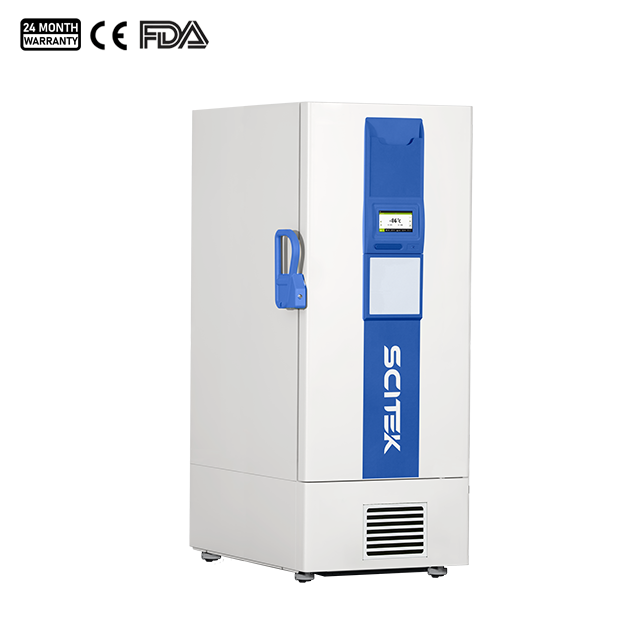

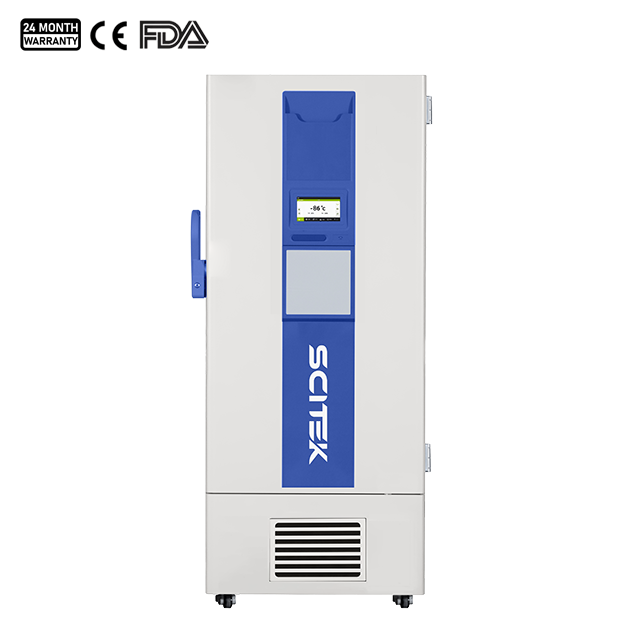

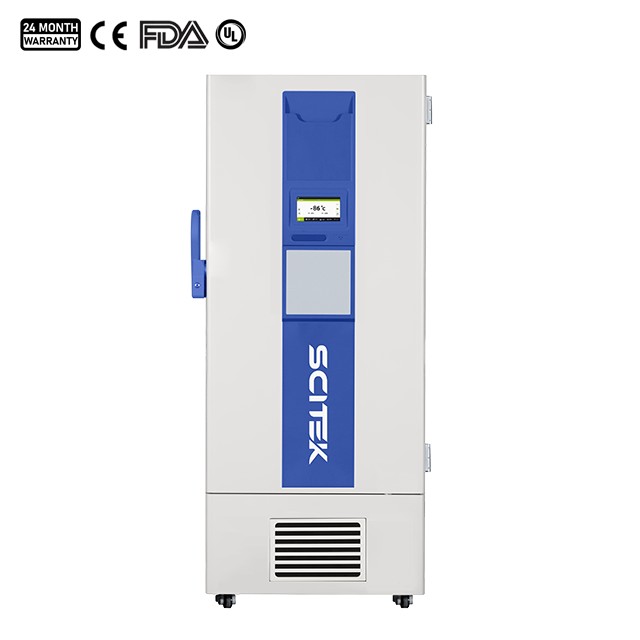

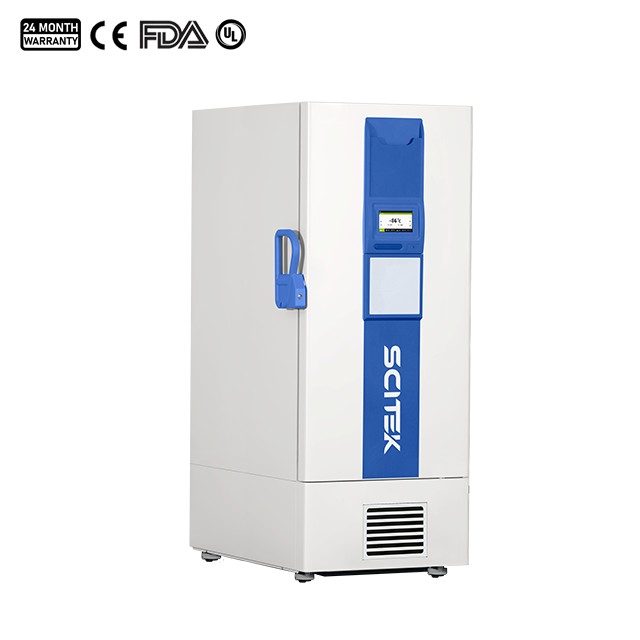

-86°C Ultra Low Temperature Freezer, Dual System

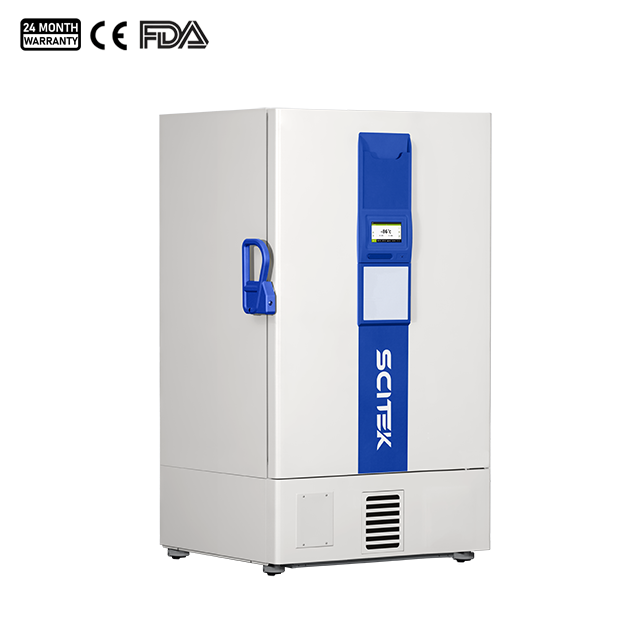

Model : UFZ-86V410P; UFZ-86V590P; UFZ-86V730P; UFZ-86V840P

Capacity (L) : 408 / 588 / 728 / 838
Internal Size (mm) : 606x575x1180 / 606x738x1310 / 963x571x1350 / 894x718x1310
Shelves / Drawers (Qty) : 3 Shelves / 3 Shelves / 3 Shelves / 3 Shelves
Temperature Range (℃) at RT.10~32℃ : -40~-86
Vertical ultra cold freezer with digital controls and excellent temperature stability for routine laboratory storage requirements.
Availability:
Quantity:

Ultra Low Temperature Freezer Specifications:

Model UFZ-86V410P UFZ-86V590P UFZ-86V730P UFZ-86V840P
Capacity (L) 408 588 728 838
Size(WxDxH)(mm) Internal 606×575×1180 606×738×1310 963×571×1350 894×718×1310
External 891×992×1945 891×1155×1994 1248×975×1994 1179×1135×1994
Temperature Range (℃) at Room Temperature 10~32℃ -40 to -86 -40 to -86 -40 to -86 -40 to -86
Sensor PTC PTC PTC PTC
Controller Microprocessor Microprocessor Microprocessor Microprocessor
Cooling System Refrigerant R4001 (CFC Free) R4001 (CFC Free) R4001 (CFC Free) R4001 (CFC Free)
Defrost Manual Manual Manual Manual
Compressor (Qty) SECOP/2 SECOP/2 SECOP/2 SECOP/2
Display LCD display LCD display LCD display LCD display
Audible & Visible Alarm High/Low temperature, high ambient temperature, sensor error, abnormal voltage, low battery, door ajar, 72h power failure backup system (alarm)
Material Internal Stainless steel, grade 304
External Electro-galvanized steel with antimicrobial powder coating
Inner Door Stainless steel, grade 304
Accessories Standard USB port, casters, remote alarm port, 25mm test hole
Optional Data logger, back up system (CO₂/LN₂)
Shelves / Drawers (Qty) Shelves/3 Shelves/3 Shelves/3 Shelves/3

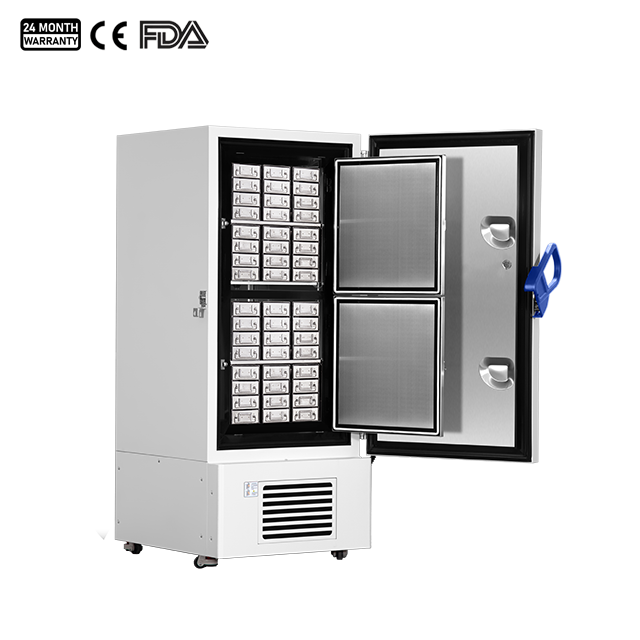

Optional Frozen Racks (Qty) Racks 8(5x4)+8(4x4) 16(5x5) 18(5x4)+6(6x4) 24(5x5)
Boxes (2 Inches) 288 400 504 600
Samples (2ml) 28800 40000 50400 60000
Sound Emission (dB) 53 53 55 55
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 1350 1500 1400 1700
N.W./G.W. (kg) 285/310 303/332 380/400 391/424
Shipping Size (W×D×H)(mm) 954×955×2094 970×1138×2185 1320×970×2185 1262×1098×2185

Ultra Low Temperature Freezer Feature:

  1. There is an added layer of security through the implementation of two separate cooling systems. Once one system fails, the other can effectively sustain an inner temperature of -70℃.

  2. Accurate microprocessor-controlled system ensures temperature rage of -86℃ to -40℃ for chamber space with 1℃ increment.

  3. Powerful cooling system with unique design supports rapidly temperature decrease.

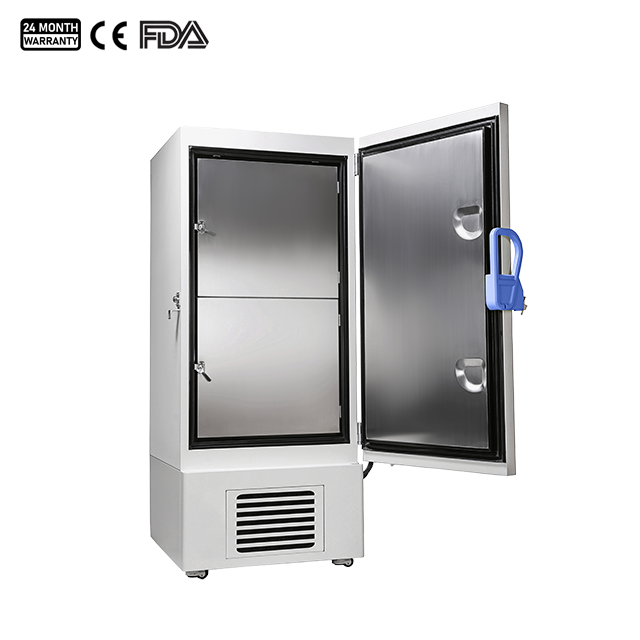

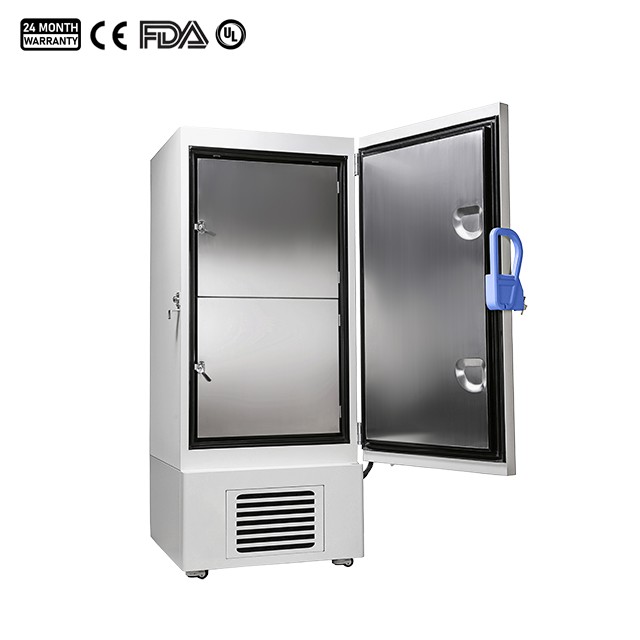

  4. Safety inner door design gives more tight seal for freezer. Allow users to suit needs together with adjustable shelves.

  5. Chamber material made by 304 stainless steel for friendly cleaning.


Reliability

  1. Safety password protected control panel prevents unauthorized system modification.

  2. Audible buzzer and visible flashing temperature alarm system for high/low temperature, sensor error, thermostat failure alarm, power failure alarm, door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm

  3. Door lock for storage safety


Ergonomic Design

  1. Upright door with limit door hinge prevents collision when door opens.

  2. Controller password protected to avoid unauthorized system modification.

  3. Lockable universal caster wheels for easy moving.

  4. Removable inner door for user to defrost and clean.

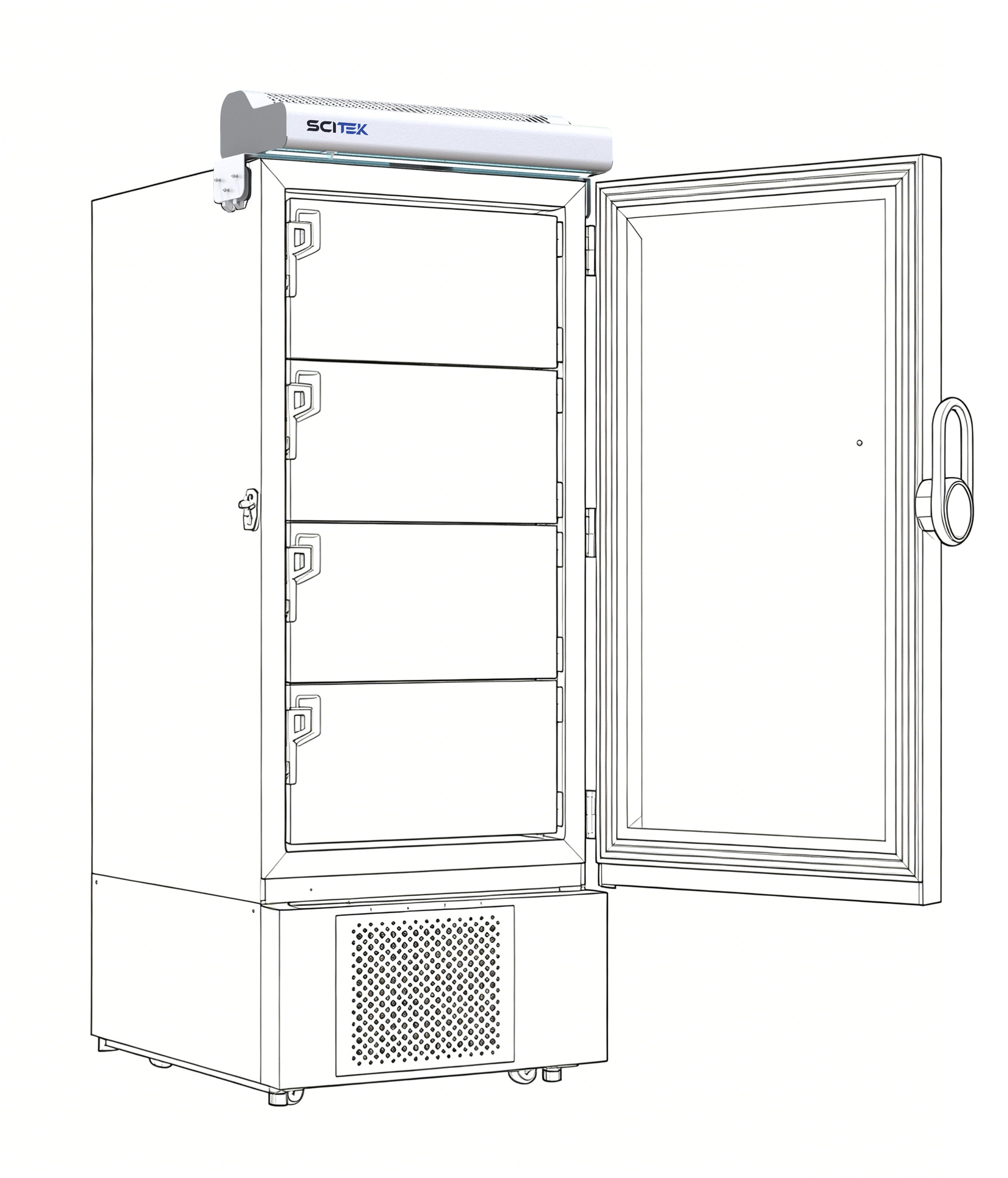

Q: Why do we recommend using an "Automatic Defroster" instead of traditional manual defrosting?

A:Traditional manual defrosting methods expose your laboratory to significant hidden risks and costs—such as the risk of sample exposure, potential physical damage to equipment, and high time costs. SCITEK’s innovative Automatic Defroster revolutionize the traditional reactive cleaning approach, fundamentally eliminating these hazards and ensuring the integrity and safety of stored samples.

Application

Detail of -86°C ULT Freezer:

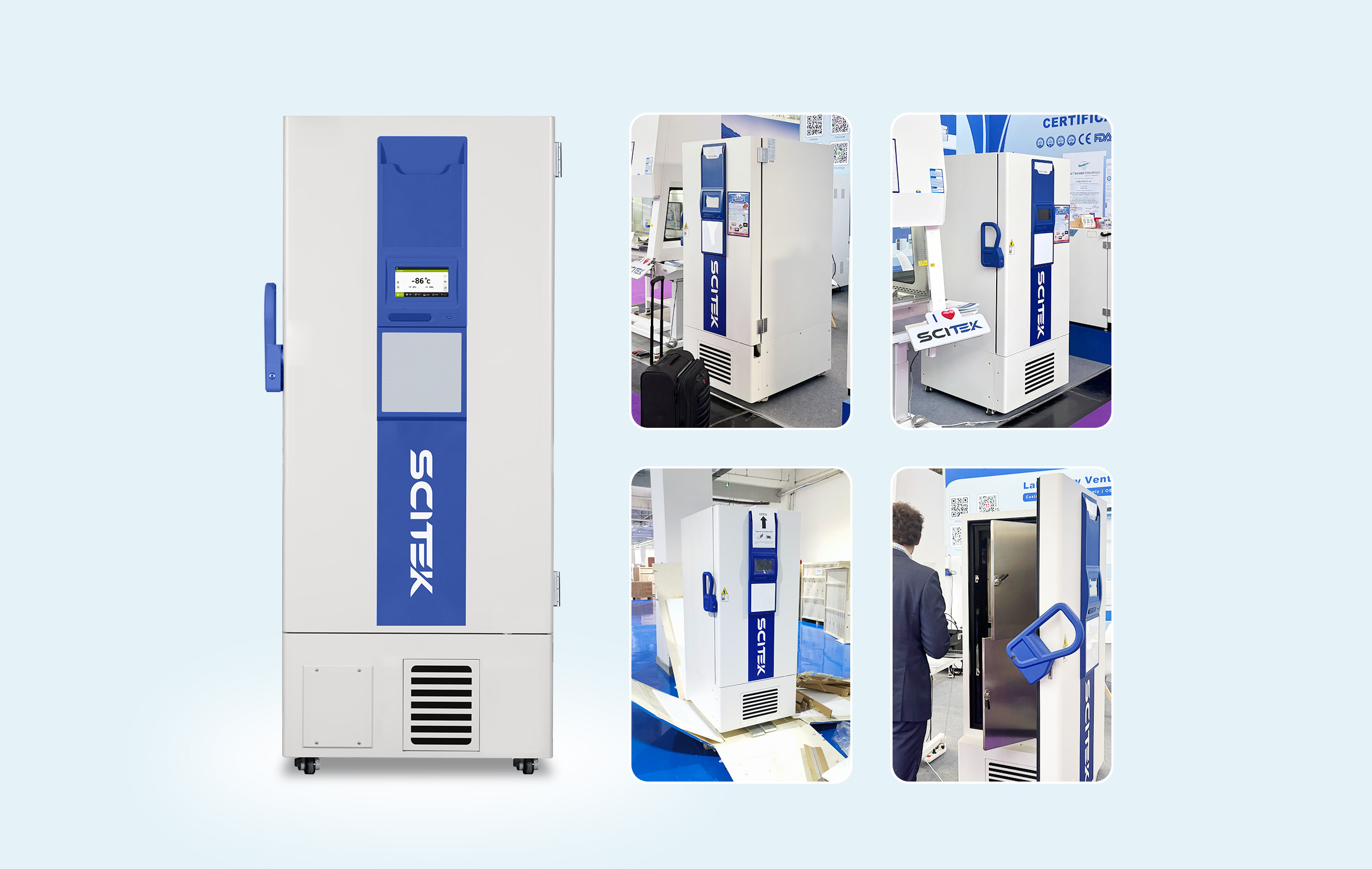

Application 2
