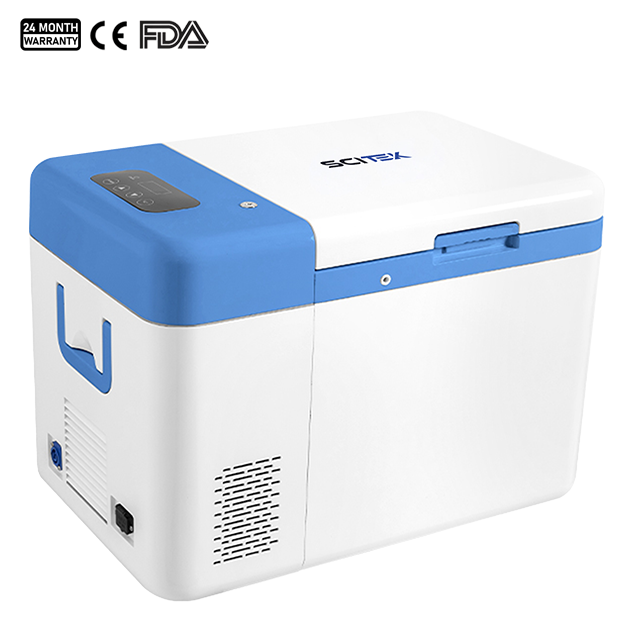

Portable Ultra-low Temperature Freezer

Model : FZ-45P25; FZ-60P25; UFZ-86P25; UFZ-120P02

Cooling Engine : Free Piston Stirling Cooler
Refrigerant : Helium (He)
Heat Transport System : Gravity Driven Thermosiphon Direct Cooling
External Sizes(W×D×H)(mm) : 616x392x455 245x246x450
The portable ultra-low temperature freezer employs military-grade Stirling refrigeration technology, functioning as a mobile, small-scale cold storage unit.
Availability:
Quantity:
Inquiry Add to Inquiry List

Portable Ultra-low Temperature Freezer Specifications:

ModelFZ-45P25FZ-60P25UFZ-86P25UFZ-120P02
Storage Capacity25L25L25L2L
Cooling EngineFree Piston Stirling Cooler
RefrigerantHelium (He)
Heat Transport SystemGravity Driven ThermosiphonDirect Cooling
Temperature Range18℃ to -45℃18℃ to -60℃18℃ to -86℃18℃ to -120℃
Performance DataTake 1.5 hours from 25℃ to -45℃Take 2.5 hours from 25℃ to -60℃Take 3.5 hours from 25℃ to -80℃Take 2 hours from 25℃ to -120℃
Ambient temperature is 25°C; Empty Cabinet
Environmental ConditionNon-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m (Temperature 5°C to 35°C, maximum relative humidity 80%)
Temperature Control CapabilityTarget temperature ±1°CTarget temperature ±1°CTarget temperature ±2°CTarget temperature ±1°C
Stable State Energy Consumption30W40W75W70W
Ambient temperature is 25°C
InsulationHigh performance vacuum insulated panels, polyurethane foamHigh performance polyurethane foam
Insulation Layer Inner Liner MaterialFood-grade sus304
Noise＜50dB＜55dB
Control SensorOne RTD(PT100 Class B), precision±0.3
SecurityLockable Lid
Warm and Cold AlarmsSetpoint ±10°C
Defrost MethodManual
Electric Power100V AC to 240V AC; 50Hz, 60Hz; 12V DC to 24V DC
Internal Size (W×D×H)(mm)300×250×300160×160×80
External Size (W×D×H)(mm)616×392×455245×246×450
Shipping Size (W×D×H)(mm)710×480×530390×400×550
N.W./G.W. (kg)17.5/2111/16

Portable Ultra-low Temperature Freezer Features:

  1. Wide temperature range application (from 25°C to -86°C )

  2. Precision temperature control

  3. Uniform internal temperature (temperature difference at various points within ±1°C)

  4. High efficiency and energy saving

  5. Compatible with multiple power sources

  6. Easy to operate and maintain

  7. Compact and lightweight (19 kg)

  8. Uses 100% natural refrigerants, supporting sustainable and environmentally friendly operation

Application of Portable Ultra-low Temperature Freezer:

The portable ultra-low freezer utilizes military-grade Stirling refrigeration technology and serves as a movable small-scale cold storage unit. This product is dedicated to laboratory ultra-low temperature storage and transport, industrial extreme environment simulation testing, pharmaceutical cold chain transport, biological sample storage, life sciences cold chain logistics, clinical medical support, outdoor camping, and high-end ingredient freshness preservation.
