Electrophoresis power supply (EPS) is a key piece of equipment used in the laboratory to provide a stable electric field. As a power source for electrophoresis experiments the EPS-600C electrophoresis power supply has a variety of functions and features. Its main role is to provide the necessary electric field for sample separation and positioning in gel electrophoresis experiments by regulating voltage and current. It is also equipped with a number of safety features to ensure the safety of the equipment and the operator during the experiment.
Electrophoresis Power Supply Specifications:
| Model | EPS-600C |
| Parallel Output | 4 groups |
| Timing | 1 minute~99 hours and 59 minutes |
| Testing Temperature | -20℃~+85℃ |
| Input Range | 110-250V is suitable for different countries and regions |
| Output Range | 5-600V(1V), 1-600mA(1mA), 5-300W (1W) |
| Output Range | Constant voltage, constant current and constant power are continuously adjustable, stable and reliable |
| Resolution | Voltage (1V), current (1mA) and power (1W) |
| Sizes (W×D×H)(mm) | 300×300×130 |
| Shipping Size(W×D×H)(mm) | 530x360x320 |
| N.W./G.W. (kg) | 2.5/3.7 |
Electrophoresis Power Supply Features:
Suitable for SSR, nucleofection, transfer, protein, bidirectional, isoelectric point focusing, and other electrophoresis experiments.
A high current can connect four electrophoresis tanks at the same time
Constant current, constant pressure and constant power are continuously adjustable to ensure stable and reliable performance of the equipment.
10 programs can be edited and saved and can run each program in 10 steps.
Over-current, over-load, over-temperature, no-load, short-circuit, and sudden load change protection functions.
Electrophoresis power supply is suitable for different input voltages worldwide and supports many kinds of electrophoresis experiments such as horizontal, vertical and blot transfer.
7-inch large touch screen automatically generates a numeric keypad when setting and displays a clock, temperature, operation status and various prompts for operation.
When constant voltage, current and power in a certain indicator, the other two automatically rise to the maximum value without human adjustment.
Details of Electrophoresis Power Supply:
The sleek, user-friendly interface features a bright digital display for real-time monitoring of voltage, current, and power output. Intuitive knob controls and preset memory buttons allow quick adjustments, while LED indicators confirm operation status. The sturdy metal casing ensures durability in busy lab environments.

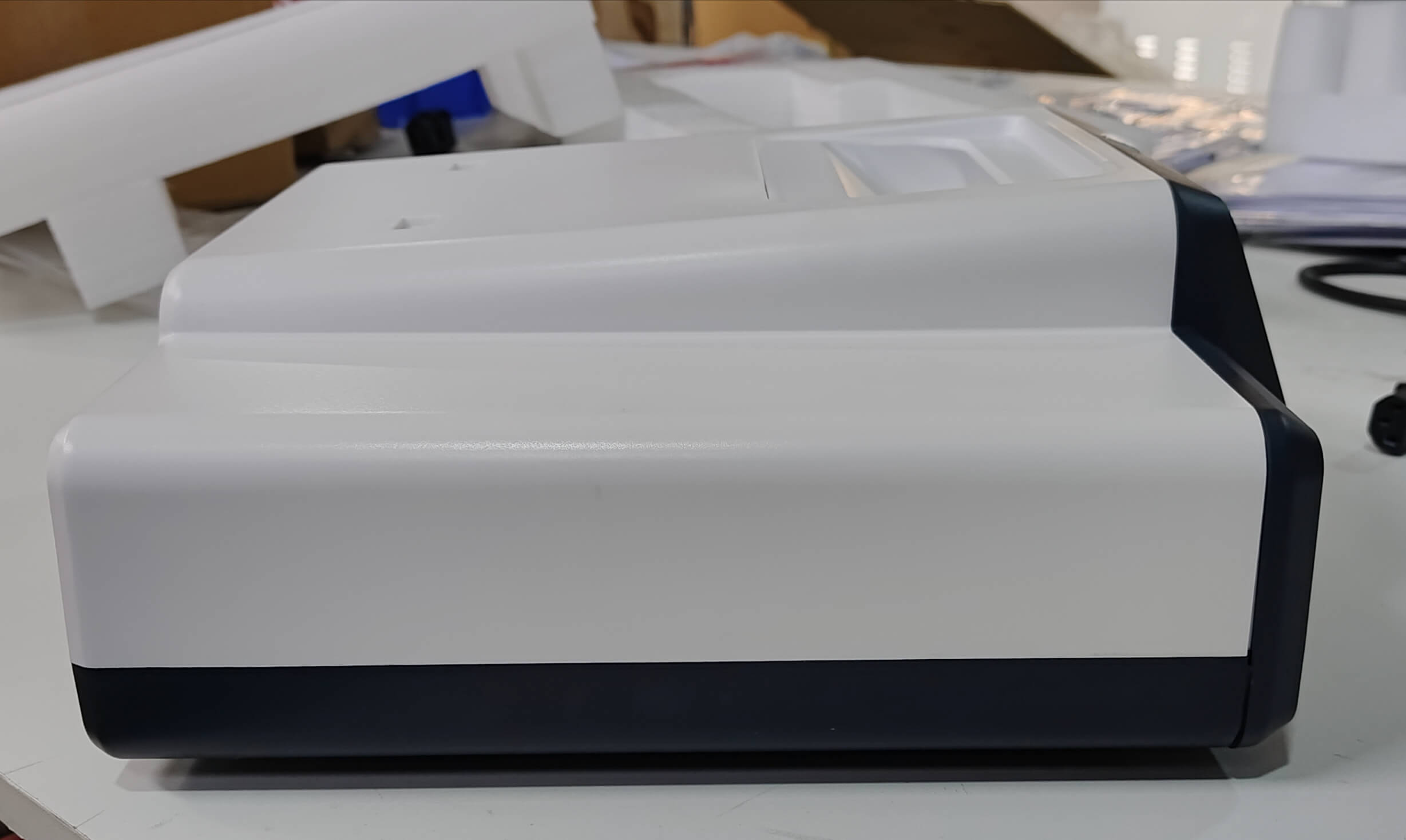

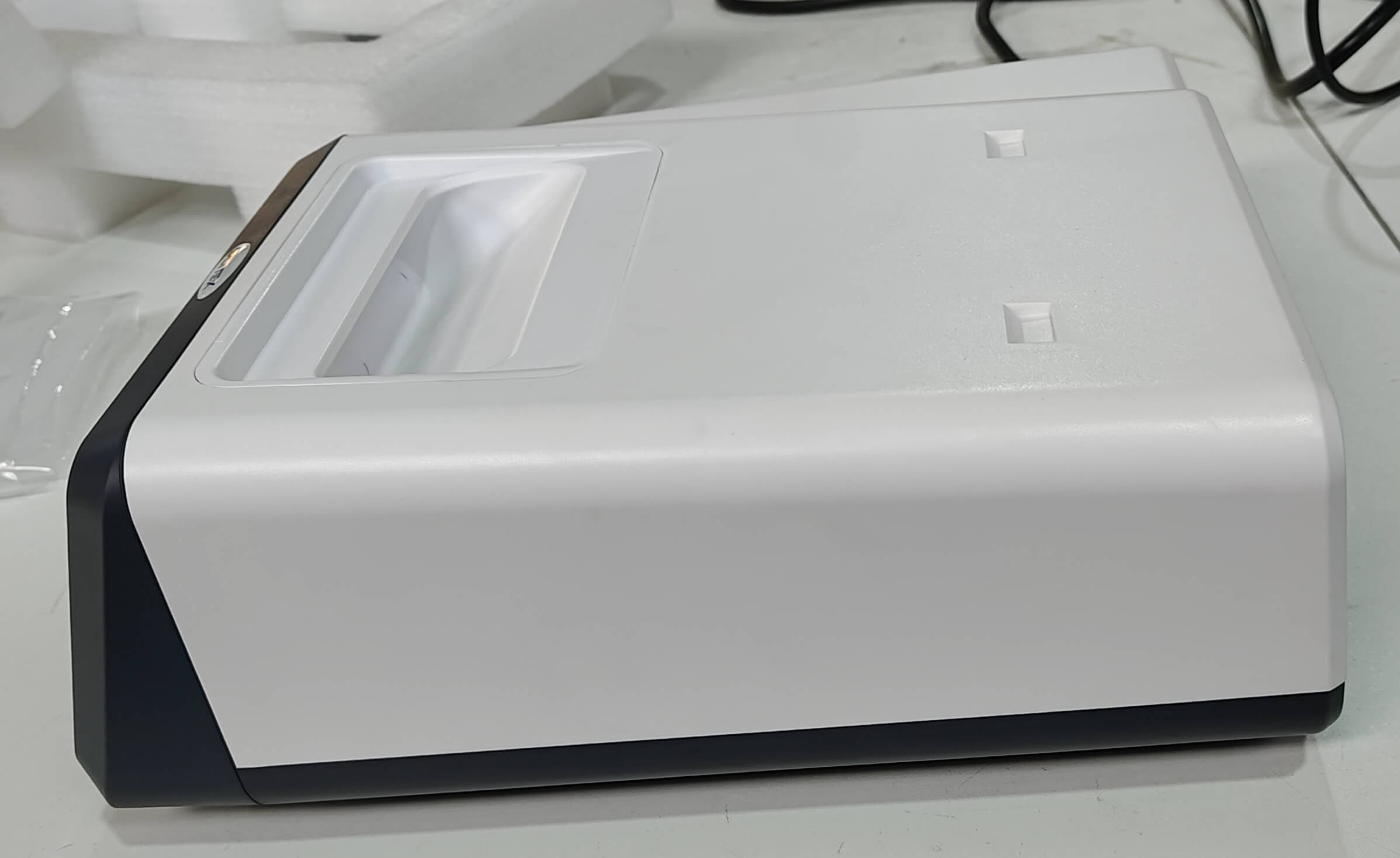

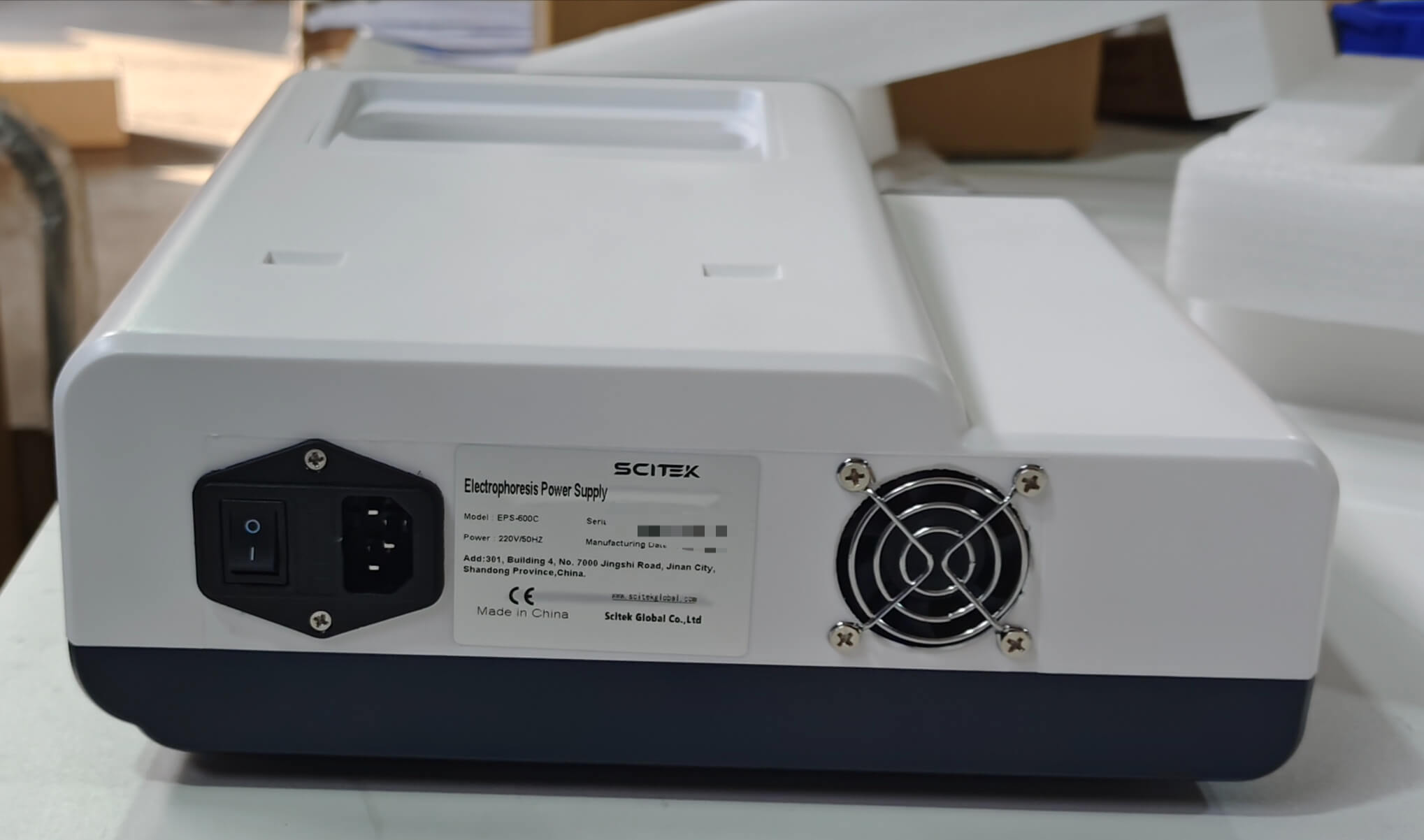

Designed for space-saving efficiency, the compact profile fits seamlessly on any benchtop. Ventilation slots prevent overheating, and reinforced ports provide secure cable connections. The anti-slip feet keep the unit stable during extended runs.

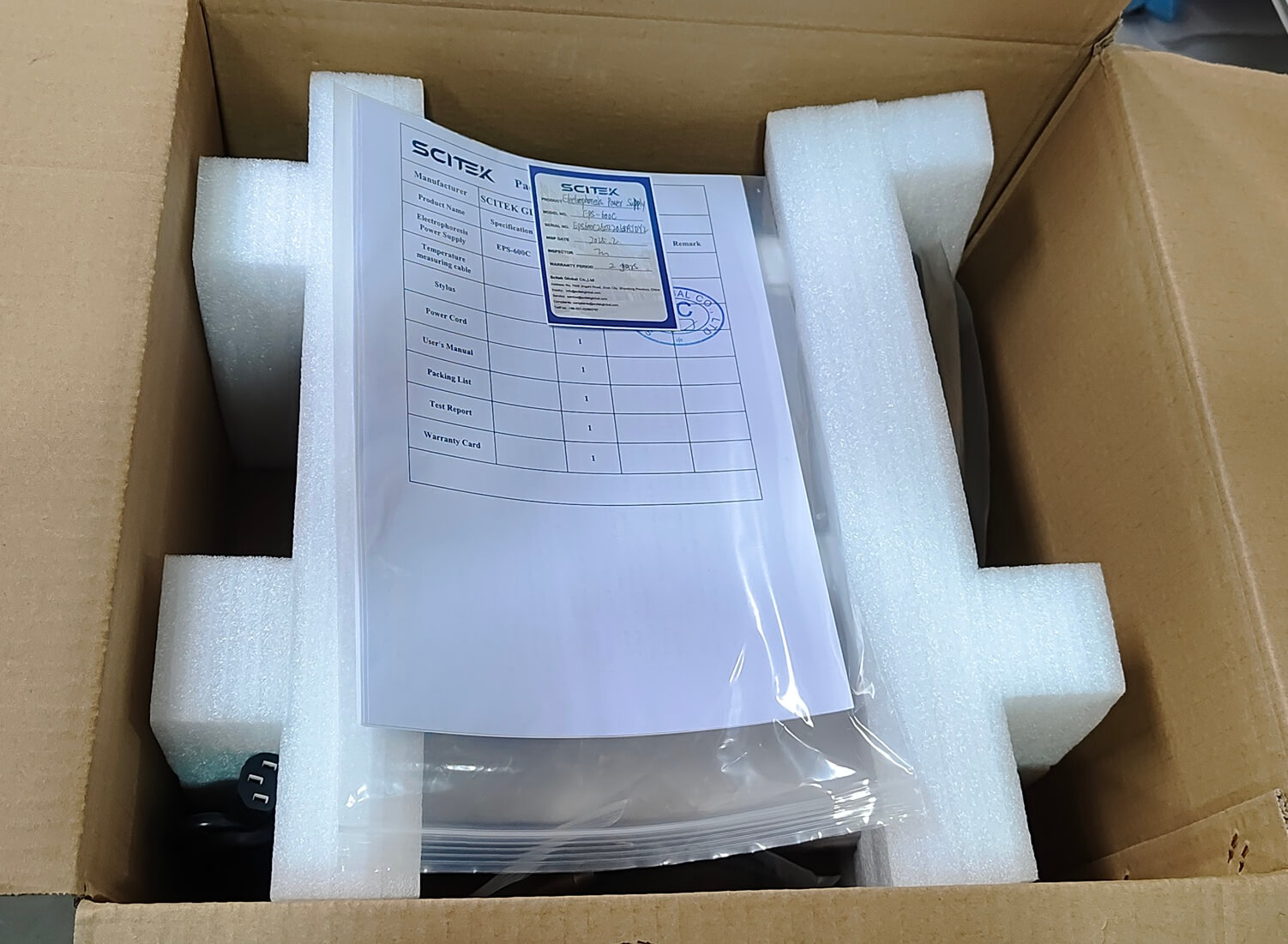

Shipped in a protective foam-lined box, the power supply arrives safely with included accessories (power cord, cables, and user manual). The clearly labeled packaging ensures easy setup right out of the box.
