Capacity : 96×0.2mL; 8×0.2 mL PCR strip tubes Sample Volume : 10-200 uL Thermal Cycle Mode : Peltier Uniformity : ﹤0.3 ℃ Temperature Control : Block\Tube Number of Programs : ＞100

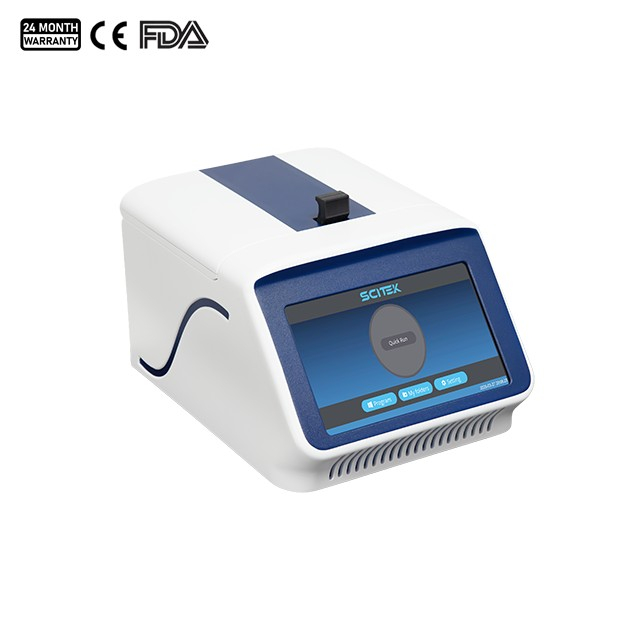

The PCR-TC96M gradient thermal cycler was engineered for researchers who require absolute accuracy, reproducibility, and efficiency in their molecular biology workflows.
In the field of molecular biology, gradient PCR instruments are invaluable tools for gene research. Utilizing innovative multi-zone independent temperature control technology, multiple annealing temperature gradients and primer screening temperatures can be set simultaneously, significantly shortening experimental cycles. They are widely used in research institutions, medical institutions, food industry, bio-pharmaceutical industry, and third-party testing organizations.
Gradient Thermal Cycler Feature:

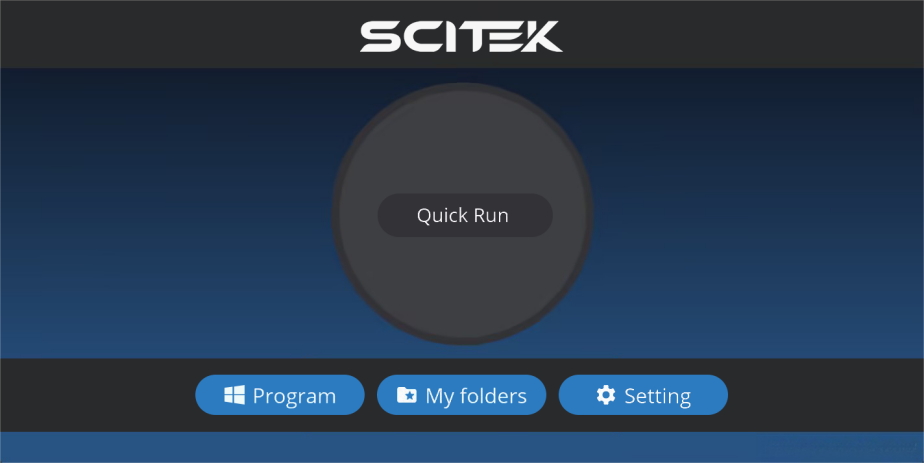

Extra-large touchscreen, graphical user interface, guided program setup. Value For You: A user experience as smooth as IPaid, reducing training costs and minimizing errors.
2. Precise Temperature Control Through Multivariate Coupling:
An advanced multivariate coupling optimization algorithm monitors and adjusts multiple variables in real time, achieving superior temperature control accuracy.
Value For You: Ensures experimental reproducibility, making every PCR result stable and reliable.

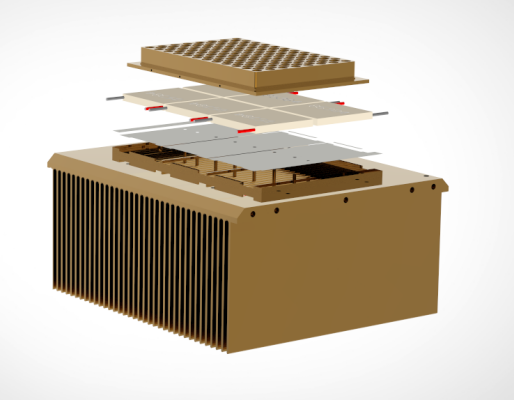

3. 3 independent heating/cooling modules:
Independently controlled, intelligently optimizing the heat exchange path to achieve a maximum heating rate of 5℃/S.
Value For You: Significantly shortens the experimental cycle, improves equipment utilization, and helps you produce results faster.

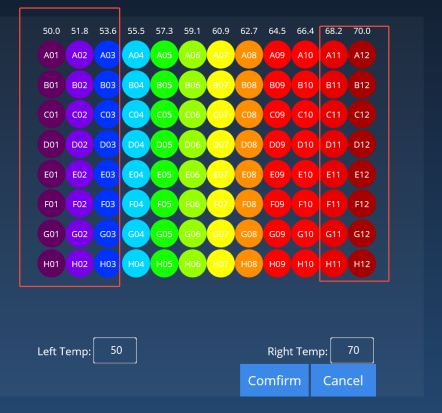

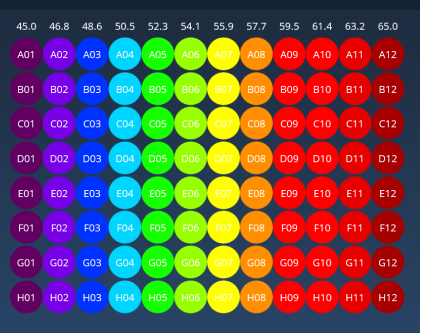

4. Auto-calculated gradient function:
Wide gradient range (30–99℃) and span (1–42℃), with gradient temperature uniformity up to ±0.3℃.
Value For You: Quickly find the optimal annealing temperature, or run up to 12 different primer pairs, saving significant time, reagents, and labor costs.

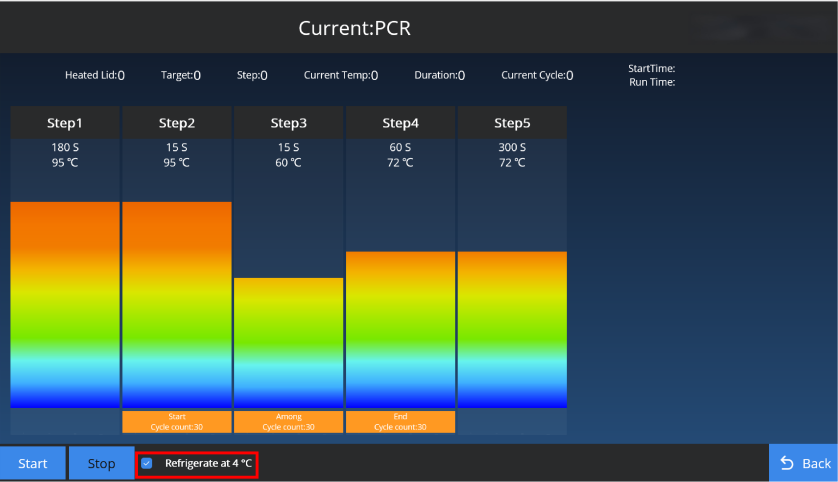

5. 4℃ Refrigeration Function:
Select the desired program, and the system will automatically refrigerate at 4℃ for 24 hours after the experiment.
Value For You: Eliminates concerns about sample degradation, providing convenience for long-term experiments.

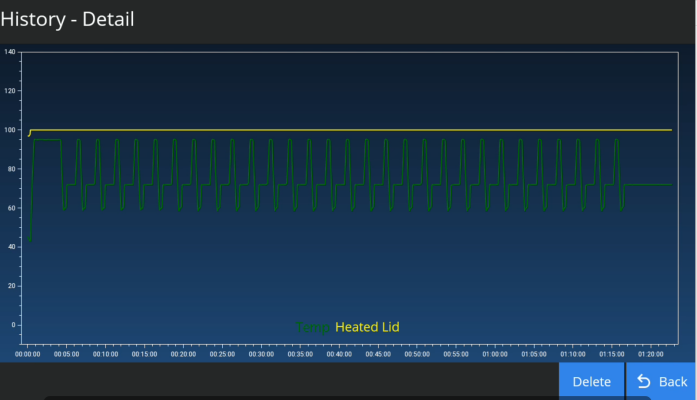

6. Massive Data Storage:
Built-in large-capacity storage can save up to 10,000 sets of experimental procedures and data.
Value For You: Convenient access to and review of historical data, facilitating experimental comparison and methodological summarization.

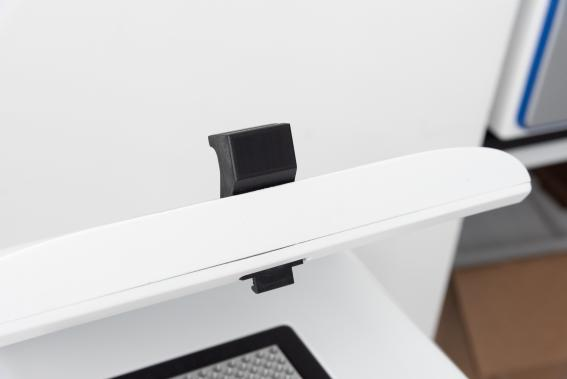

7. Automatic Hot Lid Clamping:
Automatically applies appropriate pressure without manual adjustment. Hot Lid automatically shuts off heating when the set temperature drops below 30°C.
Value For You: Prevents sample evaporation or module damage, and enhances convenience and safety.
Gradient Thermal Cycler Specification:
Model
PCR-TC96M
Capacity
0.2 mL single PCR tubes;
0.2 mL 8-strip tubes;
0.2 mL 96-well plates;
Display
10.1-inch HD Touch Screen
Temperature Range
4–105 ℃
Hot Lid Temperature
30–110 ℃
Max. Heating Rate
5.0 ℃/s
Gradient Temp. Range
30–99 ℃
Gradient Spread
1–42 ℃
Uniformity
<0.3 ℃
Temperature Accuracy
±0.3 ℃
Display Resolution
±0.1 ℃
Temperature Control
Block\Tube
Max. No. of Step
30
Max. No. of Cycle
99
Reagent Storage
Refrigerate at 4°C
Power Supply
AC 220/110 V, 50/60 Hz
Consumption
500 W
External Size (W×D×H)
390×285×260 mm
Shipping Size (W×D×H)
450×340×30 mm
N.W/G.W.
9/13 kg
Details of Gradient Thermal Cycler:

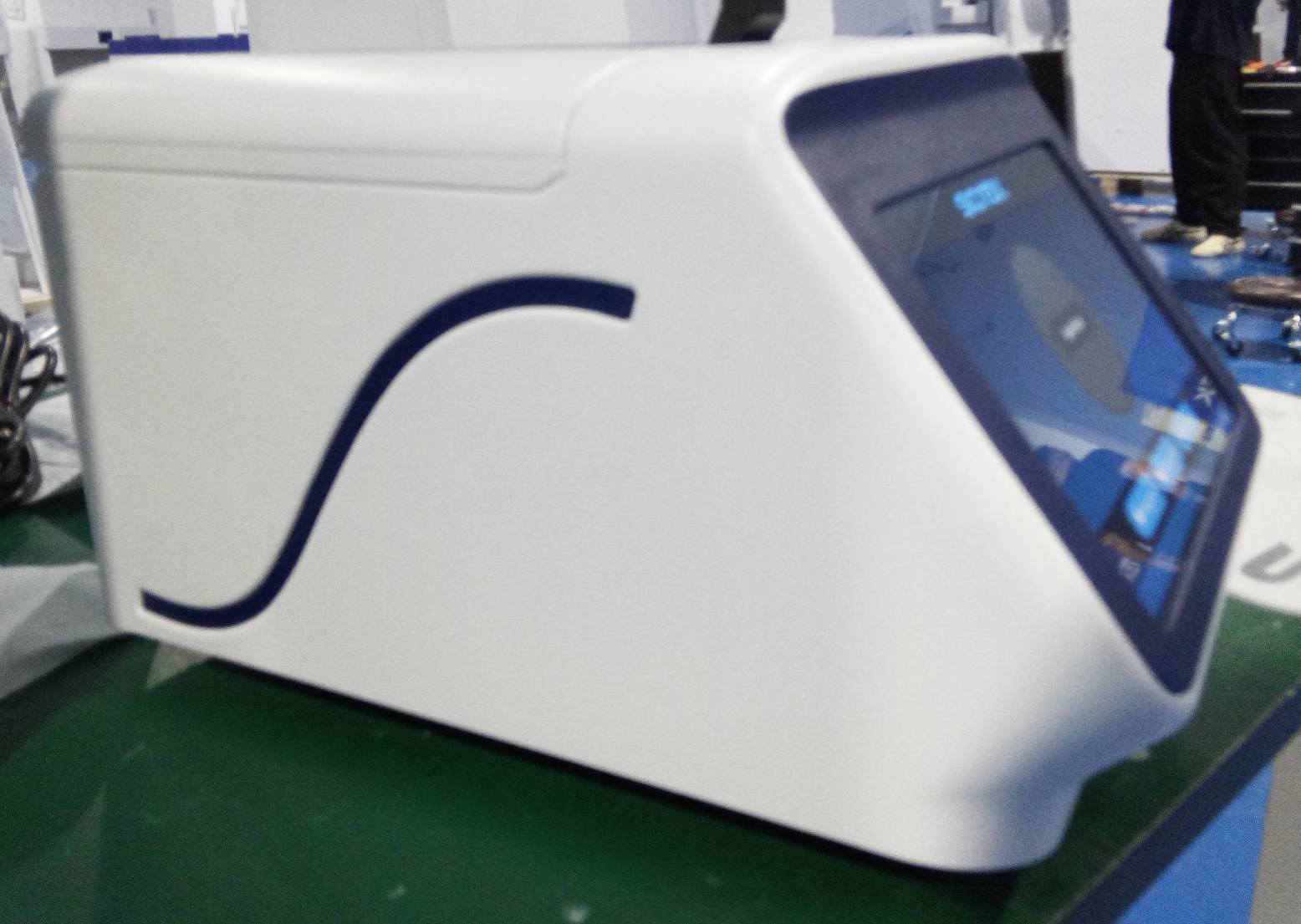

The side profile highlights the streamlined housing and compact benchtop footprint, allowing the gradient thermal cycler to fit efficiently into a variety of laboratory workspaces.

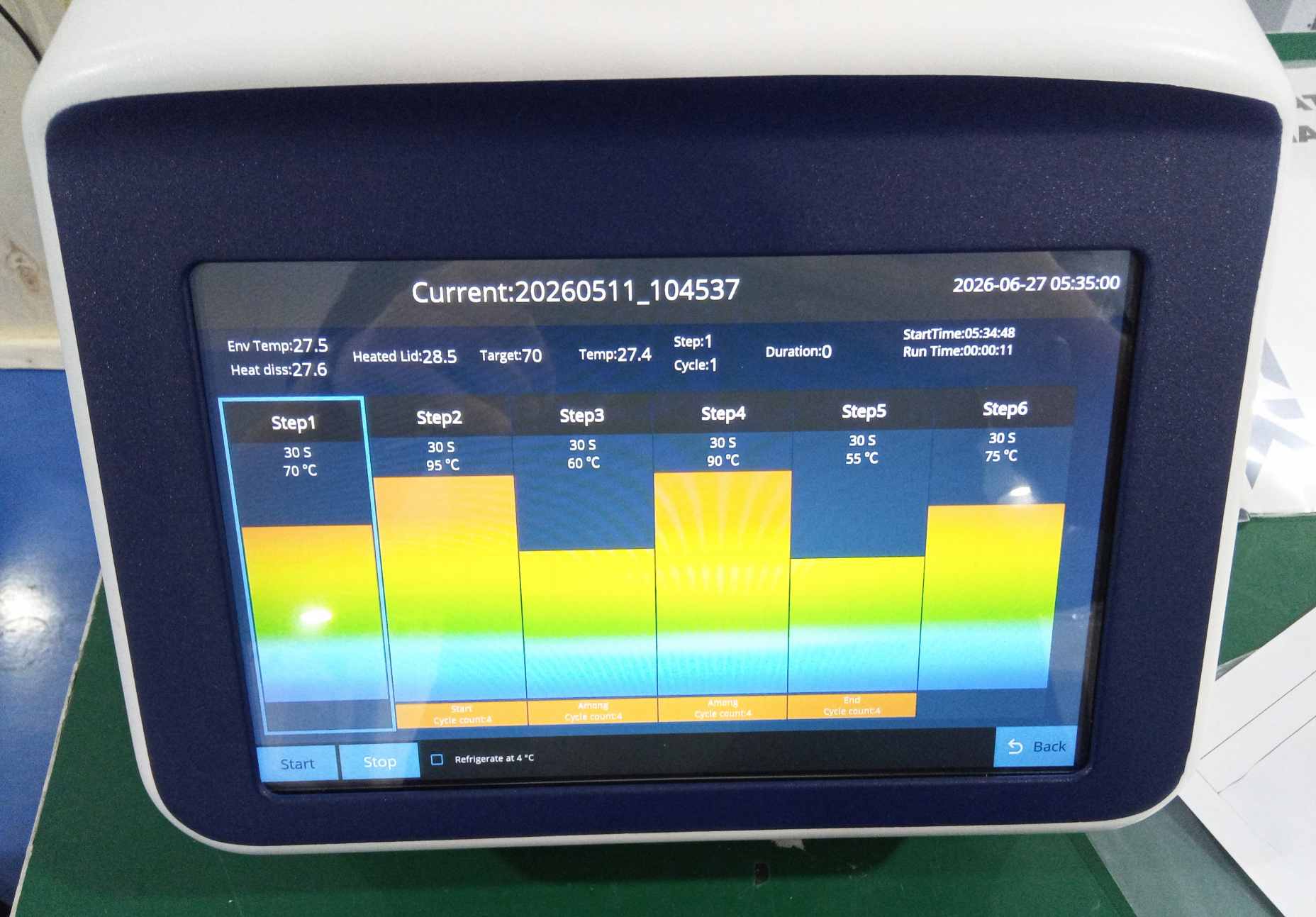

The high-resolution touchscreen provides a clear interface for programming temperature profiles, setting cycling parameters, and monitoring the progress of PCR experiments.

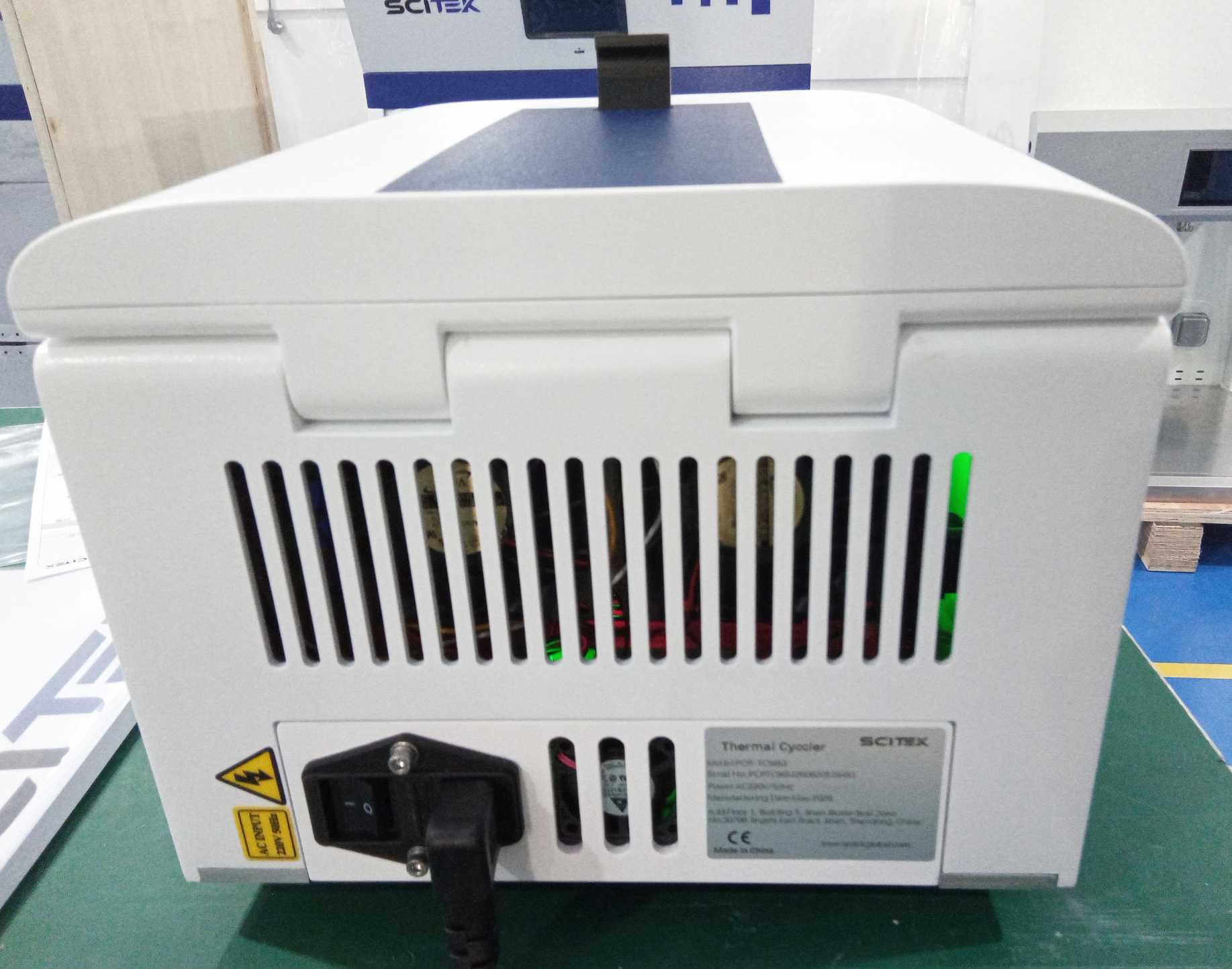

Ventilation openings, power connection, and external interfaces, highlighting the practical structure designed for stable operation and convenient laboratory setup.

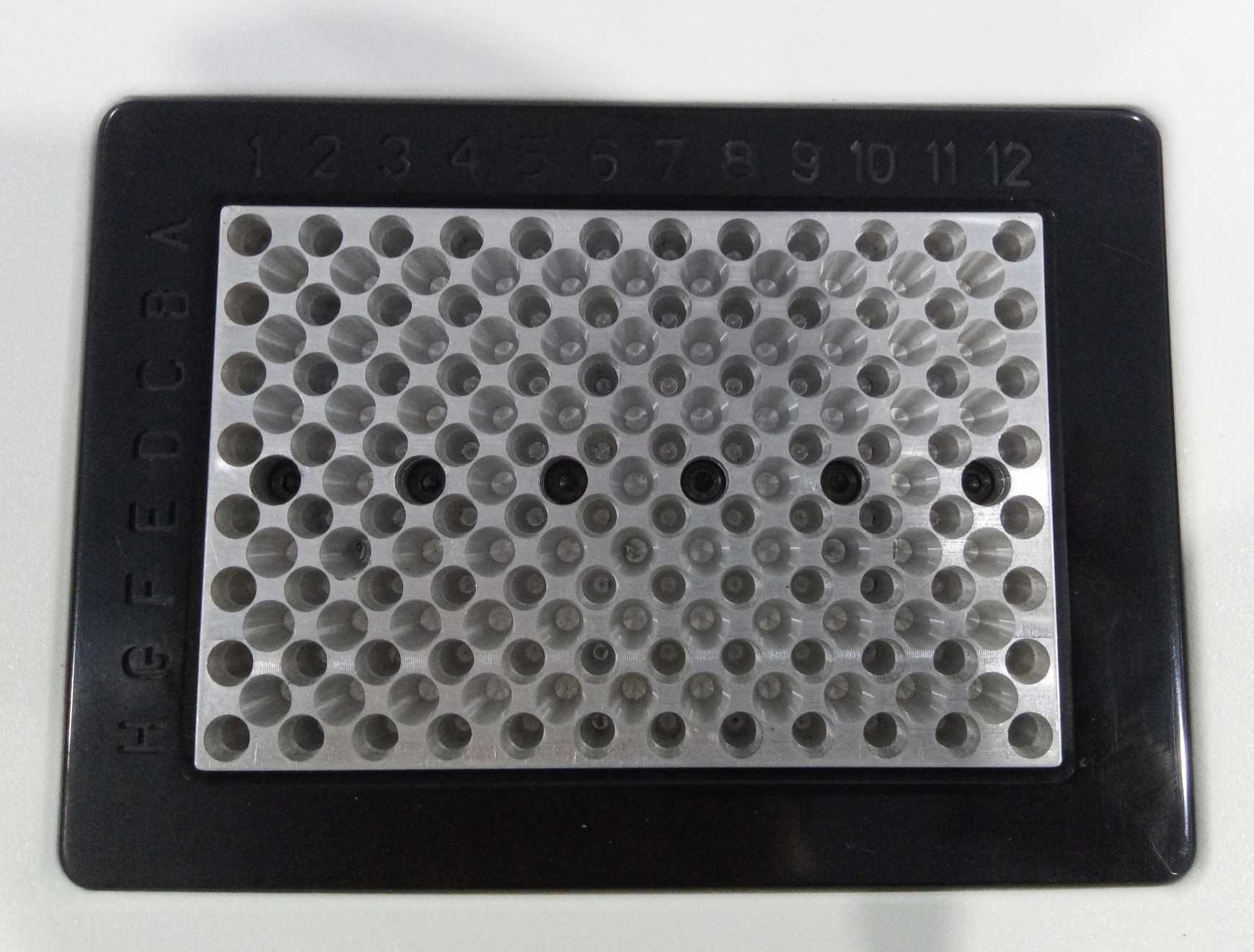

The densely arranged sample wells, providing secure positioning for PCR tubes or compatible plates and supporting consistent thermal contact during PCR cycling.
The gradient thermal cycler is carefully protected and packed in a sturdy outer carton, helping minimize the risk of impact and movement during handling and long-distance transportation.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
