Electrophoresis, based on the characteristic directional migration of charged particles within an electric field, enables the separation, identification, and purification of substances. Widely applied in biology, medicine, chemistry, and food science, it has become an indispensable core instrument in both scientific research and industrial production.

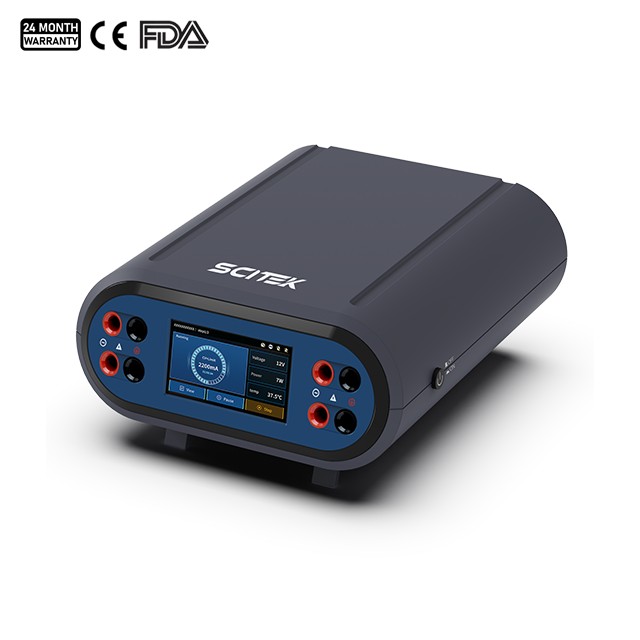

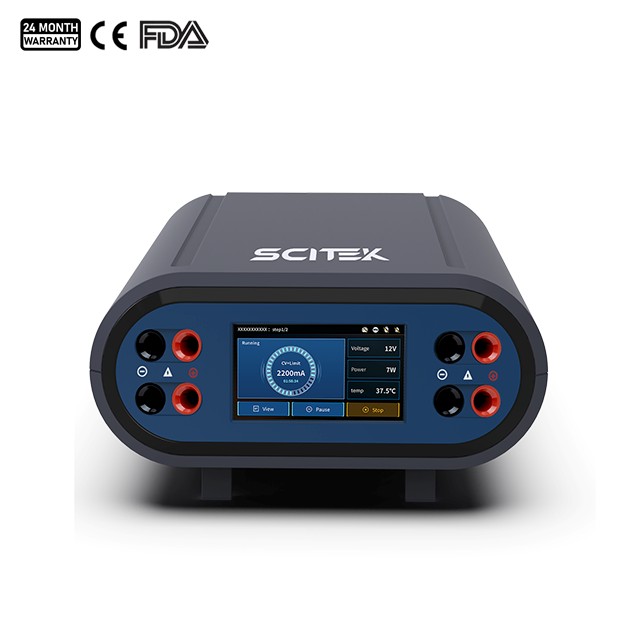

Electrophoresis Power Supply Feature:
High-definition LCD touchscreen provides real-time visibility of programs and operating status, reducing accidental operation.
High-precision control with adjustable voltage/ current/ power + automatic mode switching, suitable for various electrophoresis and separation applications.
USB real-time data logging enables convenient export of operational data, supporting subsequent analysis and compliance traceability.
Multi-CPU collaborative control architecture, ensuring stable and reliable in operation and suitable for high-throughput experiments.
Custom multi-step program editing and allows for quick parameter input via tabular format, meeting the needs of complex electrophoresis and transfer processes.
Low-current protection mode: Stabilizes output under low load conditions to prevent damage to sensitive samples.
Customizable power failure recovery, short-circuit protection, no-load protection, and programmable buzzer.
Simultaneous connection of up to four electrophoresis units improves parallel experiment efficiency.
Anti-slip grooves allow for stacking of the unit, saving valuable lab bench space.
Electrophoresis Power Supply Specification:
Model | EPS-300A | EPS-600A | EPS-300HCA |
|---|
Display | LCD touchscreen |
Output Type | Constant Voltage, Constant Current, Constant Power (continuously adjustable) |
Resolution | Voltage (1 V), Current (1 mA), Power (1 W) |
Voltage Range (V) | 0–300 | 0–600 | 0–300 |
Current Range (mA) | 0–600 | 0–600 | 0–3000 |
Power Range (W) | 0–150 | 0–360 | 0–400 |
Time Setting Range | 1min–99h 59min |
Interface | USB |
Output Sockets | 4 sets |
Power Supply | 100–140 V/ 195–245V, 50/60 Hz |
Ambient Temperature and Humidity | 0–40 ℃, RH≤95% |
External Size (W×D×H) | 310×260×115 mm |
Shipping Size (W×D×H) | 410×380×190 mm |
N.W/G.W. (kg) | 1.9/3.2 | 1.9/3.2 | 2.05/3.2 |
Electrophoresis Power Supply are also available in money-saving bundles with Gel Tank:
Electrophoresis Power Supply | Gel Tank | Application |
|---|
EPS-300A | Vertical tank ET-V01A | / | / | |
EPS-300HCA | Vertical tank ET-V04A | / | / | |
EPS-300A | Horizontal tank ET-H01A | / | / | |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | / | Can Be Used For Western Blotting |
EPS-300HCA | Vertical tank ET-V01A | Transfer tank ET-T02A | Horizontal tank ET-H01A | Can Be Used For Western Blotting |
