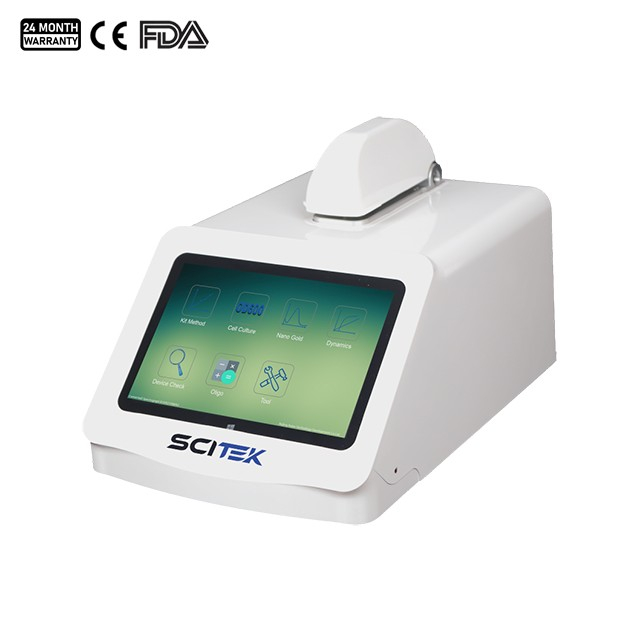

Microvolume UV-Vis Spectrophotometer, SP-MUV5500C/SP-MUV5500

Model : SP-MUV5500C; SP-MUV5500

Optical Path : 1/ 0.5/ 0.05 mm
Wavelength Resolution : 2 nm
Detection Wavelength Range : 190–850 nm
Sample Volume Requirement : 0.3–2 μL
Range of Absorbance : 0.002–300 Abs, equivalent to 10 mm

Designed for accurate, rapid microvolume quantification in genomics, proteomics, molecular biology, biotechnology, pharmaceutical and life sciences research.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

The Microvolume UV-Vis Spectrophotometer is designed for accurate, rapid microvolume

quantification in genomics, proteomics, molecular biology, biotechnology, pharmaceutical

and life sciences research. Its long-life flash xenon lamp eliminates warm-up time,

enabling immediate use and completing full-spectrum scans (185–930 nm) in just 1–5 seconds.

The instrument also offers instant-on performance, robust connectivity and a user-friendly design,

providing unparalleled efficiency in microvolume analysis.

Advantage:

1. Long life flashing xenon lamp, flashing up to 10 times.

2. Instrument control and operation: Built in Win10 system, built-in 7-inch high-definition

display screen, full touch operation.

3. Data output mode and method storage: Built in ≥ 32 GB storage space, can directly store

measurement result data and custom methods, measurement results are automatically saved

in spreadsheet mode, USB output or network transfer data, comes with an electronic manual.

4. Data output port: With 2 USB interfaces, it can be connected and used with various devices

such as mice, keyboards, desktop computers, etc.

5. Built in Bluetooth and Wi-Fi, capable of remote operation and wireless printing of detection results.

6. Equipped with one click export function for scanning and detection result spectra.

7. Equipped with curve fitting function.

8. No need to wait when turning on, it can be used immediately, and data acquisition of 185–930 nm

wavelength can be completed in 1.0–5.0 s.

Specification:

Model	SP-MUV5500C	SP-MUV5500
Optical Path	1, 0.5, 0.05 mm (Three optical path automatic conversion, automatically matching the best optical path based on sample concentration, no need for manual setting)
Sample Volume Requirement	0.3–2 μL
Light Source	Longevity lifeline xenon flashing light
Detector	3864 Element Linear Siliconization CCD Array
Detection Wavelength Range	190–850 nm
Wavelength Accuracy	±1 nm
Wavelength Resolution	2 nm (FWHM at Hg 546 nm)
Accuracy of Absorbance	1% (0.76 absorbance at 350 nm)
Range of Absorbance	0.002–300 Abs, equivalent to 10 mm
Nucleic Acid Measurement Range	0.4–15000 ng/µL (dsDNA)
Protein Measurement Range	0.01–400 mg/mL (BSA)
Monitor	7-inch high-definition touch screen display
Detection Time	Less than 3 s
Built-In Methods	Nucleic acid, protein, full wavelength, microarray
Scanning Range of Cuvete Wavelength	200–850 nm
Cuvete Specifications	1/2/5/10 mm	-
Minimum Sample Volume of Cuvete	50 µL	-
Minimum Sample Height of Cuvete	5 mm	-
Colorimeter Darkroom	Standard cuvette darkroom, can use multiple specifications of cuvettes	-
Colorimetric Dish Type	Trace recyclable cuvette	-
Sample Base	Stainless steel and quartz fiber optic	-
E×ternal Size (W×D×H)	200×300×200 mm
Shipping Size (W×D×H)	360×290×330 mm
N.W/G.W.	3.5 / 4.5 kg
