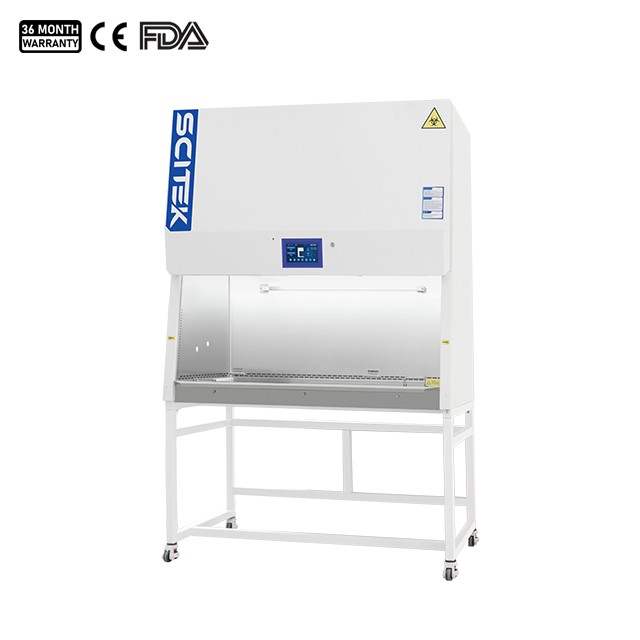

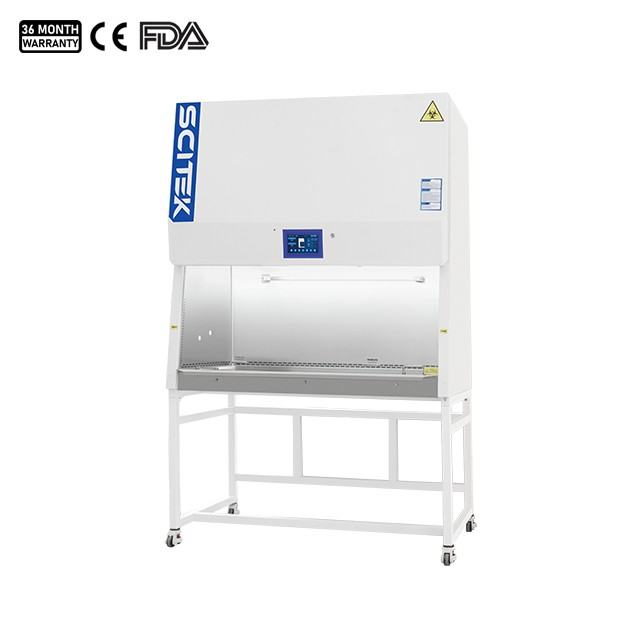

Class II A2 biological safety cabinet is biological safety isolation equipment used in biological safety labs, It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it's suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.
Safety Performance:
UV sterilization function and timing function can be set by appointment.
Automatic air speed adjustable.
With memory function in case of power-failure.
Audio and visual alarm (Abnormal airflow velocity, filter failure, UV lamp failure, Front window at unsafe height).
Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.
Biological Safety Cabinet Specifications:
| Model | BSC-IIA2-1100 | BSC-IIA2-1400 | BSC-IIA2-1500 | BSC-IIA2-1800 |
| External Size (WxDxH)(mm) | 1050×780×2130 | 1400×780×2130 | 1500×780×2130 | 1800×780×2130 |
| Internal Size (WxDxH)(mm) | 950×626×600 | 1300×626×600 | 1400×626×600 | 1700×626×600 |
| Tested Opening | Safety height 200mm (8”) |
| Max.Opening | 400mm |
| Work Surface Height | 800mm |
| Control System | Display | LCD touch screen |
| Alarm | Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height |

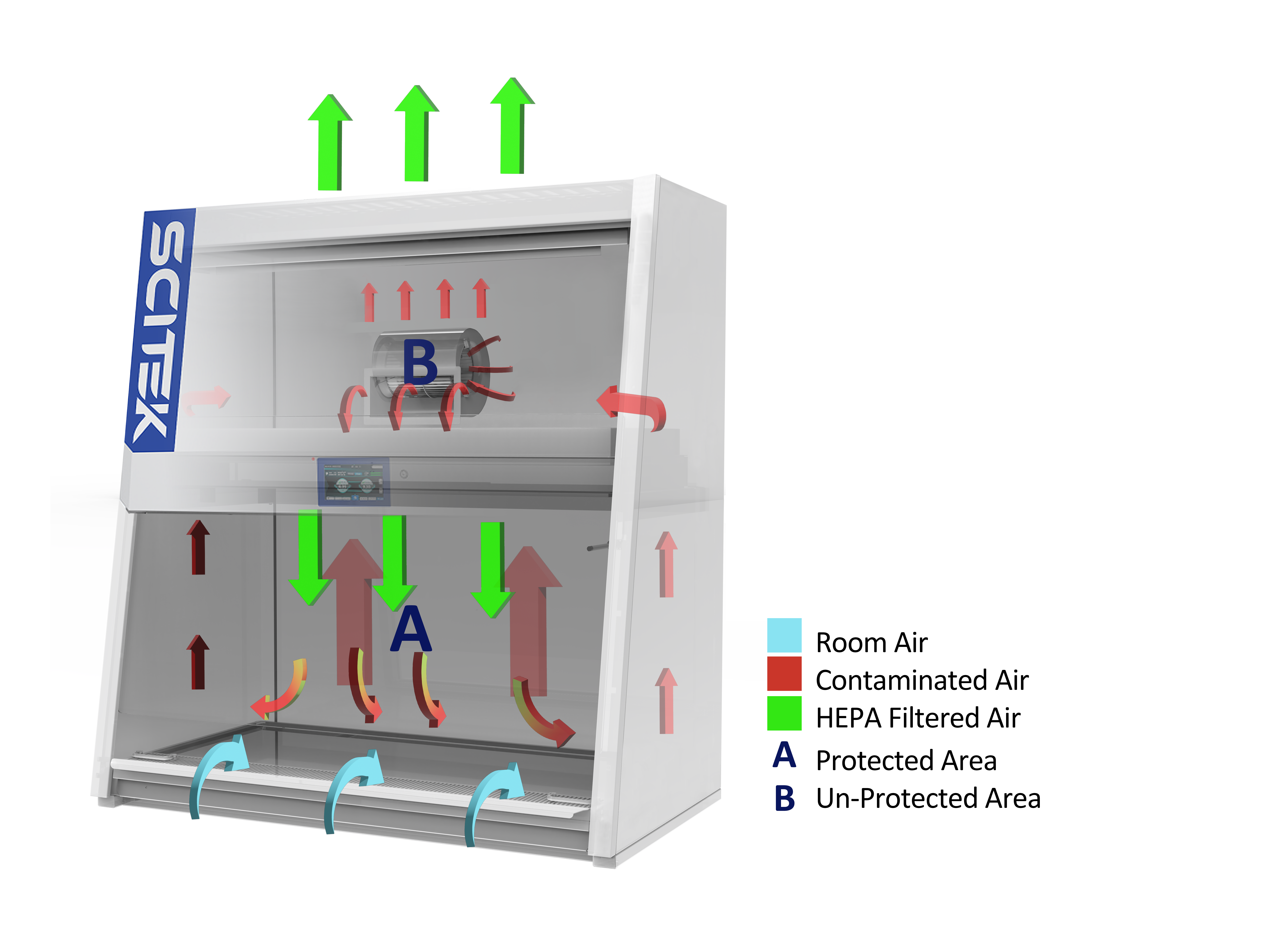

| Airflow System | Airflow Mode | 70% air recirculation, 30% air exhaust |
| Downflow Velocity | 0.35m/s±0.025m/s |
| Inflow Velocity | 0.52m/s±0.025m/s |
| Inflow Air Volume | 355m³/h (209CFM) | 486m³/h (286CFM) | 524m³/h (309CFM) | 636m³/h (375CFM) |
| Downflow Air Volume | 718m³/h (423CFM) | 983m³/h (579CFM) | 1058m³/h (623CFM) | 1285m³/h (757CFM) |
| Exhaust Air Volume | 355m³/h (209CFM) | 486m³/h (309CFM) | 524m³/h (309CFM) | 636m³/h (375CFM) |
| Air filtration System | ULPA Filter | 2pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter life indicator |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) |
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
| Work Surface | 304 stainless steel |
| Front Window | Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV. |
| Electrical System | UV Lamp | 20Wx1 | 30Wx1 | 30Wx1 | 40Wx1 |
| Emission of 253.7 nanometers for most efficient decontamination,UV life indicator, UV timer. |
| LED Lamp | 16Wx2 | 20Wx2 | 20Wx2 | 20Wx2 |
| Max.Consumption | 750W (Not include socket loading power consumption) |
| Fan power | 650W |
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz |
| Illumination | ≥1000Lux |
| Sound Emission | ≤60dB(A) |
| Standard Accessory | 1. Base Stand; 2. Air Velocity Sensor; 3. ULPA Filter; 4. LCD Touch Screen; 5. LED Lamp×2; 6. UV Lamp×1; 7. Waterprof Socket×2; 8. Motorized Front Window; 9. Footmaster Caster; 10. Foot Switch; 11. Electric Air Valve Control; 12. RS485 interface |
| Optional Accessory | 1. LED Lights With Adjustable Brightness 2. Gas Tap; 3. Water Tap; 4. IV Bar With Hooks; 5. Manual Adjustable Base Stand; 6. Arm rest |
| Net Weight (kg) | 224 | 263 | 290 | 370 |
| Gross Weight (kg) | 266.5 | 313 | 380 | 495 |
| Shipping Size (WxDxH)(mm) | 1100x1080x1700 | 1550x1120x1710 | 1650x1120x1710 | 1950x1120x1710 |
| Shipping Volume (m³) | 2.3 | 3 | 3.2 | 3.7 |
Class II Biological Safety Cabinet Features:
Standard with Air velocity sensor. Real-time monitoring and display Air velocity.
Standard with Foot switch.Controls the front window to up and down.
Standard with Electric Air valve control. It can be controlled through the LCD touch screen.
Standard with RS485 interface.
Depth of the cabinet is reduce to 780mm. Better access to the door of laboratory room.
Unibody design for front panel. Better sealing and safer than the splice style front panel.
Base stand with foot support for operator comfortable operation.
Optional LED lamp with adjustable brightness.
Safety login system: three-level authority, control,function setting, parameter setting and hierarchical menu entry can be performed.
Class II Biological Safety Cabinet Detail Display:

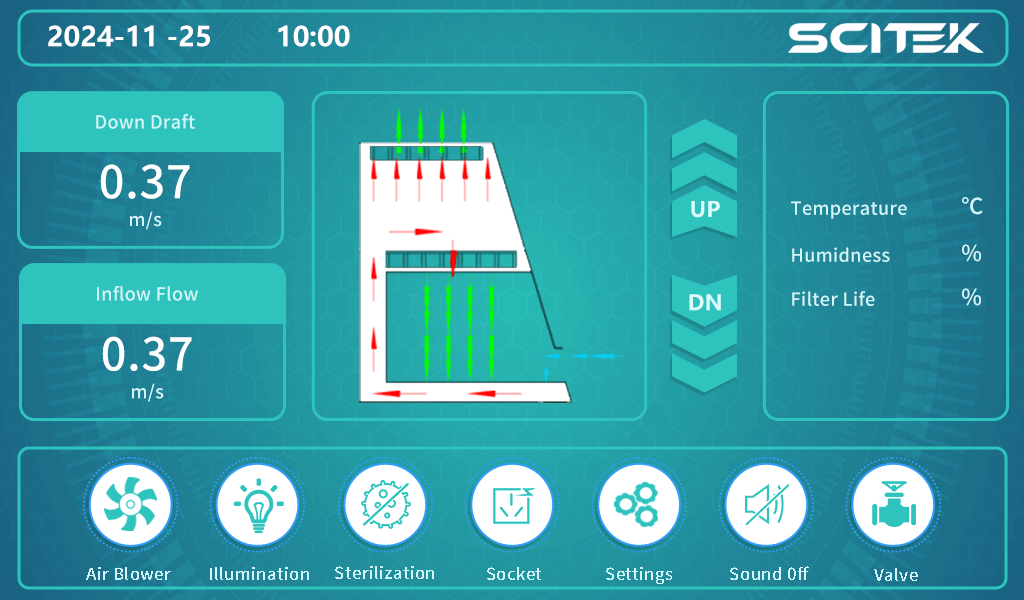

LCD touch screen, 7 inch, Real-time monitoring and display system working status.
Perforations on all four sides. Four sides are negative pressure, Air flow is more uniform, with higher safety factor.
User friendly design:
Removable work zone, 304 Stainless steel. Easy to pull out, convenient for cleaning and disinfection.

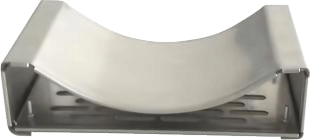

Bracket under the work surface panel. Easy to lift the work surface panel for cleaning
Dish type work surface panel, with stainless steel liquid collecting tank. Anti-corrosion, prevent liquid leakage, improve biosafety and easy to clean.
Standard with Air velocity sensor. Real-time monitoring and display Air velocity.
Standard with Foot switch.
Single step controls the front window to up and down;
Two steps in a row will control the front window to up to the top or down to the bottom.

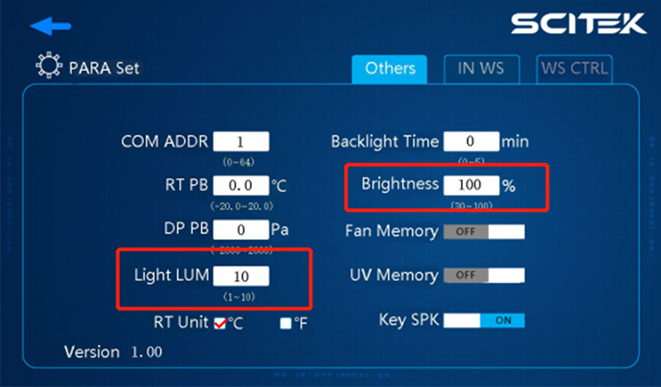

Optional LED lamp with adjustable brightness can be choosed.
Class II Biological Safety Cabinet Packaging Display:
The biological safety cabinet comes as a complete package, eliminating the need for complex assembly on site, reducing installation effort and increasing installation efficiency.
Multi-layer protection provides an extra layer of cushioning to ensure the class ii biological safety cabinet is secure during transport.
Securely fastened to a wooden pallet to avoid slipping and bumping during transport.
Each accessory is individually wrapped in a moisture-proof plastic bag, which effectively prevents the intrusion of dust, dirt and moisture and ensures that the accessory remains clean and dry during transport and storage.
