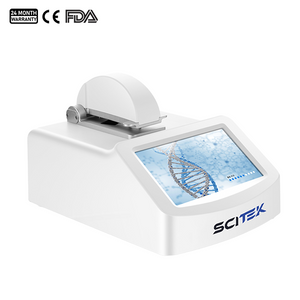

Nano Core UV-FL Series Microvolume UV-Vis Spectrophotometer and Fluorometer
Nucleic acid, protein, colorimetric and fluorescence analysis, all in one device
The Nano Core UV-FL Series extends the excellent micro-volume nucleic acid/protein quantification capabilities of the Nano Core Series
by integrating a fluorescence detection module, elevating spectrophotometric measurements to a new level of performance. The series includes
two models, NC-1000FL and NC-2000FL, integrating high-sensitivity quantitative fluorescence, nucleic acids and QC ratios, protein analysis,
and OD600 microbial monitoring. Meet the precise detection needs of diverse experimental scenarios with superior performance, serves as a
cost-effective analytical tool for users.
UV-Vis Spectrophotometer and Fluorometer Core Feature
Comprehensive application support:
Ultra-micro UV-Vis module: Nucleic acid(DNA, RNA, mRNA, oligonucleotides, etc.) quantitation & QC ratios(260/280,260/230), Protein
assay & purity analysis (260/280 ratio), OD600 microbial monitoring, BCA/Bradford/Lowry protein analysis
Fluorescence detection module: Fluorescent dye-labeled nucleic acid & protein detection, built-in blue solid-state light emitting diode (LED),
with optional red, green, and UV LEDs, with sensitivity up to 0.5 pg/μL dsDNA.
NC-2000: Equipped with a 2048-element CMOS Linear Image Sensor, enabling instantaneous acquisition of full-wavelength spectrum,
with an absorbance range extended to 0.04–300 Abs, and a LOD of 2 ng/μL dsDNA.
NC-1000: Utilizes an ultraviolet silicon photodiode, with an absorbance range of 0.2–100 Abs and repeatability ≤ 0.05 nm,
ensuring high accuracy for basic quantitative tasks.
Flexible fluorescence analysis mode:
High-sensitivity photodiode array detector with a detection limit as low as 0.5 pg/μL for dsDNA, well-suited for trace amounts of precious samples.
Integrates Ion Sphere mode, fluorometer mode, and fluorescence standard curve module, supporting direct measurement of fluorescence intensity
and compatible with various reagent kits and experimental methods.
Easy Operation & Efficient Workflow:
Detection time < 5 seconds with instant measurement and display. 7-inch high-definition capacitive touchscreen with intuitive design for independent
operation. Built-in thermal printer allows for one-click printing of test results, making data traceability more convenient.
Durable design, environmentally adaptable:
The sample base is made of a composite material of quartz fiber and high-hardness aluminum, which is corrosion-resistant, easy to clean, and durable.
Wide voltage power supply (100–240 V) and low power consumption design (<15 W), energy-saving and environmentally friendly.
UV-Vis Spectrophotometer and Fluorometer Specification:
| Model | NC-1000FL | NC-2000FL |
Light Source | UV LED/8000 h | Longevity lifeline xenon flashing light (10⁹ times) |
Detector | UV silicon photocell/8000 h | 2048-element CMOS Linear Image Sensor |
Volume Requirements | Ultra trace: 0.5–2 μL |
Detection Wavelength Range | Fixed wavelength: 260 nm, 280 nm | 190–850 nm |
Spectral Resolution (Bandwidth) | 8 nm (FWHM at Hg 546 nm) | 2nm (FWHM at Hg 546 nm) |
Wavelength Accuracy | ±0.2 nm |
Absorbance Accuracy | 0.005 Abs | 0.003 Abs |
Detecting Repeatability | 0.05 nm |
Optical Path | Ultra trace mode: 0.02-1 m mm (optical path automatic conversion, Customization)
Cuvette mode: 10 mm |
Concentration Measurement Range | Ultra trace mode: 2–15000 ng/μL (dsDNA); 0.04–400 mg/mL (BSA); |
Range of Absorbance | Ultra trace mode: 0.2–100/0.04–300 Abs (equivalent to 10 mm optical path)
Cuvette mode: 0–4 Abs (equivalent to 10 mm optical path) |
Fluorescent Module | Light Source | Blue LED light (Standard); UV LED light, Green LED light, Red LED light (Optional); |
Detector | Photodiode |
Sample Throughput | 1 piece |
Tube Type | PCR tube |
Linear | R² ≥0.995 |
Display | 7-inch high-definition capacitive touch screen |
Print | Built-in thermal printer |
Power Supply | VAC 100–240 V, VDC 24 V, 2 A, <15 W (Stand by: 5 W) |
External Size (W×D×H) | 290×208×180 mm |
Shipping Size (W×D×H) | 500×430×290 mm |
N.W/G.W. | 3.2/5 kg |
Why Choose the UV-Vis Spectrophotometer and Fluorometer?
All in one device: Integrates an Microvolume UV-Vis spectrophotometer and a fluorometer, saving laboratory space and budget.
High Efficiency and Precision: Fully automatic optical path switching and high-speed detection reduce manual dilution errors and increase throughput.
Reliable and Durable: High-quality optics and an industrial-grade touchscreen ensure long-term stable operation.
Data Traceability: Built-in printer and USB export, compliant with GLP/GMP standards.
The NanoCore UV-FL Series—Simplifying, streamlining and expanding trace sample analysis！
For research use only！
