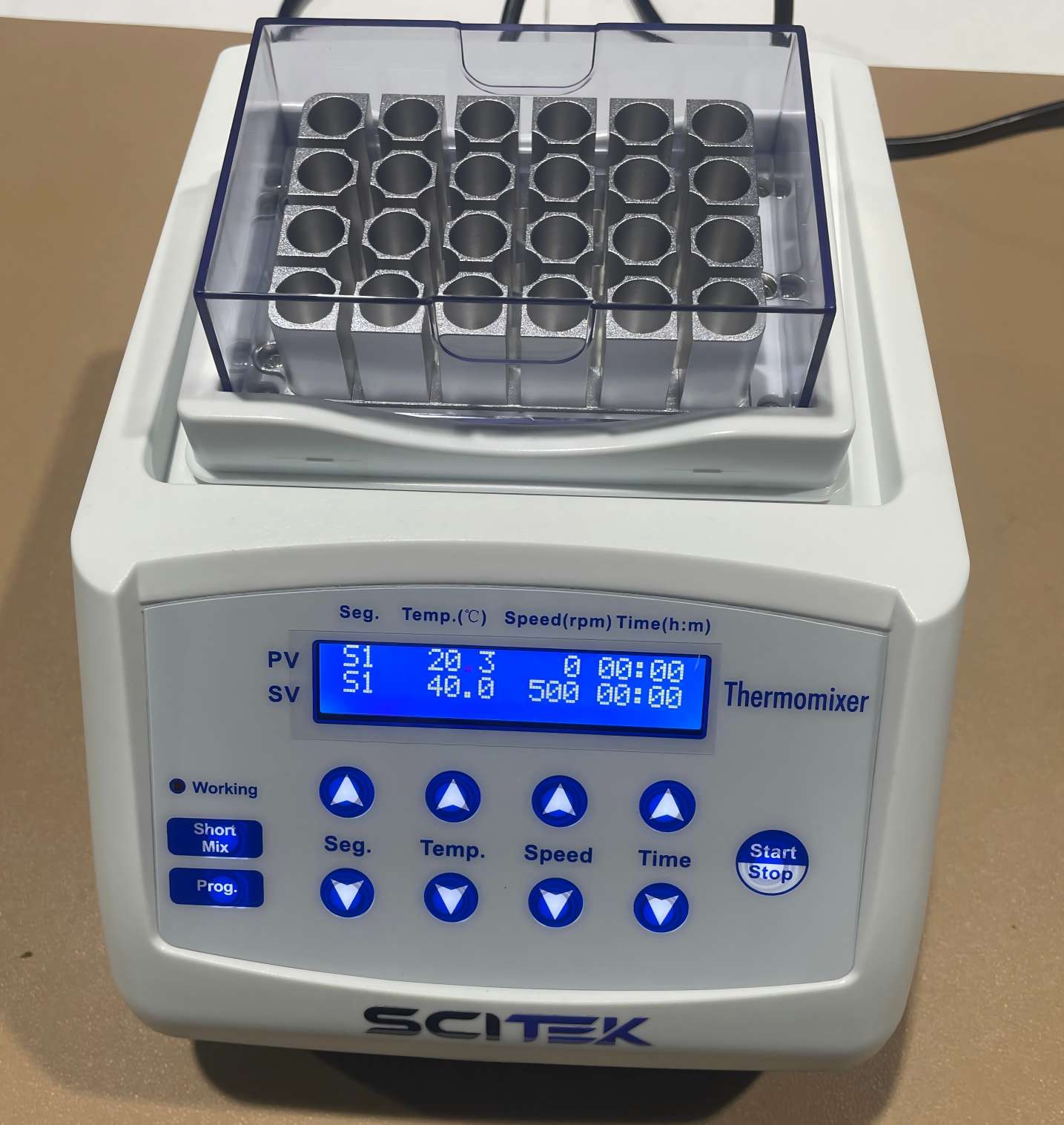

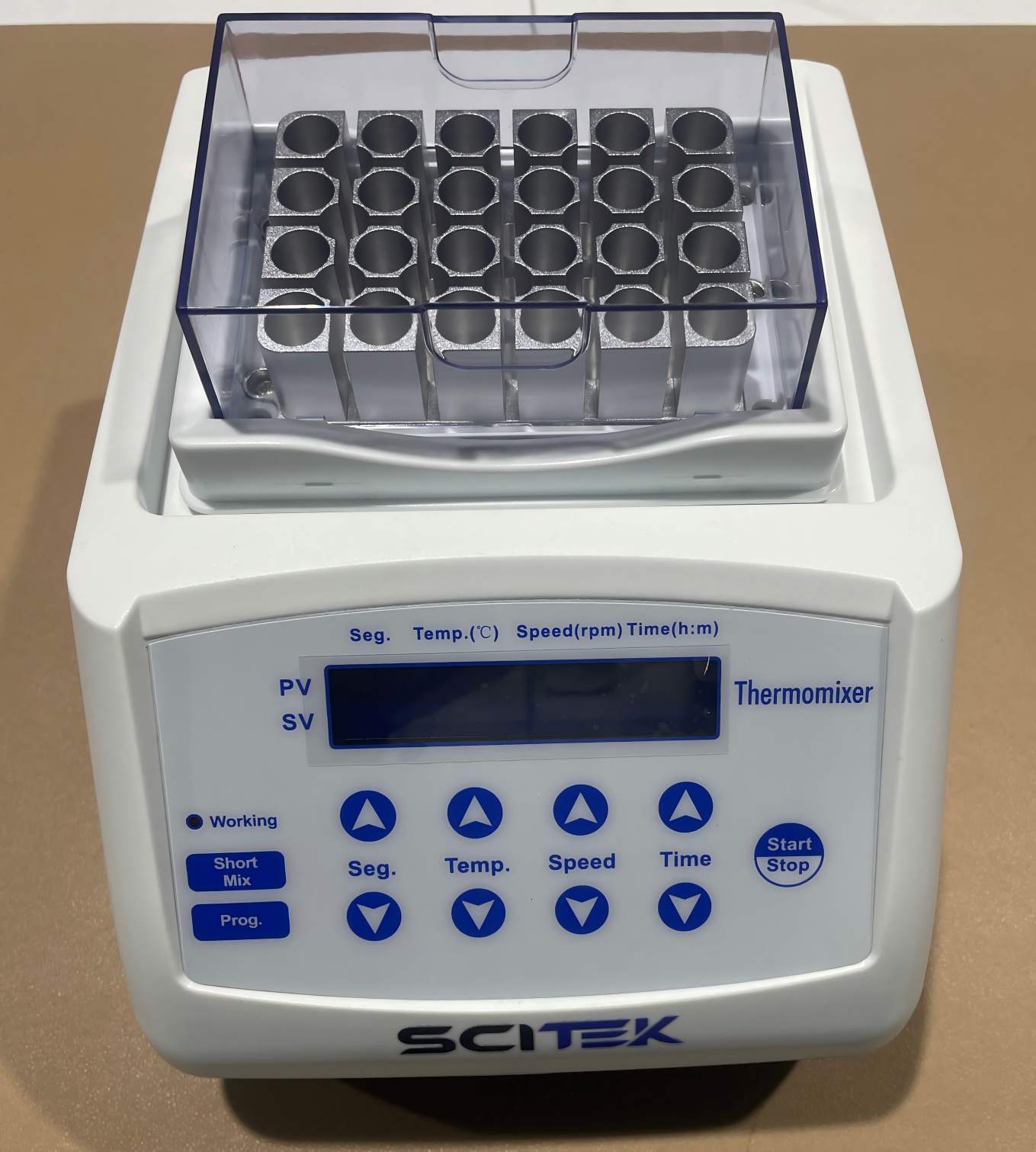

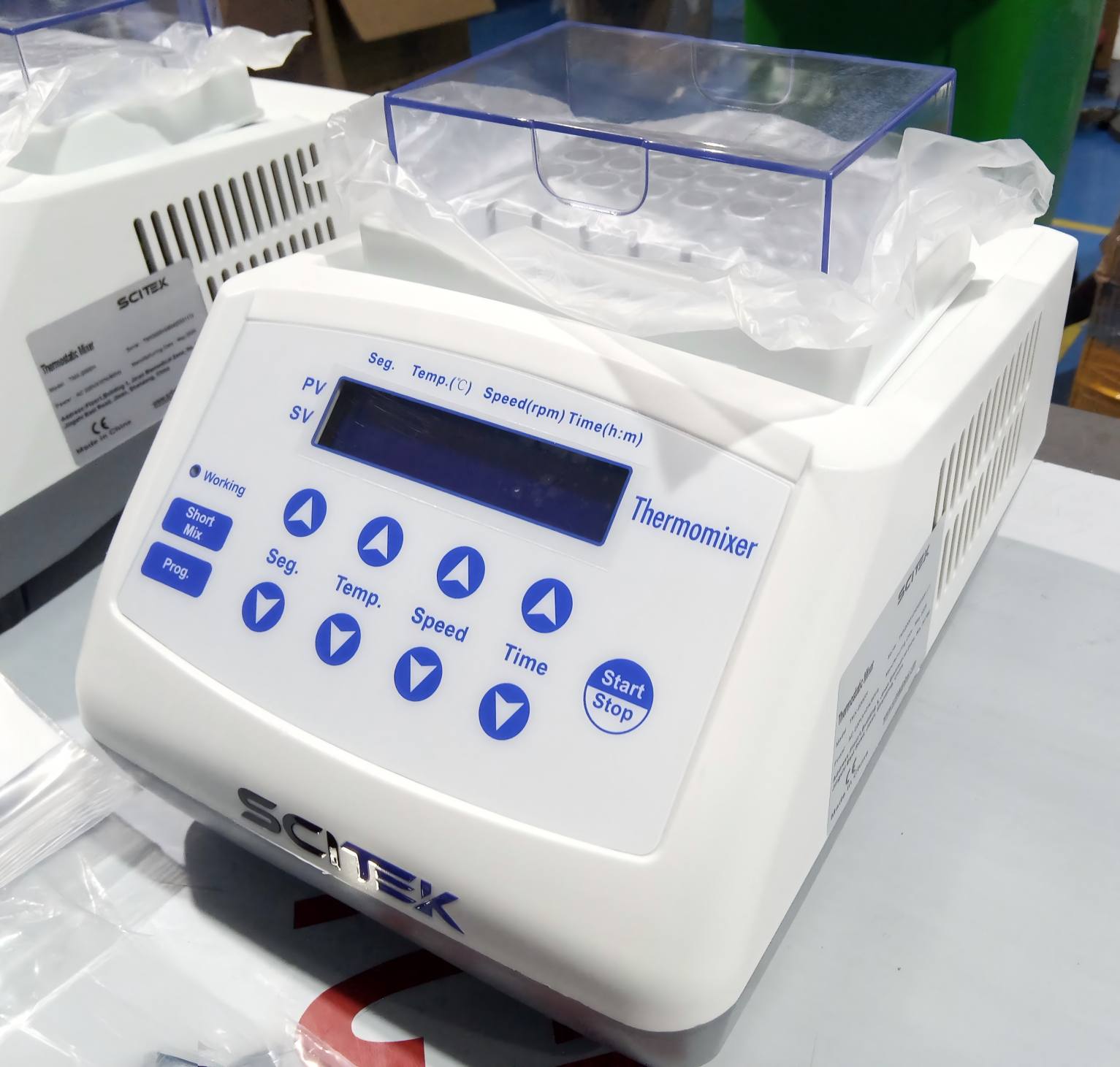

Thermostatic Mixer

Model : TMX-2000H

Temperature Control Range : RT+5~100°C
Temperature Control Precision : ±0.3°C
Oscillation Speed Range : 200~2000 rpm/min
Oscillation Amplitude and Mode : 2mm (horizontal rotation)
Size(W×D×H)(mm) : 300x220x170
Versatile, robust, thermostatic environment suitable for most mixing needs
Availability:
Quantity:

The TMX-2000H thermostatic mixer stands at the forefront of innovation with its integration of cutting-edge brushless DC motor and state-of-the-art microcomputer control technology. This ingenious combination seamlessly blends the essential functions of maintaining a constant temperature with precision oscillation capabilities. As an automated powerhouse, the TMX-2000H proves to be an indispensable tool for a myriad of applications, including sample incubation, catalysis, mixing, and preservation processes.

Thermostatic Mixer Features:

  1. The thermostatic mixer is equipped with an easy-to-read LCD screen and is intelligently controlled by a microprocessor, providing a user-friendly interface.

  2. Featuring innovative anti-vibration technology and customizable programming options, this device ensures stable operation while accommodating various functions tailored to your specific needs.

  3. Enjoy peace of mind with built-in features such as power failure recovery, precise timing capabilities, temperature calibration, quick oscillation adjustments, and multiple safety protections.

  4. Choose from a range of standard sample modules, making it simple for you to select the right components for your specific requirements. This device is designed to be accessible and versatile for a variety of applications.

Thermostatic Mixer Specifications:

ModelTMX-2000H
Temperature Control RangeRT+5~100°C
Temperature Control Precision±0.3°C
Temperature Stability±0.3°C(at 40℃)
±0.3°C(at 100℃)
Temperature Display Accuracy0.1℃
Oscillation Speed Range200~2000 rpm/min
Oscillation Amplitude and Mode2mm (Horizontal rotation)
Time Setting0~99h59minutes
Heating Rate<15 minutes (from25℃ to 100℃)
Power SupplyAC220/110V, 50/60Hz
Consumption150W
Size(W×D×H)(mm)300x220x170
Shipping Size(W×D×H)(mm)355x355x270
N.W./G.W. (kg)7.9/12

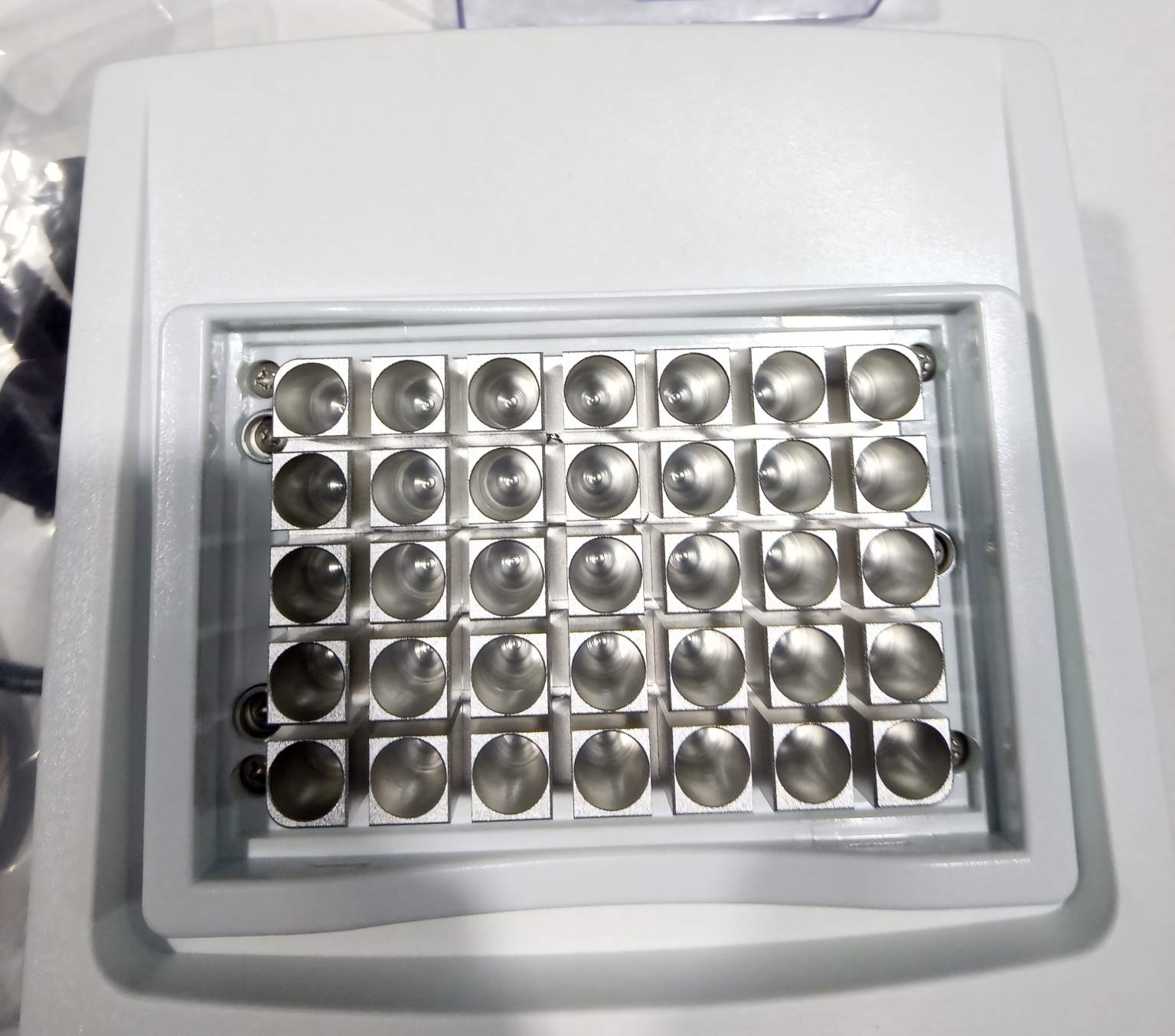

Optional Blocks
ModelAperture and number of test tubesMaximum TemperatureMaximum Speed
B196×0.2ml standard plate100°C2000 rpm/min
B254×0.5ml centrifuge tube100°C2000 rpm/min
B335×1.5ml centrifuge tube100°C2000 rpm/min
B435×2.0ml centrifuge tube100°C2000 rpm/min
B520×0.5ml+15×1.5ml centrifuge tube100°C2000 rpm/min
B624×φ12ml test tube100°C2000 rpm/min
B732×0.2ml+25×1.5m centrifuge tube100°C2000 rpm/min
B832×0.2ml+10×0.5ml+15×1.5ml centrifuge tube100°C2000 rpm/min
B9103ml×67ml×30ml (Square groove block)100°C2000 rpm/min
B1096-well ELISA plate (flat-bottomed)100°C2000 rpm/min
B1124×5m centrifuge tube100°C2000 rpm/min
B1212×15ml centrifuge tube (high lid)100°C700 rpm/min
B136×50ml centrifuge tube (high lid)100°C700 rpm/min
B14Customizable100°C
HX-A196×0.2ml centrifuge tube rack\2000 rpm/min
HX-A224×0.5ml centrifuge tube rack\2000 rpm/min
HX-A324×1.5/2.0ml centrifuge tube rack\2000 rpm/min
