NIR Spectrophotometer Specifications:
| Model | SP-NIR450 |
|---|
| Measurement Mode | The diffuse reflection sample cell |
| Detector | Japan hamamatsu cooled InGaAs |
| Spectral Bandwidth(nm) | 12 |
| Wavelength Range(nm) | 900-2500 nm |
| Wavelength Accuracy(nm) | ≤0.2 |
| Wavelength Repeatability(nm) | ≤0.05 |
| Stray Light(%) | ≤0.1 |
| Absorbance Noise(Abs) | ≤0.0005 |
| Analysis Time | 1min (adjustable) |
| Data Transmission Mode | USB2.0 |
| Calibration Technology | MPLS Modified least squares regression calibration technology |
| DPLS Spectrum identification and qualitative analysis technology |
| Item | Content |
| Electricity | 90-250V\50Hz (or 60Hz) |
| Ambient Temperature (℃) | 5-35 |
| Ambient Humidity (%RH) | 5-85 |
| Size(W×D×H)(mm) | 540×380×220 |
| Shipping Size(W×D×H)(mm) | 780x550x400 |
| N.W./G.W. (kg) | 18/25 |
NIR Spectrophotometer Features:
1. There is no need to treat the sample before testing to protect the integrity of the sample.
2. 900nm-2500nm ultra-wide spectral range, fast analysis speed.
3. Core parts are all internationally famous brands
4. Built-in high-quality PTFE reference module automatic reference calibration to ensure the accuracy of measurement results.

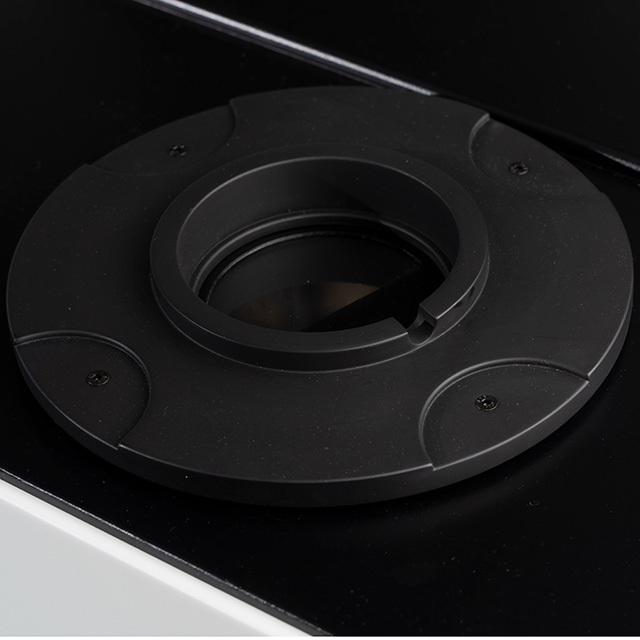

5. Equipped with integrating sphere diffuse reflection system, large sampling spot and sample turntable
6. All tests use NIST traceable standards.
7. Liquid, powder, support particles, film and other forms of sample detection.
8. The instrument's real-time environmental temperature and humidity monitoring allows users to optimize the measurement conditions.
9. Simple operation and intuitive user interface.
10. Can establish authoritative and professional near-infrared quantitative and qualitative analysis models.
