Double Beam UV-VIS Spectrophotometer SP-DUV Series

Model : SP-DUV5000; SP-DUV6000; SP-DUV5000P; SP-DUV6000P; SP-DUV5000SP; SP-DUV6000SP

Wavelength Range : 190-1100nm
Wavelength Accuracy : ±0.3nm
Wavelength Repeatability : 0.1nm
Wavelength Resolution : 0.1nm
Shipping Size(WxDxH)(mm) : 800×645×365; 890×690×510
Double beam uv visible spectrophotometer efficiently analyses sample quantity and quality to avoid failed experimental failures. Ideal for pharmaceutical/biotech and academic researchers measuring samples such as nucleic acids and proteins.
Availability:
Quantity:

UV VIS Spectrophotometer Features:

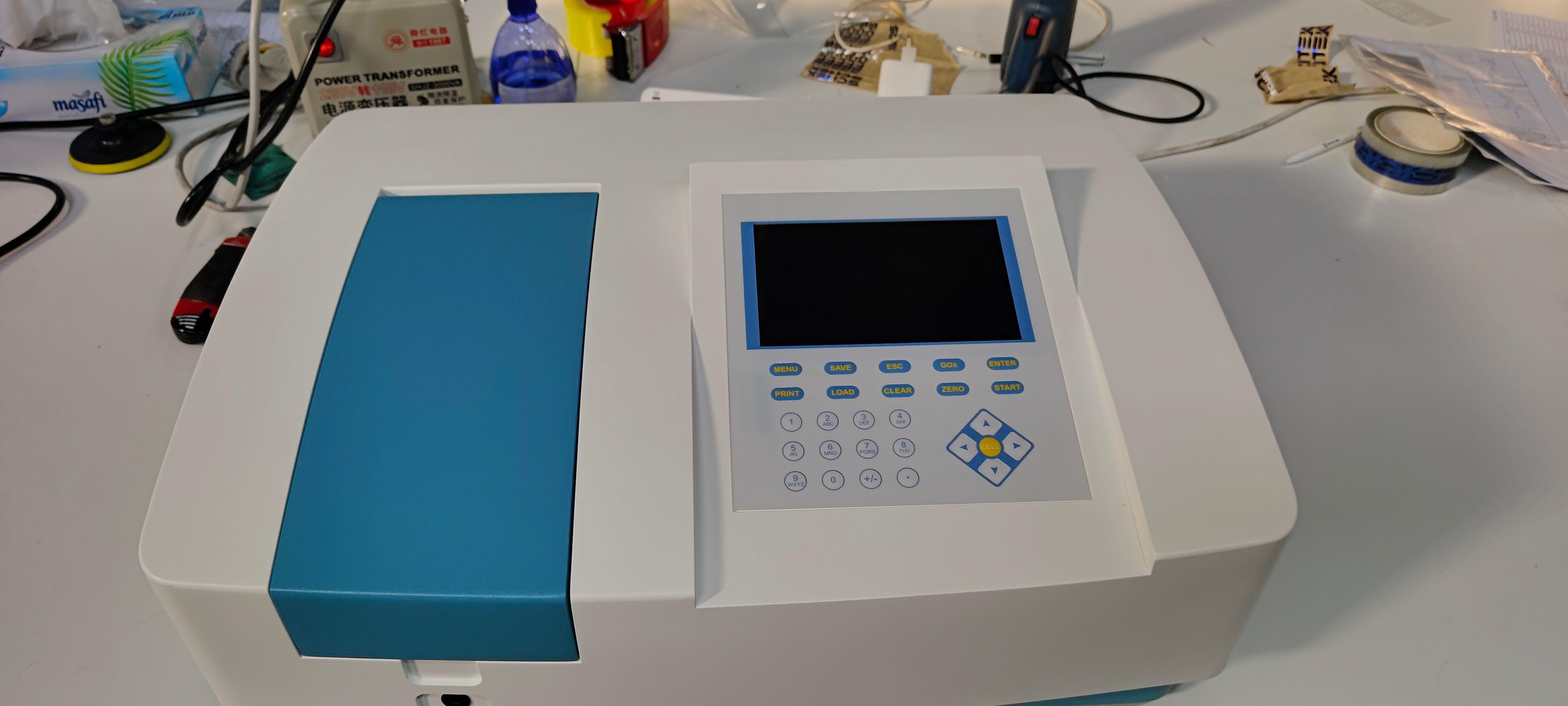

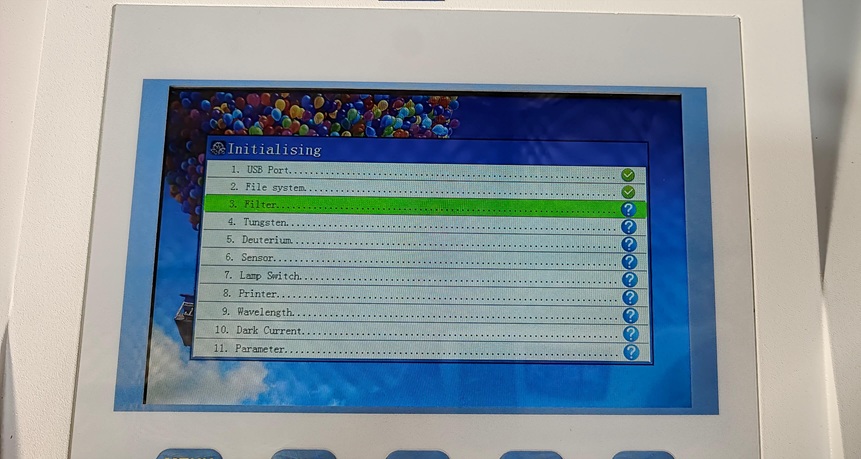

  1. 7-inch color display screen, the large screen displays various scanning curves and charts, allowing users to complete all measurement needs without the help of a computer.

  2. Large-capacity sample chamber design, optional 8-row automatic disc rotating sample rack and 5-row ultra-wide sample rack.

  3. New optimized self-aligning CT optical path design and fully sealed optical path design ensure the measurement accuracy and stability of the instrument.

  4. High-precision, integrated sine mechanism, reliable guarantee of accurate wavelength.

  5. Automatic light source adjustment design and automatic positioning ensure that the instrument optical system is in the best condition.

  6. Suspension optical system design eliminates the impact of vibration or deformation on the optical system

  7. User-measured data can be directly exported to a USB flash drive. No professional auxiliary software is required to open and edit the data. Excel, TXT, and picture formats can be supported (four formats can be output: .CSV, .qua, .tet, . bmp), it is convenient for users to edit experimental reports directly on PC, which greatly saves the space of university experimental benches and makes it convenient for users to use.

  8. The first in the industry to use the advanced 32-bit Cortex_M3 processor with a main frequency of 120M. The instrument can store 5,000 test data or 500 working curves internally.

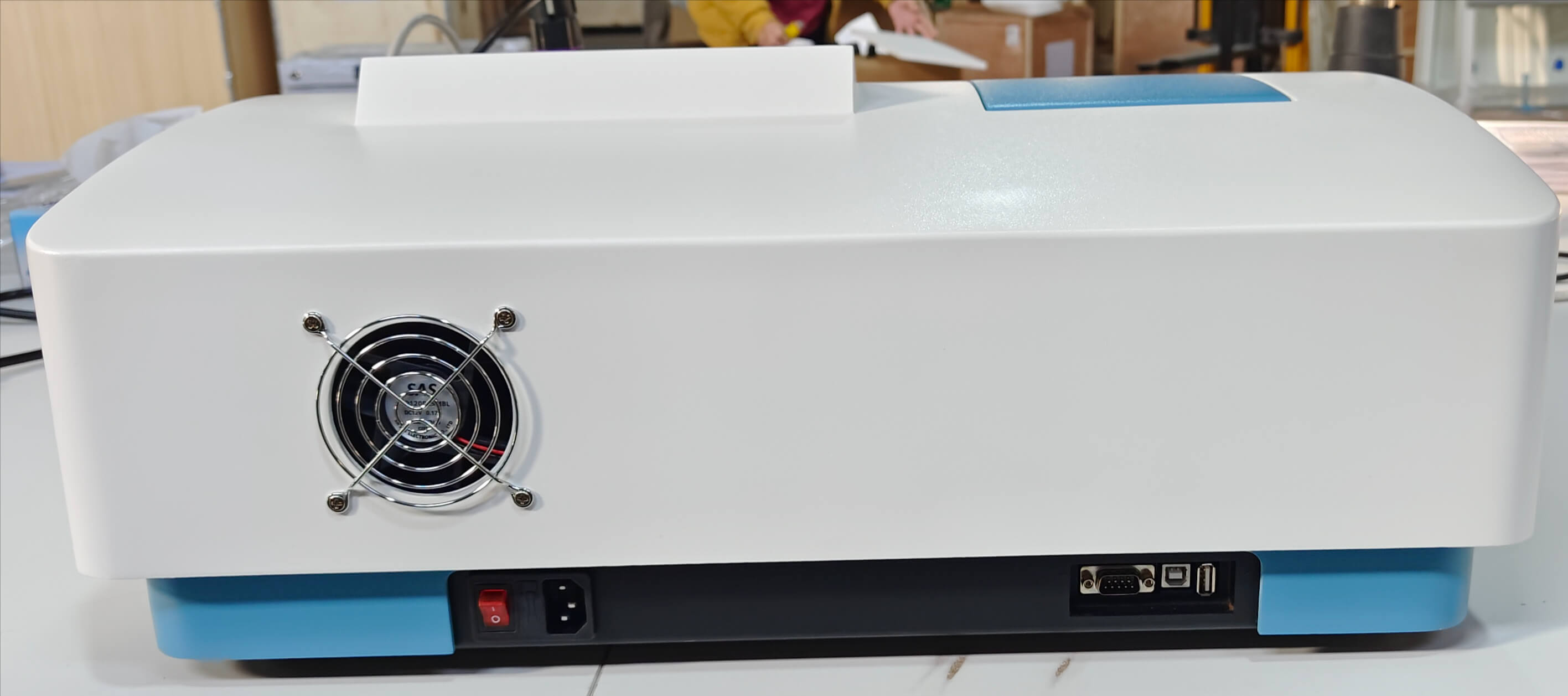

  9. The instrument comes standard with 8GB memory, which can store a large amount of test data; the instrument is equipped with a printing interface (232), a HOST USB interface, and a standard USB (A) interface.

  10. 2000-hour ultra-long life light source. The instrument automatically switches the light source according to measurement needs and automatically records the usage time of the light source. The socket-type light source simplifies the replacement operation.

  11. 1200 lines/mm high-efficiency planar holographic grating, ultra-low stray light.

  12. The extra large sample chamber and diverse accessories selection facilitate users’ various measurement needs.

  13. Can be directly connected to the printer to output measurement charts and data

  14. Powerful PC function software.

UV VIS Spectrophotometer Specifications:

ModelSP-DUV5000SP-DUV6000SP-DUV5000PSP-DUV6000PSP-DUV5000SPSP-DUV6000SP
Display7-inch 1024×600 color LCD screen
Optical SystemProportional double beam detectionDouble beamProportional double beam detectionDouble beamProportional double beam detectionProportional double beam detection
Wavelength Range190-1100nm
Wavelength Accuracy±0.3nm
Wavelength Repeatability0.1nm
Wavelength Resolution0.1nm
Bandwidth1.8nm1.8nm1nm1nm0.5/1/2/4nm0.5/1/2/4/5nm
Stray LightAt 220nm, 360nm, ≤0.03%T
Photometric Range0-200%T, -3-3A, 0-9999C(0-999F)
Photometric Accuracy±0.3%
Baseline Straightness±0.001nm
Data StorageStandard 8GB memory
Data OutputRS-232C serial port (printing), USB drive (online), USB HOST (connect to U disk)
ProcessorCortex_M3 clocked at 120Mhz
Consumption120W
Power SupplyAC 220/110V, 50/60Hz
Shipping Size(WxDxH)(mm)800×645×365890×690×510
N.W./G.W.(kg)21/2631/47
