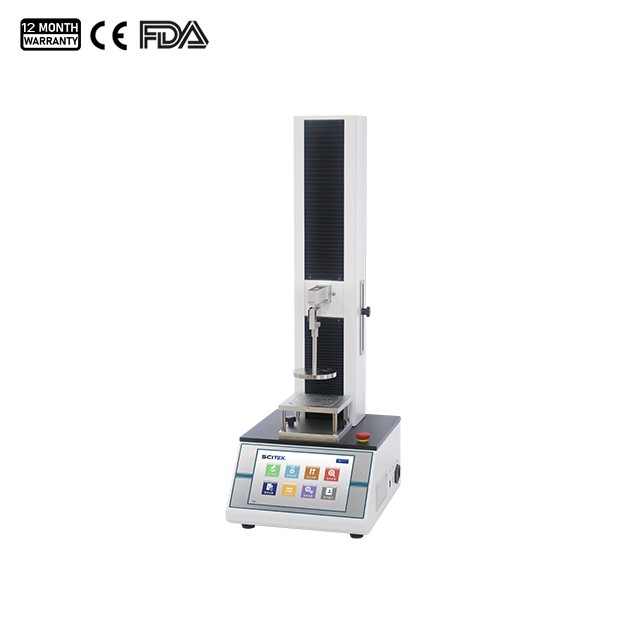

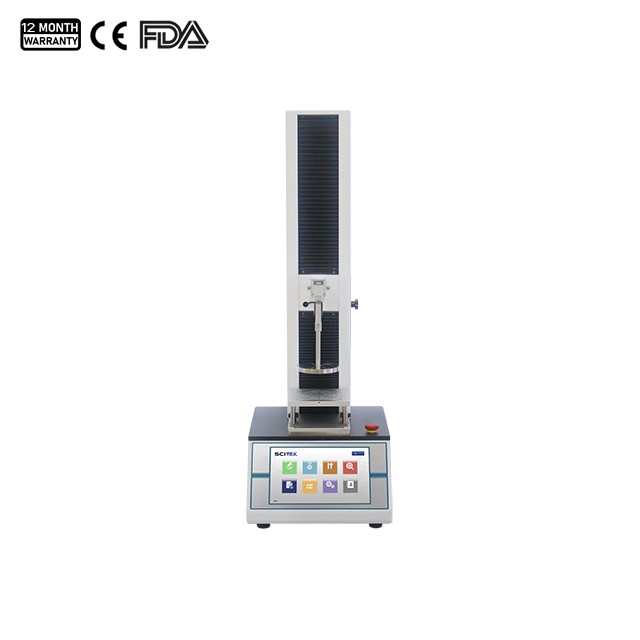

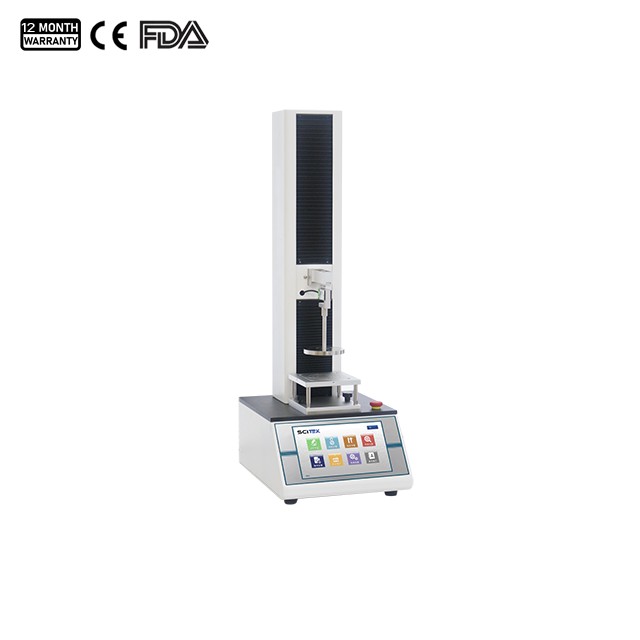

Texture Analyzer is an essential laboratory instrument used to quantify the physical and mechanical properties of raw materials, semi-finished goods, and end products. Our professional-grade texture analysis equipment is widely adopted to ensure quality control (QC), Optimize R&D formulation.
Key application fields encompass:
Mechanical property testing in the food, pharmaceutical and cosmetics industries, as well as for agricultural products, polymer materials and packaging materials
This instrument complies with a number of national and international standards: AACC (16-50), AACC (74-09), NY/T 1180-2006, SC/T 3702-2014, ASTM D1894-90, FINAT methods 3, 5, 6, 9, 18, 22, AFERA 4013, 4015, 5001, 5004
Texture Analyzer Feature:

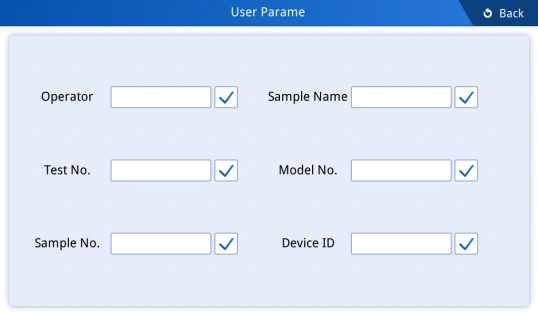

10-inch touchscreen operation with a stylish and user-friendly human-machine interface.
Can operate independently as a standalone unit without connecting to a computer.

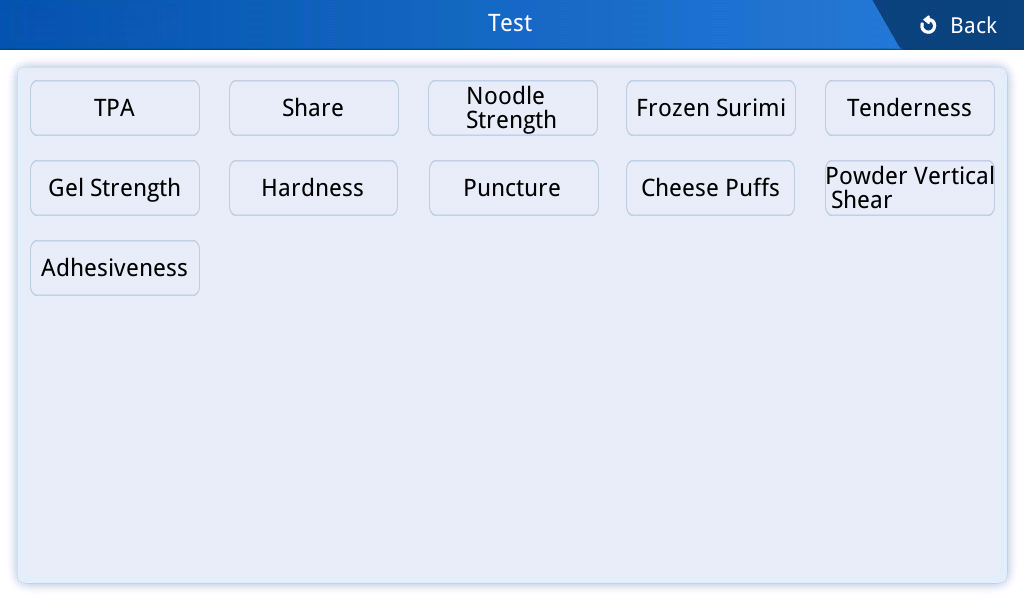

Offers a variety of test modes to meet the requirements of most industrial applications.
Equipped with high-precision imported force sensors, featuring high measurement accuracy, excellent repeatability, and sensor over-range protection.
Adopts precision ball screw multi-axis positioning technology to achieve step-less speed regulation, ensuring a stable motion drive system with high operating accuracy.
High-precision displacement sensor with automatic homing recognition function.
Intelligent configurations including motion mechanism limit protection, overload protection, automatic homing, and power-off memory to ensure the safety of both users and the instrument.
Real-time test curve displays the force variation trend during testing, supporting single and batch statistical analysis of test results.
Built-in micro printer for instant printing of test statistical data.
Dedicated computer communication software for real-time test monitoring, data analysis, processing, and storage.
Complies with GMP multi-level user authority management; test data history is queryable, non-modifiable, and audit-traceable.
Supports ISP online control and firmware upgrade functions, allowing remote modification of test functions as required.
Texture Analyzer Specification:
Model
TA-910H
Test Mode
10
Force Sensor
5 kg (10/25/50 kg, Optional)
Load Cell
0.001 g
Test Speed Range
0.005–50 mm/s (Stepless speed regulation)
Speed Resolution
0.001 mm/s
Displacement Stroke
0–420 mm
Displacement Resolution
0.001 mm
Data Acquisition Frequency
≥300 groups/s
Standard configuration
Any 3 fixtures (customer-selected) are included as standard
External Size (W×D×H)
300×400×900 mm
Shipping Size (W×D×H)
500×450×110 mm
N.W/G.W.
27/50 kg
How to efficiently optimize the supply chain while ensuring that texture analysis results are globally recognized? Our solution offers:
Compliance with Global Standards: Fully compliant with ASTM, AACC, and FINAT/AFERA testing methods.
Optional Accessories: Over 300 Specialized Probes and Fixtures.
Compliance Analytical Software: GMP-grade multi-level user access control, audit trail, and data traceability.
Intelligent online operation and maintenance: Equipped with ISP online control and remote upgrade functions, equipment operation and maintenance are efficient and convenient.
Texture Analyzer (TA-910H) Probes and Fixtures List
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
