Accuracy : 0.0001 g Test Speed : 0 ~ 50 mm/s (Adjustable) Resolution of Speed : 0.001 mm/s Stroke : 0 ~ 420 mm Accuracy of Displacement : 0.0001 mm The texture analyzer is suitable for use in the food, cosmetics, pharmaceutical, and packaging industries.

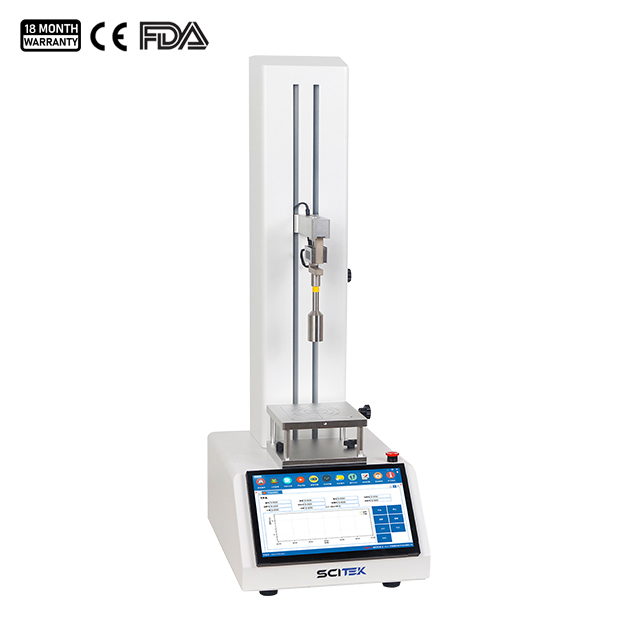

The texture analyzer TA-5000 is applicable to test physical properties of food and other consumer products.
Intelligent Texture Analyzer Features:
10-inch color touchscreen with graphical user interface (GUI).
High-precision sensors ensure high accuracy and repeatability of the force measurement system.
Multiple intelligent configurations, including limit protection, overload protection, auto-positioning, and power-off memory.
Provides a variety of test modes, such as TPA (Texture Profile Analysis), meat tenderness, gel strength, noodle strength, elastic modulus, tensile stress, peeling, tensile strength, compressive strength, viscosity, and more.
Motion control system with high precision and smooth operation.
The texture analyzer is embedded with latest operating software, featuring a user-friendly interface, intelligent data processing, strict user management, and secure data storage.
Equipped with micro-printer and standard USB interface.
Texture Analyzer Specifications:
Model
TA-5000
Test Range
5 kg (Standard)
25 kg, 50 kg (Optional)
Accuracy
0.0001 g
Test Speed
0 ~ 50 mm/s (Adjustable)
Resolution of Speed
0.001 mm/s
Stroke
0 ~ 420 mm
Accuracy of Displacement
0.0001 mm
Power Supply
120VAC 60Hz / 220VAC 50Hz
(can be changed to local requirement)
Standard Accessories
Instrument, Micro Printer
Optional Accessories
300+ Customized Clamps
Instrument Size (W×D×H)(mm)
310x410x900
Shipping size(W×D×H)(mm)
450x550x900
N.W./G.W. (kg)
25/38
Standard:
This texture analyzer conforms to many national and international standards: GB/T 28304-2012, GB/T 6783-2013, AACC (16-50), AACC (74-09), NY/T 1180-2006, SC/T 3702-2014, ASTM D1894-90, FINAT Method, Afera 4013, Afera 4015, Afera 5001, Afera 5004.
Details of Texture Analyzer:
Typical texture analysis tests:
What Fixtures Are Used with Texture Analyzers?
Texture analyzers use different probes and fixtures depending on the sample type and testing method. Common options include flat compression plates for compression tests, cylindrical and needle probes for penetration tests, back extrusion cells for gels and pastes, and tensile grips for testing films and fibers. Selecting the appropriate fixture helps ensure accurate and repeatable measurements across different applications.
Can a Texture Analyzer Replace a Sensory Evaluation Panel?
A texture analyzer does not replace human sensory evaluation. Instead, it provides valuable support. It delivers objective and repeatable test results that can be compared with sensory panel assessments. This helps manufacturers establish measurable quality standards, monitor product consistency, reduce the need for frequent sensory tests, and maintain confidence in product quality.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
