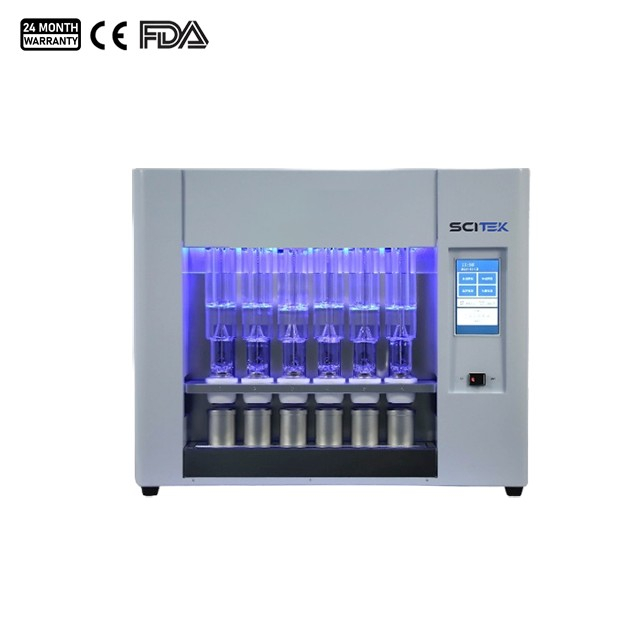

Automatic Fat Analyzer Application:
Automatic Fat Analyzer based on the Soxhlet extraction principle, features a fully automated design and highly efficient extraction technology. It can quickly and accurately determine the crude fat content in various samples (such as grains, meat, dairy products, feed and chemical raw materials), meeting the core needs of batch testing, QC and scientific research. Widely deployed in the food, grain and oil, feed, pharmaceutical, chemical, and agricultural product processing industries.
Automatic Fat Analyzer Feature:
7-inch handheld color touchscree, user-friendly interface, convenient operation.
Stores up to 99 customized analytical programs, and supports 40 program segments and multi-temperature cyclic operation.
Unique electronic cooling technology eliminates the need for large amounts of tap water and chemical refrigerants, saving energy and protecting the environment.
Fully automated process, pressing, liquid addition, extraction, recovery, and drying, are automated without manual intervention, improving testing efficiency.
Flexible extraction modes, room temperature/hot immersion, continuous/intermittent extraction, etc., can be combined arbitrarily. Sample and solvent cup drying can replace a drying oven, facilitating operation.
Fully automatic solvent management: automatic addition, automatic collection to an external metal container after extraction for reuse.
20 mm integral metal bath deep-hole heating block, rapid heating and uniform heat distribution.
Organic solvent resistant connectors and tubing; compatible with various solvents such as petroleum ether and diethyl ether.
Extraction filter paper cup holder automatically rises and falls, ensuring simultaneous sample immersion in the solvent and improving the consistency of measurement results.
Built-in petroleum ether leak alarm system is included, and both aluminum alloy and glass solvent cups are available, balancing safety and practicality.
Automatic Fat Analyzer Specification:
Model | FA-J06 |
|---|
Measuring Range | 0.1% – 100% |
Sample Throughput | 6 samples/batch |
Sample Weight | 0.5–15 g |
Solvent Cup Capacity | 150 mL |
Solvent Recovery | ≥85% |
Temperature Control Range | RT+5 ℃ to 300 ℃ |
Temperature Accuracy | ±1 ℃ |
Display | 7-inch color touchscreen |
Solvent Reflux Control | Electromagnetic automatic opening/closing |
Lifting System | Fully automatic lifting |
Power Supply | AC 220±10%V, 50 Hz |
Consumption | 1.5 kW |
Aecessory | Sample Basket×6 |
Aluminum Alloy Solvent Cup×6 |
E×ternal Size(W×D×H) | 810×280×680 mm |
Shipping Size(W×D×H) | 950×380×1080 mm |
N.W/G.W. | 43/64 kg |
