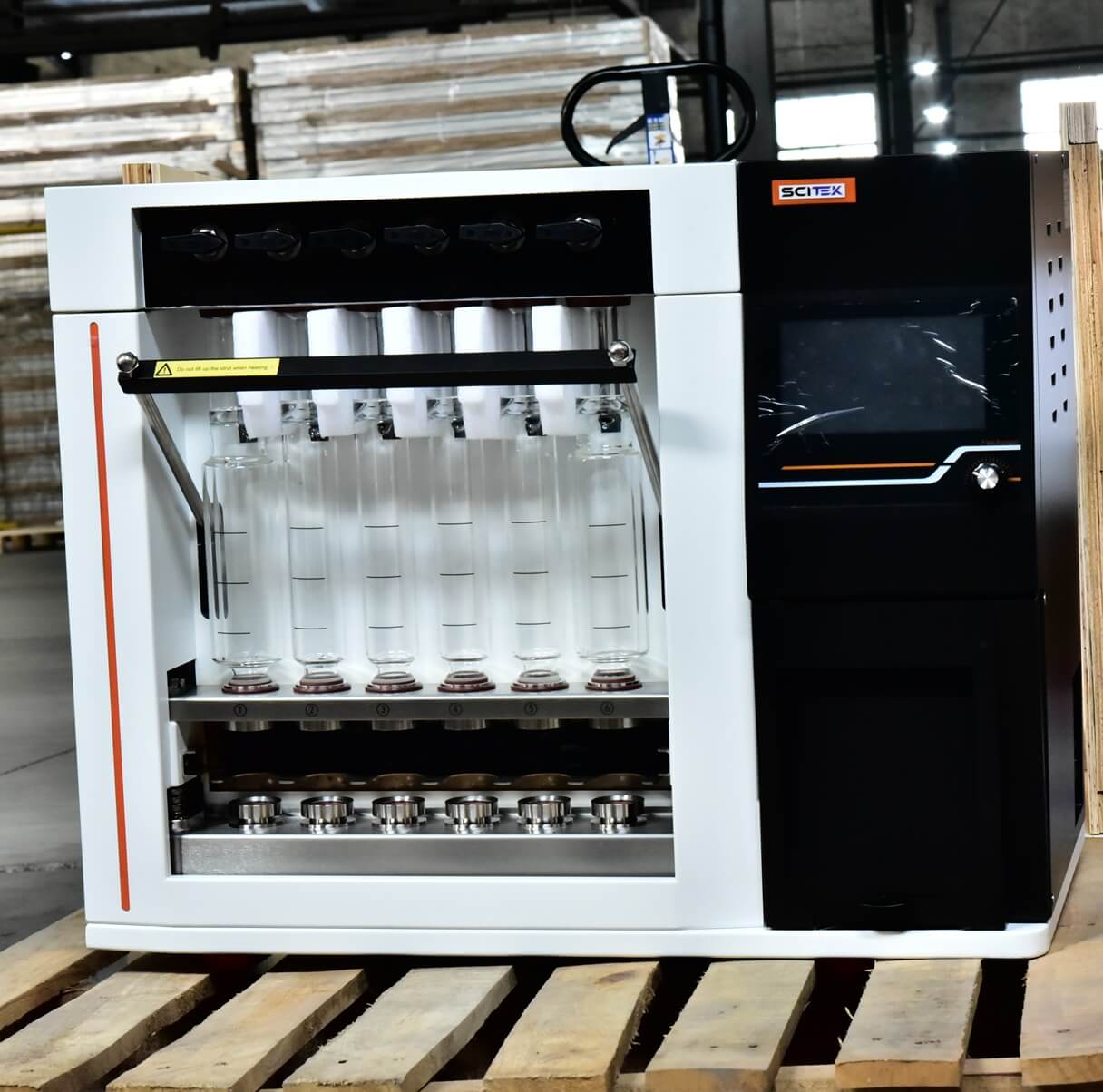

Fiber Analyzer

Model : FBA-800

Sample Weight : 0.5g~3g
Capacity Per Batch : 6pcs/batch
Sizes(W×D×H)(mm) : 776×476×644

Availability:
Quantity:

Fiber Analyzer Specifications:

ModelFBA-800
Display7 inches touch color screen
Measurement Range0.1%~100%
Sample Weight0.5g~3g
Repeatability ErrorCrude Fiber Content <10%, ≤0.4%
Crude Fiber Content≥10%, ≤1%
Capacity6 pcs/batch
Pre-heating Time10-12min
Heating to Boiling13-15min
Power2.2KW
Power SupplyAC220V±10% 50Hz
Size(W×D×H)(mm)776×476×644
Shipping Size(W×D×H)(mm)1000x730x900
G.W. (kg)120

Fiber Analyzer Feature:

The FBA-800 fiber analyzer is a compact, state-of-the-art analyzer for determining crude fiber, NDF, ADF and ADL in food or plants. Equipped with a splash guard and a high-pressure pump to eliminate safety hazards during the extraction of highly corrosive liquids and to prevent samples from clogging the crucible, ensuring that the extraction is completed efficiently and accurately.

  1. The solution tank adopts a pull-out design and overflow protection function, which is convenient for refilling and protects the operator's safety.

  2. Simultaneous degreasing of up to 6 samples

  3. The corrosive liquid does not contact any pump body, and the sewage pump is susceptible to corrosion.

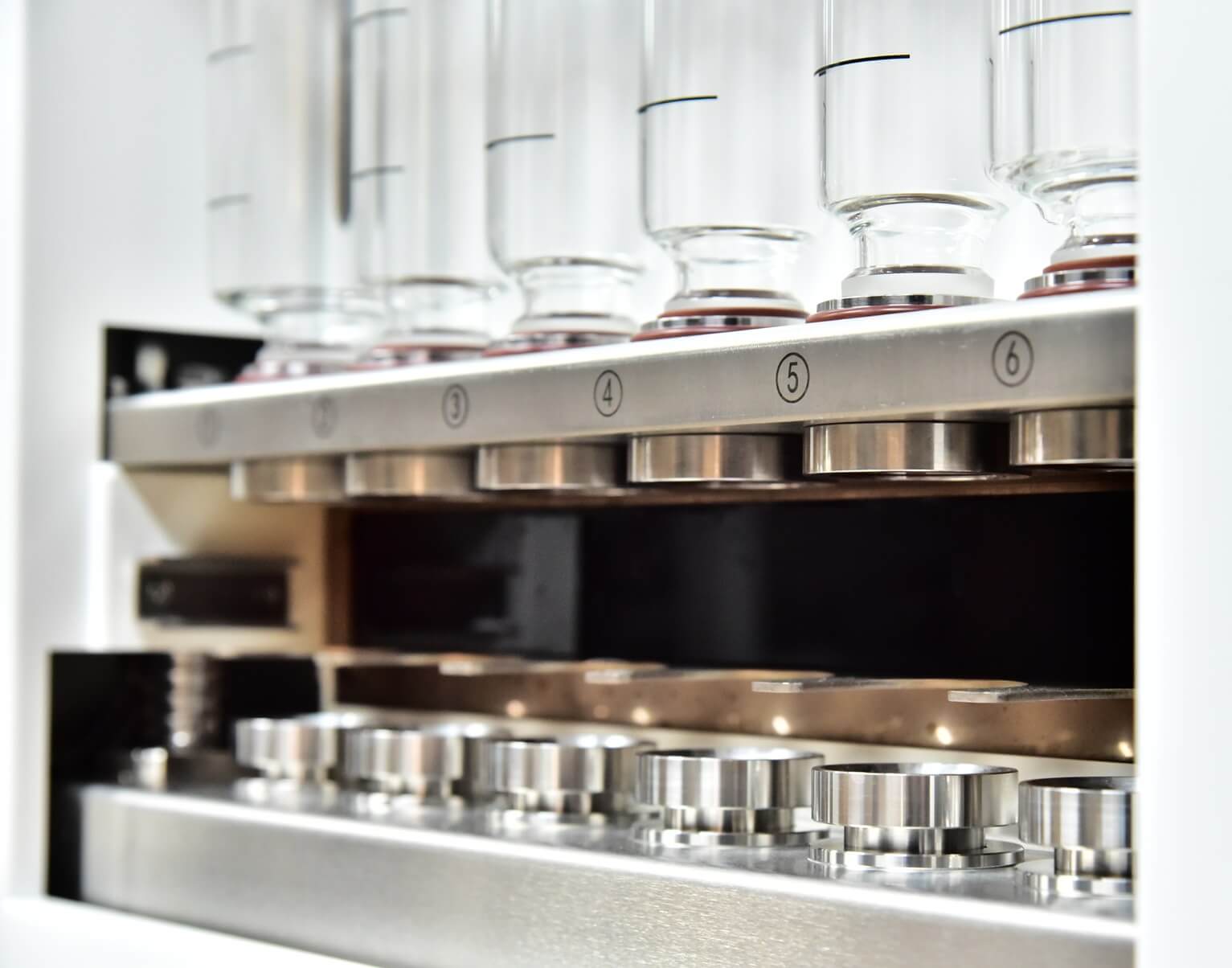

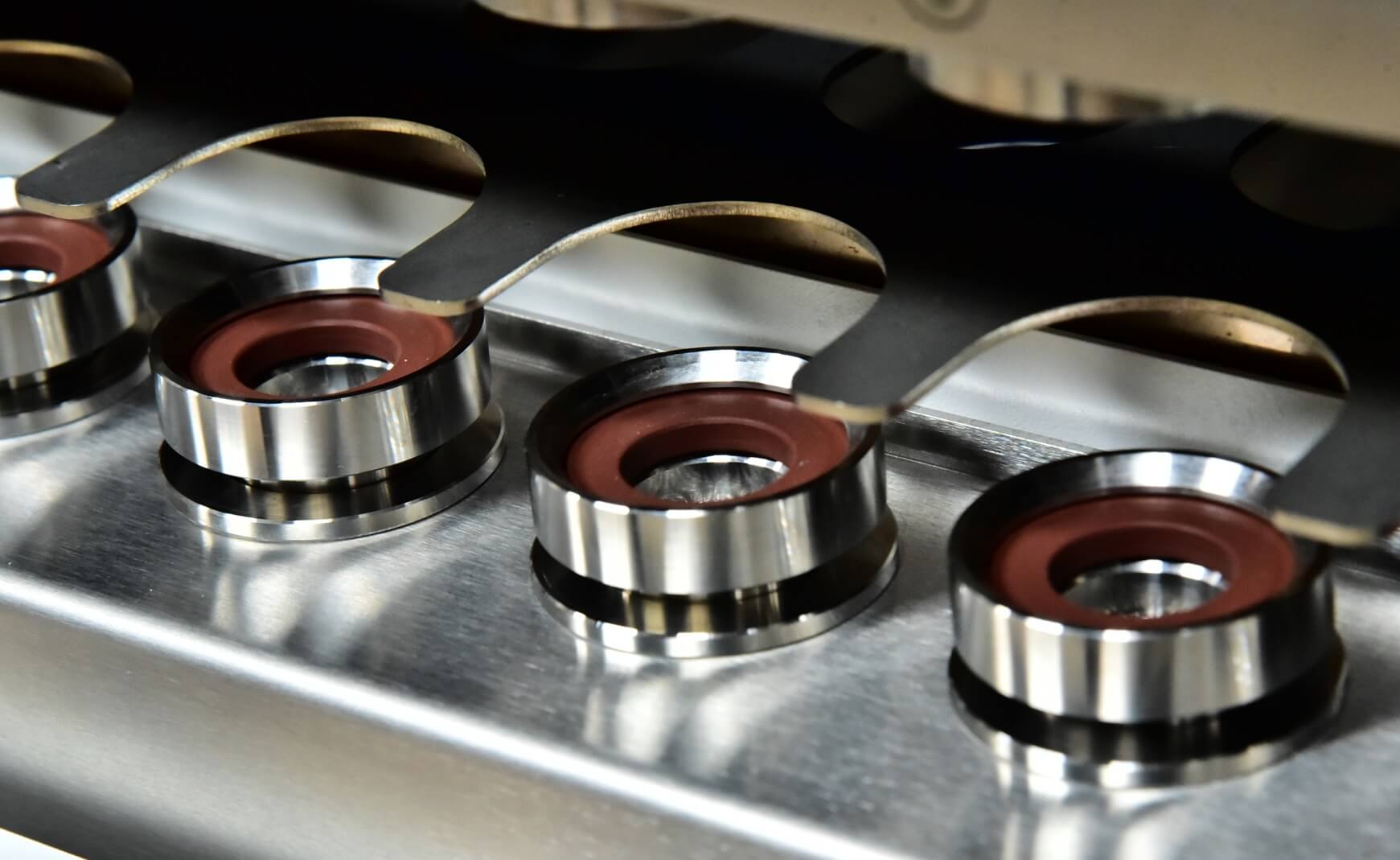

  4. Crucible backwash design allows the sample in the crucible to be easily filtered through the filter cake.

  5. Adjustable crucible heating power makes it easy for customers to control the heating rate, reducing energy consumption and environmental protection.

  6. The built-in preheating function significantly shortens the whole experiment time.

  7. Provide 5 different crucible specifications to meet the standard configuration needs of different samples.
