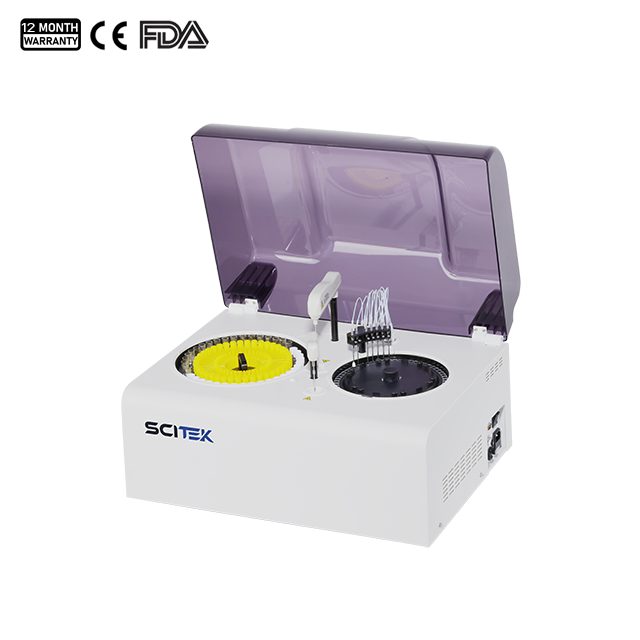

Fully Automatic Biochemistry Analyzer, BA-260I

Model : BA-260I

Reagent Position : 40 pcs
Throughput : Constant 200 tests/hour
Sample volume : 1.6–50 µL, 0.1 µL step
Wavelength : 340–700 nm, 9 wavelengths
Reaction tray : 60 reusable cuvettes 60 reusable cuvettes

It is a diagnostic tool used in clinical laboratories, hospitals and research facilities for the accurate and efficient testing of biochemistry.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Application:

The Fully Automatic Biochemistry Analyser is a diagnostic tool used in clinical laboratories, hospitals and research facilities for the accurate and efficient testing of biochemistry. It automates the entire testing process and is suitable for analysing a wide range of clinical samples, including blood, urine and serum. It measures key biomarkers such as enzymes, electrolytes, glucose and lipids, delivering accurate and timely results.

Advantage:

1. Optimal Performance: ideal replacement for semi-automatic chemistry analyzers.

2. Minimal Labor Requirements: designed to reduce the need for manual intervention, allowing for more efficient operations.

3. Independent Mixing Probe: features an independent mixing probe for enhanced accuracy and consistency.

4. Reduced Reagent Usage: reagent consumption is minimized, using only 300µL per test.

5. High Efficiency: fast and efficient processing speeds for improved throughput.

6. User-Friendly Interface: equipped with smart, easy-to-operate software for seamless use.

7. High Accuracy: delivers precise results with minimal operating or random errors.

8. Trusted by Clinics: highly regarded and well-reputed in clinical settings.

9. Advanced Calibration and Re-testing: automatic re-testing feature for samples outside the linearity range or when the sample is insufficient.

Specification:

Model	BA-260I
Throughput	Constant 200 tests/hour
Measuring principles	Absorbance photometry, immunoturbidimetric
Methodology	End-point, Fixed-time, Kinetic, Single/Double Reagent Chemistry
Reaction System	Reaction tray: 60 reusable cuvettes
	Optical length of cuvette: 5 mm
	Reaction volume: 120–300 μL
	Reaction temperature: 37±0.1 ℃
	Max reaction time: 10 minutes
Cuvette Washing	Automatic 7-step washing washing system
Optical System	Photometry system: rear spectrophotometry
	Light source: halogen-tungsten lamp
	Wavelength: 340–700 nm, 9 wavelengths (340, 405, 450, 510, 546, 578, 620, 660, 700 nm), precision ±1.5 nm
	Absorbance range: 0–3.0 Abs
	Resolution: 0.0001 Abs/Automatic dilution and re-test when ABS and Linear out of range
Reagent tray	Internal barcode reader, 40 positions for reagents, reagent tray in 24 hour refrigerated compartment (2–8 ℃)
Sample tray	40 positions for samples
Reagent volume	R1100–300 µL / R210–150 µL, step by 0.1 µL
Reagent/Sample probe	Liquid level detection, vertical collision protection, inventory checking
Probe cleaning	Automatic washing for interior & exterior/carry over < 0.1%
Sample/Reagents Handling	Sample volume: 1.6–50 µL, 0.1 µL step
	Sample dilution: automatic/manual pre-dilution, with dilution ratio up to 1:100
	Reagent position: 40 pcs
	Reagent volume: 10–300 µL, 0.1 µL step
Mixing Unit	Independent mixing bar
Calibration	Linear/nonlinear multi-points calibration
Calibration models	Single point, Two point, Multiple point, Logitlog, Segment line, Exponential 5p, Polynomial, Poly4, Spline, Logistic
Control Rules	One key calibrator import function westgard multi-rule
Analysis Methods	End-point, kinetic, two-point, double-reagent, double-wavelength, multi-standard etc, open to various reagents
Operation system	Windows 7 or above
Input	RS-232 interface/computer
Output	Multi-format printout
Interface	RS-232
Temperature	10–35 ℃
Humidity	≤90%, no dew
Power Supply	110 /220 V, 350 W
Lower Water Consumption	5 L/H
Size (W×D×H)	59×42×33 mm
N.W.	36 kg
