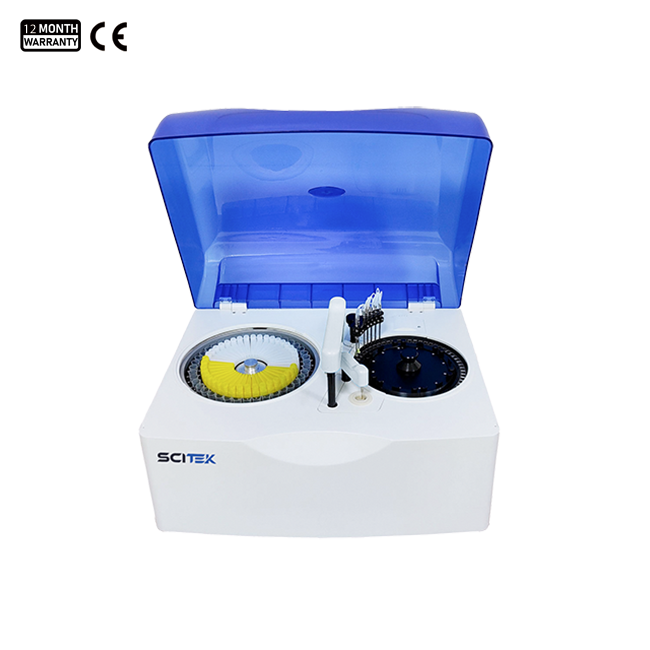

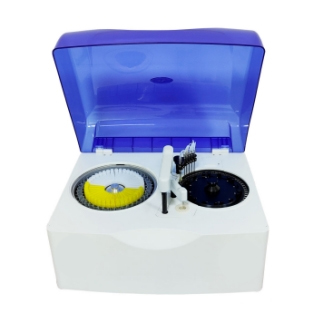

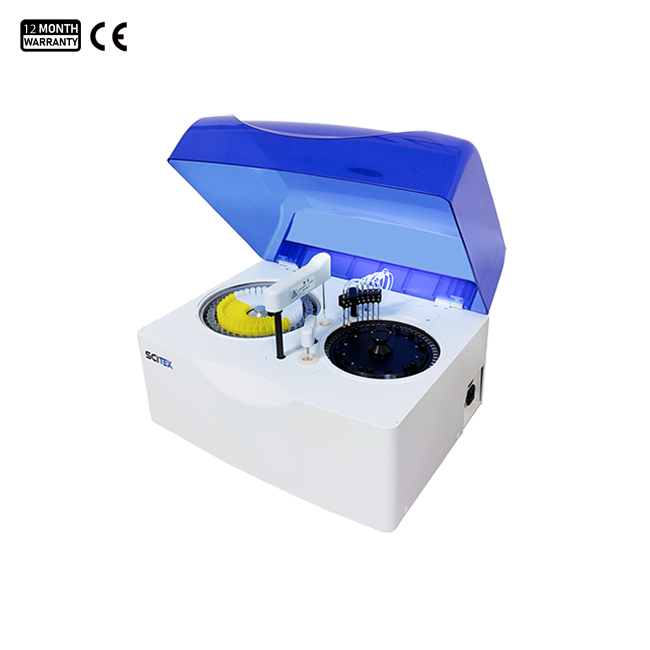

Fully Automatic Biochemistry Analyzer BA-200E

Model : BA-200E

Efficiency Speed : 200 tests/hour
Reaction Volume : 180~400μl
Reaction Cuvettes : 60 pcs reusable plastic cuvettes
Absorbance Range : 0~5.0 Abs

Sizes(W×D×H)(mm) : 548x422x383

Experience unmatched performance and ease of use with this fully automatic biochemistry analyzer.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

This auto biochemistry analyzer from Scitek is designed to analyze a variety of test samples. This includes blood, plasma, serum, urine and more. It supports the simultaneous execution of multiple tests and offers a wider range of tests. Greatly simplifies your workflow.

Fully Automatic Biochemistry Analyzer Specifications:

Model		BA-200E
Efficiency Speed		200 tests/hour
System Functions		Analysis Methods: End-point, kinetic, two-point, double-reagent, double-wavelength, multi-standard etc, open to various reagents
Max reaction Time		10 minutes
Reaction Volume		180~400μl
Reaction Cuvettes		60 pcs reusable plastic cuvettes
Absorbance Range		0~5.0 Abs
Halogen Light Source Using Time		2000h
Wavelength		340-690nm, 9 wavelengths, precision ±1.5nm
Absorbance Range		0~5.0 Abs
Resolution		0.0001 Abs
Reaction Temperature		37±0.1℃
Temperature Fluctuation		±0.1℃
Sizes(W×D×H)(mm)		548x422x383
N.W(kg)		≤23kg
Sample/ Reagents Handling	Sample volume	1.6-50ul, 0.1μl step
	Sample Dilution	Automatic/Manual pre-dilution, with dilution ratio up to 1:100
	Reagent Position	40 pcs
	Reagent Volume	10-500μl, 0.5ul step
Sample/Reagent/Mixing Probe		Automatic liquid level detect, Collision protection function, Probe internal/external washing, Independent mixing probe
7-Step Auto Cleaning System		Automatic 7-step washing, Hi-tech washing station to ensure accurate results, With low water consumption: 1-2L/H
Calibration		Calibration: Linear/nonlinear multi-points calibration
Calibration		Re-test: Retest the sample automatically when the result is out of the linearity range or the sample is not sufficient
Working Condition		Power Supply: 100-240V, 50/60Hz, 300VA
		Temperature: 10-35℃
		Humidity: ≤90%, no dew
Operation System		Windows 10 or Windows 7
Input and Output		Input: RS-232 interface/computer
Input and Output		Output: Multi-format printout

Technical Specifications:

Sample/Reagent Position
40pcs sample position Reagent refrigerated function 40pcs reagent position
Reaction Cuvettes
60 pcs reusable plastic cuvettes Automatic blank testing for cuvette Colorimetry system in the pattern of light splitting behind cuvette Dismountable, easily replacement
Sample/Reagent/Mixing Probe
Automatic liquid level detect Collision protection function Probe internal/external washing Independent mixing probe
7-Step Auto Cleaning System
Automatic 7-step washing Hi-tech washing station to ensure accurate results With low water consumption: 1-2L/H
Intellective software
Automatic washing cuvette when startup & shut down Automatic detect reagent volume during every startup Reagent plate temperature detecting when startup
Optimum calibration cuvette
Automatic Cuvette blank testing Automatic wash selected cuvettes

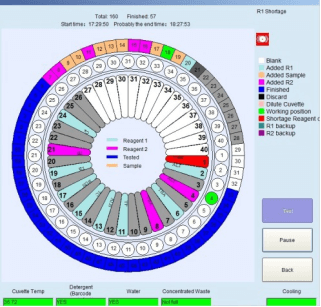

Dynamic and Real-time display of running status
Real-time online monitoring running status of sample tray, reagent tray and cuvette Real-time online monitoring reagents residual volume Real-time online monitoring waste volume

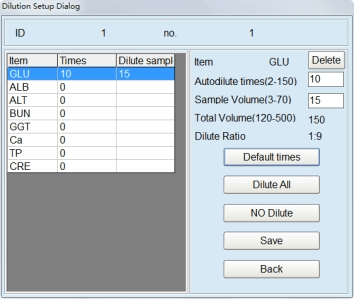

Automatic dilute and re-test
Automatic dilute and re-test when absorbance range is out of range Automatic dilute and re-test when linear limit is out of range Automatic dilute and re-test when linear range is out of range Freely set the auto dilute ratio and dilute water position

Fully Automatic Biochemistry Analyzer Features:

40pcs sample position, Reagent refrigerated function, 40pcs reagent position
Efficiency speed 200 tests/hour
Utility of reagents decreased: 300ul/test
User friendly: Smart and easy-operating software
High Accuracy: Minimal operating/random errors

Model	BA-200E
Efficiency Speed	200 tests/hour
System Functions	Analysis Methods: End-point, kinetic, two-point, double-reagent, double-wavelength, multi-standard etc, open to various reagents
Max reaction Time	10 minutes
Reaction Volume	180~400μl
Reaction Cuvettes	60 pcs reusable plastic cuvettes
Absorbance Range	0~5.0 Abs
Halogen Light Source Using Time	2000h
Wavelength	340-690nm, 9 wavelengths, precision ±1.5nm
Absorbance Range	0~5.0 Abs
Resolution	0.0001 Abs
Reaction Temperature	37±0.1℃
Temperature Fluctuation	±0.1℃
Sizes(W×D×H)(mm)	548x422x383
N.W(kg)	≤23kg
Sample/ Reagents Handling	Sample volume	1.6-50ul, 0.1μl step
Sample Dilution	Automatic/Manual pre-dilution, with dilution ratio up to 1:100
Reagent Position	40 pcs
Reagent Volume	10-500μl, 0.5ul step
Sample/Reagent/Mixing Probe	Automatic liquid level detect, Collision protection function, Probe internal/external washing, Independent mixing probe
7-Step Auto Cleaning System	Automatic 7-step washing, Hi-tech washing station to ensure accurate results, With low water consumption: 1-2L/H
Calibration	Calibration: Linear/nonlinear multi-points calibration
Re-test: Retest the sample automatically when the result is out of the linearity range or the sample is not sufficient
Working Condition	Power Supply: 100-240V, 50/60Hz, 300VA
Temperature: 10-35℃
Humidity: ≤90%, no dew
Operation System	Windows 10 or Windows 7
Input and Output	Input: RS-232 interface/computer
Output: Multi-format printout
