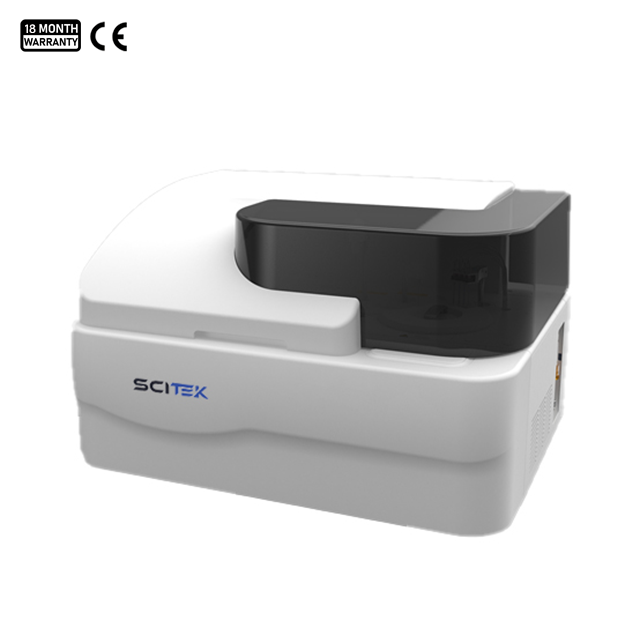

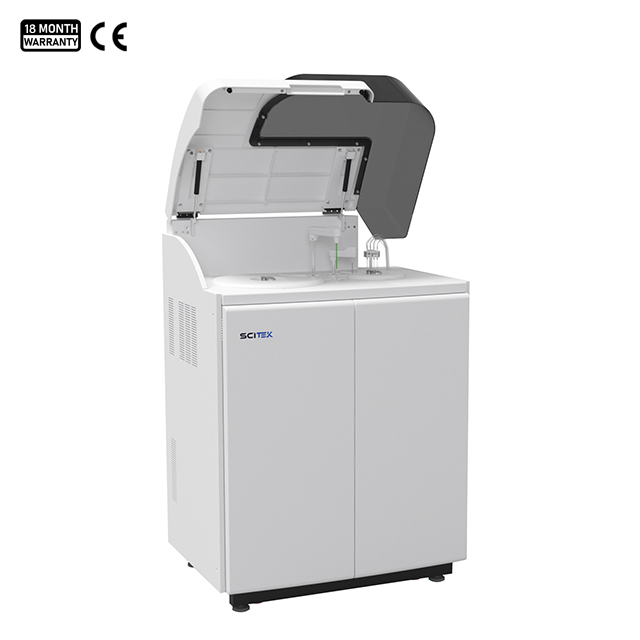

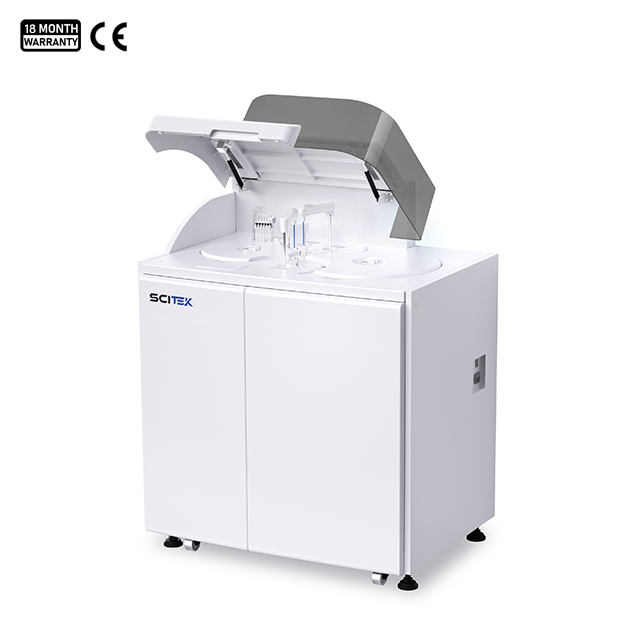

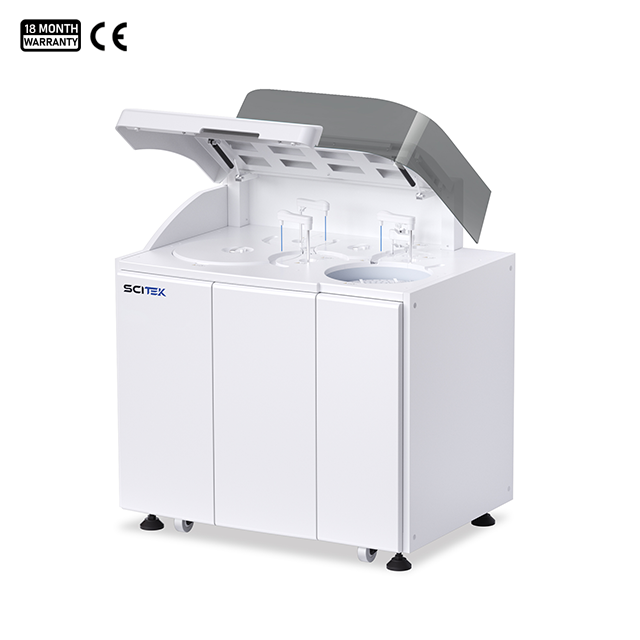

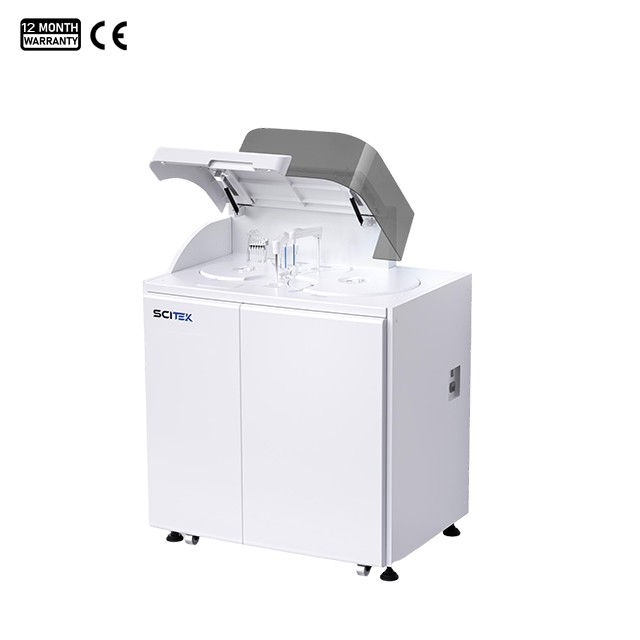

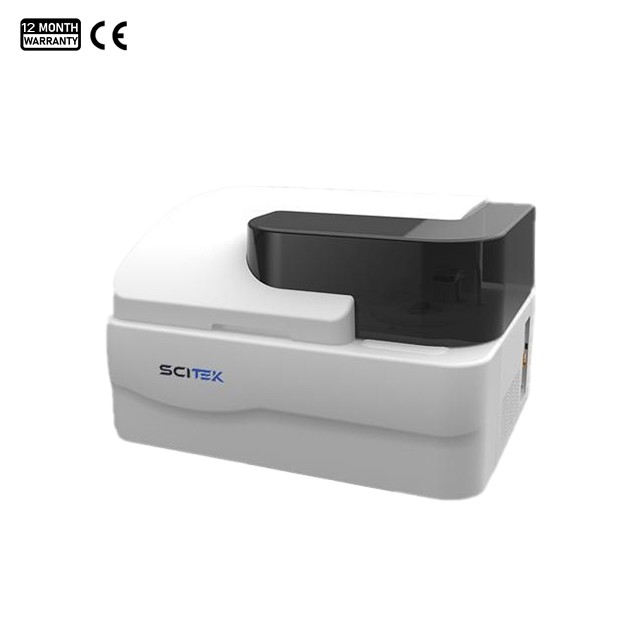

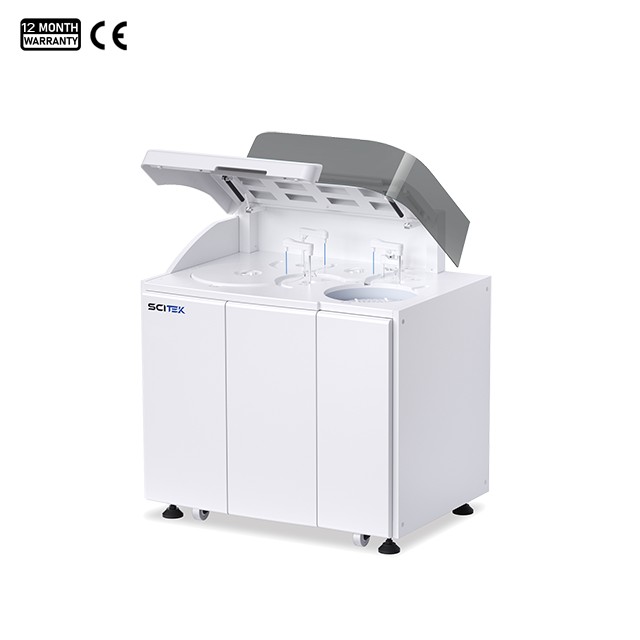

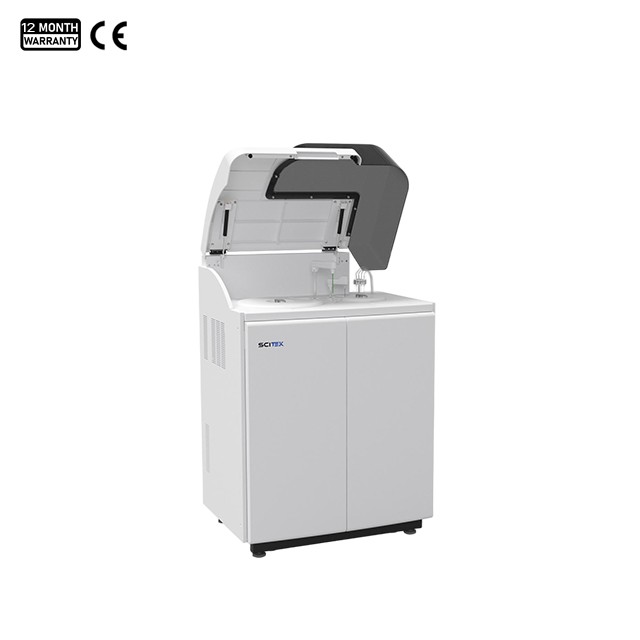

Fully Automatic Biochemistry Analyzer

Model : BA-120; BA-160; BA-220; BA-280; BA-380; BA-480

Test Method : 1 point end, 2 point end, Fixed-Time, Kinetics

Machine Type : Random access, open reagent & locked reagent (optional)
Test Principle : Colorimetric method, turbidimetry

Sizes(W×D×H)(mm) : 750x550x490;750x475x535;780x565x1120;

870x690x740;920x650x1120;1110x765x1150;

This biochemistry analyzer is suitable for analysing biochemical indicators in biological samples such as serum and urine to assist doctors in disease diagnosis and treatment monitoring.

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

Fully Automatic Biochemistry Analyzer Specifications:

Model	BA-120	BA-160	BA-220	BA-280	BA-380	BA-480
Machine Type	Random access, open reagent & locked reagent (optional)
Test Speed	Constant 120 tests/hour (Mono reagent or double reagent)	Constant 150 tests/hour (Mono reagent or double reagent)	Constant 200 tests/hour (Mono reagent or double reagent)	Constant 200 tests/hour (Mono reagent or double reagent)	Constant 300 tests/hour (Mono reagent or double reagent)	Constant 400 tests/hour (Mono reagent or double reagent)
Test Principle	Colorimetric method, turbidimetry
Test Method	1 point end, 2 point end, Fixed-Time, Kinetics
Calibration Type	Linear & nonlinear
Sample Unit
Sample Tray	40 sample positions				70 sample positions	120 sample positions
Sample Tube	Micro cup & test tube & blood collection tube can be used. (Φ12 -13)mmx(25-100 )mm
Sample Volume	2-30µL step by 0.1µL
Sample Probe	Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Sample Barcode	Sample barcode reader (optional)
Reagent Unit
Reagent Tray	80 reagent positions (40 for Rl & 40 for R2), Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃, open system, could accept any reagent				70 reagent positions, Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃, open system, could accept any reagent	90 reagent positions, Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃, open system, could accept any reagent
Reagent Volume	20-300µL, step by 1µL
Reagent Needle	Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Regent Barcode	Regent barcode reader (optional)
Reaction Unit
Reaction Tray	50 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.	44 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.			90 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance
Reaction Volume	150uL-330uL
Reaction Time	10 minutes
Temperature	Peltier pad incubation system, reaction temperature (37℃ ±0.1℃)
Mixing System
Mixer	Paddle-type mixing, effective reducing of carry-over
Optical System
Light Source	Halogen lamp
Wavelength	340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm;700nm(4 more options)
Absorbance Range	0-4.0 Abs
Resolution	0.0001 Abs
Operating System
Operation System	Windows XP, Windows 7, Windows 8, Windows 10
Report Printing	6 formats optional, support custom pattern
Interface	TCP/IP network interface
Working Conditions
Power Supply	AC 220/110V ±10%, 50/60Hz, 650W
Water Consumption	6L/hour(maximum)		8L/hour(maximum)		12L/hour (maximum)	15L/hour (maximum)
Language	All languages
Sizes(WxDxH)(mm)	750x550x490	750x475x535	780x565x1120	870x690x740	920x650x1120	1110x765x1150
Shipping Size (WxDxH)(mm)	890x710x760		890x740x1390	890x710x760	1050x800x1380	1240x910x1360
N.W./G.W. (kg)	70/80	68/88	96/145	70/85	127/180	165/220

Data processing : Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction,dirty cuvette memory, cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management.

Fully Automatic Biochemistry Analyzer Features:

Internal and external mirror polishing, internal and external probe cleaning.
Standard mixing programme for excellent mixing results
80 reagent positions, 40 sample positions
Uninterrupted cooling system with built-in Peltier pads, 24 hours 2°C-14°C
The user-friendly software interface is simple and easy to operate
Automatic sample dilution (decrease, increase, normal)
Automatic reaction result checking and alarm, automatic calibration result checking and alarm logging
Linear and non-linear calibration, up to 8-point multi-point calibration
Quality control applies to westbound, LT charts, cumulative
A dedicated sampling probe equipped with a sensitive liquid sensor for timely reagent and sample residue feedback.
Teflon coating mixer. No water droplets (reduced residue)

Model	BA-120	BA-160	BA-220	BA-280	BA-380	BA-480
Machine Type	Random access, open reagent & locked reagent (optional)
Test Speed	Constant 120 tests/hour (Mono reagent or double reagent)	Constant 150 tests/hour (Mono reagent or double reagent)	Constant 200 tests/hour (Mono reagent or double reagent)	Constant 200 tests/hour (Mono reagent or double reagent)	Constant 300 tests/hour (Mono reagent or double reagent)	Constant 400 tests/hour (Mono reagent or double reagent)
Test Principle	Colorimetric method, turbidimetry
Test Method	1 point end, 2 point end, Fixed-Time, Kinetics
Calibration Type	Linear & nonlinear
Sample Unit
Sample Tray	40 sample positions	70 sample positions	120 sample positions
Sample Tube	Micro cup & test tube & blood collection tube can be used. (Φ12 -13)mmx(25-100 )mm
Sample Volume	2-30µL step by 0.1µL
Sample Probe	Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Sample Barcode	Sample barcode reader (optional)
Reagent Unit
Reagent Tray	80 reagent positions (40 for Rl & 40 for R2), Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃, open system, could accept any reagent	70 reagent positions, Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃, open system, could accept any reagent	90 reagent positions, Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃, open system, could accept any reagent
Reagent Volume	20-300µL, step by 1µL
Reagent Needle	Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Regent Barcode	Regent barcode reader (optional)
Reaction Unit
Reaction Tray	50 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.	44 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.	90 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance
Reaction Volume	150uL-330uL
Reaction Time	10 minutes
Temperature	Peltier pad incubation system, reaction temperature (37℃ ±0.1℃)
Mixing System
Mixer	Paddle-type mixing, effective reducing of carry-over
Optical System
Light Source	Halogen lamp
Wavelength	340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm;700nm(4 more options)
Absorbance Range	0-4.0 Abs
Resolution	0.0001 Abs
Operating System
Operation System	Windows XP, Windows 7, Windows 8, Windows 10
Report Printing	6 formats optional, support custom pattern
Interface	TCP/IP network interface
Working Conditions
Power Supply	AC 220/110V ±10%, 50/60Hz, 650W
Water Consumption	6L/hour(maximum)	8L/hour(maximum)	12L/hour (maximum)	15L/hour (maximum)
Language	All languages
Sizes(WxDxH)(mm)	750x550x490	750x475x535	780x565x1120	870x690x740	920x650x1120	1110x765x1150
Shipping Size (WxDxH)(mm)	890x710x760	890x740x1390	890x710x760	1050x800x1380	1240x910x1360
N.W./G.W. (kg)	70/80	68/88	96/145	70/85	127/180	165/220
