Semi-auto Chemistry Analyzer Features:

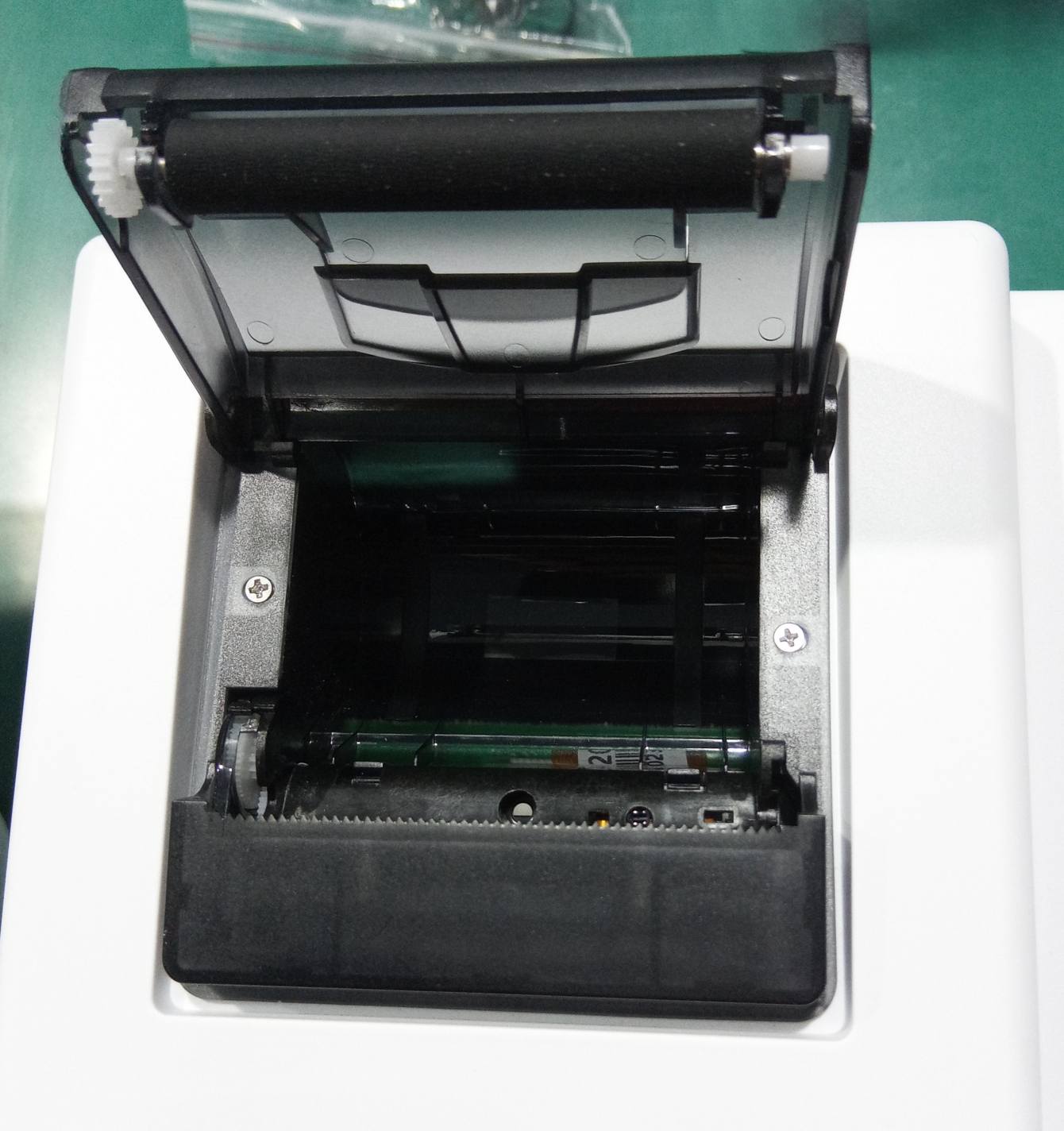

Built-in thermal printer for direct data printing (57mm paper)
7" colour display touch screen, 800x480 pixels, for quick test setup, progress monitoring and result retrieval
Storage for more than 300 procedures and 200,000 results, allowing users to store and retrieve patient results and lab records.
USB port for easy data transfer
Provides quality control and calibration functions to ensure the accuracy and reliability of test results.
Suitable for routine blood chemistry testing. Monitors disease markers
Space-saving and compact design makes it suitable for small laboratories with limited workspace.
Semi-auto Biochemistry Analyzer Specifications:
| Model | BA-S100P |
| Test Method | 1 point end, 2 point end (Sample blank), Kinetics, Fixed-time |
| Optics | 7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional. |
| Lamp House | Long-life tungsten halogen lamp (6V/10W), auto-sleep function. |
| Display | 7.0″ TFT LCD with touch screen, 800x480 pixels. |
| Printer | Build-in thermal printer, 57mm printer paper. |
| Temperature | 25, 30, 37℃ and Room temperature. By means of Peltier elements. |
| Flow Cell Capacity & Optical Path | 32ul, 10mm. |
| Resolution | 0.0001 Abs. |
| Photometric Range | 0.0000-4.0000 Abs. |
| CPU | ARM Cortex-A8, 720MHz |
| Memory | DDR2 SDRAM: 1G bit; |
| Flash | 256 MB; Over 300 programs, 200000 results can be stored. |
| Interface | 4 USB Hosts, 1 USB Slave, 1 Ethernet port. |
USB port (host) for keyboard, mouse, printer, U disk, bar code reader etc. |
| USB port (slave) for PC connection (support PC software control function). |
| Operational Environment | Temperature: 10°C~30°C, Humidity: 30%~80%. |
| Power Supply | AC100-240V, 50/60Hz |
| Language | Russian, English, Portuguese, Spanish, Chinese |
| Sizes(W×D×H)(mm) | 400x300x160 |
| Shipping Size (W×D×H)(mm) | 530x420x320 |
| N.W./G.W. (kg) | 4.7/8 |

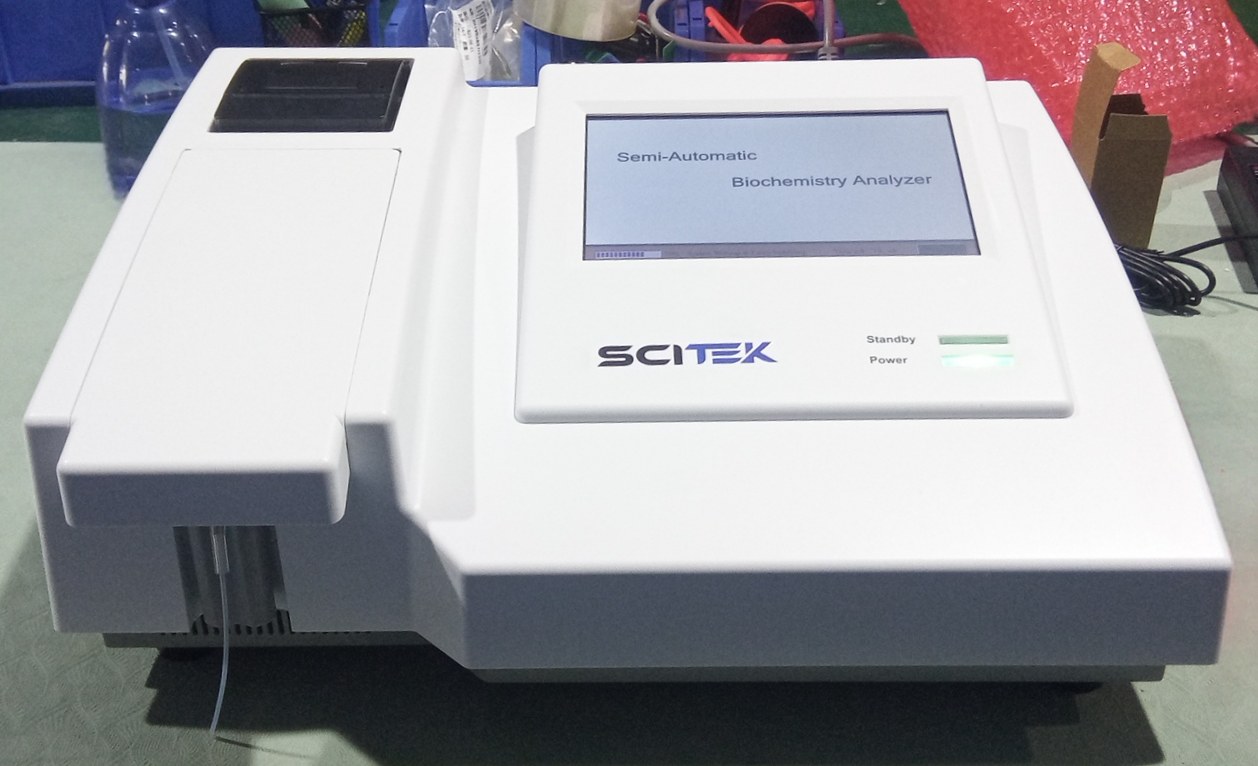

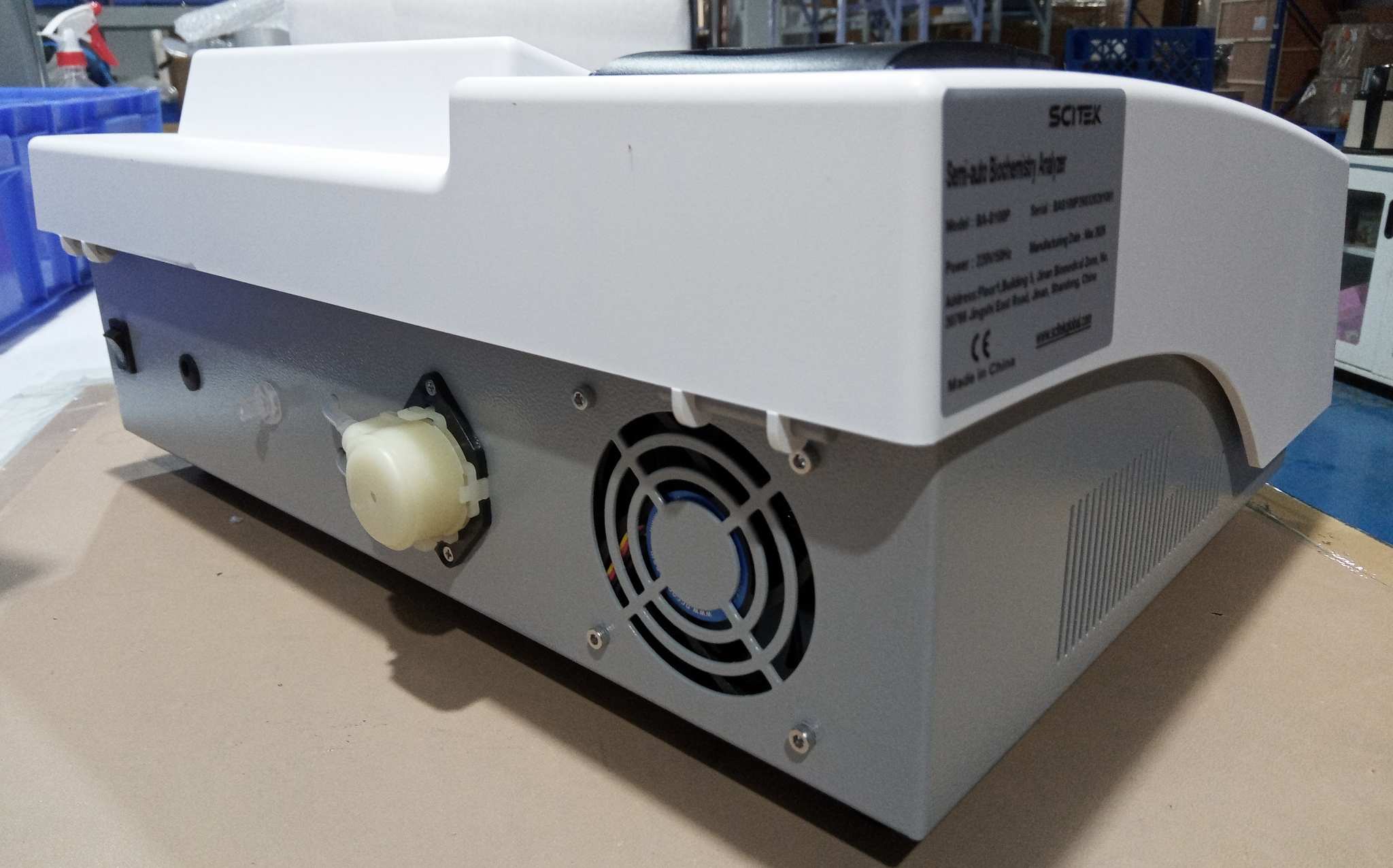

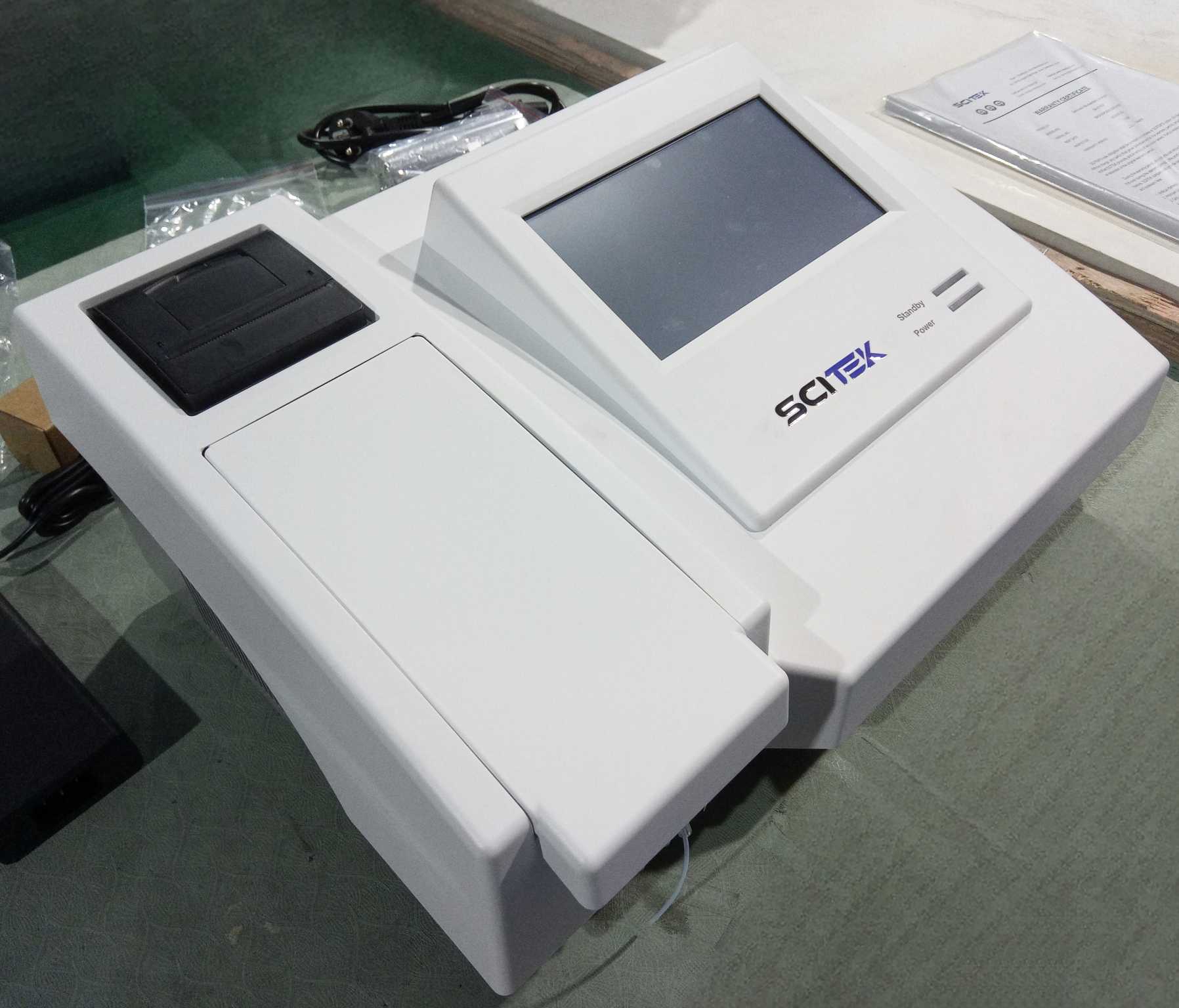

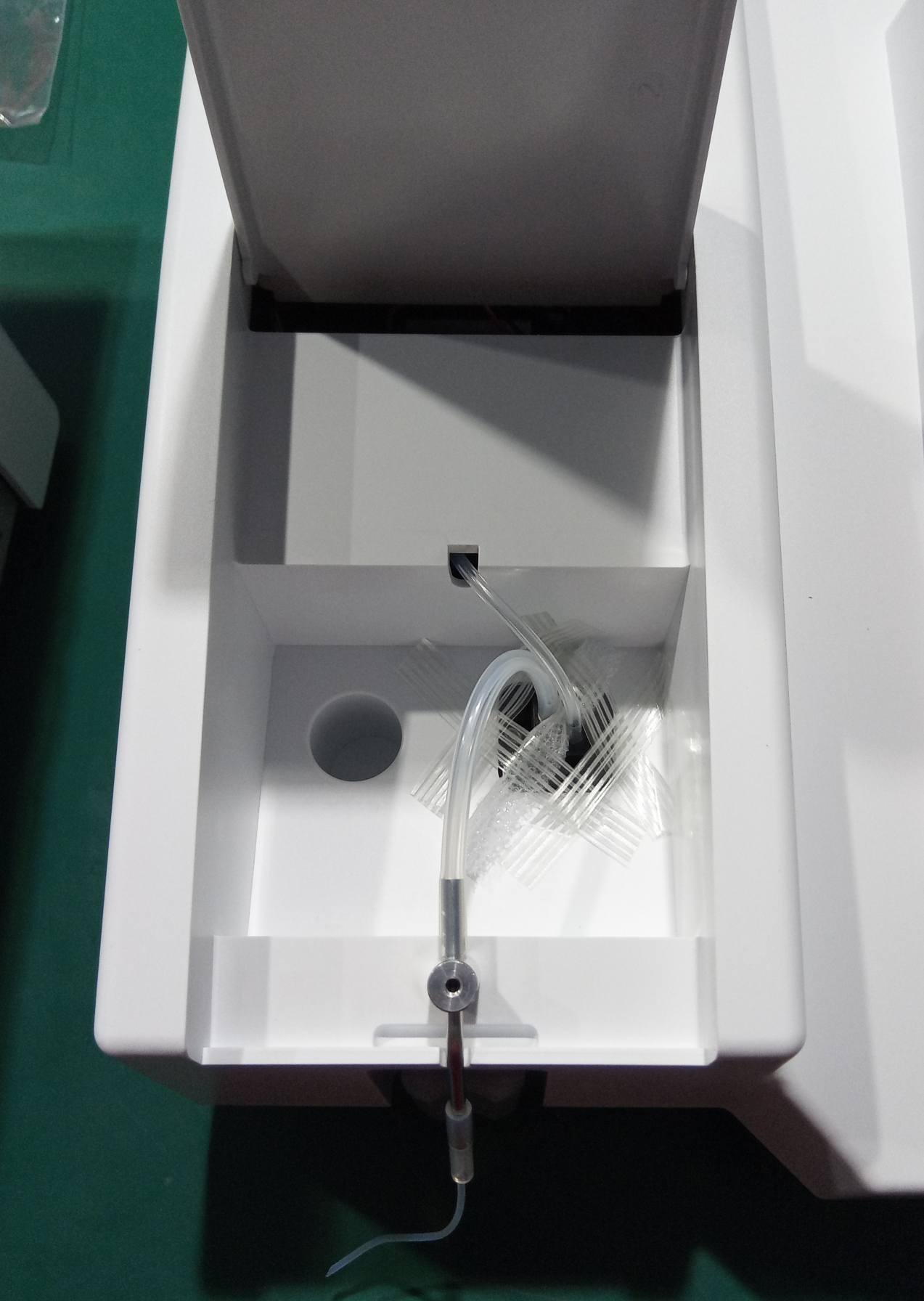

Details of Semi-auto Biochemistry Analyzer:
What tests can a semi-auto biochemistry analyzer perform?
This analyzer can perform tests for kidney function (creatinine, BUN), liver function (AST, ALT, ALP), blood glucose levels, and lipid profile (triglycerides, cholesterol), among others.
How accurate are semi-automatic biochemical analyzers?
Semi-automatic analyzers offer high accuracy and speed. However, because the process involves manual steps, human error may occur.
How do semi-auto biochemical analyzers work?
These analyzers typically use the photometric method to measure a sample’s light absorbance. They determine the concentration of a substance by measuring changes in light as it passes through the sample.
What are the main advantages of using a semi-automated analyzer?
The main advantages include high cost-effectiveness and ease of operation.
Can semi-automated biochemistry analyzers be used in emergency situations?
Yes, semi-automated analyzers can provide results quickly, making them suitable for use in emergency medicine.
