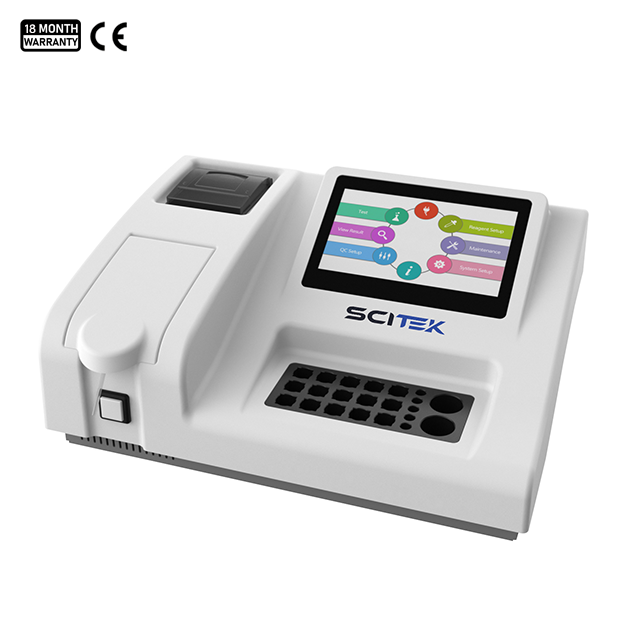

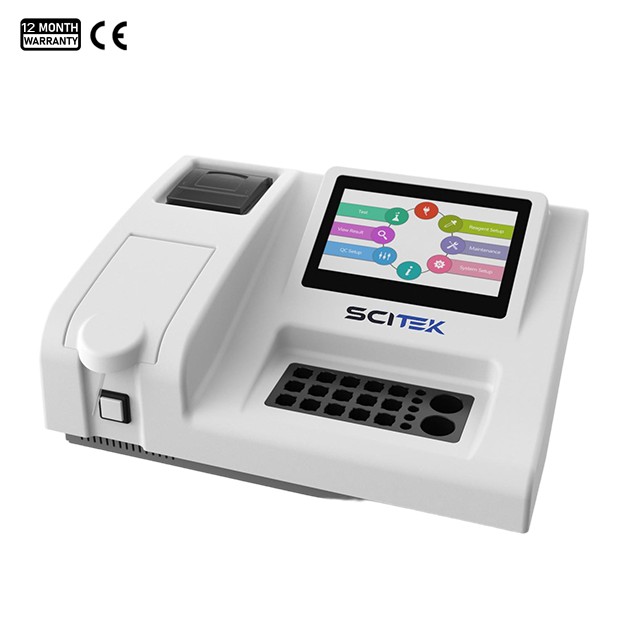

Semi-auto Biochemistry Analyzer

Model : BA-S100C

Test Method : 1 point end, 2 point end (Sample blank), Kinetics, Fixed-time, Coagulation
Flow Cell : 32ul, 10mm
Wavelength : 7 standard filters: 340, 405, 450, 505, 546, 578, 630 nm. 2 more for optional.
Sizes(W×D×H)(mm) : 400x300x160
This semi-auto biochemistry analyzer can be used in teaching laboratories or training centres to demonstrate and teach biochemical analysis processes.
Availability:
Quantity:
Inquiry Add to Inquiry List

Semi-auto Chemistry Analyzer Specifications:

ModelBA-S100C
Test Method1 point end, 2 point end(Sample blank), Kinetics, Fixed-time, Coagulation
Optics7 standard filters: 340nm, 405nm, 450nm, 505nm, 546nm, 578nm, 630nm. 2 more for optional
Lamp HouseLong-life tungsten halogen lamp(6V/10W), auto-sleep function
Display7.0″ TFT LCD with touch screen, 800x480 pixels
PrinterBuild-in thermal printer, 57mm printer paper
Temperature25,30, 37°C and Room temperature. By means of Peltier elements
Flow Cell Capacity & Optical Path32µL, 10mm
Resolution0.0001 Abs.
Photometric Range0.0000-4.0000 Abs
CPUARM Cortex-A8, 720MHz
MemoryDDR2 SDRAM: 1G bit;
Flash256 MB; Over 300 programs, 200000 results can be stored
Interface

4 USB Hosts, 1 USB Slave, 1 Ethernet port. USB port(host) for keyboard, mouse, printer, U disk,  bar code reader etc. USB port (slave) for PC connection (support PC software control function).

Operational EnvironmentTemperature: 10°C~30°C, Humidity: 30%~80%
Power SupplyAC100-240V, 50/60Hz
LanguageRussian, English, Portuguese, Spanish, Chinese
Sizes (W×D×H)(mm)400x300x160
Shipping Size (W×D×H)(mm)540x430x330
N.W./G.W. (kg)5.3/9

Semi-auto Chemistry Analyzer Features:

  1. Built-in thermal printer for direct data printing (57mm paper)

  2. 7" colour display touch screen, for quick test setup, progress monitoring and result retrieval

  3. Storage for more than 300 procedures and 200,000 results, allowing users to store and retrieve patient results and lab records.

  4. USB port for easy data transfer

  5. Provides quality control and calibration functions to ensure the accuracy and reliability of test results.

  6. Suitable for routine blood chemistry testing. Monitors disease markers

  7. Space-saving and compact design makes it suitable for small laboratories with limited workspace.


Previous:
Next:
Get Quotation/Become Distributor

Related Products

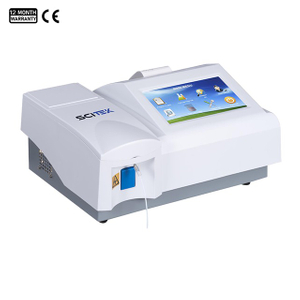

Semi-auto Biochemistry Analyzer BA-S100 Series
Semi-auto Biochemistry Analyzer BA-S100 Series

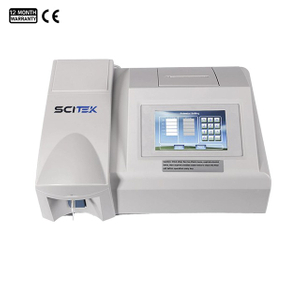

Semi-auto Biochemistry Analyzer BA-S100
Semi-auto Biochemistry Analyzer BA-S100

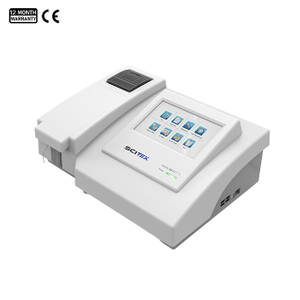

Economical Semi-auto Biochemistry Analyzer
