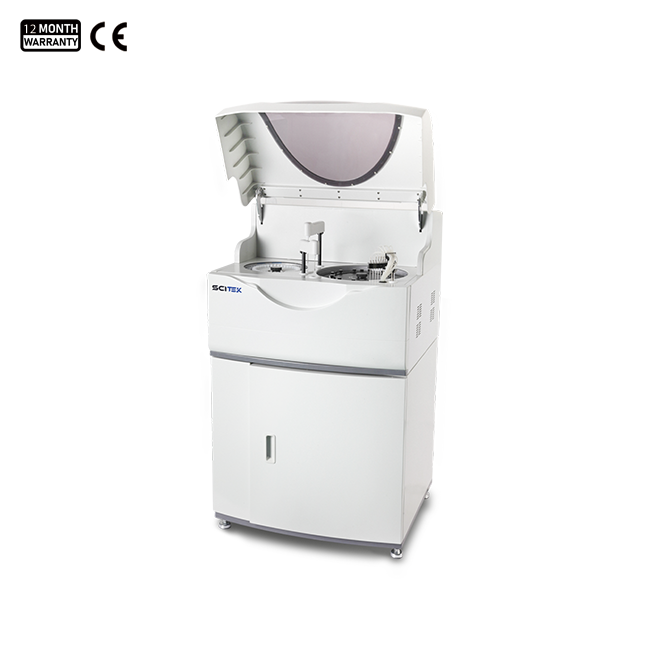

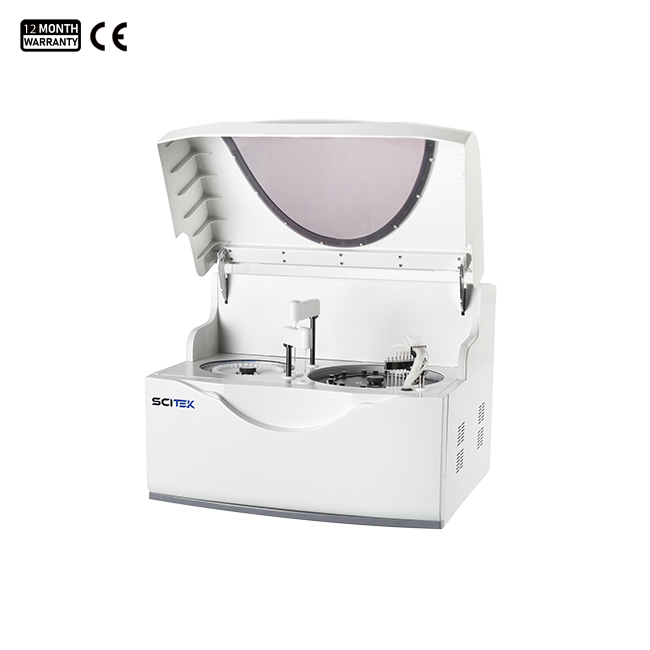

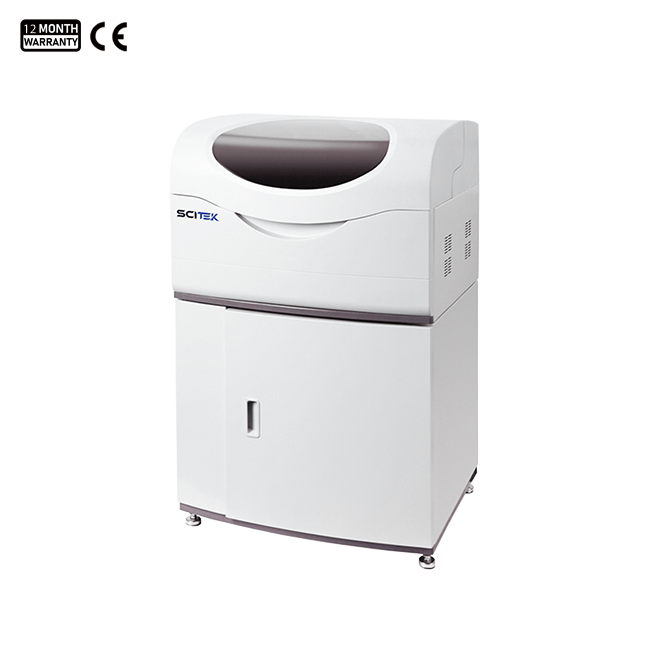

Fully Automatic Biochemistry Analyzer BA-260

Model : BA-260

Efficiency Speed : 260 tests/hour
Reaction Volume : 200～500µl
Reaction Cuvettes : 90 pcs reusable plastic cuvettes
Absorbance Range : 0~5.0 Abs

Upper Cabinet Sizes(W×D×H)(mm) : 700×650×530

Availability:

Quantity:



Inquiry Add to Inquiry List

Product Description

This auto biochemistry analyzer from Scitek is designed to analyze a variety of test samples. This includes blood, plasma, serum, urine and more. It supports the simultaneous execution of multiple tests and offers a wider range of tests. Greatly simplifies your workflow.

Fully Automatic Biochemistry Analyzer Specifications:

Model	BA-260
Throughput/Efficiency speed	260 tests/hour
Analysis Method	End-point, kinetic, two-point, double-reagents, double-wavelength, multi-standard etc, open to various reagents
Reaction System	Reaction Cuvette: 90 pcs made of special material
	Optical Length of Cuvette: 6mm
	Reaction Volume: 200～500µl
	Reaction Time: 0--10 minutes
	Reaction Temperature: 37℃±0.1℃
	Mixing System: Independent mixing probe
Sample/Reagents Handling	Sample Position: 40 pcs (Include standard,QC,STAT positions)
	Sample volume: 2-50µl, 0.1µl step
	Sample Probe Cleaning: Automatic internal & external washing
	Reagent Position: 40 pcs (With refrigerated function, 2℃-8℃)
	Reagent Volume:10-500µl, 1µl step
Optical System	Light Source: halogen-tungsten lamp
	Wavelength: 340-690nm, 9 wavelengths, precision ±1.5nm
	Absorbance Range: 0-5.0Abs
	Resolution: 0.0001Abs
	Spectrophotometry: Rear spectrophotometry
Cleaning System	8-step automatic washing, automatic cuvette dry function
Cleaning System	Water Consumption: 4L/hour
Power Supply	100-240V, 50/60Hz, 1KVA
Temperature	10℃-35℃
Humidity	≤90%

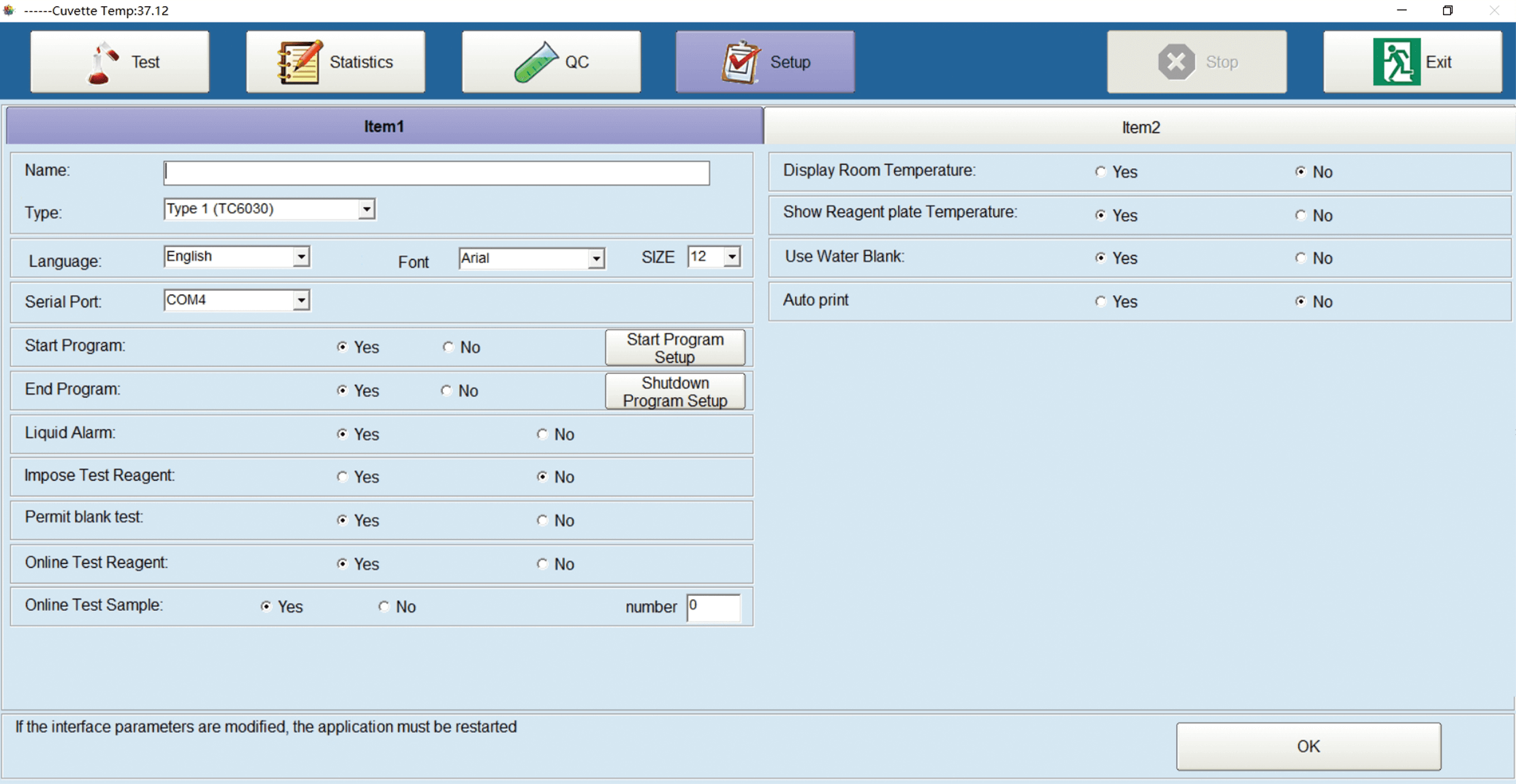

Operation System	Windows Operating System
Input	RS-232 interface / keyboard / computer
Output	Multi-format printout
Upper Cabinet Size (W×D×H)(mm)	700×650×530
Bottom Cabinet Size (W×D×H)(mm)	700×705×620
Upper Cabinet Packing Size (W×D×H)(mm)	830×880×732
Bottom Cabinet Packing Size (W×D×H)(mm)	800×880×855
Upper Cabinet N.W./G.W. (kg)	62/95
Bottom Cabinet N.W./G.W. (kg)	47/74

Technical Specifications:

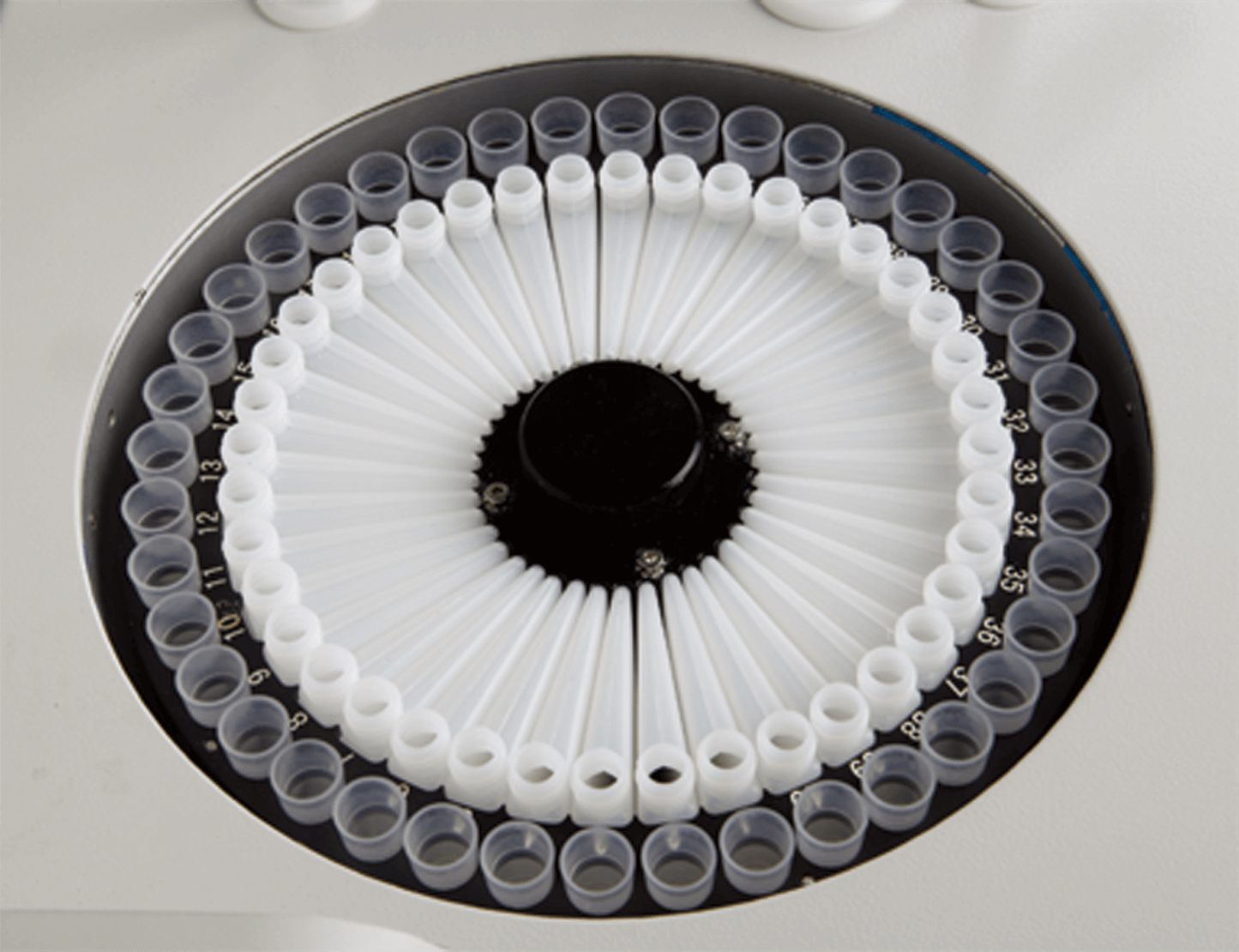

Sample/Reagent Position
40 pcs sample position 40 pcs reagent position Reagents refrigerated function Primary tube and blood serum cup can be used

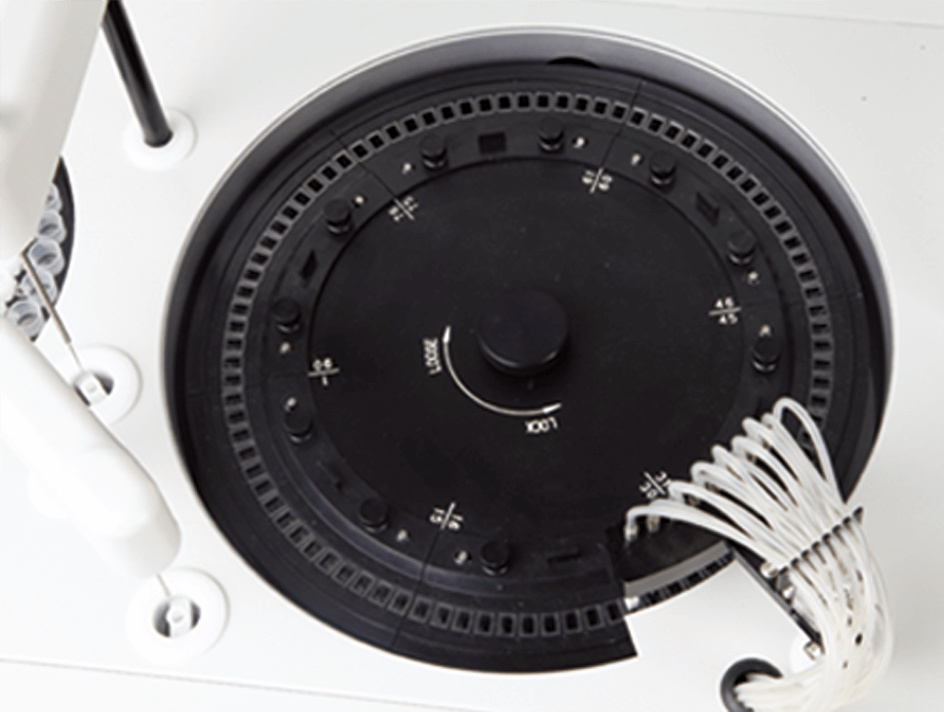

Reaction Cuvettes
90 pcs reusable cuvettes Automatic blank testing for cuvette Colorimetry system in the pattern of light splitting behind cuvette Dismountable, easily replace cuvette

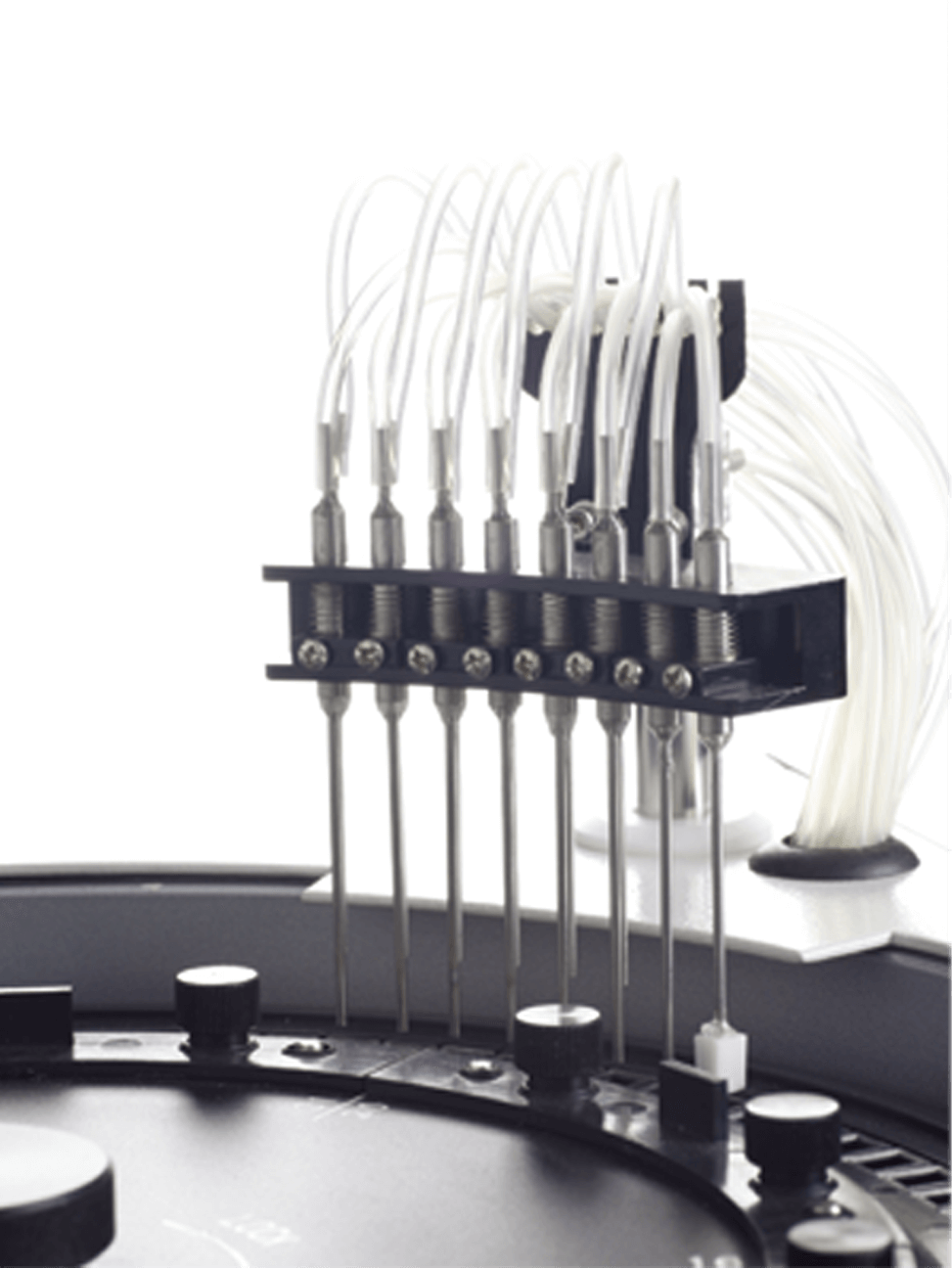

8-step auto cleaning System
Automatic 8-step washing Automatic cuvette dry function Hi-tech washing station to ensure accurate test results With low water consumption: 4L/H

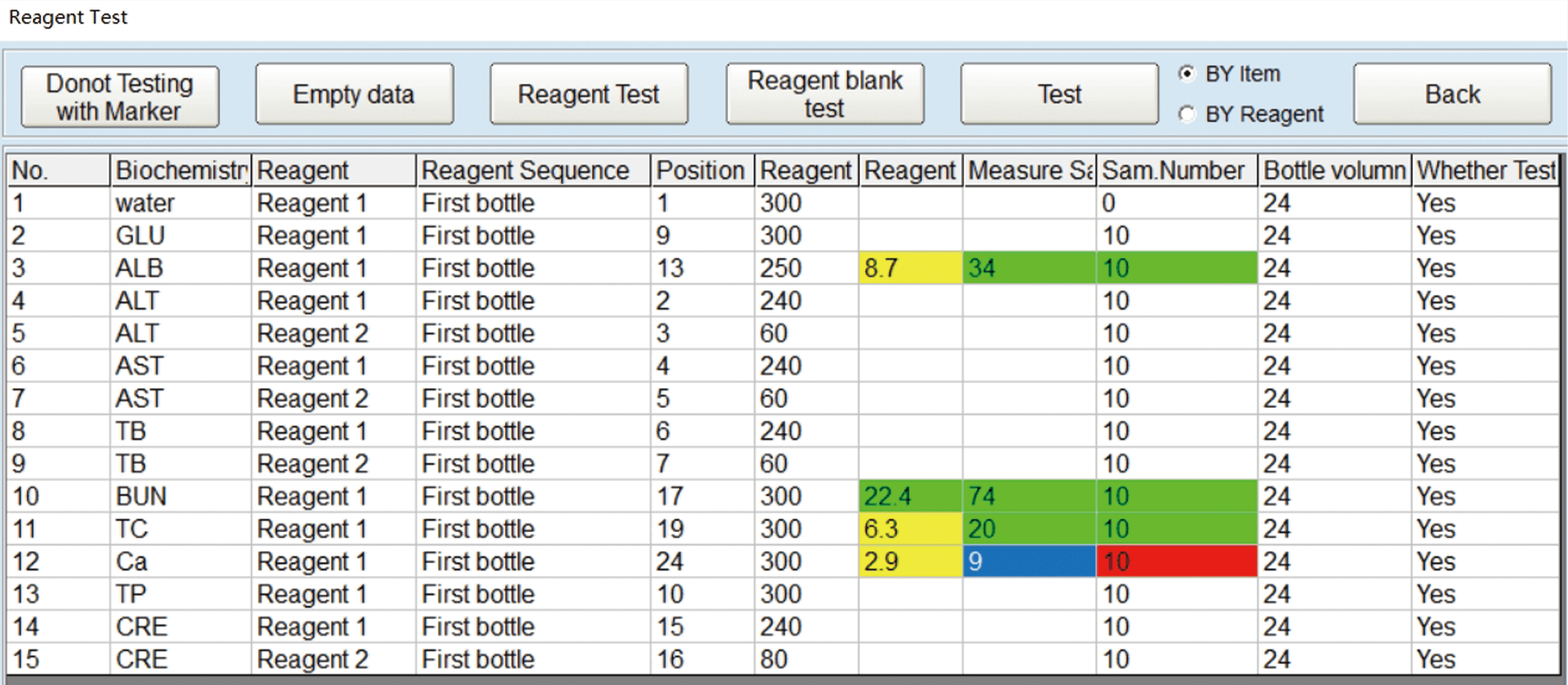

Automatic washing cuvette when start up & shut down the instrument Test order setting program is available to avoid carry-over Automatic detect reagent volume during every startup of the instrument Show reagent plate temperature during every startup of the instrument

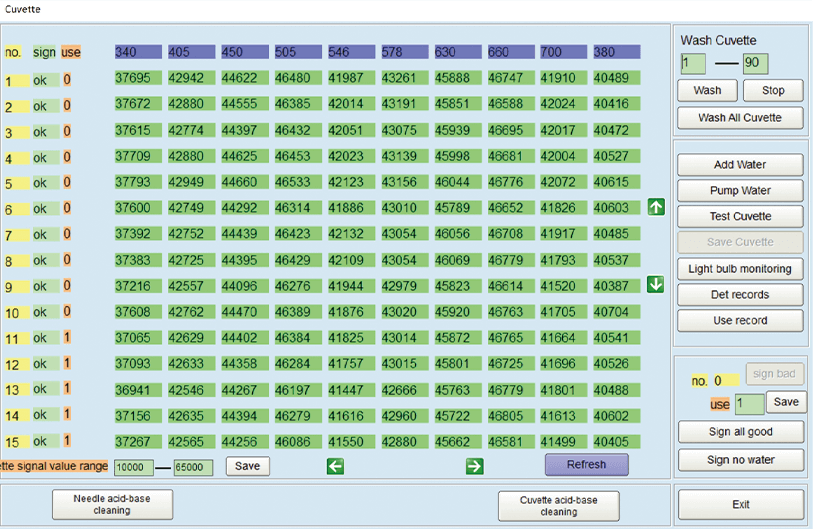

Automatic Cuvette blank testing Automatic wash selected cuvettes Real-time online monitoring running status of cuvette
Real-time online monitoring running status of sample tray, reagent tray cuvette Real-time online monitoring reagents residual volume Real-time online monitoring waste volume

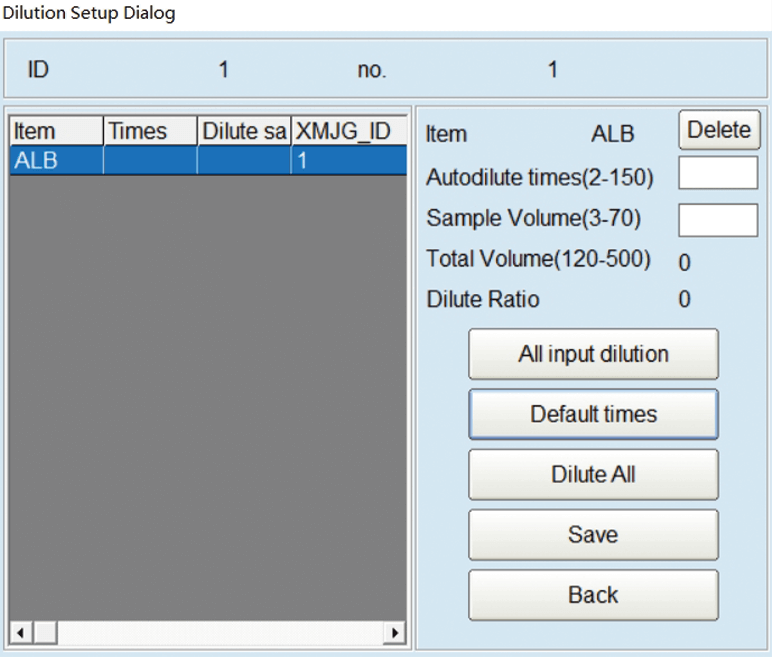

Automatic dilute and re-test when absorbance range is overrange Automatic dilute and re-test when linear limit is overrange Three modes (no dilute, autodilute and handwork dilute) are available Freely set the autodilute ratio and dilute water position
Freely set the autodilute ratio when re-testing “No dilute” re-testing mode is available

Fully Automatic Biochemistry Analyzer Features:

Fully automatically, discrete, random STAT function
Online test items: At most 40 testing items
Data Processing: Memory up to 200,000 patients’ data
Sample Dilution: Automatic/Manual pre-dilution, with dilution ratio up to 1:100
Reagent Probe: Automatic liquid level detect, with collision protection function
Reagent Probe Cleaning: Automatic internal & external washing
The biochemistry analyzer is packed in a plywood wooden case.
QC: Various QC managements, insert QC randomly; save, display & print QC chart; define different QC in advance
Calibration: Linear/nonlinear multi-points calibration

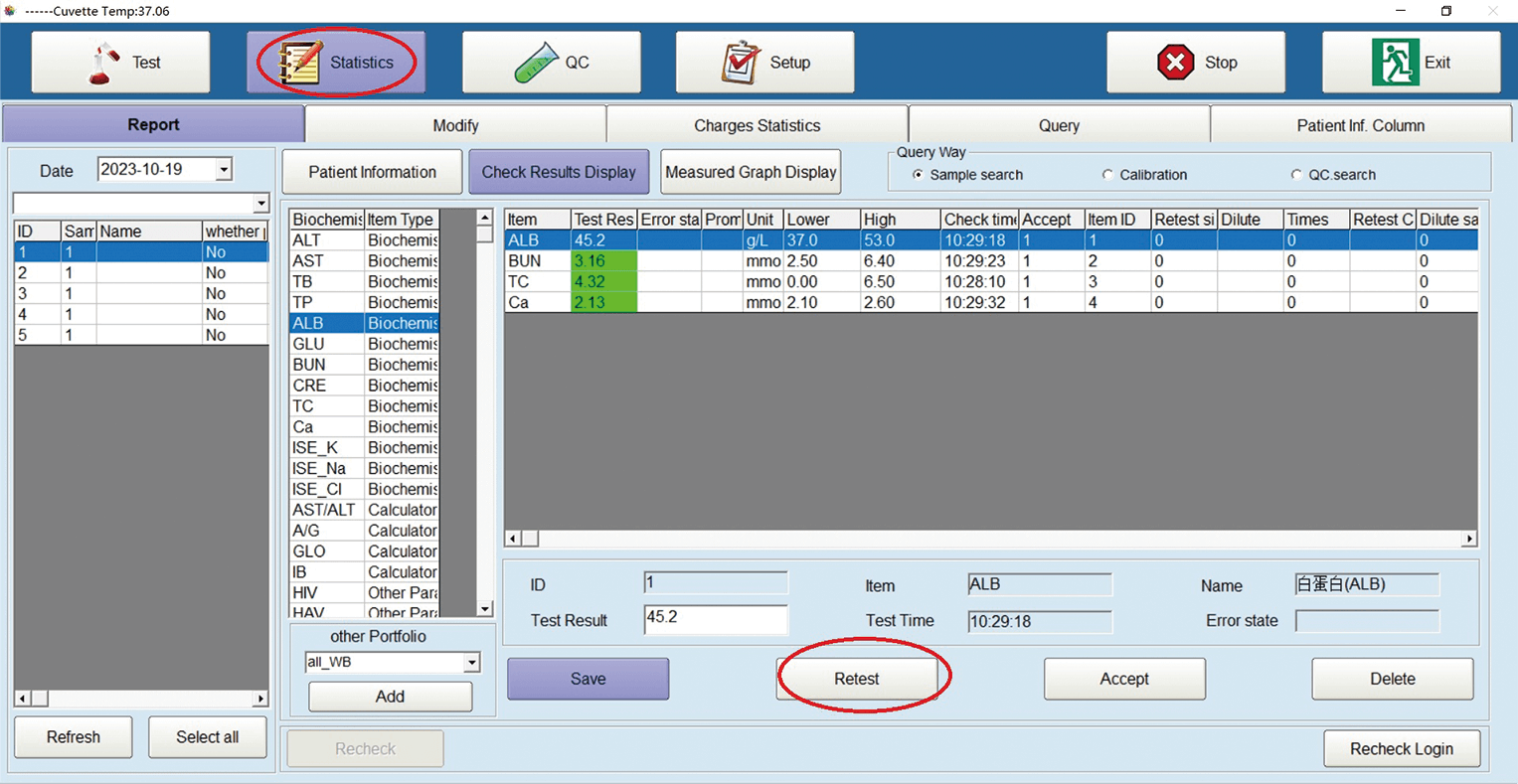

Re-test: Retest the sample automatically when the result is out of the linearity range or the sample is not sufficient
