Feature high quality, compliance standards, intelligent configuration and security protection system. NAE-A Series offers high cost-effectiveness, significantly reducing the cost of laboratory equipment procurement, batch expansion and large-scale station construction. Provides high-performance and highly adaptable high-end nucleic acid extraction overall solutions for global research institutions, clinical testing centers, disease control units and bio-pharmaceutical companies.
Nucleic Acid Extraction System Feature:

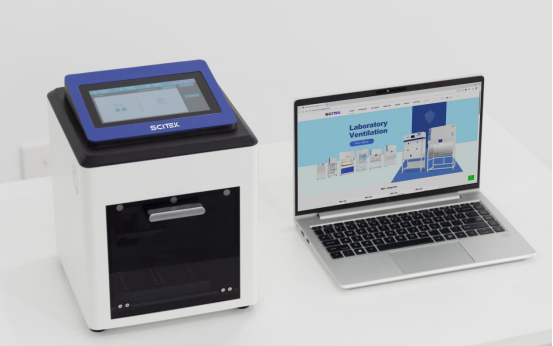

Compact design: The overall size is comparable to a laptop, taking up very little space and making it easy to carry.
Log Management: Automatically records machine operation logs, allowing for traceability of causes for any abnormal results.
Value For You: Complies with GLP and GMP requirements, ensuring quality traceability and compliance management.
Fully open programming platform: Users can program flexibly and freely, adapting to multiple reagent kitsand supporting the development of their own extraction programs.
Value For You: achieving one machine for multiple uses, extraction programs can be optimized for special samples (soil and feces), meeting diverse global scientific research and testing needs.
Flexible preheating design: Supports independent preheating for pyrolysis and elution steps, accelerating extraction while stabilizing yield.
Value For You: Reduces extraction time, improves extraction efficiency, ensures batch-to-batch stability, and facilitates standardized production.

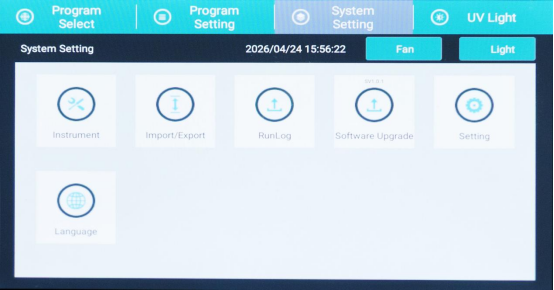

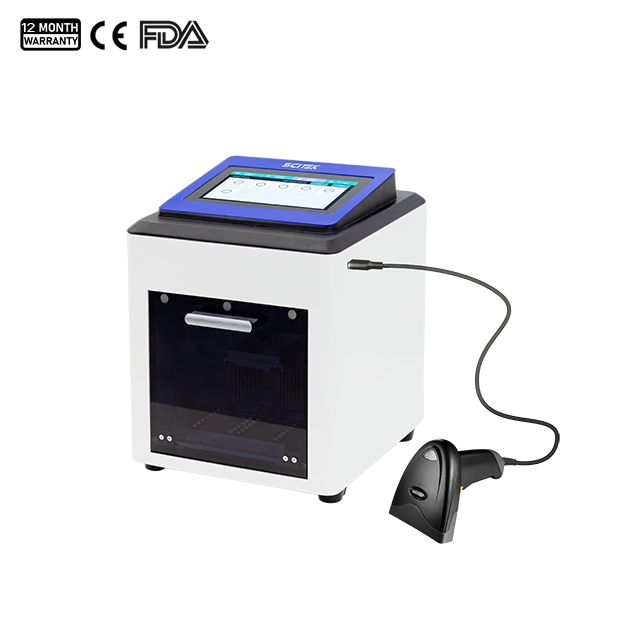

Multiple Operating Modes (barcode scanning): Supports multiple operating methods including barcode scanning, list operation, quick operation, and viewing operation status.
Value For You: Convenient operation, easily handling different experimental scenarios and reducing the risk of human error.

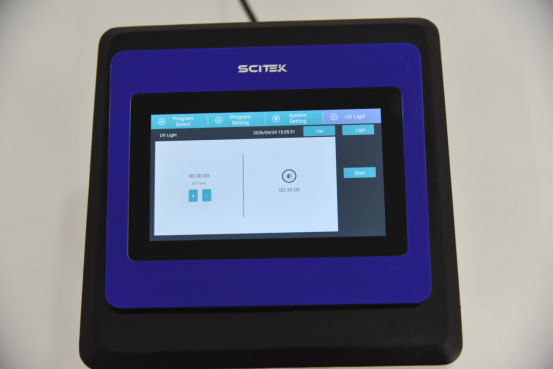

Pollution Control: Ultraviolet disinfection system to prevent cross-contamination between batches.
Value For You: Meets stringent laboratory requirements for pollution control, ensuring reliable experimental results.
Safety Protection: Power Failure Protection + Door Opening Pause.
Value For You: Avoids waste of samples, reagents, and time; suitable for areas with unstable power grids or emergency testing scenarios, ensuring the safety of personnel and equipment.

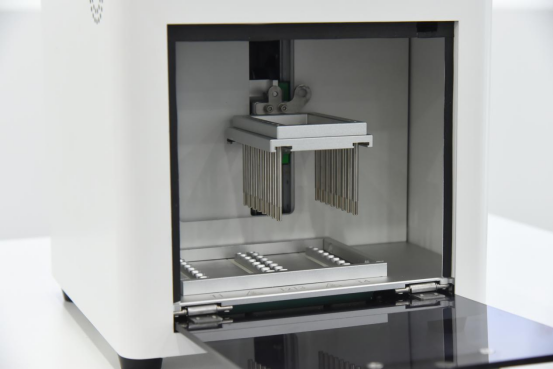

Intelligent magnetic rod protection: Alarm sound and prevent operation without the magnetic rod sleeve if it is not properly in place.
Value For You: Reduced maintenance costs, safer operation even for beginners, and extended lifespan of core instrument components.
Nucleic Acid Extraction System Specification:
Model
NAE-16A
NAE-32A
Reagent Type
Magnetic bead method reagents
Throughput
1–16 samples
1–32 samples
Volume
30–1000 μL
Built-in Protocol
＞500
Consumable
96 deep well Plate +Magnetic rod's tip
Number of Deep Well Plate
1
2
Collection Efficiency
>98%
Stability
>95%
Ventilation Mode
Fan
Display
7-inch touch screen
10-inch touch screen
Heating Temp.Range
R.T. to 120 ℃
Oscillatory Mixed Mode
Multi-level adjustable
Pollution Control
UV lamp
Lighting System
Equipped
Safety Protection
Power-off protection, Open door protection, Magnetic rod sleeve detection
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
