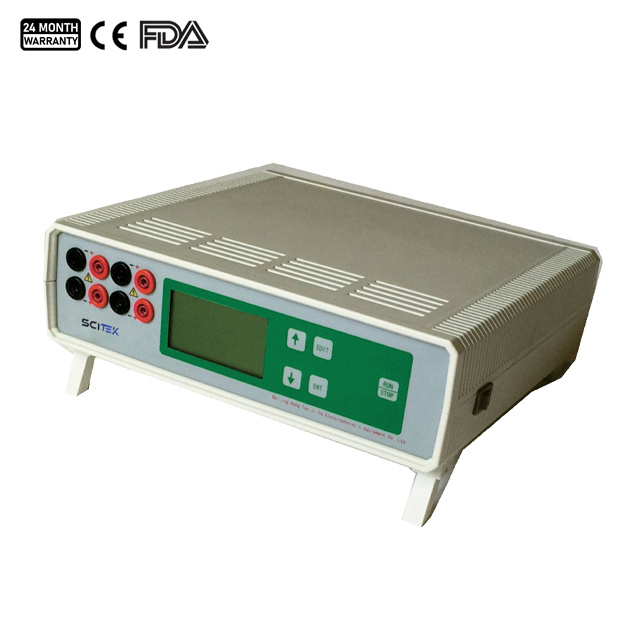

This gel electrophoresis power supply is suitable for large and medium-sized horizontal and vertical electrophoresis, sequencing (SSR, AFLP molecular markers), bidirectional, isoelectric focusing and other commonly used electrophoresis.
LCA display with backlight can clearly and intuitively view the detection time, temperature and other parameters.
Microprocessor intelligent control, electrophoresis power supply overload, leakage, and no load can be automatically protected.
Automatic storage of previous test results, convenient to access the test data.
Electrophoresis Power Supply Specifications:
Model
EPS-3000
Parallel Output
4 groups
Timing
1minute~99 hours and 59 minutes
Output Range
20-3000V, 1-200mA, 1-200W
Output Type
Constant voltage, constant current, constant power continuously adjustable
Resolution
Voltage 1V, current 1mA, power 1W
Shipping Size(W×D×H)(mm)
380×360×180
N.W./G.W. (kg)
3/5
How often should an electrophoresis power supply be calibrated?
For research laboratories, annual calibration is recommended. In regulated environments (GMP, GLP, ISO 17025, clinical laboratories), annual calibration is typically mandatory and must be documented. Be sure to follow the manufacturer’s recommended intervals and your organization’s quality management requirements.
Electrophoresis power supply VS electrophoresis chamber?
The power supply generates and delivers controlled electrical power; the electrophoresis chamber (gel tray) holds the gel and buffer and contains built-in electrodes. The electrophoresis process takes place inside the electrophoresis chamber. The two are connected via a banana plug or cable, and the power supply can be used with any compatible electrophoresis chamber.
Can a single power supply run multiple gels at the same time?
Yes. Many electrophoresis power supplies are equipped with 2- or 4-channel output terminals, allowing multiple electrophoresis chambers to operate in parallel. However, when connected in parallel, all chambers share the same voltage, and the current is distributed among them; if independent control of each gel is required, a multi-channel power supply with independent outputs is needed.
As a professional lab and medical equipment manufacturer, Scitek Global is certified by ISO 9001, ISO 13485, ISO 45001 and ISO 14001. Almost all our products are certified by ETL, CE and FDA .
Scitek Global looks forward to establishing cooperation with more distributors all over the world, and working together to create greater customer value.
