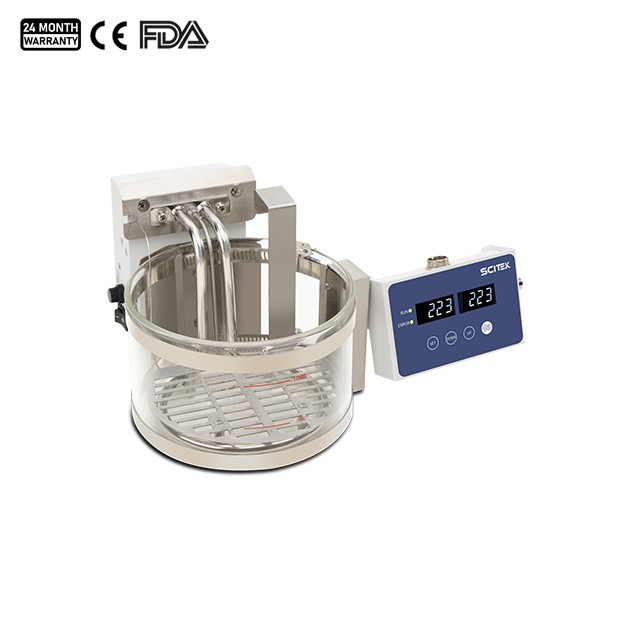

Suitable for isothermal sample processing in fields such as biology, medicine, and chemical engineering, including enzyme activity assays, cell culture, reagent preheating, and reaction process control. The controller is designed to be separate from the main unit, suitable for experimental or production environments with special requirements for operational safety.
Constant Temperature Bath Feature:
1.High-efficiency heating elements and intelligent PID temperature control technology ensure uniform and rapid heating.
2.Transparent glass bath allows for easy observation of reactant state changes.
3.Remote operation, the operating unit (controller) is separate from the main unit, allowing safe operation within maximum distance (cable length).
4.Temperature calibration function, Features automatic temperature calibration and factory reset functions.
5.Safety shield design prevents direct contact between the heating container and the heating element.
6.Over-temperature protection: In case of overheating or sensor malfunction, the machine will display an error and stop heating.
7.Overcurrent protection: In the event of a short circuit, the machine will automatically cut off the power supply to ensure operator safety.

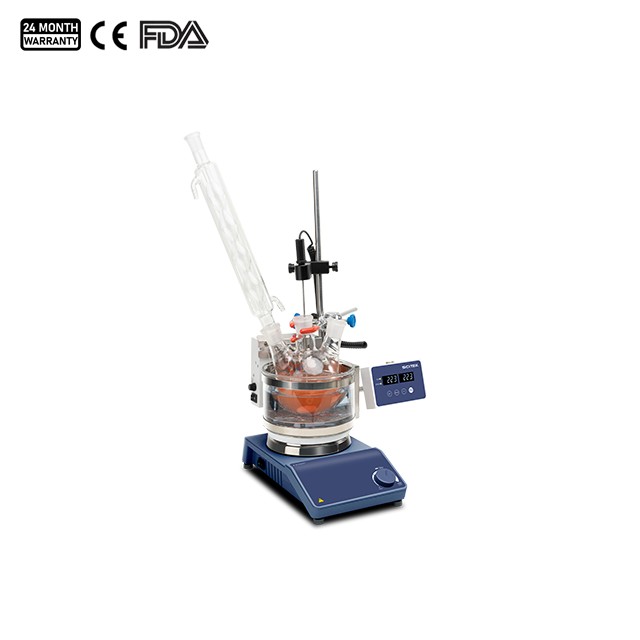

8.Optional magnetic stirrer is available to improve temperature uniformity within the bath and ensure precise temperature control. (MS-S)
Constant Temperature Bath Specification:
Model | OWB-240 |
|---|
Glass Tank Dimension | Φ150×100 mm |
Temperature Range | RT–240 °C |
Temperature Control Accuracy | ±0.5 °C |
Temperature Display Accuracy | 0.1°C |
Timer | / |
Protection Class | IP21 |
Power Supply | AC 220/110V, 50/60Hz |
Consumption | 360 W |
External Size (W×D×H) | 310×220×135 mm |
Shipping Size (W×D×H) | 490×350×260 mm |
N.W/G.W. | 2.2/4 kg |
