Model | HMS-S |
---|---|
Work Plate Size | φ135mm (5 inch) |
Work Plate Material | Stainless steel cover with ceramic |
Motor Type | Brushless DC motor |
Stirring Positions | 1 |
Max. Stirring Quantity (H2O) | 20L |
Max. Magnetic Bar (Length) | 80mm |
Speed Range | 0-1500rpm |
Resolution ±1rpm | |
Speed Display | Scale |
Temperature Display | Scale |
Heating Temperature Range | Room temp.-340°C |
Temperature Control Accuracy | – |
Over Temperature Protection | 420°C |
Temperature Display Accuracy | ±0.5°C |
External Temperature Sensor | – |
Hot Warning | – |
Timer Function | – |
Data Connector | – |
Protection Class | IP42 |
Motor Rating Input | 18W |
Motor Rating Output | 10W |
Power | 530W |
Heating Output | 500W |
Permissible Ambient Temperature and Humidity | 5-40°C, 80%RH |
Power Supply | 100-120/200-240V, 50/60Hz |
Size(W×D×H)(mm) | 160×280×85 |
Shipping Size(W×D×H)(mm) | 470×250×240 |
N.W./G.W. (kg) | 2.8/3.7 |
Maintenance free brushless DC motor.
Max. temperature to 340°C.
Stirring speed up to 1500 rpm.
Overheating protection.

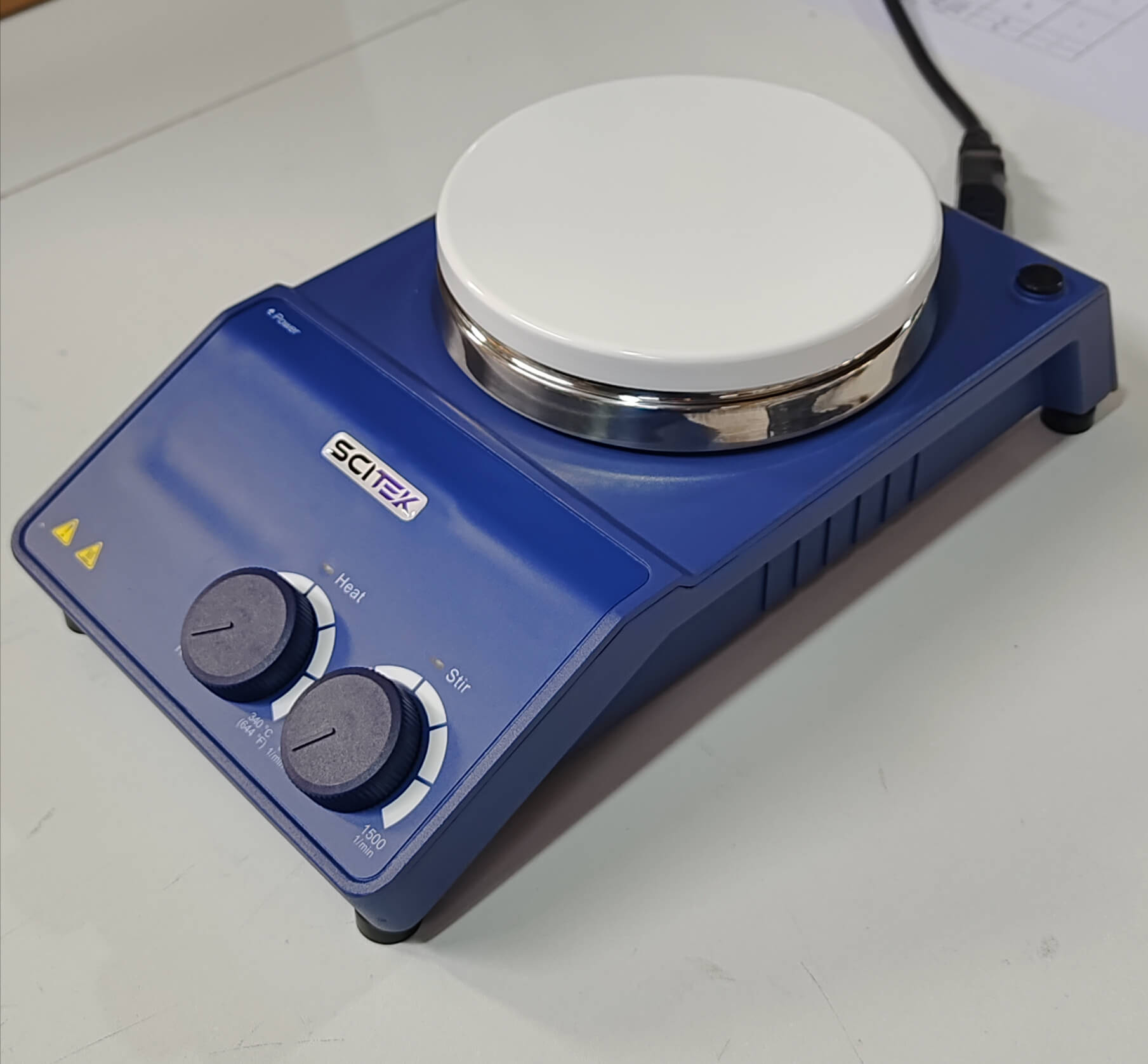

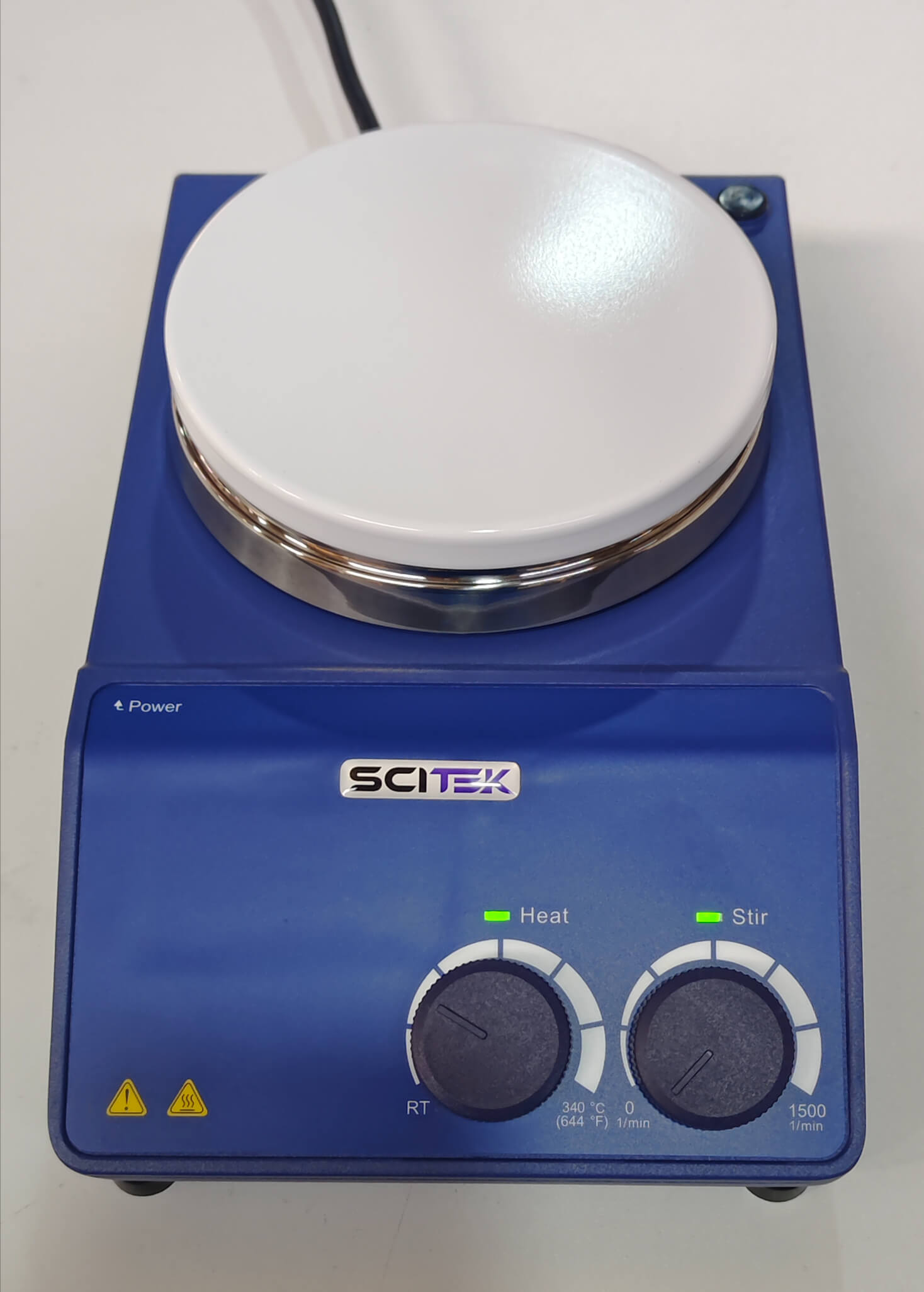

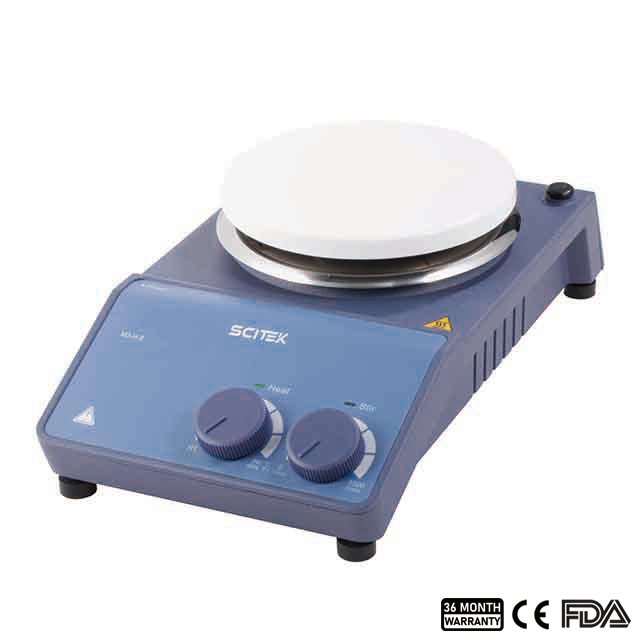

The Hotplate Magnetic Stirrer features a ceramic-coated heating plate for even heat distribution, a digital control panel, and adjustable stirring speed and temperature settings for precise operation.

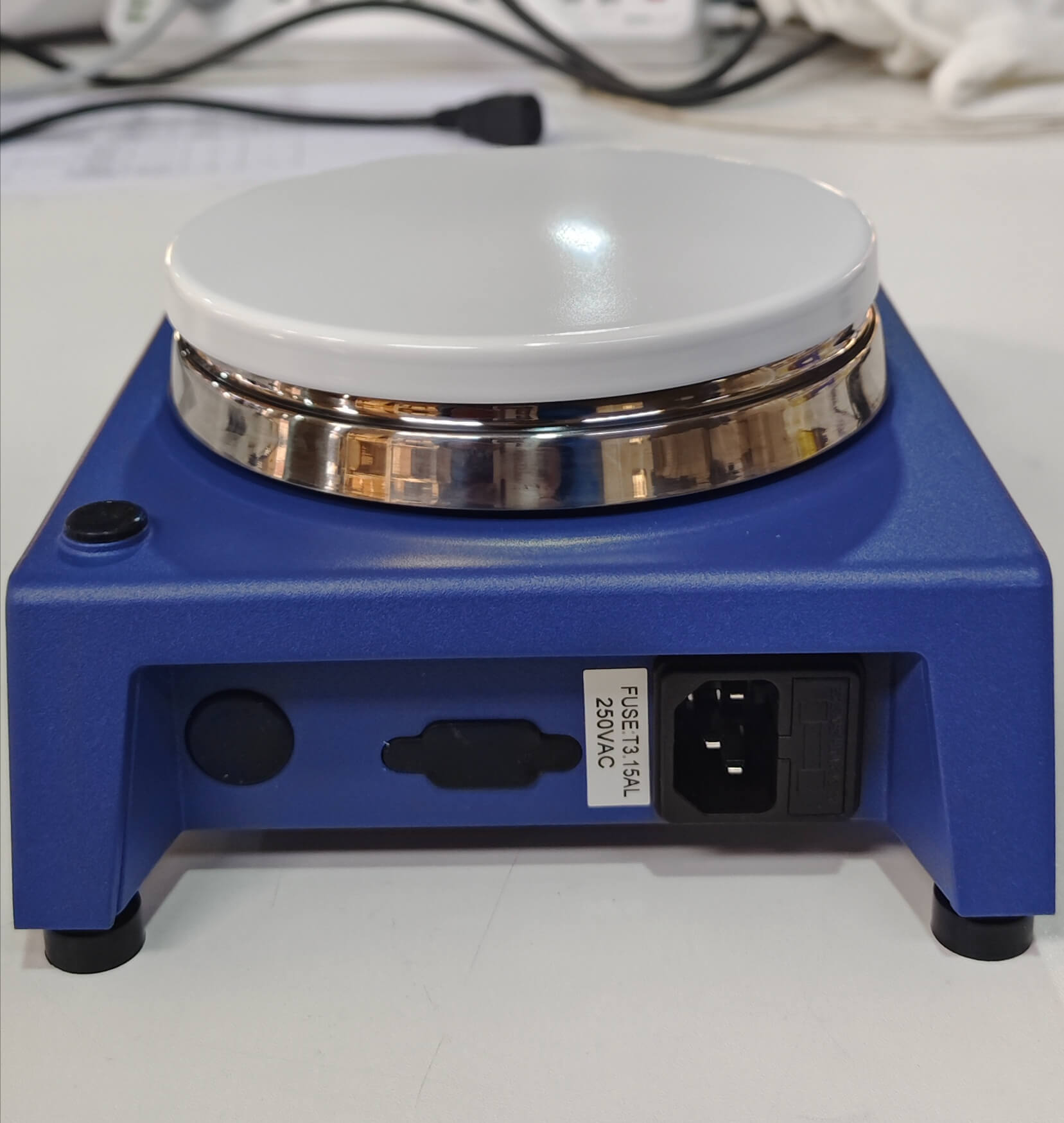

The compact and sturdy design includes ventilation slots for heat dissipation, ensuring long-term performance. The anti-slip rubber feet provide stability during stirring.
The stirrer is securely wrapped in protective foam and plastic to prevent damage during shipping. The packaging includes a user manual, power adapter, and stirring bar for immediate use.
The unit is packed in a reinforced cardboard box with product labels, handling instructions, and safety warnings to ensure secure transportation and storage.
