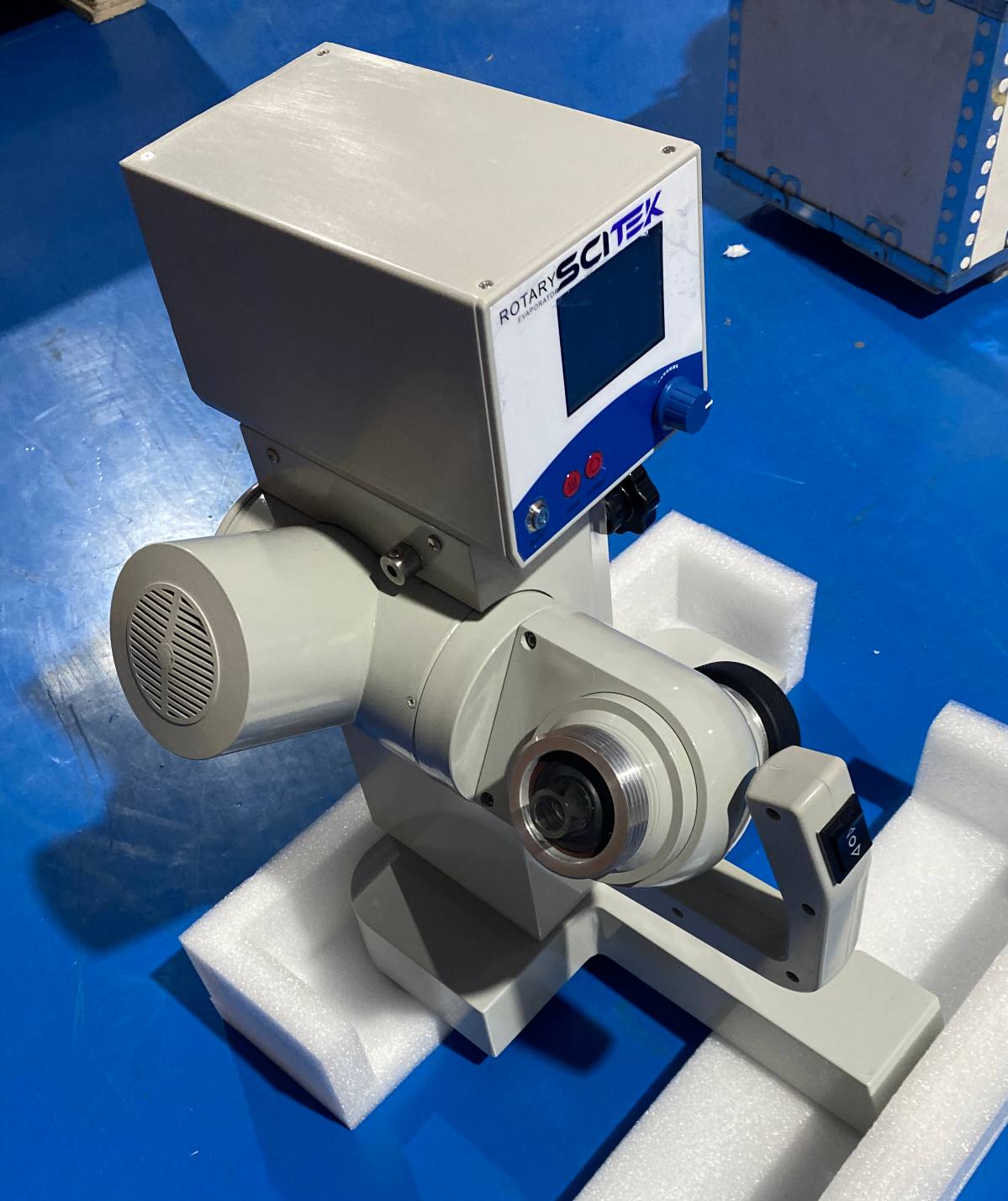

1. Lifting structure: The host automatically lifts and lowers, with a rocker button and an electric contact mechanical retraction principle. It is hydraulically assisted and can quickly lift and lower from 0 to 150 millimeters.
2. Control mode: Temperature digital display (RE-2000AR); Temperature and speed dual control and dual display (RE-2000BR); Temperature and speed dual control, LCD display(RE-2000CR).
3. Main components: Made of rust proof aluminum alloy, special engineering plastic, and high-temperature resistant glass. Compact structure, beautiful appearance, and durability.
4. Host drive: Using a gear motor, electronic stepless speed regulation, and synchronous belt drive device. Increase the diameter of the transmission shaft tube, so the evaporation pipeline is 1.5 times larger than that of general instruments, improving evaporation efficiency.
5. Evaporation pipeline: Made of high-temperature resistant glass and fluoroplastic composite, with two sections fitted with "silicon fluorine composite sealing rings" for vacuum sealing, long service life, and can be regularly disassembled, cleaned or replaced.
6. Condenser: Vertical integrated condenser made of high-temperature-resistant glass, featuring a double reflux design and spherical ground joints, paired with spherical ground joints receiving flask for quick and secure assembly and disassembly.

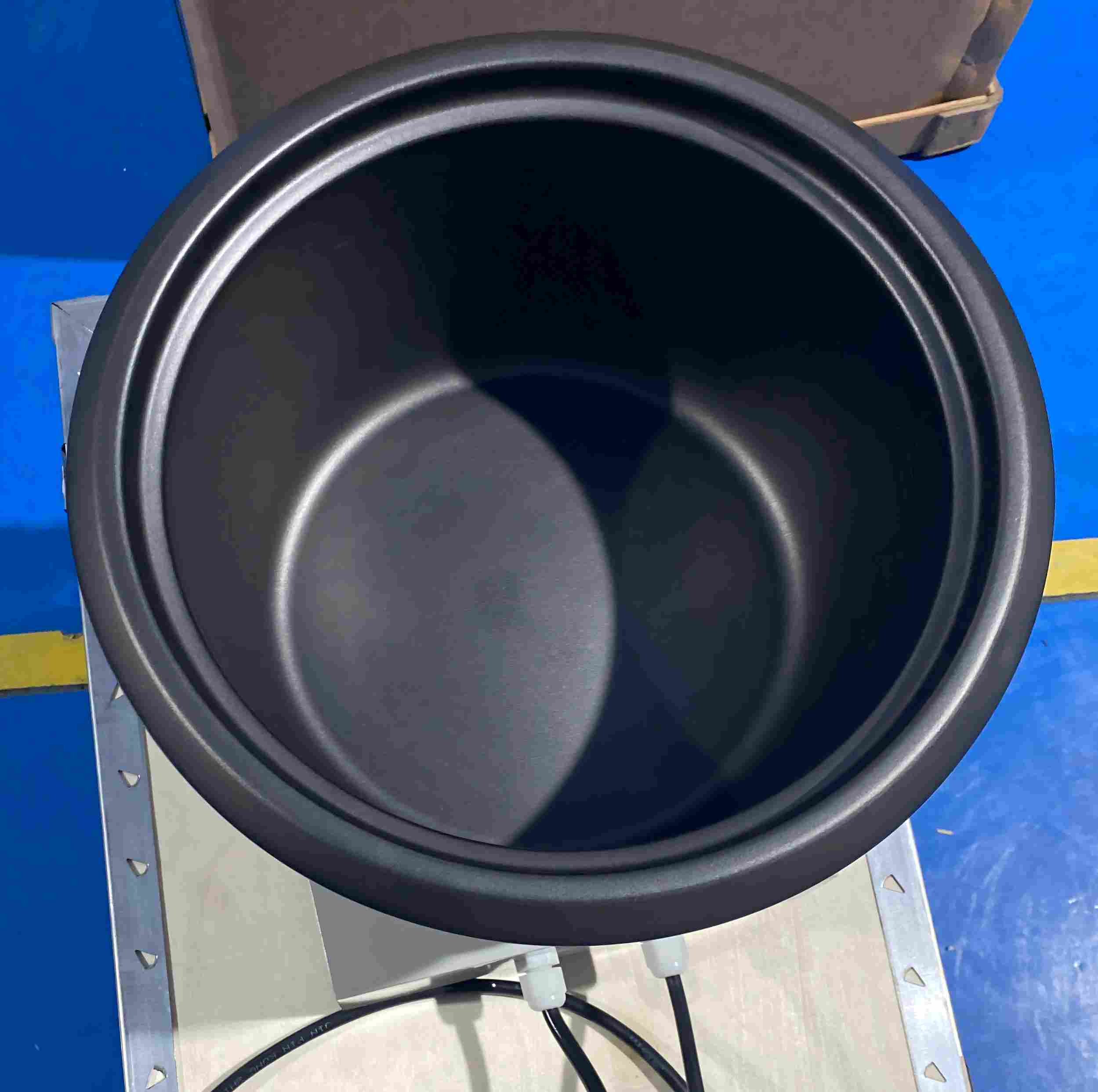

7. Heating pot: Made of PTFE aluminum alloy composite pot, the fully enclosed electric heater is installed on the aluminum alloy pot base, stable and reliable, and can be moved according to evaporation needs.
Specification:

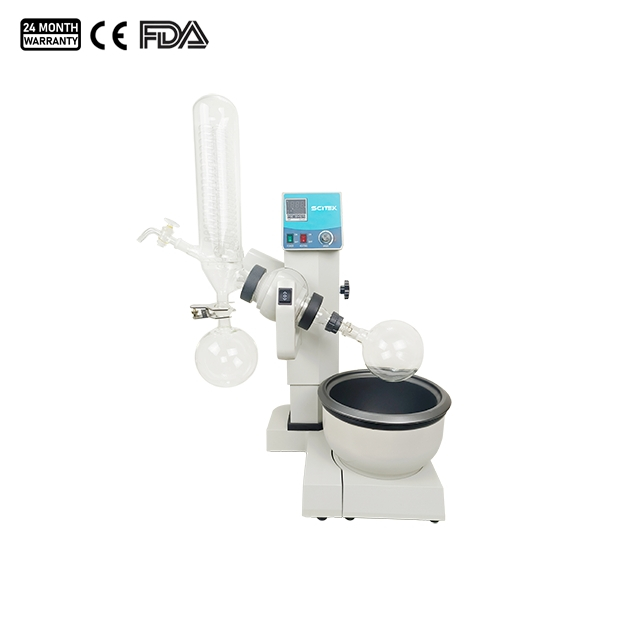

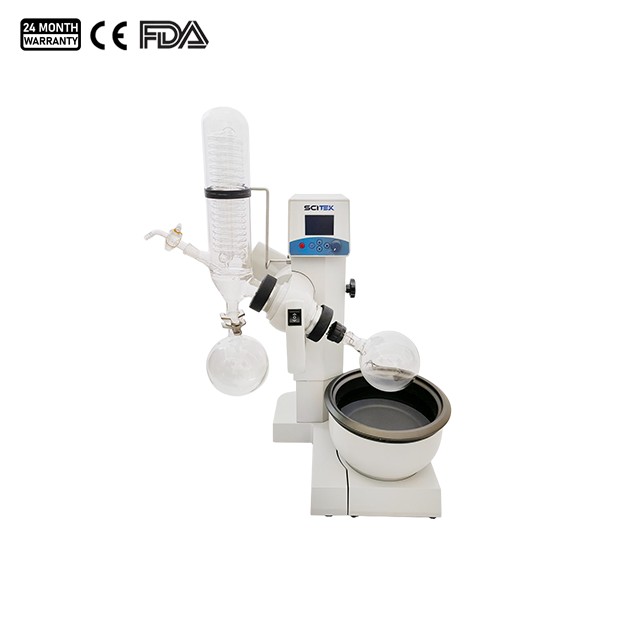

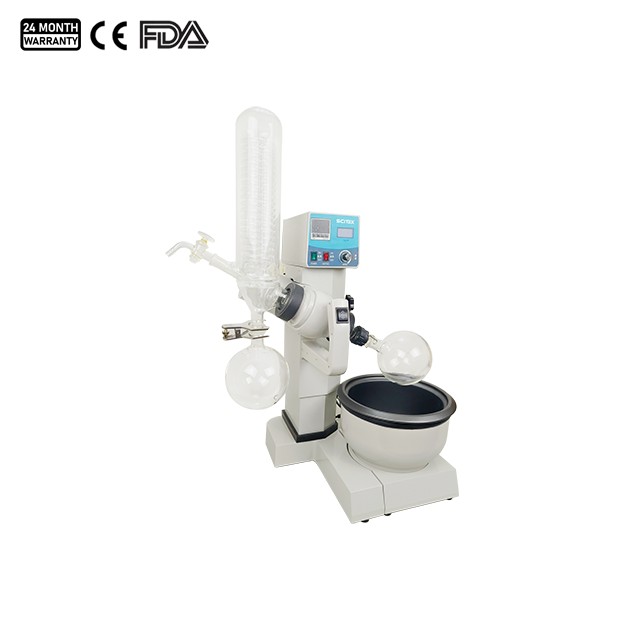

Model
RE-2000AR
RE-2000BR
RE-2000CR
Rotating Flask
Capacity
1 L (optional 2 L)
Caliber
24# standard ground joint
Receiving Flask
Capacity
1 L (optional 2 L)
Caliber
35# spherical ground joint
Feeding Switch
19# standard ground joint, 9mm barb fitting
Condenser
Vertical coiled tube
Condenser Size (Dia.×H)
85×400 mm
Condensation Area
About 0.17 ㎡
Condenser Circulation Connection Port
11 mm OD barb fitting
Seal
Teflon and fluororubber dual sealing
Temperature Control Accuracy
±1 ℃
Rotational Speed
0–200 rpm
Screen Display
Temperature digital display
Temperature and speed digital display
Temperature and speed LCD display
Temperature Control
Button
Speed Control
Knob
Motor Power
40 W
Lifting Method
Electric lifting
Lifting Travel Range
0–150 mm
Maximum Evaporation Capacity (Water) (L/h)
About 0.9 L/h
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
Teflon aluminum alloy composite pot
Inner Liner Size (Dia.×H)(mm)
280×160
230×140
280×160
Capacity
2 L
Heating Power
1.2 kW
Size (D×W×H)
400×360×260 mm
Size (D×W×H)
700×430×810 mm
Shipping Size (D×W×H)
730×490×600 mm
G.W.
30 kg
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
Advantage:
1. Lifting structure: The host automatically lifts and lowers, with a rocker button and an electric contact mechanical retraction principle. It is hydraulically assisted and can quickly lift and lower from 0 to 150 millimeters.
2. Control mode: Temperature digital display (RE-2000AR); Temperature and speed dual control and dual display (RE-2000BR); Temperature and speed dual control, LCD display(RE-2000CR).
3. Main components: Made of rust proof aluminum alloy, special engineering plastic, and high-temperature resistant glass. Compact structure, beautiful appearance, and durability.
4. Host drive: Using a gear motor, electronic stepless speed regulation, and synchronous belt drive device. Increase the diameter of the transmission shaft tube, so the evaporation pipeline is 1.5 times larger than that of general instruments, improving evaporation efficiency.
5. Evaporation pipeline: Made of high-temperature resistant glass and fluoroplastic composite, with two sections fitted with "silicon fluorine composite sealing rings" for vacuum sealing, long service life, and can be regularly disassembled, cleaned or replaced.
6. Condenser: Vertical integrated condenser made of high-temperature-resistant glass, featuring a double reflux design and spherical ground joints, paired with spherical ground joints receiving flask for quick and secure assembly and disassembly.
7. Heating pot: Made of PTFE aluminum alloy composite pot, the fully enclosed electric heater is installed on the aluminum alloy pot base, stable and reliable, and can be moved according to evaporation needs.
Specification:
Model
RE-2000AR
RE-2000BR
RE-2000CR
Rotating Flask
Capacity
1 L (optional 2 L)
Caliber
24# standard ground joint
Receiving Flask
Capacity
1 L (optional 2 L)
Caliber
35# spherical ground joint
Feeding Switch
19# standard ground joint, 9mm barb fitting
Condenser
Vertical coiled tube
Condenser Size (Dia.×H)
85×400 mm
Condensation Area
About 0.17 ㎡
Condenser Circulation Connection Port
11 mm OD barb fitting
Seal
Teflon and fluororubber dual sealing
Temperature Control Accuracy
±1 ℃
Rotational Speed
0–200 rpm
Screen Display
Temperature digital display
Temperature and speed digital display
Temperature and speed LCD display
Temperature Control
Button
Speed Control
Knob
Motor Power
40 W
Lifting Method
Electric lifting
Lifting Travel Range
0–150 mm
Maximum Evaporation Capacity (Water) (L/h)
About 0.9 L/h
Vacuum Degree
-0.098 Mpa
Power Supply
220 V, 50 Hz
Temperature Control Range
Water bath, RT to 99 ℃; oil bath, RT to 180 ℃
Bath Pot
Inner Liner Material
Teflon aluminum alloy composite pot
Inner Liner Size (Dia.×H)(mm)
280×160
230×140
280×160
Capacity
2 L
Heating Power
1.2 kW
Size (D×W×H)
400×360×260 mm
Size (D×W×H)
700×430×810 mm
Shipping Size (D×W×H)
730×490×600 mm
G.W.
30 kg
Recommended Equipment (excluding)
Circulating water vacuum pump VP-DIIIS and low-temperature coolant circulation pump LTC-510
