Vacuum Freezing Centrifugal Concentrator Specifications:
| Model | VCC-FRP1 |
|---|
| Display | 7-inch touch screen display |
| Speed Range | 0 rpm~2000 rpm |
| Maximum Centrifugal Force | 590×g |
| Ultimate Vacuum | ≤10pa |
| Noise | ≤50dB(A) |
| Temperature Range | RT.~100℃, increment of 0.1℃ |
| Temperature Control Accuracy | ±1℃ |
| Timing Range | 0~99h59min |
| Cold Trap | -65℃; 3L; 4.3-inch touch screen display |
| Vacuum Pump Pumping Speed | 120L/min |
| Sample Chamber Pre-Cooling Function | Yes |
| Centrifugation Imaging Function | Optional |
| Power Supply | AC220V, 50/60Hz |
| Consumption | 1200W |
Main Machine/Cold Trap/Vacuum Pump:
Shipping Size(W×D×H)(mm) | 730x650x380/550x370x650/730x330x330 |
Main Machine/Cold Trap/Vacuum Pump:
G.W. (kg) | 60/32/27 |

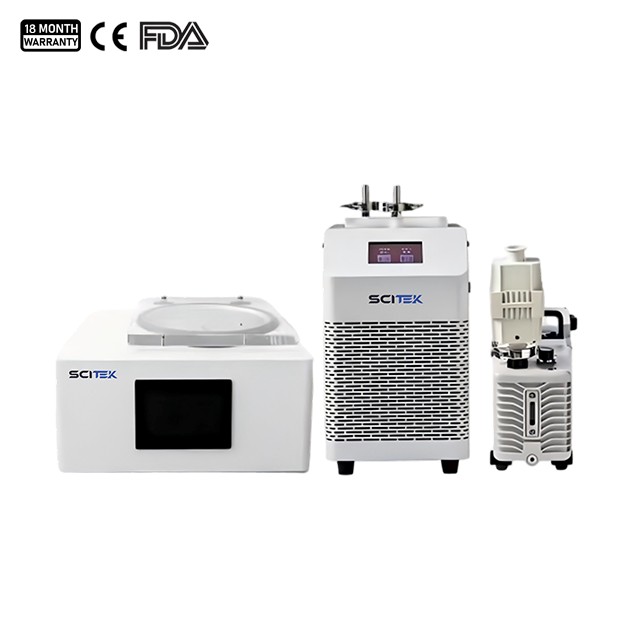

VCC-FRP1 is a vacuum freezing centrifugal concentrator designed specifically for concentrating heat-sensitive samples. It can meet the ultra-low-temperature concentration needs of RNA/DNA, proteins, and other heat-sensitive samples, as well as room temperature concentration needs. With a wide temperature control range, the chamber temperature can support a minimum of -10°C to 100°C. In addition to the main unit of the centrifugal vacuum concentrator, it is equipped with a 3L cold trap and a vacuum pump, providing a comprehensive solution. Different rotor models and various types of tubes, glass test tubes, centrifuge tubes, chromatography bottles, centrifuge bottles, or 96-well plates can be selected according to the sample volume during use.
Vacuum Freezing Centrifugal Concentrator Features:
Support for low temperature concentration, temperature range: room temperature to 100℃, with 0.1℃ increment
Hemical corrosion-resistant centrifuge chamber, acid and alkali resistance, integrated molding
Built-in vacuum delay function
Maintenance-free induction motor with AC variable frequency drive, electromagnetic drive centrifuge system
Five-level temperature control design for sample chamber, effectively ensuring sample safety
Built-in 32 sets of different programs
7-inch touch screen display
One-button start function
