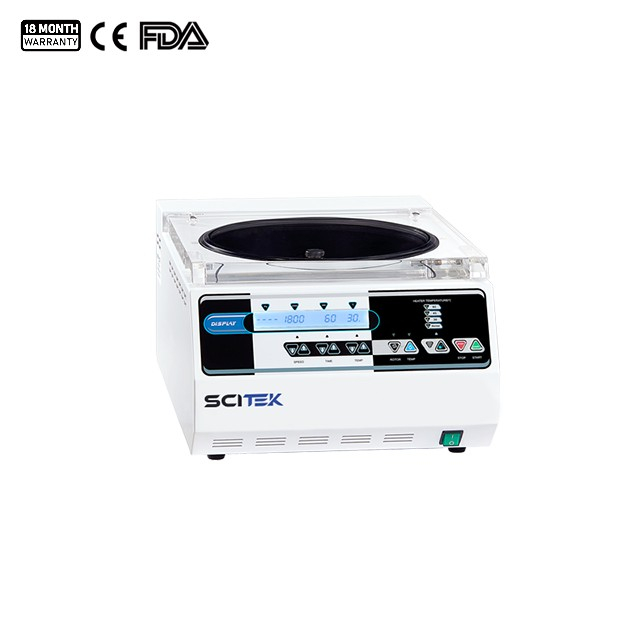

Vacuum Centrifugal Concentrator Feature: 1. Corrosion Resistance: Aluminum alloy centrifuge chamber with Teflon coating.
2. Easy operation: One button start/stop function enables automatic operation.
3. Sample safety: Automatic vacuum release after power off to protect sample safety.
4. Completely Accessories: Over 12 rotors are available as optional configurations.
5. Speed adjustable: The speed is adjustable from 300 rpm to 1800 rpm, which helps prevent sample boiling.
6. User-friendly design: The device has a height of 24 cm, making it convenient for sample retrieval and placement.
7. Temperature quick settings: Room temperature, 30 ℃, 45 ℃ and 60 ℃, ensuring efficient and safe for sample concentration.
8. Vacuum Delayed Start: The vacuum delayed start function initiates vacuum extraction after the preset speed is reached.
9. Automatic alarm for inadequate vacuum value, ensuring sample safety.
10. Specially designed intake filtration components to keep samples away from cross contamination.
Vacuum Centrifugal Concentrator Specification : Model
VCC-V200
Speed Range
300–1800 rpm
Maximum Centrifugal Force
430 ×g
Time Range
0–9999 mins
Temperature Control Range
RT + 5 ℃ to 80 ℃
Ultimate Vacuum Value
≤ 30 Pa (≤ 0.3 mbar)
Noise
≤ 60 dB (A)
Standard Rotor
90×1.5/2 mL
Power
1100 W
Power Supply
AC 220/110 V, 50/60 Hz, 10 A
Overall Size (W×D×H)
520×360×240 mm
Shipping Size (W×D×H)
630×450×550 mm
N.W/G.W
25.8/31 kg
Optional Rotor
Recommended Equipment (excluding) Cold Trap (CT-M50/CT-M80), Diaphragm Vacuum Pump (DVP-M480)

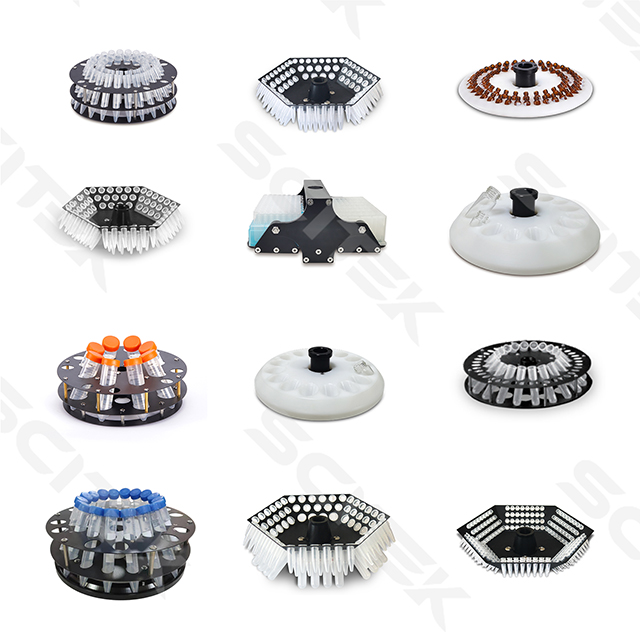

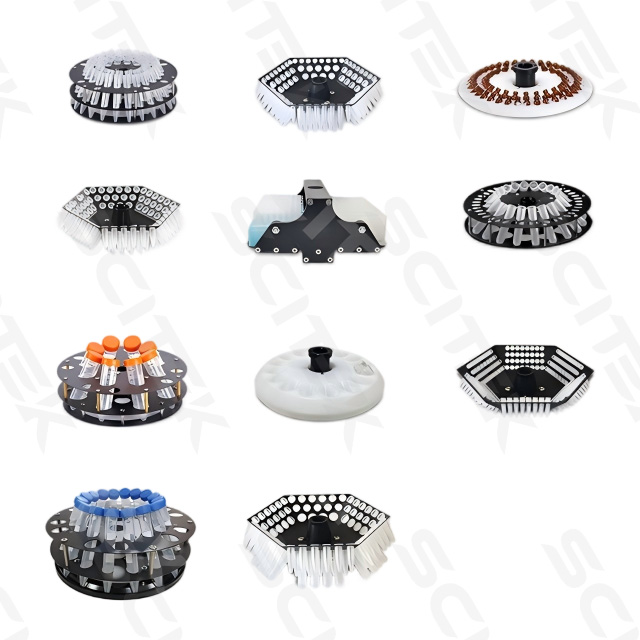

Rotor Specification : Type
Aperture (Number and Capacity of Sample Tube)
Standard
90×1.5/2 mL
Optional
24×5 mL+66×1.5 mL
54×1.5 mL+48×0.6 mL
24×8×0.2 mL
40×10 mL
20×10 mL(Round bottom)
8×50 mL+8×10 mL
8×50 mL(Conical bottom)
20×15 mL(Conical bottom)
64×2 mL(Glass vial)
8×40 mL+8×10 mL
16×20 mL (Glass vial)
2×96 Microplate

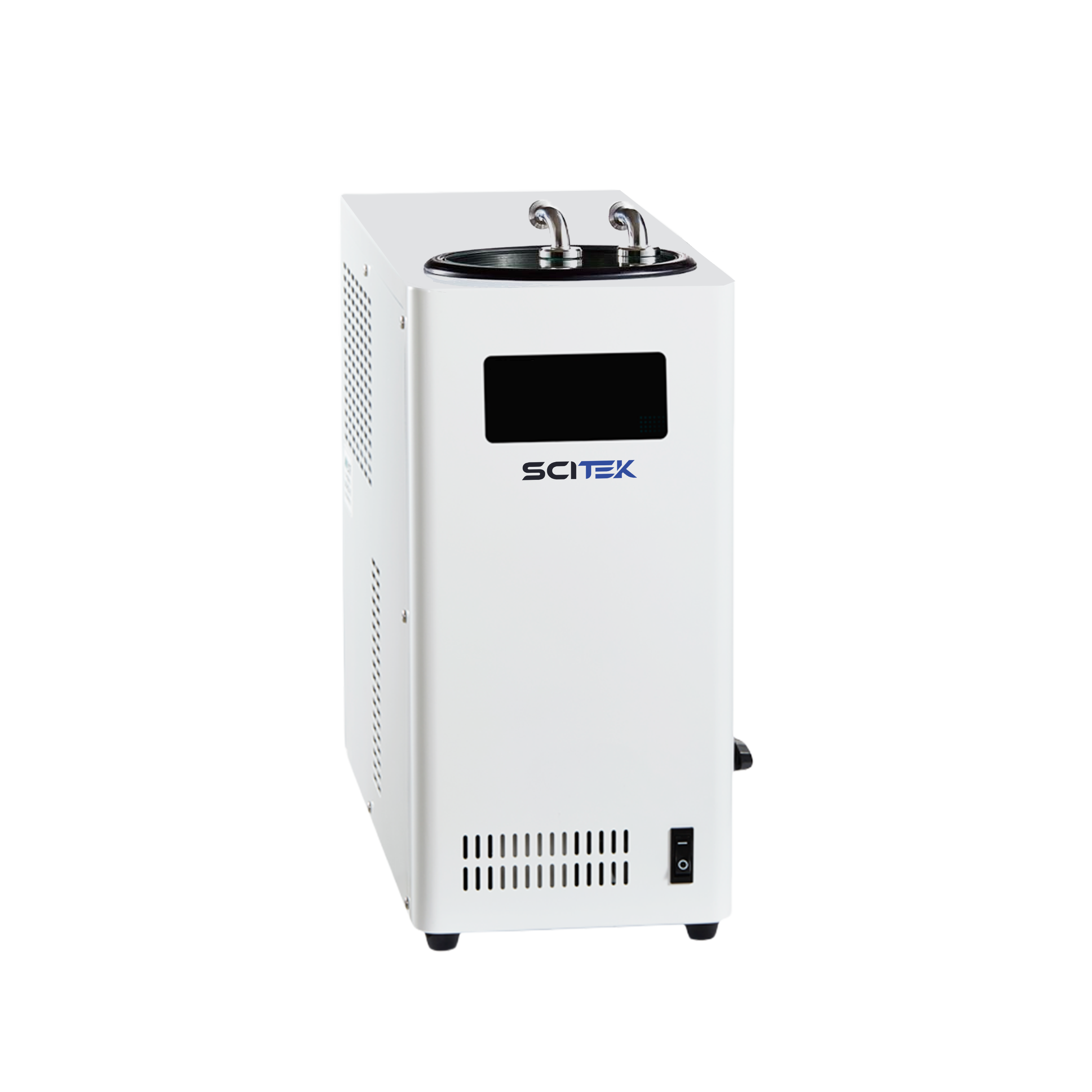

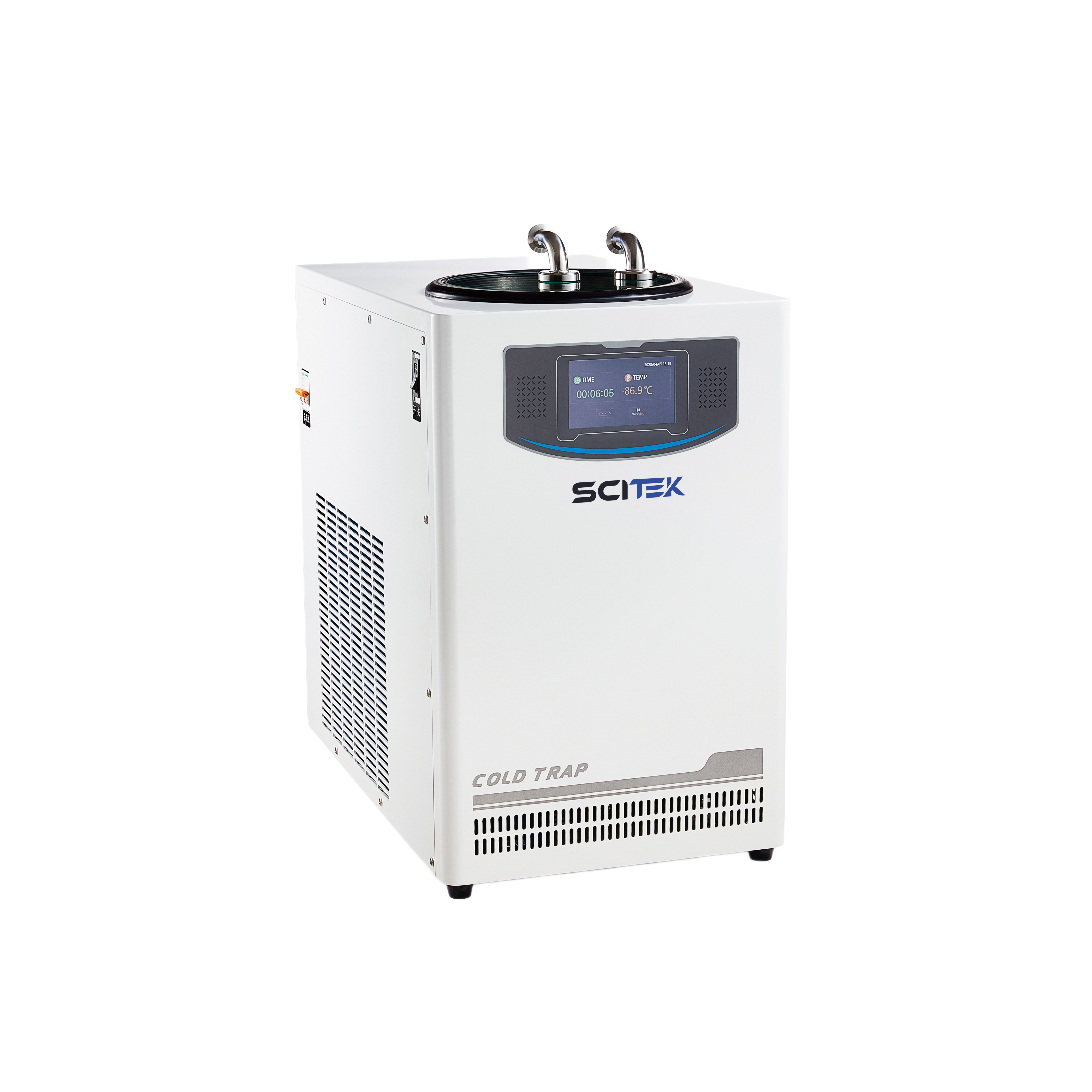

Cold Trap Specification:
Model CT-M50 CT-M80 Temperature -50 ℃ -80 ℃ Cold Trap Capacity 2000 mL 4500 mL Coil Way External coil Internal coil Cover Material Polypropylene Power 900 W 1800 W Power Supply AC 110/220 V, 50/60 Hz, 10 A Size (D×W×H) 500×210×470 mm 600×360×630 mm Shipping size (D×W×H) 590×300×560 mm 670×430×710 mm N.W./G.W. 32/39.5 kg 70/82 kg

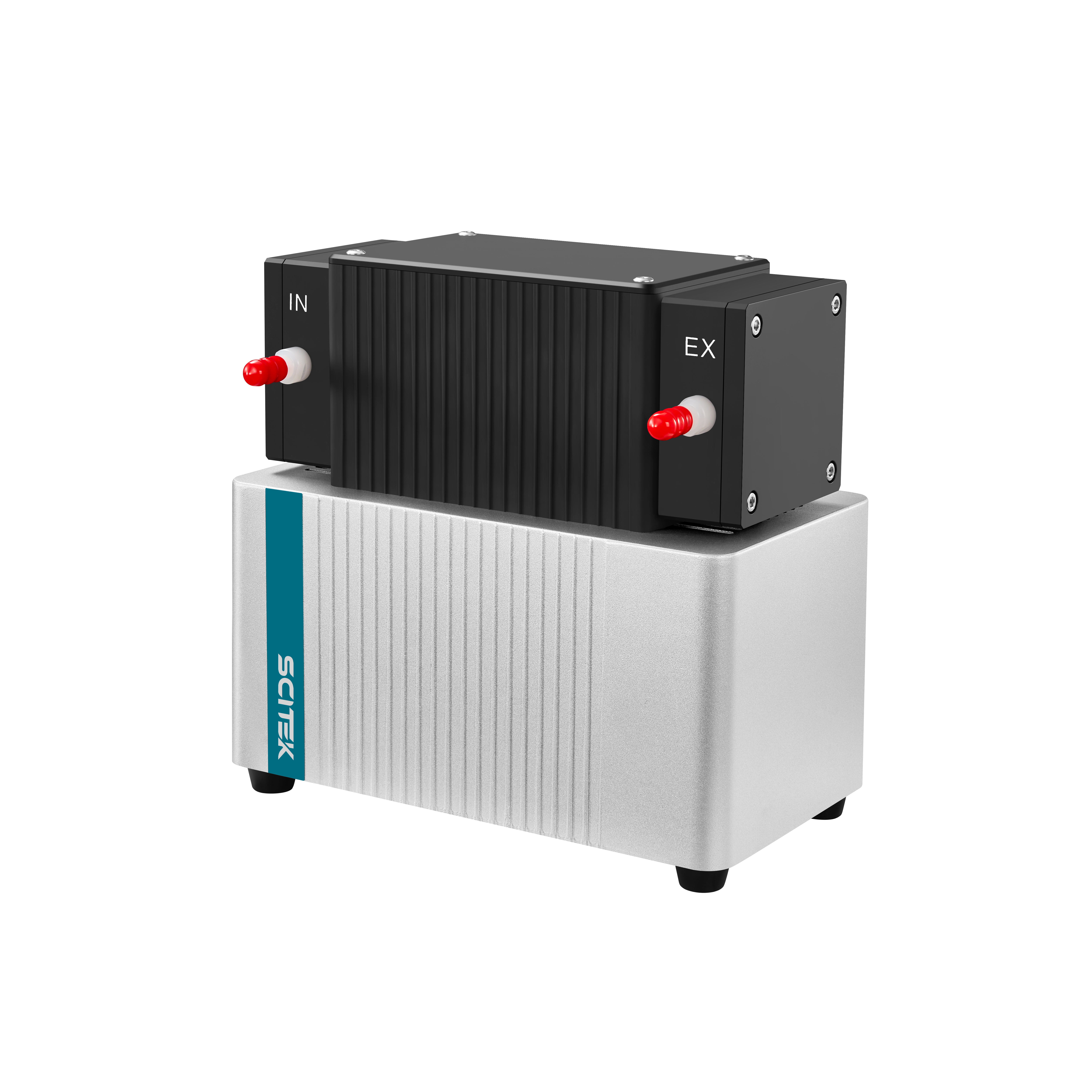

Diaphragm Vacuum Pump Specification:
Model DVP-M480 Pumping Speed (L/min) 35 L/min Ultimate Vacuum (MPa) ≤ 8 mbar Noise ≤ 50 dB Power (W) 200 W Power Supply AC 110/220 V, 50/60 Hz, 10 A Size (D×W×H) 266×163×257 mm Shipping size (D×W×H) 370×330×370 mm N.W./G.W. 9.2/13 kg
