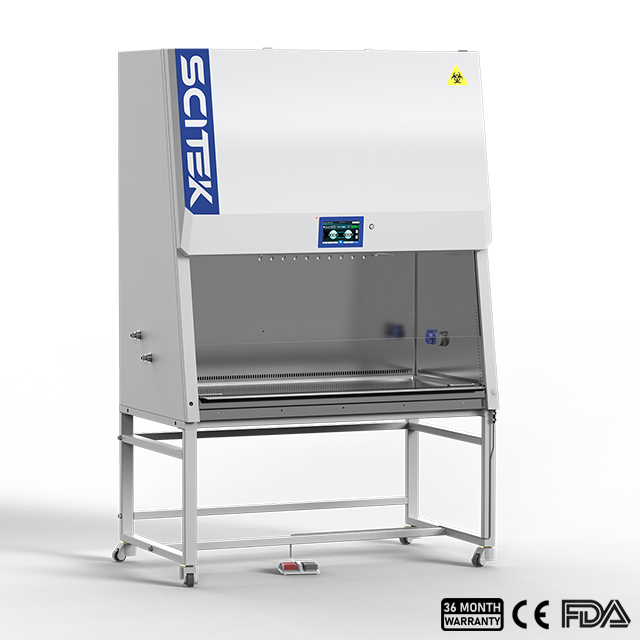

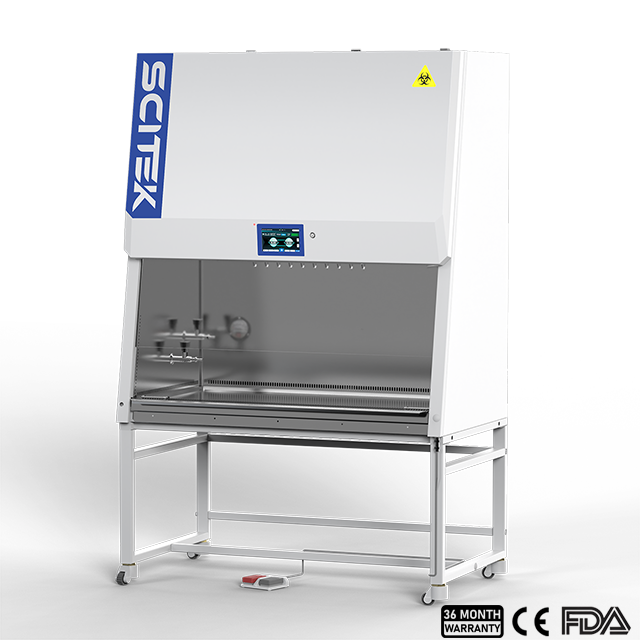

Biological Safety Cabinet(A2 BSC)

Model: BSC-IIA2-3F, BSC-IIA2-4F, BSCIIA2-5F, BSC-IIA2-6F

  • External Size :  3FT / 4FT / 5FT / 6FT
  • Airflow System :  70% air recirculation, 30% air exhaust
  • Cleanliness Grade :  Class 100
  • Front Window :  Motorized, toughened glass
Availability:

Class II A2 BSC Specifications:


Model

BSC-IIA2-3F

BSC-IIA2-4F

BSC-IIA2-5F

BSC-IIA2-6F

Internal Size (W×D×H)

915×550×600mm

1220×550×600mm

1525×550×600mm

1830×550×600mm

External Size (W×D×H)

1015×780×2050mm

1320×780×2050mm

1625×780×2050mm

1930×780×2050mm

Work Surface Height

750mm

Airflow System

70% air recirculation, 30% air exhaust

Downflow Velocity

0.35m/s (Airflow fluctuation over 20%, there is Visual and Audio alarm)

Inflow Velocity

0.52 m/s (Airflow velocity less than 0.40 m/s, there is Visual and Audio alarm)

Filter Specification

H14 HEPA filter, ≥99.995% efficiency at 0.3μm

Supply HEPA filter Size

875×490×70mm

1180×490×70mm

1485×490×70mm

1790×490×70mm

Exhaust HEPA filter Size

845×370×70mm

1150×370×70mm

1455×370×70mm

1760×370×70mm

Cleanliness grade

Class 100 (ISO14644.1 Class 5)

Display

LCD touch screen, Real-time monitoring and display front window status, inflow and downflow velocity, Pressure, date/Time/temperature, filter and UV lamp life, system working status etc.

Alarm

Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height

Front Window

Motorized,toughened glass

LED Lamp

12w×2

12w×2

16w×2

16w×2

UV Lamp

30w×1

30w×1

40w×1

40w×1

Rated Consumption

/Max.Consumption

270w/330w

500w/620w

530w/650w

750w/930w

Not include socket consumption

Explosion-proof socket

3A  1pcs（IP54）

5A  2pcs（IP54）

Illumination

≥900Lx

Sound Emission

≤60dB(A)

Work surface net

vibration amplitude

≤2μm

Power Supply

AC220V / 50Hz,1P; 110V/60HZ (Optional)

Material

External Main body: Electro-galvanized steel with antimicrobial Powder Coating

Work surface: 304 stainless steel

Standard Accessories

  1. Base stand

  2. Air Velocity sensor

  3. LCD touch screen

  4. LED lamp

  5. UV lamp

  6. Explosion-proof/Waterprof socket；

  7. Motorized front window

  8. Footmaster caste

  9. Foot switch

  10. Removable shallow-plate stainless steel work surface

Optional Accessories

  1. Gas tap

  2. Water tap

  3. IV bar with hooks

  4. Pressure meter

  5. Exhaust Thimble canopy and 6m Air duct assembly

  6. ULPA filter

Net Weight

250kg

280kg

320kg

360kg

Gross Weight

310kg

350kg

405kg

460kg

Shipping Size

(W×D×H)

1155×990×1650mm

1460×990×1650mm

1765×990×1650mm

2070×990×1650mm

Shipping Volume

1.9 m3

2.4 m3

2.9 m3

3.4 m3

Biosafety Cabinet Features:


  • UV sterilization function and timing function can be set by appointment.

  • Motorized front window, control limit and travel limit double protection,ergonomic 10° tilt Angle, improve the operation comfort.

  • With memory function in case of power-failure.

  • Work area surrounded by negative pressure, prevent leakage,improve Biosafety.

  • Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).

  • Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.

  • Foot switch: adjust front window height, to avoid airflow turbulence caused by arm movement.

  • Support customized service, to meet the needs of different customers.

Environment conditions：


  • Temperature range：5∽40℃

  • Relative humidity：≤90%(At +40℃)

  • Atmospheric pressure：86kPa∽106kPa

  • Maximum dust concentration：3500 particles /L(particle size ≥0.5μm)
