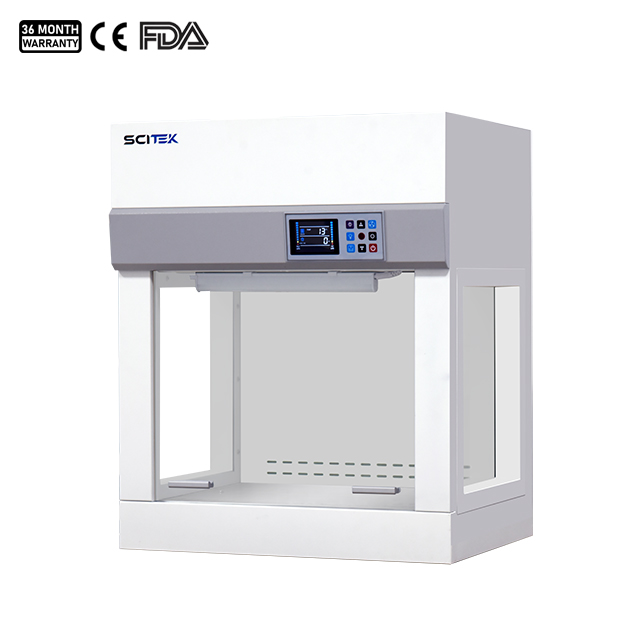

Mini Laminar Flow Cabinet

Model : LCB-V500II

Airflow Pattern : Vertical
Max Door Opening : 310mm
HEPA Filter Efficiency : 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Air Speed Adjustable : 0.2~0.6m/s, Intelligent multi-level adjustable
Noise: ≤62db
Internal Size ( WxDxH ) (mm) : 480x340x370
Vertical laminar flow cabinet is a range of high-efficiency products designed to protect equipment and other contents from particulate matter in decontaminated work areas for applications sensitive to such contamination.
Availability:
Quantity:

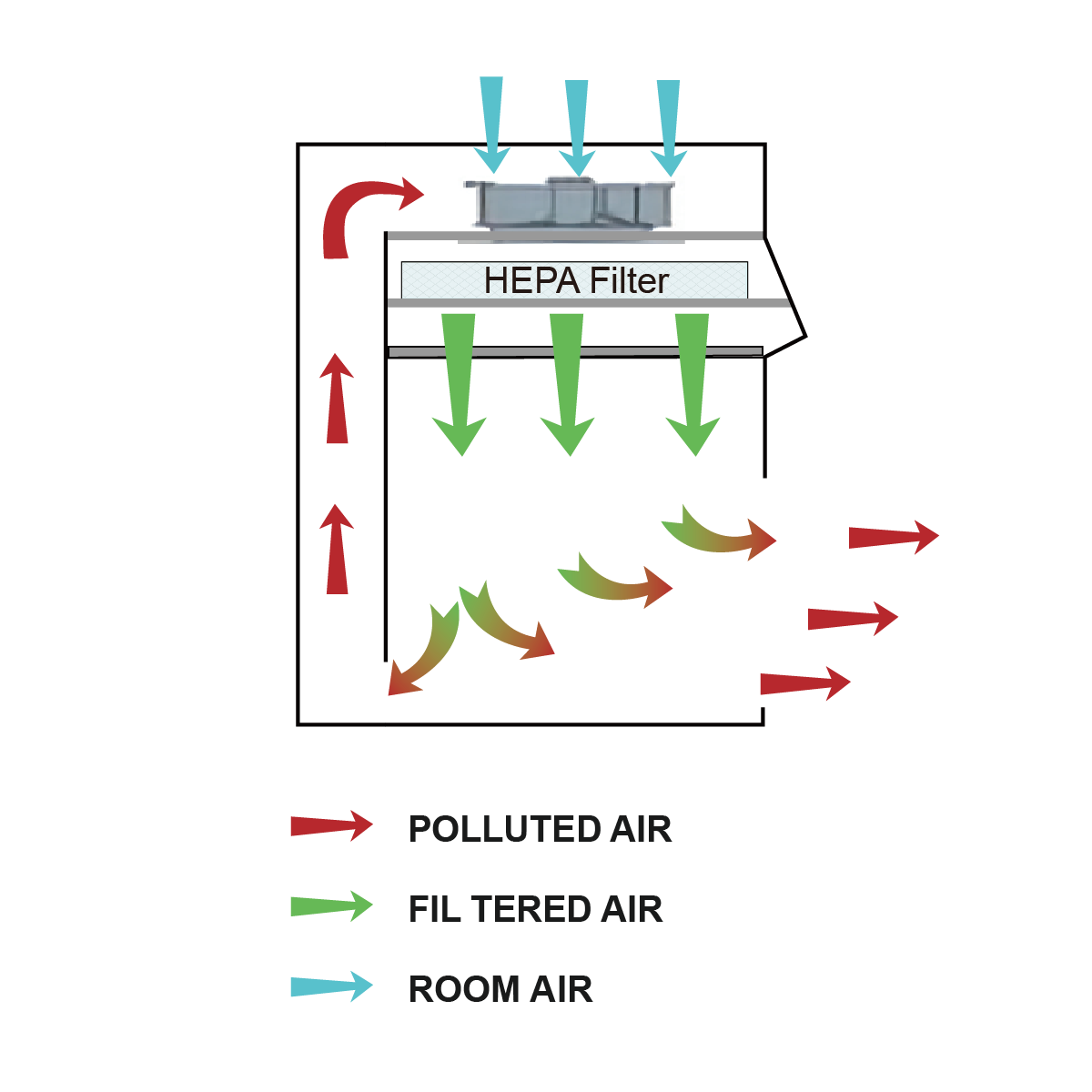

Mini laminar flow cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.

Our mini vertical laminar flow benches also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.

Mini Laminar Flow Cabinet Specifications:

Model LCB-V500II
External Size (WxDxH)(mm) 580x460x700
Internal Size (WxDxH)(mm) 480x340x370
Max Opening 310mm
Control System Microprocessor controller with LCD display, display the operating status of each function
Airflow System Airflow Velocity 0.2~0.6m/s, Intelligent multi-level adjustable
Air filtration System Pre-Filter 1pcs, Polyester fiber,washable
HEPA Filter 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Cleanliness Grade ISO Class 5 (formerly Class 100)
Partial air circulation Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Cabinet Construction Main Body Electro-galvanized steel with antimicrobial powder coating
Work Surface 304 Stainless steel
Front Window Manual, 5 mm UV resistant tempered glass
Electrical System UV Lamp 8Wx1
LED Lamp 8Wx1
Consumption 110W
Power Supply AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Sound Emission ≤62db
Colony Count ≤0.5pcs/vessel (petri dish is φ 90mm)
Vibration ≤3um
Work Surface Bearing 10kg
Standard Accessory 1.LED Lampx1; 2.UV Lampx1; 3.Pre-filterx1; 4.HEPA Filterx1
Net Weight 36kg
Gross Weight 70kg
Shipping Size (W×D×H)(mm) 700x660x900
Shipping Volume 0.36m³

Mini Laminar Flow Cabinet Features:

  1. HEPA filter with efficiency: 99.995% at 0.3um. It also has pre-filter which made of washable polyester fiber, can extend the life of the HEPA filter.

  2. Microprocessor control panel with soft button, LED/LCD display.

  3. Table top, Manual front window is 5mm toughened glass, anti-UV.

  4. Air speed adjustable.

  5. UV lamp and front window has interlock function.

  6. Desktop type, with a handle, saving space and easy to move.

  7. Pre-filter is polyester fiber, washable and anti-ultraviolet radiation.

  8. Automatic cutting off UV lamp function by opening glass.

  9. LCB-V500II have color screen LCD controller (with sterilization timing, built-in socket controllable switch , front window status display, can set three position interlock , cumulative work timing, remote control)

Detail of Mini Laminar Flow Cabinet:

3

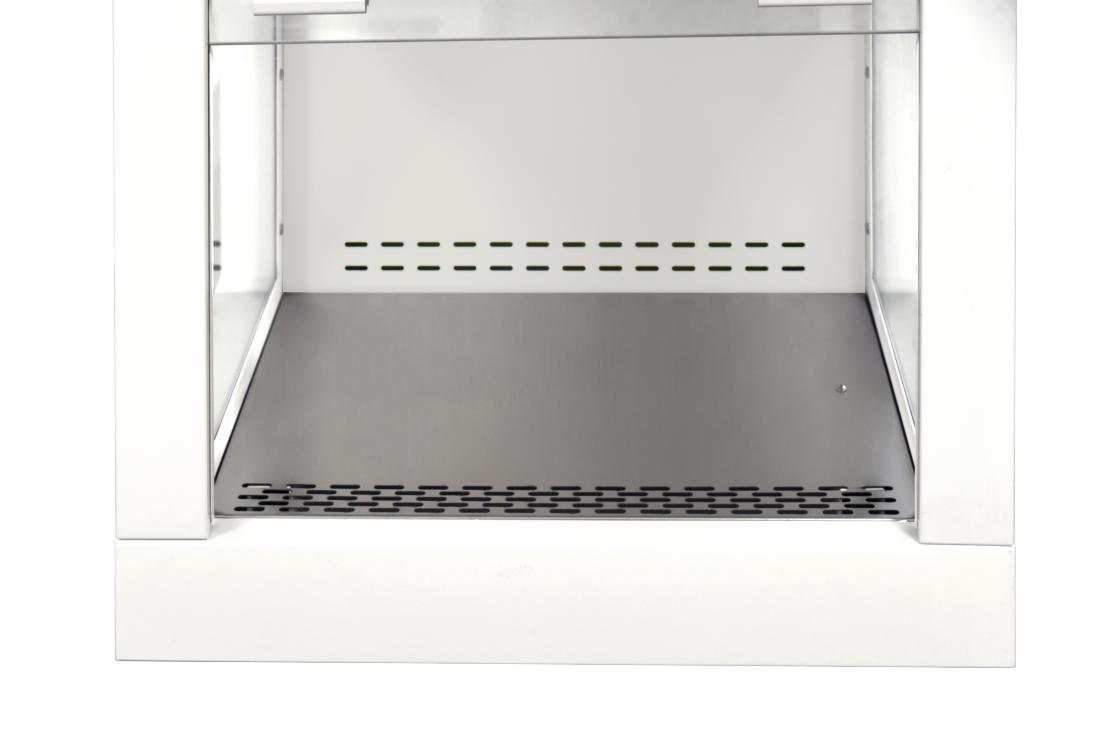

Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.

2

304 Stainless Steel work surface

1

High Definition lcd Display

Mini Laminar Flow Cabinet real photo display:

Mini Laminar Flow Cabinet

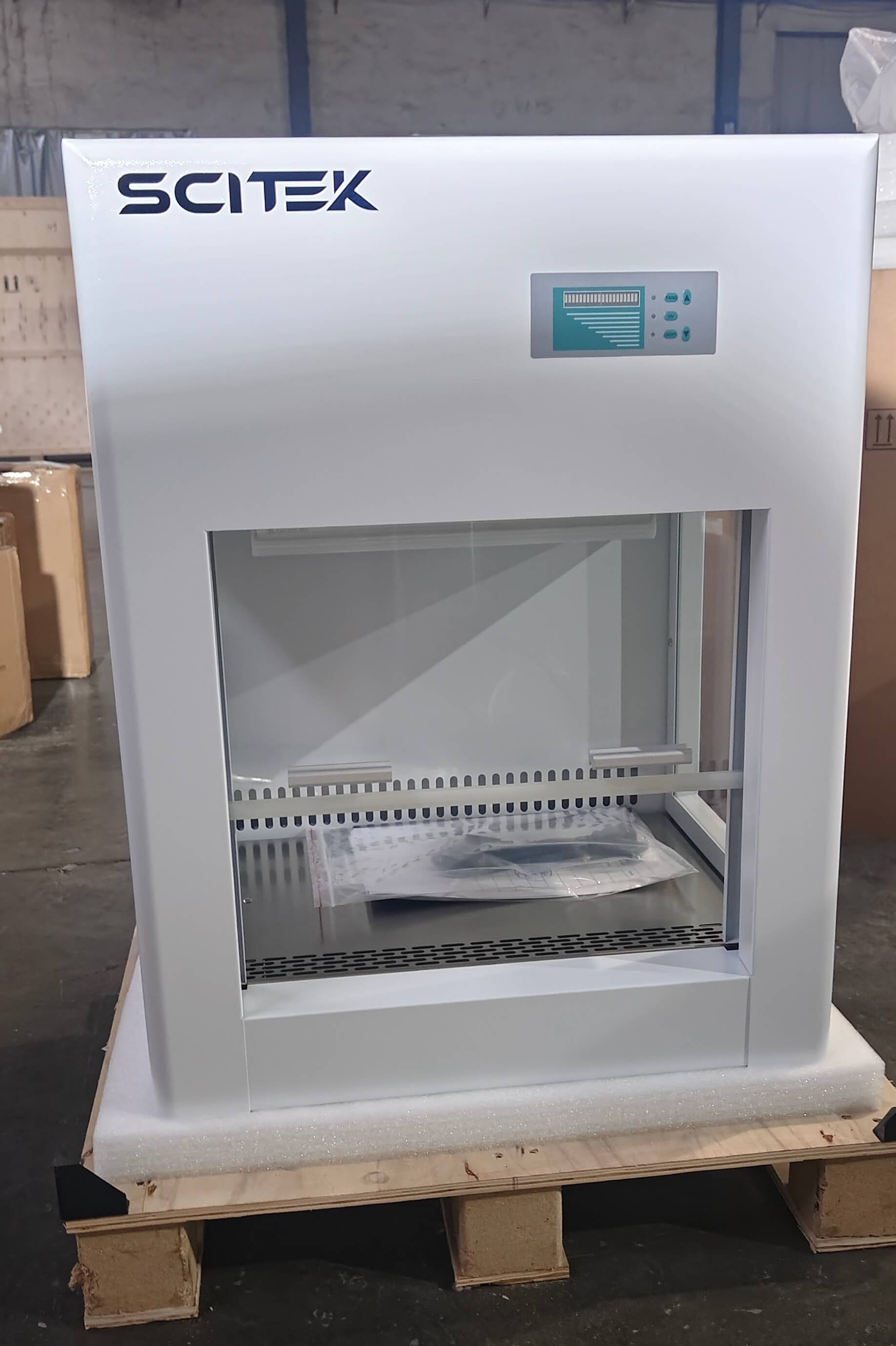

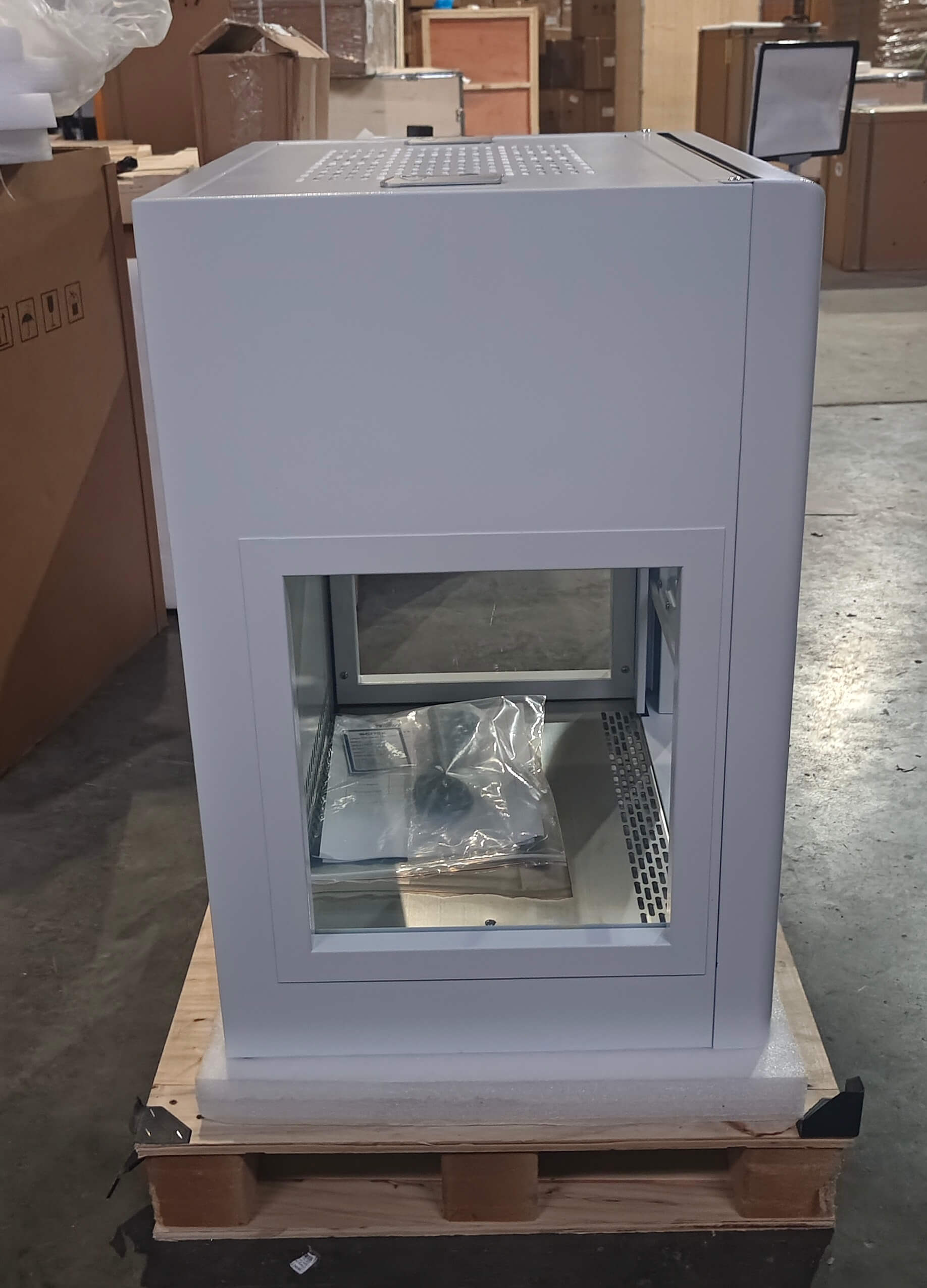

The laminar flow cabinet has clear, protective glass windows on the front and sides to ensure that the user has a clear view of the interior during operation.

Mini Laminar Flow Cabinet

LCB-V500 (5)

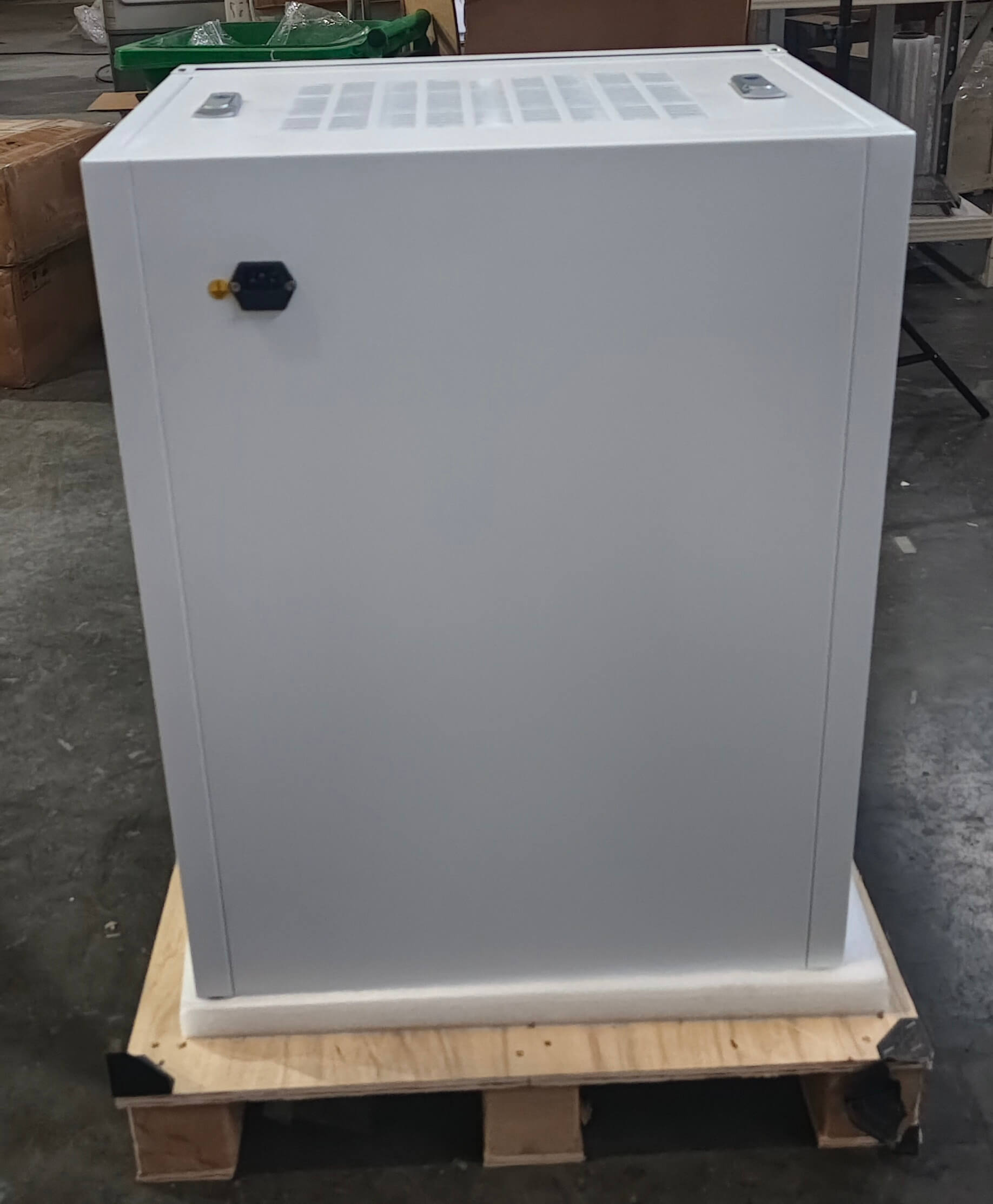

The back panel is made of a reinforced material that is easy to clean and maintain, ensuring that the unit lasts for a long time.
