The biohazard safety cabinet class iiis biological safety isolation equipment used in biological safety laboratories or other laboratories, It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it’s suitable for experiments with radioactive nuclides and volatile chemicals.
BSC Class II Type B2 Specifications:
Model
BSC-IIB2-1100
BSC-IIB2-1400
BSC-IIB2-1500
BSC-IIB2-1800
External Size (WxDxH)(mm)
1050×780×2180
1400×780×2180
1500×780×2180
1800×780×2180
Internal Size (WxDxH)(mm)
950×626×600
1300×626×600
1400×626×600
1700×626×600
Tested Opening
Safety height 200mm (8”)
Max.Opening
400mm
Work Surface Height
800mm
Control System
Display
LCD touch screen
Alarm
Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height
Airflow System
Airflow Mode
100% air exhaust
Downflow Velocity
0.35m/s±0.025m/s
Inflow Velocity
0.52m/s±0.025m/s
Inflow Air Volume
355m³/h (209CFM)
486m³/h (286CFM)
524m³/h (309CFM)
636m³/h (375CFM)
Downflow Air Volume
718m³/h (423CFM)
983m³/h (579CFM)
1058m³/h (623CFM)
1285m³/h (757CFM)
Exhaust Air Volume
1073m³/h (632CFM)
1469m³/h (865CFM)
1582m³/h (932CFM)
1921m³/h (1131CFM)
Air filtration System
ULPA Filter
2pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter life indicator
Cleanliness Grade
Class 100 (ISO14644.1 Class 5)
Cabinet Construction
Main Body
Electro-galvanized steel with antimicrobial Powder Coating
Work Surface
304 stainless steel
Front Window
Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV.
Electrical System
UV Lamp
20Wx1
30Wx1
30Wx1
40Wx1
Emission of 253.7 nanometers for most efficient decontamination,UV life indicator, UV timer.
LED Lamp
16Wx2
20Wx2
20Wx2
20Wx2
Max.Consumption
1550W (Not include socket loading power consumption)
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination
≥1000Lux
Sound Emission
≤60dB(A)
Vibration of Work Surface
≤5μm
Standard Accessory
1.Base Stand;
2. Air Velocity Sensor;
3. ULPA FIlter;
4. LCD Touch Screen;
5. LED Lamp×2;
6. UV Lamp×1;
7. Waterprof Socket×2;
8. Motorized Front Window;
9. Footmaster Caster;
10. Foot Switch;
11. Electric Air Valve Control;
12. Exhaust Blower;
13. 6m Exhaust Duct (Φ300mm);
14. RS485 interface
Optional Accessory
1. LED Lights With Adjustable Brightness
2. Gas Tap;
3. Water Tap;
4. IV Bar With Hooks;
5. Manual Adjustable Base Stand;
6. Arm rest
Net Weight (kg)
289.5
323
350
430
Gross Weight (kg)
346
404
435
550
Shipping Size (WxDxH)(mm)
Main Unit
1150x1080x1710
1550x1120x1710
1650x1120x1710
1950x1120x1710
Exhaust Blower
730x660x500
700x700x500
700x700x500
700x700x500
Shipping Volume (m3)
2.6
3.3
3.5
4

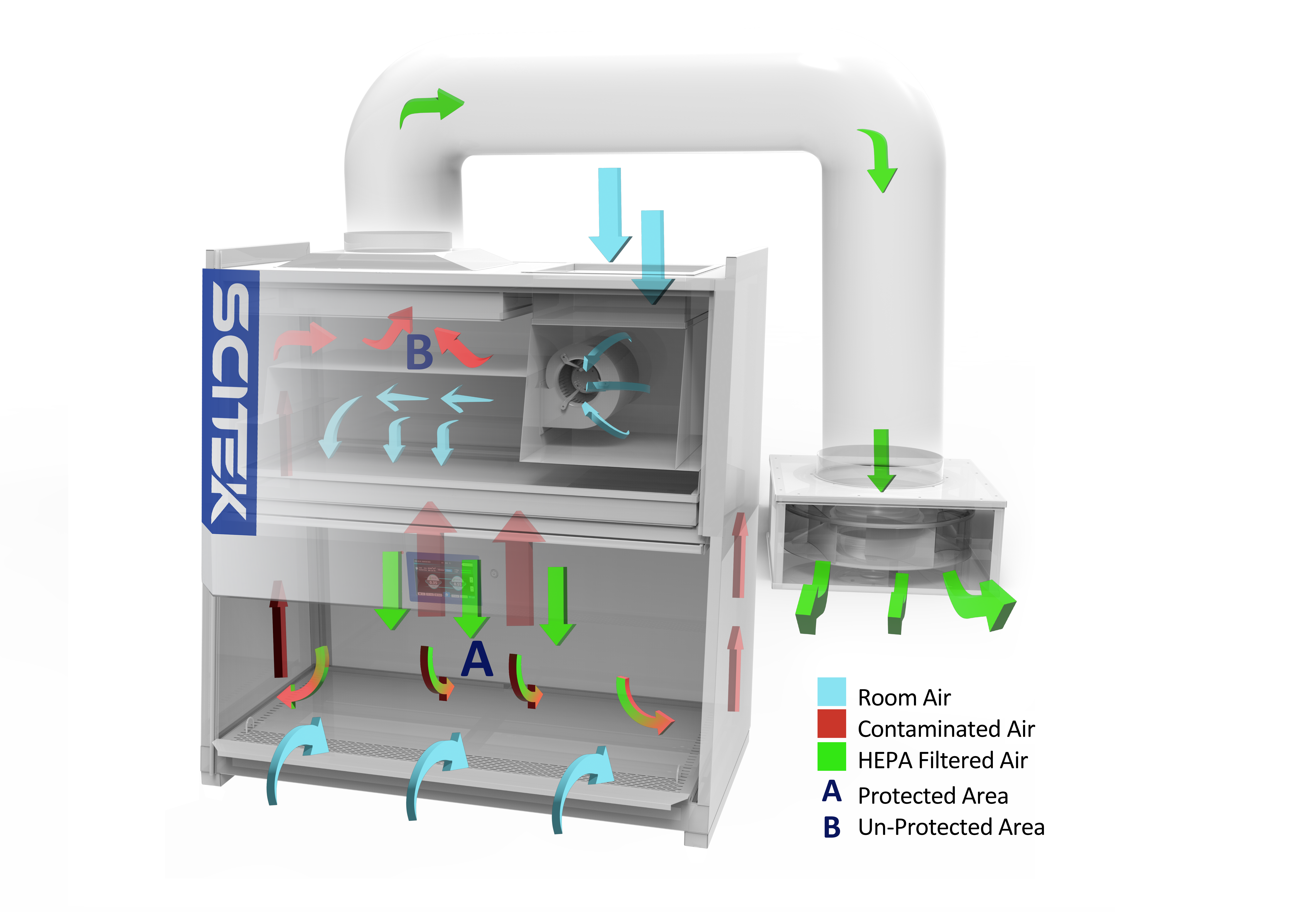

Protection: Operator, Samples and the environment.
Airflow System: 100% air exhaust
Work area: Negative pressure
Biosafety Cabinet Class II Features:
Standard with Air velocity sensor. Real-time monitoring and display Air velocity.
Standard with Foot switch. Controls the front window to up and down.
Standard with Electric Air valve control. It can be controlled through the LCD touch screen.
Standard with RS485 interface.
Depth of the cabinet is reduce to 780mm. Better access to the door of laboratory room.
Unibody design for front panel. Better sealing and safer than the splice style front panel.
Base stand with foot support for operator comfortable operation.
Optional LED lamp with adjustable brightness.
Safety login system: three-level authority, control,function setting, parameter setting and hierarchical menu entry can be performed.
Safety Performance:
UV sterilization function and timing function can be set by appointment.
Automatic air speed adjustable.
With memory function in case of power-failure.
Audio and visual alarm (Abnormal airflow velocity, filter failure, UV lamp failure, Front window at unsafe height).
Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.
Biohazard Safety Cabinet Class II Display:

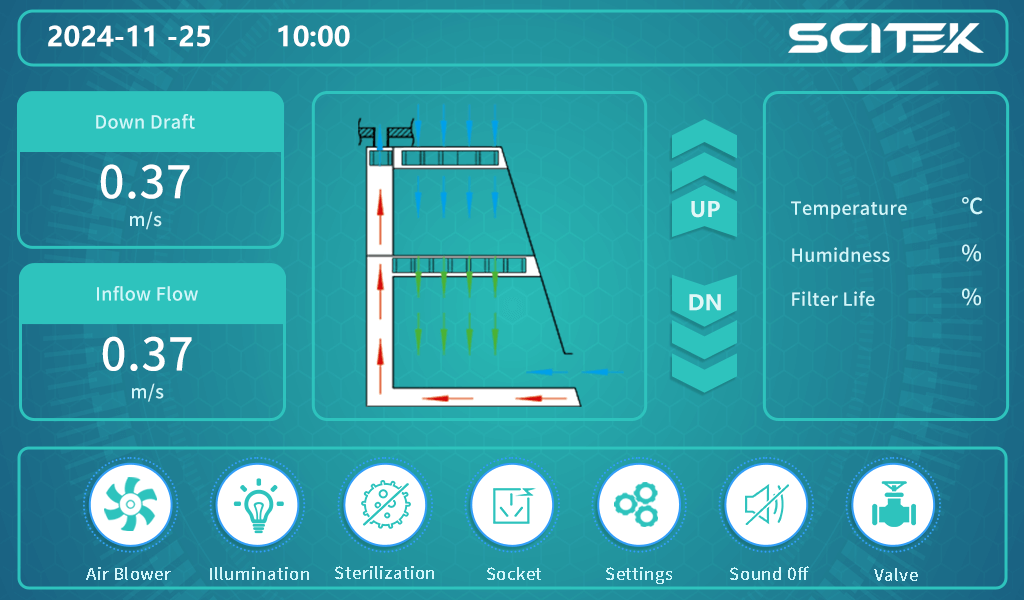

LCD touch screen,7 inch, Real-time monitoring and display system working status

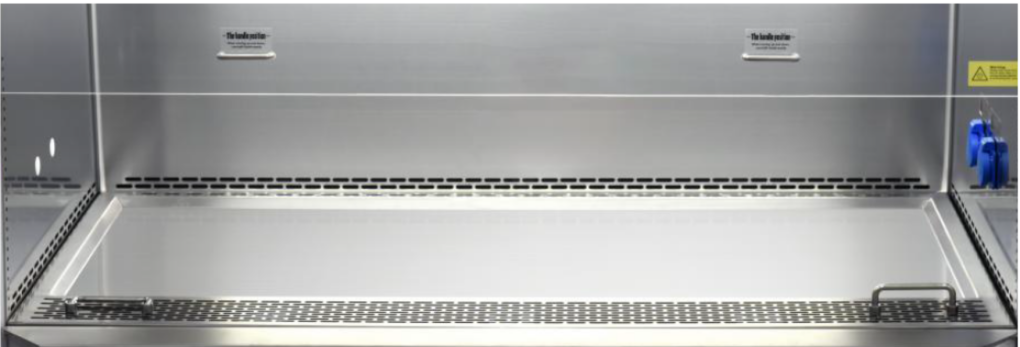

Perforations on all four sides. Four sides are negative pressure, Air flow is more uniform, with higher safety factor.
User friendly design:

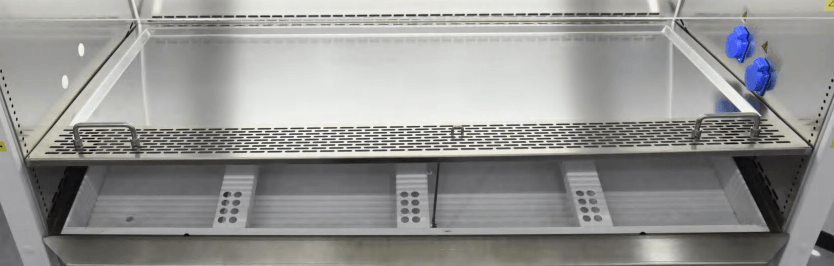

Removable work zone, 304 Stainless steel. Easy to pull out, convenient for cleaning and disinfection.
Bracket under the work surface panel. Easy to lift the work surface panel for cleaning
Dish type work surface panel, with stainless steel liquid collecting tank. Anti-corrosion, prevent liquid leakage, improve biosafety and easy to clean.

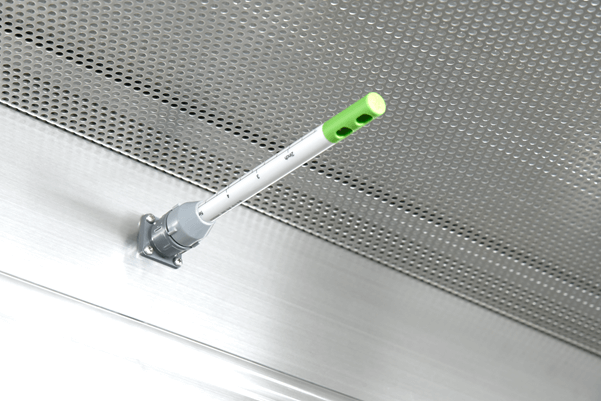

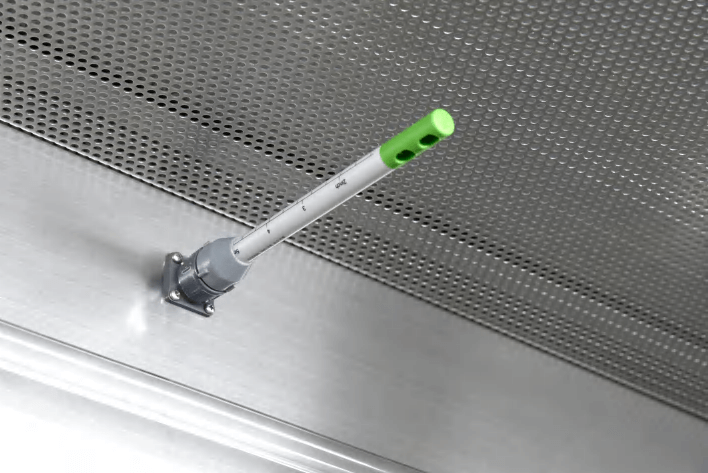

Air velocity sensor

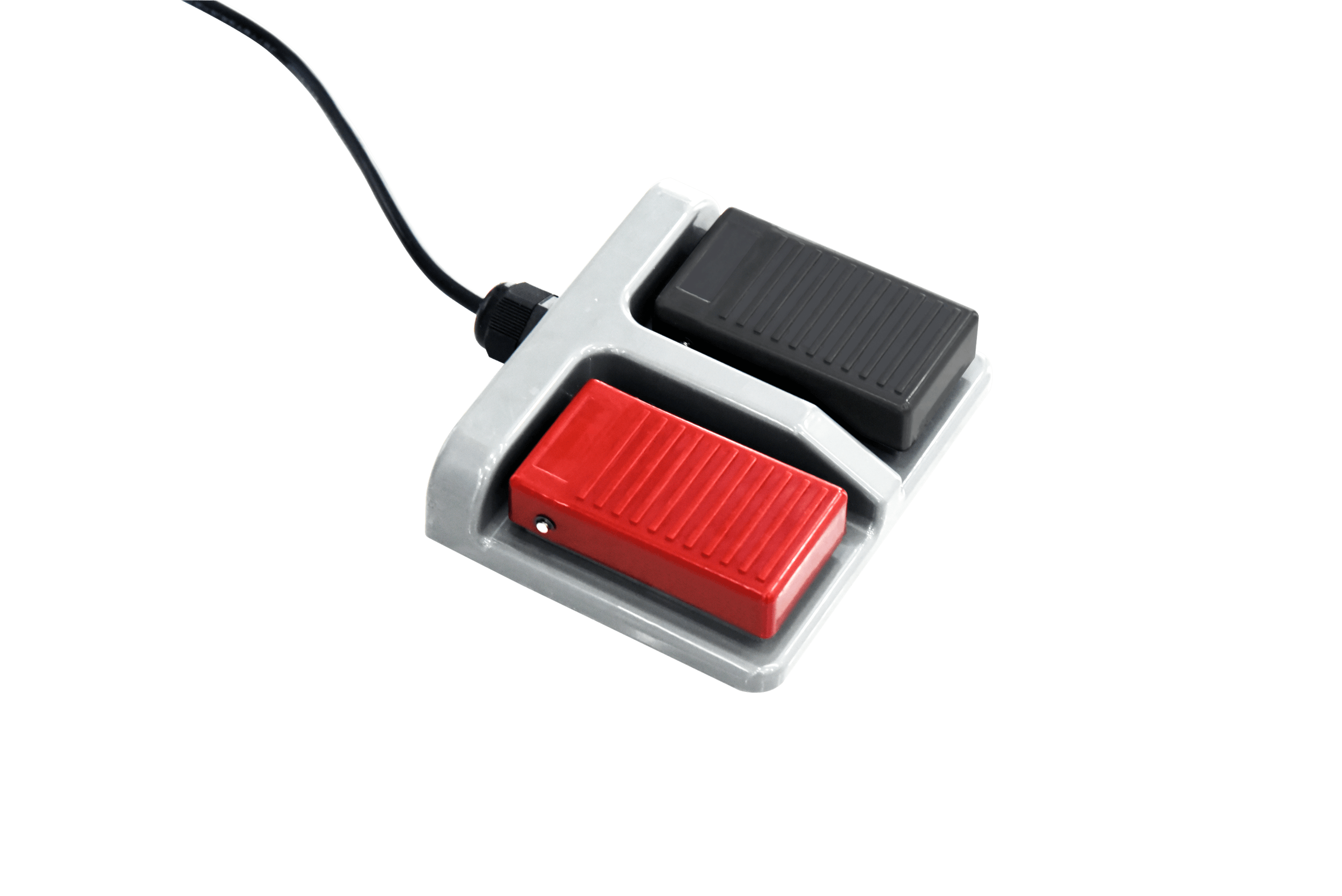

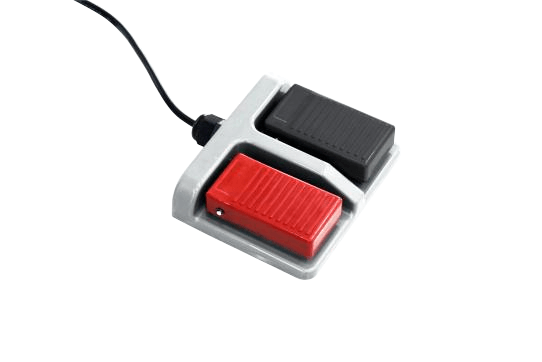

Standard with Foot switch.
Single step controls the front window to up and down;
Two steps in a row will control the front window to up to the top or down to the bottom.
Details of Class 2 Cabinet (BSC-IIB2-1100 and BSC-IIB2-1400):

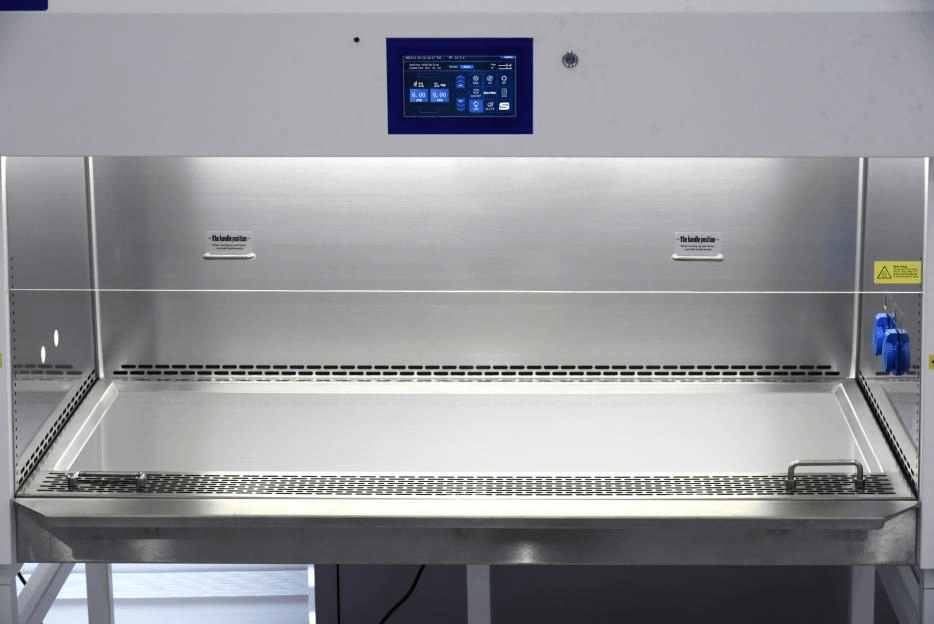

The class ii cabinet is equipped with an intelligent control system and touch screen interface for easy operation.
Manufactured from high quality stainless steel to ensure class ii bsc durability and easy cleaning and maintenance.
The biohazard safety cabinet class ii is shipped in a sturdy wooden box secured with high-density foam to ensure that it is not damaged during transport.

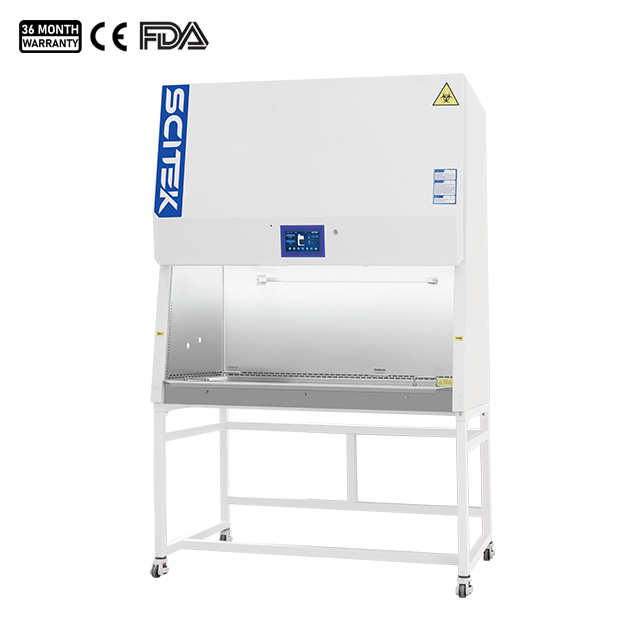

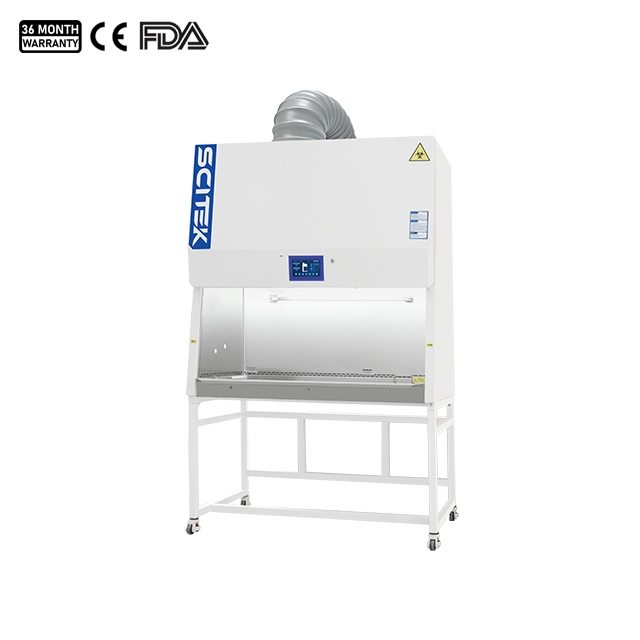

The above product is A BSC-IIB2-1100
The class ii a2 biosafety cabinet supports real-time monitoring of equipment status to ensure safe and convenient operation.
Different sizes and specifications are available to meet different laboratory and operational needs, providing flexibility to cope with various working environments and requirements.
