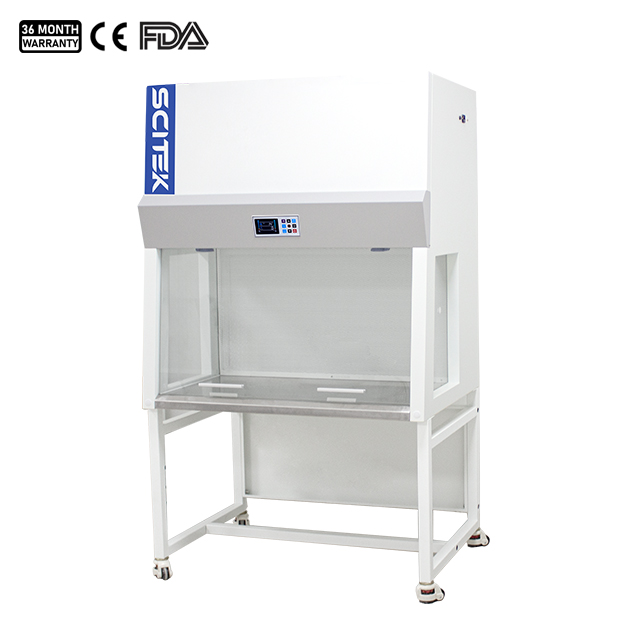

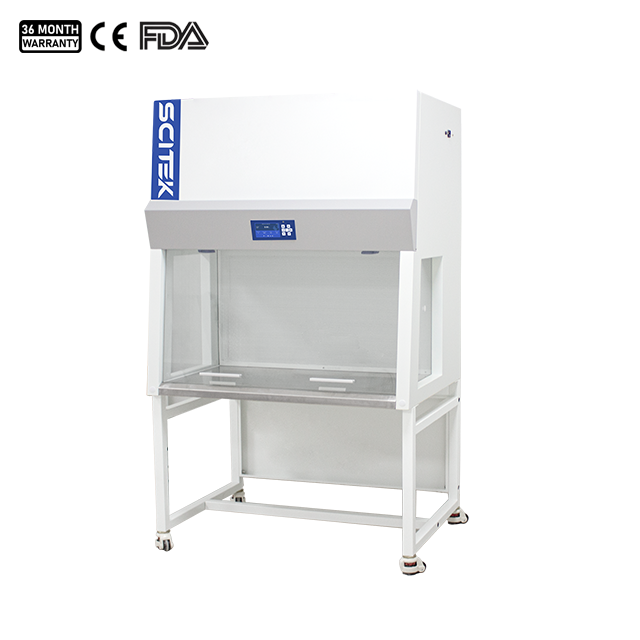

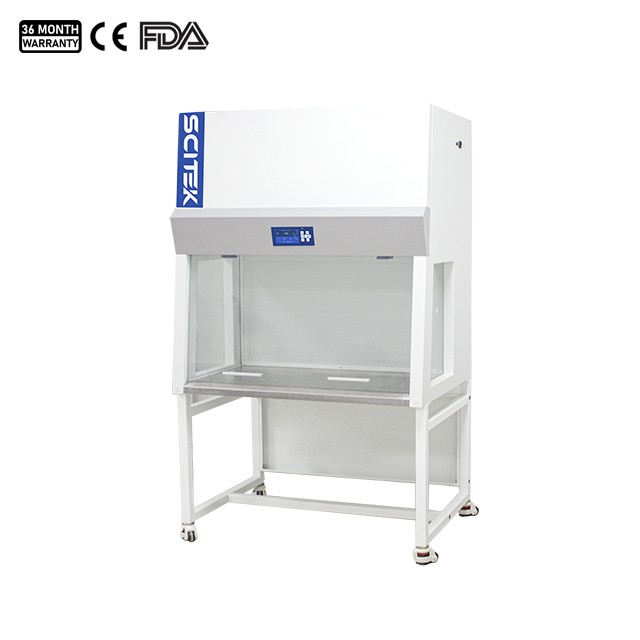

Horizontal laminar flow cabinet provides a sterile work zone through a purified air that travels in a horizontal, unidirectional stream and leaves main work chamber across the entire open front of the cabinet. 1pcs prefilter laminar flow cabinet is a popular product for labs. Preferred by large laboratories, pharmaceutical manufacturing and other industries, now the best budget laminar flow cabinet for sale at affordable price.
Laminar Flow Cabinet Features:
Ergonomic control panel location, centered and angled down for an easy reach & viewing.
Brushed stainless steel work surface is for easy cleaning.
The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.
Intuitive and easy-to-use microprocessor controller with LCD display, graphical and digital display of the operating status of each function, such as filter life, UV life etc.
Reliability:
Front sliding sash interlock with fan and UV lamp.
UV sterilization with UV lamp timing function.
Front sash and side windows are made of UV-resistant tempered glass.
The host and sockets have independent capacitors to prevent current overload.
Memory function in case of power-failure.
Convenience:
HEPA filter and UV life indicators facilitate a timely replacement plan.
Two side glass windows installed for easy experiment observation.
Easy-to-change pre-filter installed could extend the HEPA filter’s lifetime.
Equipped with temperature sensor to show the real temperature during operation.
Waterproof socket provide convenience for small instruments to be used in the operating area.
Laminar Flow Cabinet Specifications:
| Model | LCB-H1100 | LCB-H1300 | LCB-H1600 | LCB-H1900 |
| External Size (WxDxH)(mm) | 1050x805x1950 | 1320x805x1950 | 1625x805x1950 | 1930x805x1950 |
| Internal Size (WxDxH)(mm) | 950x490x574 | 1220x490x574 | 1525x490x574 | 1830x490x574 |
| Work Surface Height | 750mm |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Interlock | Front sliding sash interlock with fan and UV lamp |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan |
| Airflow System | Airflow Velocity | 0.2~0.5 m/s, speed adjustable |
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable |
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm |
| Cleanliness Grade | ISO Class 5 (formerly Class 100) |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle |
| Side window | 5 mm UV resistant tempered glass |
| Electrical System | UV Lamp | 20W×1 | 30W×1 | 30W×1 | 18W×2 |
With timing function from 0 to 999 minutes, Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect. |
| LED Lamp | 6.5W×1 | 9.6W×1 | 9.6W×1 | 6.5W×2 |
| Consumption | 160W | 170W | 300W | 310W |
| Not include socket loading power consumption |
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz |
| Illumination | ≥900Lux |
| Sound Emission | ≤65dB(A) |
| Standard Accessory | 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2 |
| Optional Accessory | 1.Gas Tap; 2. IV Bar with Hooks |
| Gross Weight (kg) | 220 | 260 | 300 | 340 |
| Shipping Size (W×D×H)(mm) | 1190x1010x1425 | 1460x1010x1425 | 1765x1010x1425 | 2070x1010x1425 |
| Shipping Volume (m³) | 1.7 | 2.3 | 2.55 | 3 |
Laminar Flow Cabinets Accessories:
LCD Display (Real-time show the Time, Temperature, UV life and Filter life)
HEPA Filter
UV Lamp
Waterproof Socket (IP54)
Gas Tap (Optional)

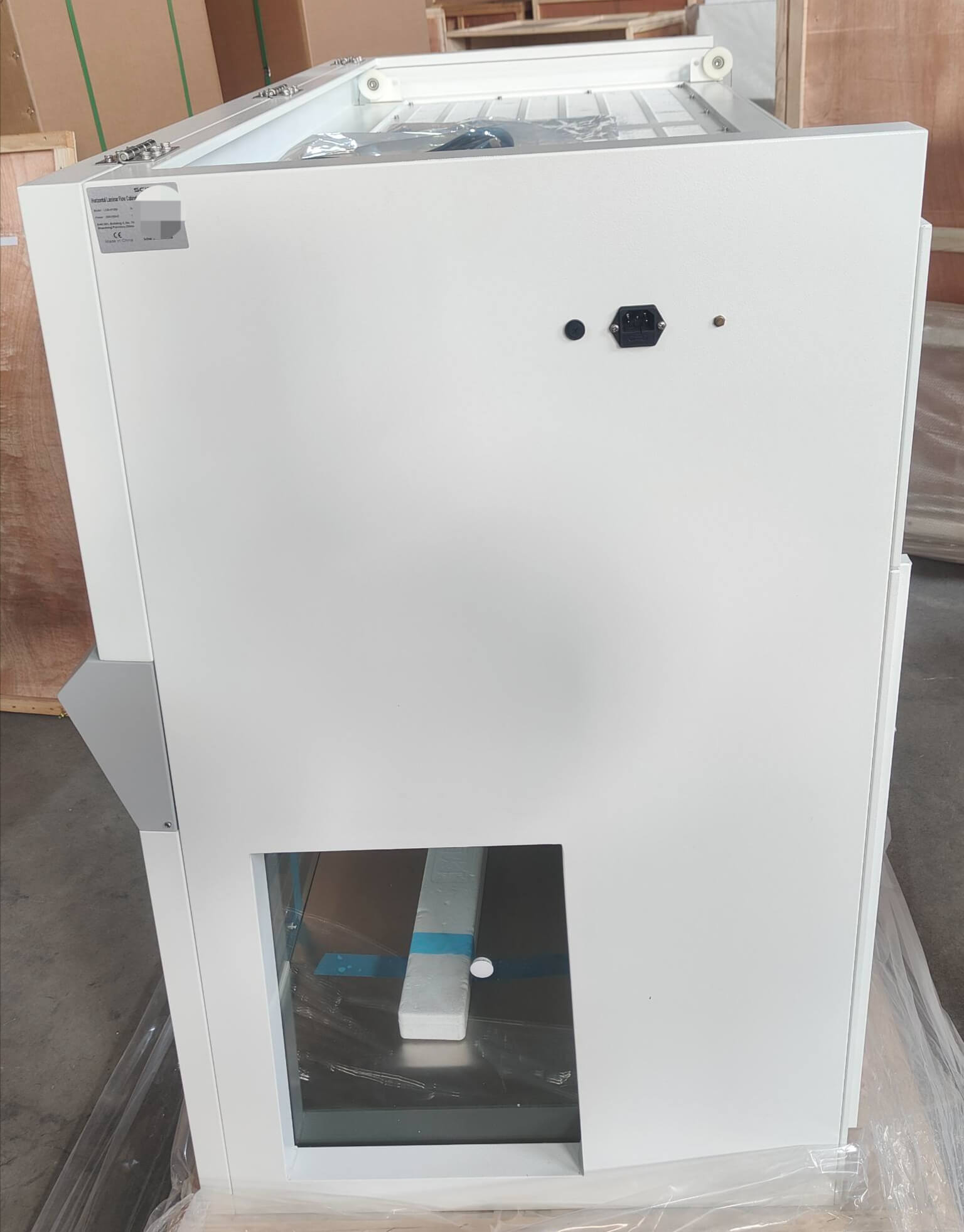

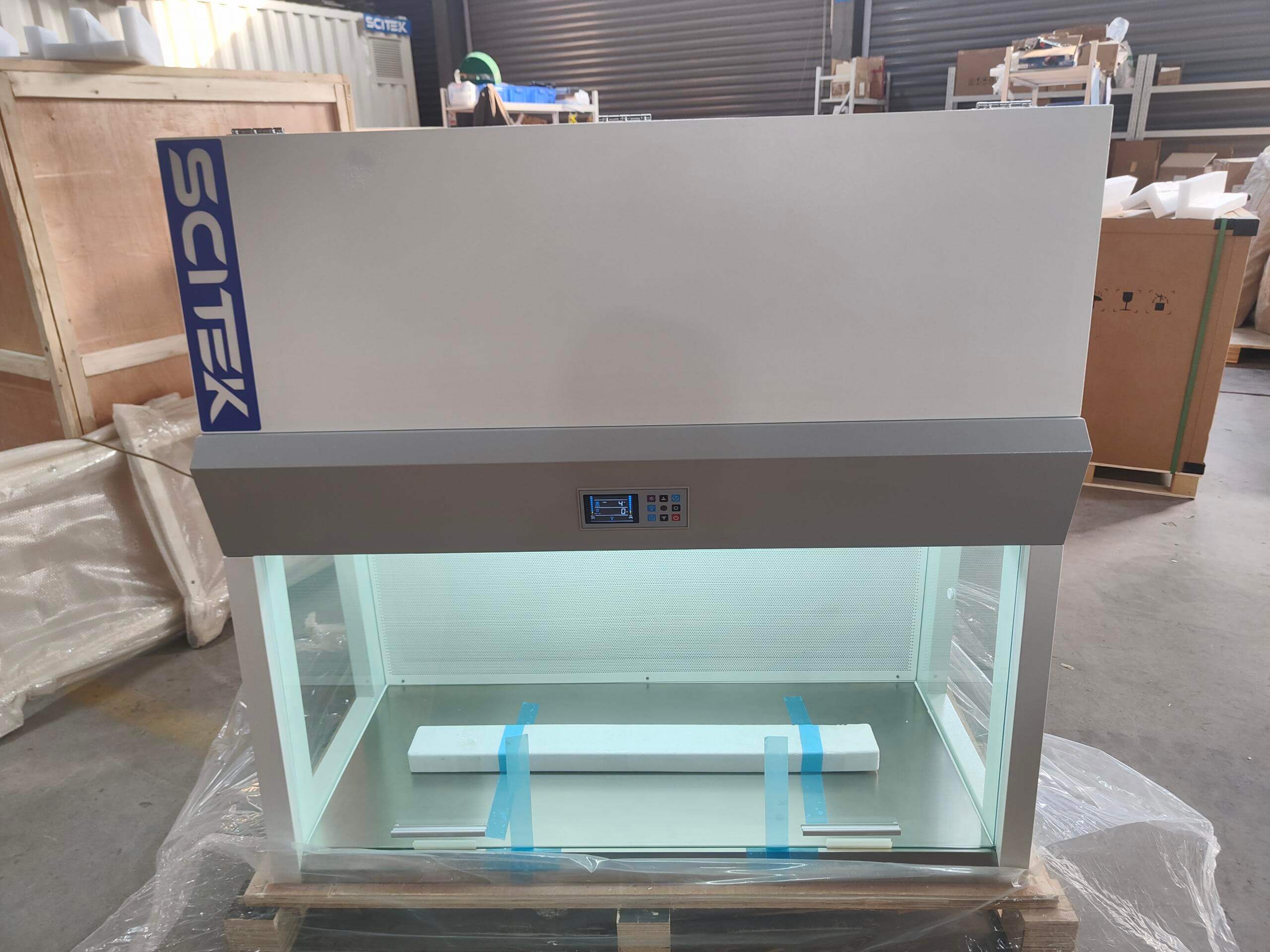

Details of laminar flow cabinet(LCB-H1300):
Applications of Laminar Flow Cabinet:
Horizontal laminar flow cabinet is equipped with advanced features and precise controls, laminar flow cabinets find a wide variety of applications in environments where aseptic and controlled workspaces are critical.
Ideal for microbiological research laboratories, they provide aseptic conditions for microbiological cultures, culture substrate preparation and sample processing.
And it is used in pharmaceutical research and manufacturing processes for formulating sterile drugs, quality control procedures and sample handling. Laminar flow cabinets are required for specimen handling in clinical trials, assembly and testing of electronic components and laboratory sample preparation.
