Availability: | |
---|---|
Quantity: | |

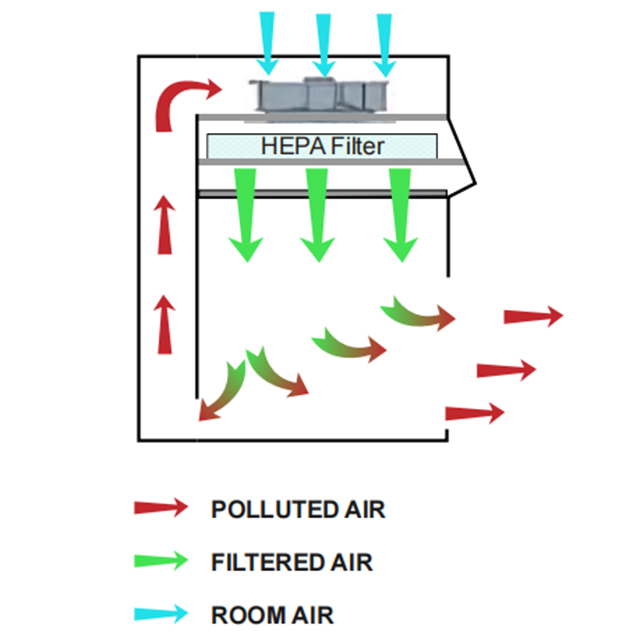

Vertical laminar flow cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. It creates a vertical downward flow of sterile air in the work area for any experiment that requires aseptic processing. With our attention to detail and dedication to automating clean operations, the laminar flow cabinet is suitable for use in a variety of laboratories and industries, providing superior cleanliness in life sciences, medical, electronics manufacturing, and other areas. Benchtop vertical laminar flow cabinet is flexible enough to be placed on a laboratory benchtop, making it ideal for situations where a small work area is required.
HEPA filter with efficiency: 99.995% at 0.3um.
LCD display, microprocessor control system.
Air speed adjustable, HEPA filter and sterilization lamp replacement reminder function.
Pre-filter is polyester fiber, washable and anti-oxidation.
UV sterilization system.
With memory function in case of power-failure.
Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
UV timer: When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
Model | LCB-V800 | |
---|---|---|
External Size (WxDxH)(mm) | 710x680x1050 (Without Base Stand) 710x680x1680 (With Base Stand) | |
Internal Size (WxDxH)(mm) | 610x590x625 | |
Work Surface Height | 750mm | |
Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
Interlock | Front sliding sash interlock with fan and UV lamp | |
Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | |
Airflow System | Airflow Velocity | 0.2~0.5m/s, Speed adjustable |
Air filtration System | Pre-Filter | 1pcs, Polyester fiber, washable |
HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | |
Cleanliness Grade | ISO Class 5 (formerly Class 100) | |
Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
Work Surface | 304 Stainless steel, an angled front, rounded work surface front edge | |
Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | |
Side window | 5 mm UV resistant tempered glass | |
Electrical System | UV Lamp | 8W×1 |
With timing function from 0 to 999 minutes Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | ||
LED Lamp | 8W×1 | |
Consumption | 160W (Not include socket loading power consumption) | |
Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | |
Illumination | ≥500Lux | |
Sound Emission | ≤62dB(A) | |
Standard Accessory | 1. LED Lamp×1; 2. UV Lamp×1; 3. Waterproof Socket×1 | |
Optional Accessory | 1. Base stand; 2. Gas Tap | |
Net Weight | 80kg (Without base stand), 130kg (With base stand) | |
Gross Weight | 115kg (Without base stand), 165kg (With base stand) | |
Shipping Size (W×D×H)(mm) | 920x855x1190 | |
Shipping Volume | 0.94m3 |
Air science laminar flow cabinets find application in a variety of environments where aseptic and controlled environments are essential. These cabinets are designed to provide a clean workspace and ensure laminar, unidirectional air flow.
Small Hospitals: Used in pharmacies to dispense sterile medications, especially those that require a clean environment.
Clinical laboratories: For handling sensitive samples and performing microbiological tests.
Pharmaceutical industry: Equipment to maintain aseptic conditions during the production of pharmaceuticals.
Electronics industry: Assembly and testing of sensitive electronic components in a clean environment. Or for the manufacture of semiconductors and other electronic devices.
UV Lamp (Emission of 253.7 nanometers for most efficient decontamination)
Waterproof Socket (IP54)
Base Stand (Optional)

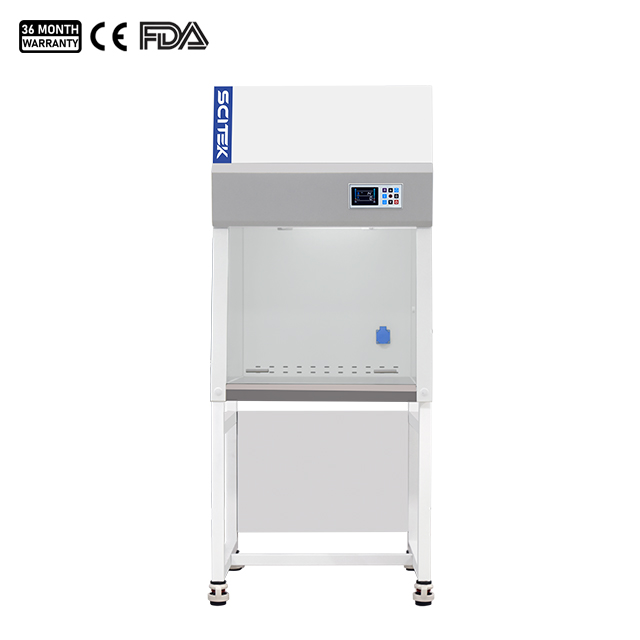

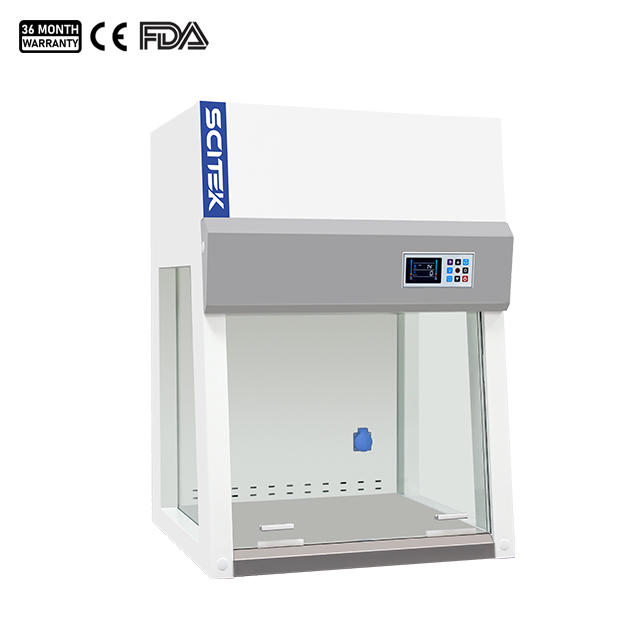

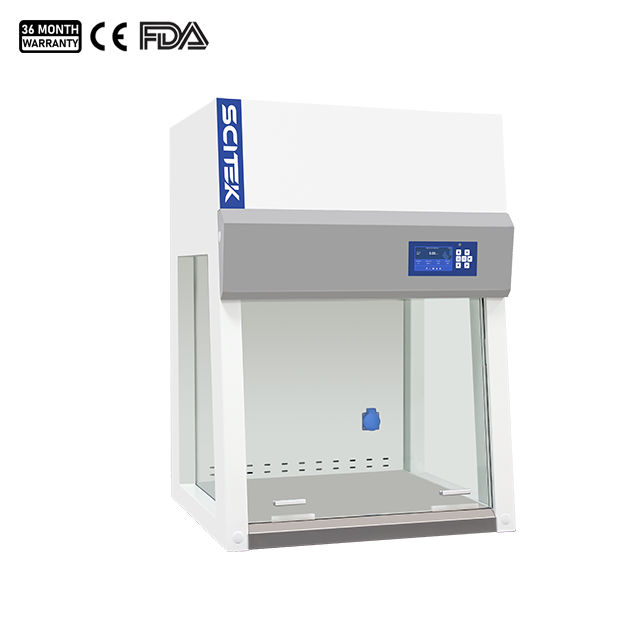

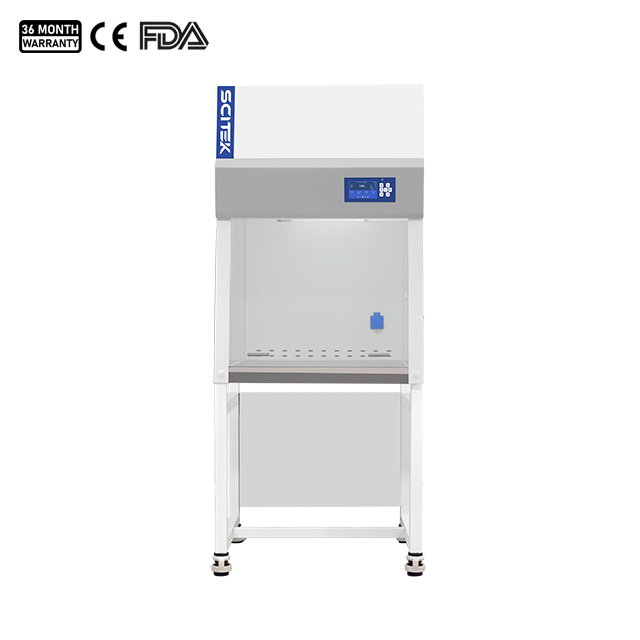

Showcasing the main working area of the Vertical Laminar Flow Cabinet, with its transparent protective screen and stainless steel workbench. The control panel is located on the front for easy operation and monitoring.
The display features real-time information on air speed, filter status, and temperature and humidity of the internal environment.
The simple design on the back makes it easy to clean and maintain.
Packing & Delivery
Adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.
Pre-sale services
●24-hour quick response to customer inquiries.
●Recommend models that meet customer requirements.
●Provide competitive prices and detailed product parameters and related information.
●Provide product customization services.
●Sample testing support, production view service.
After-sales services
●Product installation and use training.
●Provide overseas maintenance services in response to customers technical problems.
●Three-year warranty on air protection products, life time maintenance service.
●Online and offline technical personnel training services.
