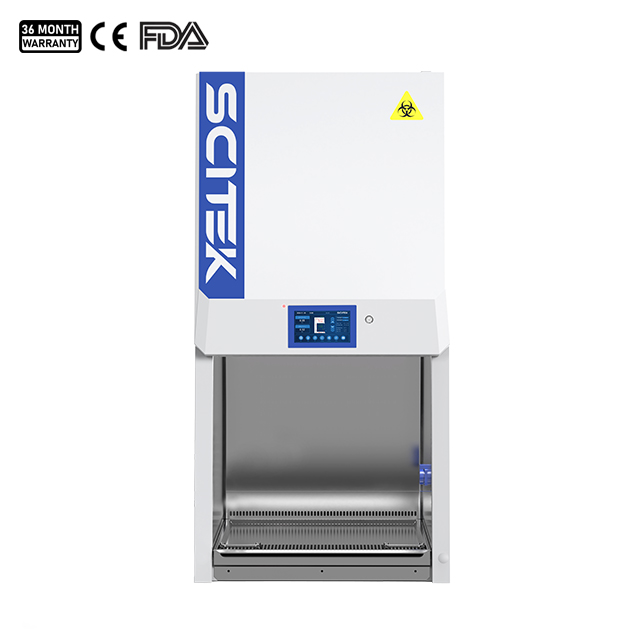

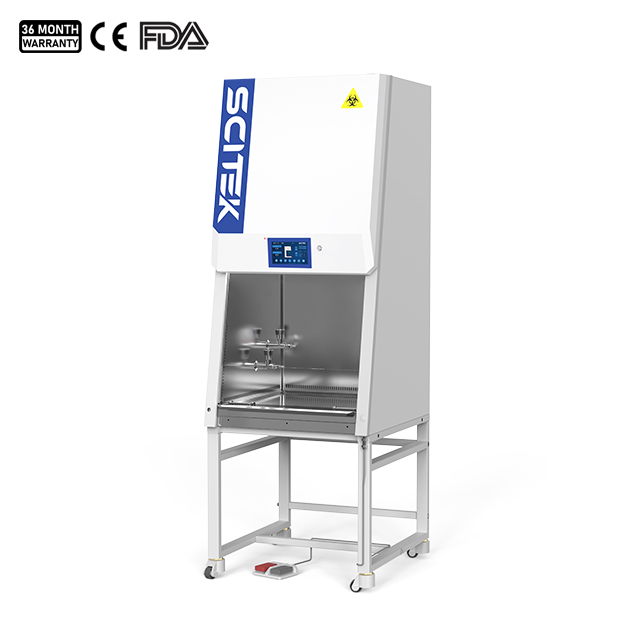

Biological Safety Cabinet Class II A2, 2FT

Model : BSC-IIA2-2F

External Size : 710x780x1430mm
Airflow System : 70% air recirculation, 30% air exhaust
Work Surface Height : 750mm
Front Window : Motorized, toughened glass

Class II Type A2 biological safety cabinet with advanced ergonomic design excel in user comfort and functionality.

Availability:

Quantity:



Inquiry Add to Inquiry List

Class II A2 Biosafety Cabinet Features:

UV sterilization function and timing function can be set by appointment.
Motorized front window, control limit and travel limit double protection,ergonomic 10° tilt Angle, improve the operation comfort.
With memory function in case of power-failure.
Work area surrounded by negative pressure, prevent leakage, improve biosafety.
Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; Blower and front window.
Foot switch: A djust front window height, to avoid airflow turbulence caused by arm movement.
Support customized service, to meet the needs of different customers.

Class II A2 BSC Specifications:

Model	BSC-IIA2-2F
Internal Size(W×D×H)(mm)	610×550×600
External Size(W×D×H)(mm)	710x780x1430 (Without base stand) 710x780x2050 (With base stand)
Max.Opening	370mm
Work Surface Height	750mm
Airflow System	70% air recirculation, 30% air exhaust
Downflow Velocity	0.35m/s (Airflow fluctuation over 20%, there is visual and audio alarm)
Inflow Velocity	0.52 m/s (Airflow velocity less than 0.40 m/s, there is Visual and Audio alarm)
Filter Specification	H14 HEPA filter, ≥99.995% efficiency at 0.3μm
Supply HEPA Filter Size	570×490×70mm
Exhaust HEPA Filter Size	540×370×70mm
Cleanliness Grade	Class 100 (ISO14644.1 Class 5)
Display	1. 7'' IPS LCD Touch screen 2. Real-time monitoring and display front window status 3. Inflow and downflow velocity 4. Pressure 5. Date/time/temperature 6. Filter and UV lamp life 7. System working status etc
Alarm	1. Abnormal airflow velocit 2. HEPA filter failure 3. UV lamp failure 4. Front window at unsafe height
Front Window	Motorized, toughened glass
LED Lamp	10w×2 Standard general LED lamp (Color Rendering Index: Ra70~85) Optional upgrade LED lamp (Color Rendering Index: Ra98; RG0 without blue light
UV Lamp	15w×1
Rated Consumption /Max.Consumption	260w/320w
Rated Consumption /Max.Consumption	Not include socket consumption
Explosion-proof Socket	3A 1pcs (IP54)
Socket Power Consumption Support	<1100w (220V), <550W (110V)
Illumination	≥900Lx
Sound Emission	≤60dB(A)
Work Surface Net Vibration Amplitude	≤2μm
Power Supply	AC 220V, 50/60Hz; 110V, 60Hz
Material	External Main Body: Electro-galvanized steel with antimicrobial powder coating Work Surface: 304 stainless steel
Standard Accessories	1. Air velocity sensor 2. LCD touch screen 3. LED lamp×2 4. UV lamp×1 5. Explosion-proof/Waterprof socket ×1 6. Motorized front window 7. Footmaster caster 8. Foot switch 9. Removable shallow-plate stainless steel work surface
Optional Accessories	1. Gas tap 2. Water tap 3. IV bar with hooks 4. Pressure meter 5. Exhaust thimble canopy and 6m air duct assembly 6. ULPA filter 7. Base stand 8. Optional upgrade LED lamp
Net Weight	170kg
Gross Weight	180kg
Shipping Size (W×D×H)(mm)	850×990×1650
Shipping Volume	1.4 m³

Environment conditions:

Temperature range: 5∽40℃
Relative humidity: ≤90%(At +40℃)
Atmospheric pressure: 86kPa∽106kPa
Maximum dust concentration: 3500 particles /L(particle size ≥0.5μm)

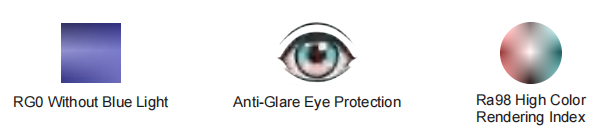

Optional upgrade LED lamp can be choosed.

Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate.
RG0 without blue light, protects the operator from blue light.

Class II A2 Biosafety Cabinet Details Show:

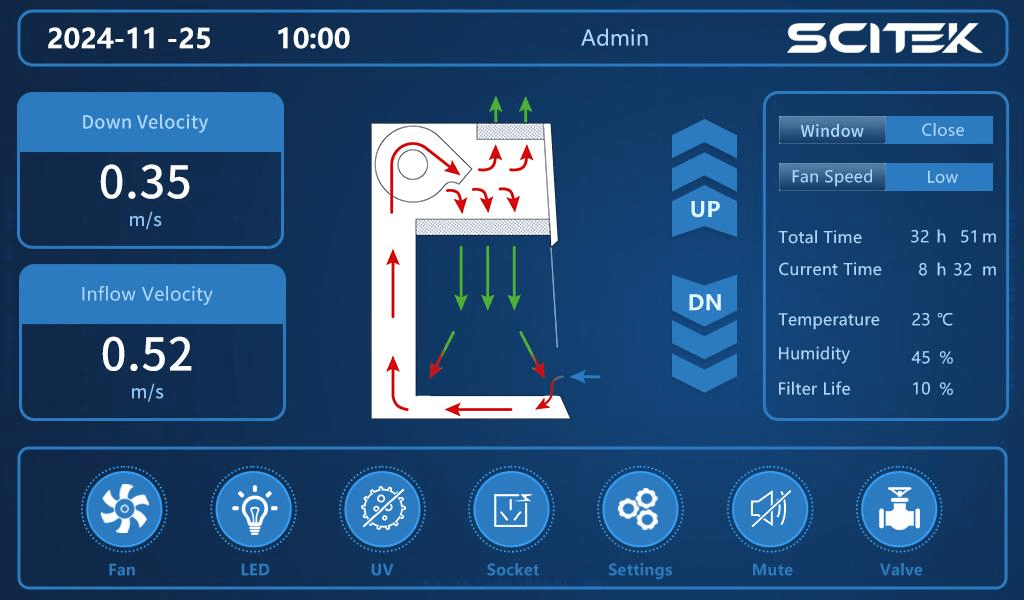

7'' IPS LCD Touch Screen

Foot Switch (Standard)

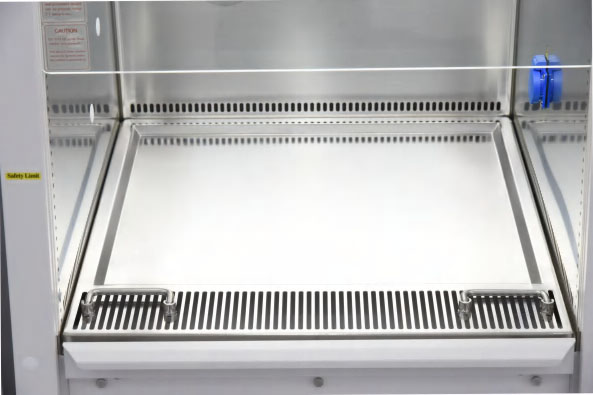

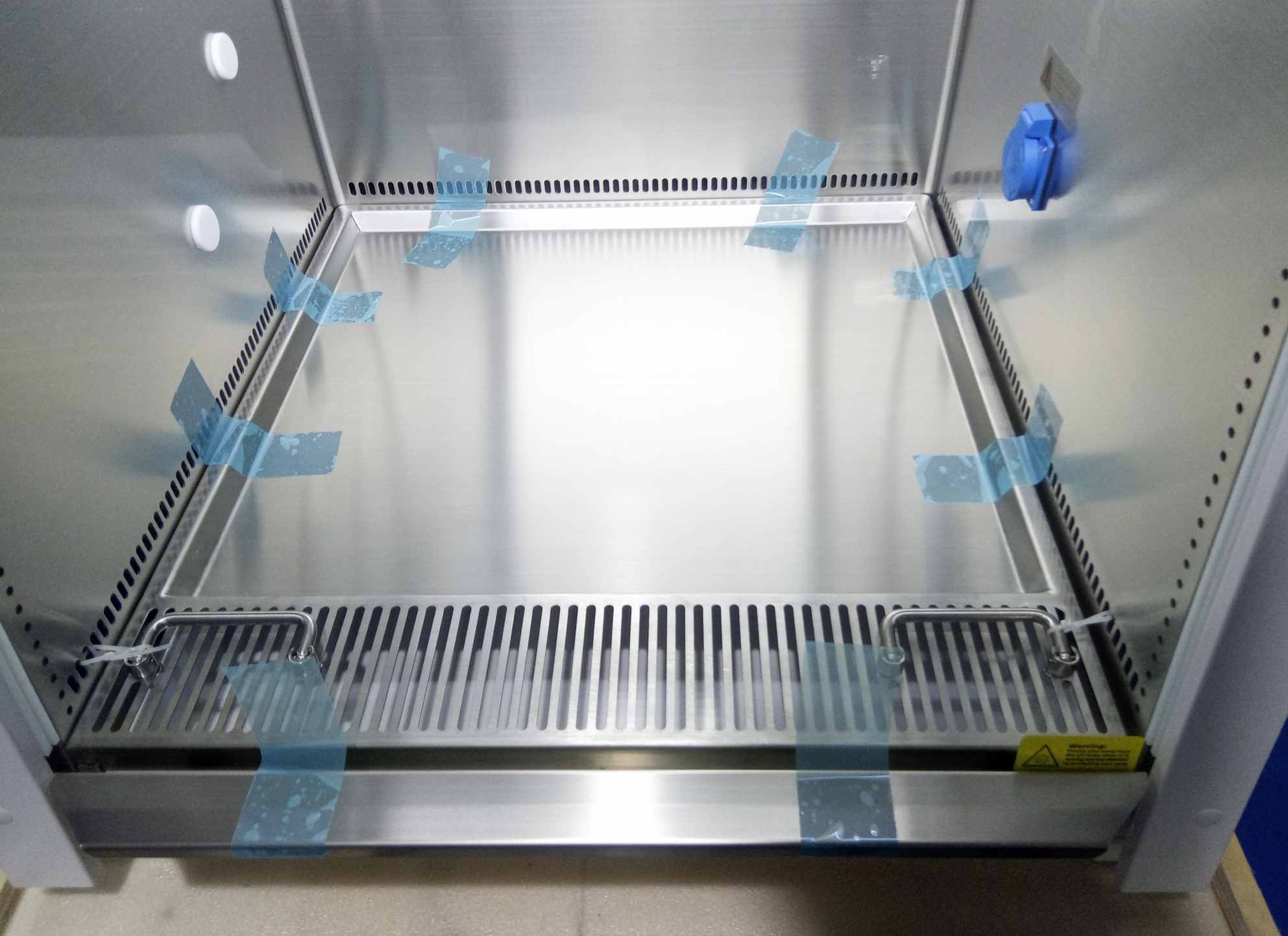

Removable work zone, 304 Stainless steel. (Easy to pull out, convenient for cleaning and disinfection.)

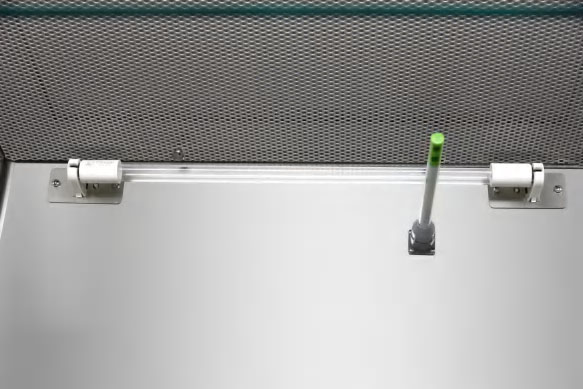

Air Velocity sensor (Standard) (Precise control of downflow velocity, even if the filter resistance doubled, it also can maintain constant air velocity.)

1pcs * Explosion-proof/Waterprof socket (Standard)

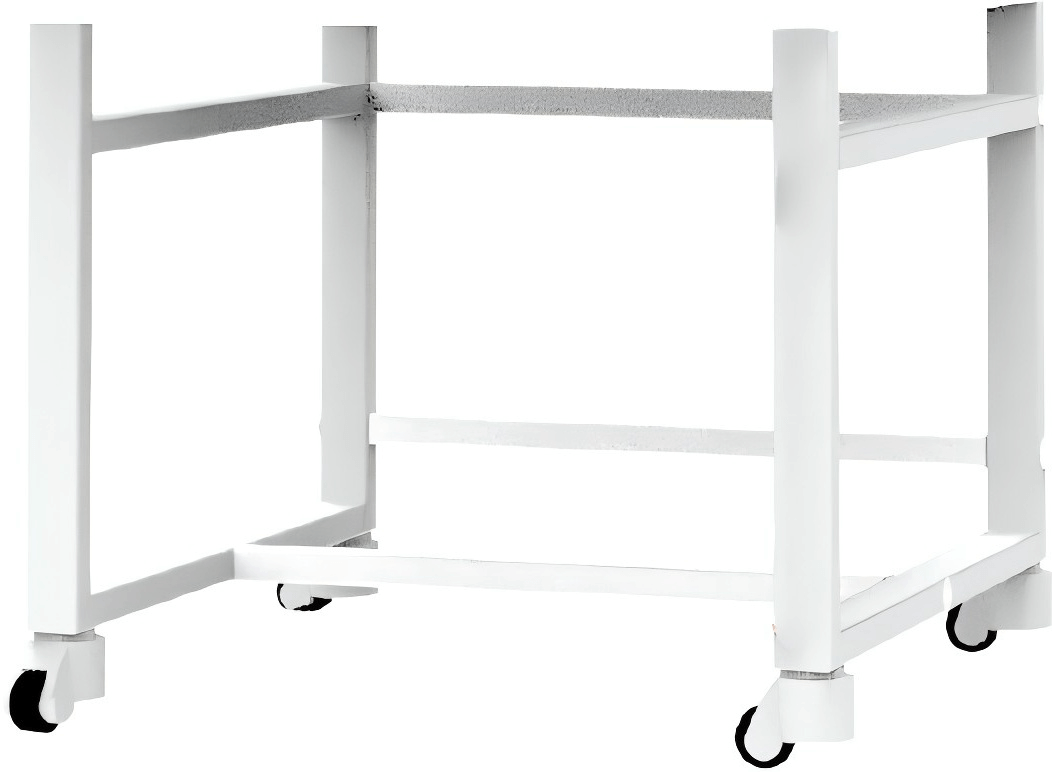

Base stand (Optional)

Pressure Meter (Optional)

IV Bar with hooks (Optional)

Water Tap (Optional)

Gas Tap (Optional)

Optional upgrade LED lamp

Details of Class II Cabinet:

class ii cabinet (5)

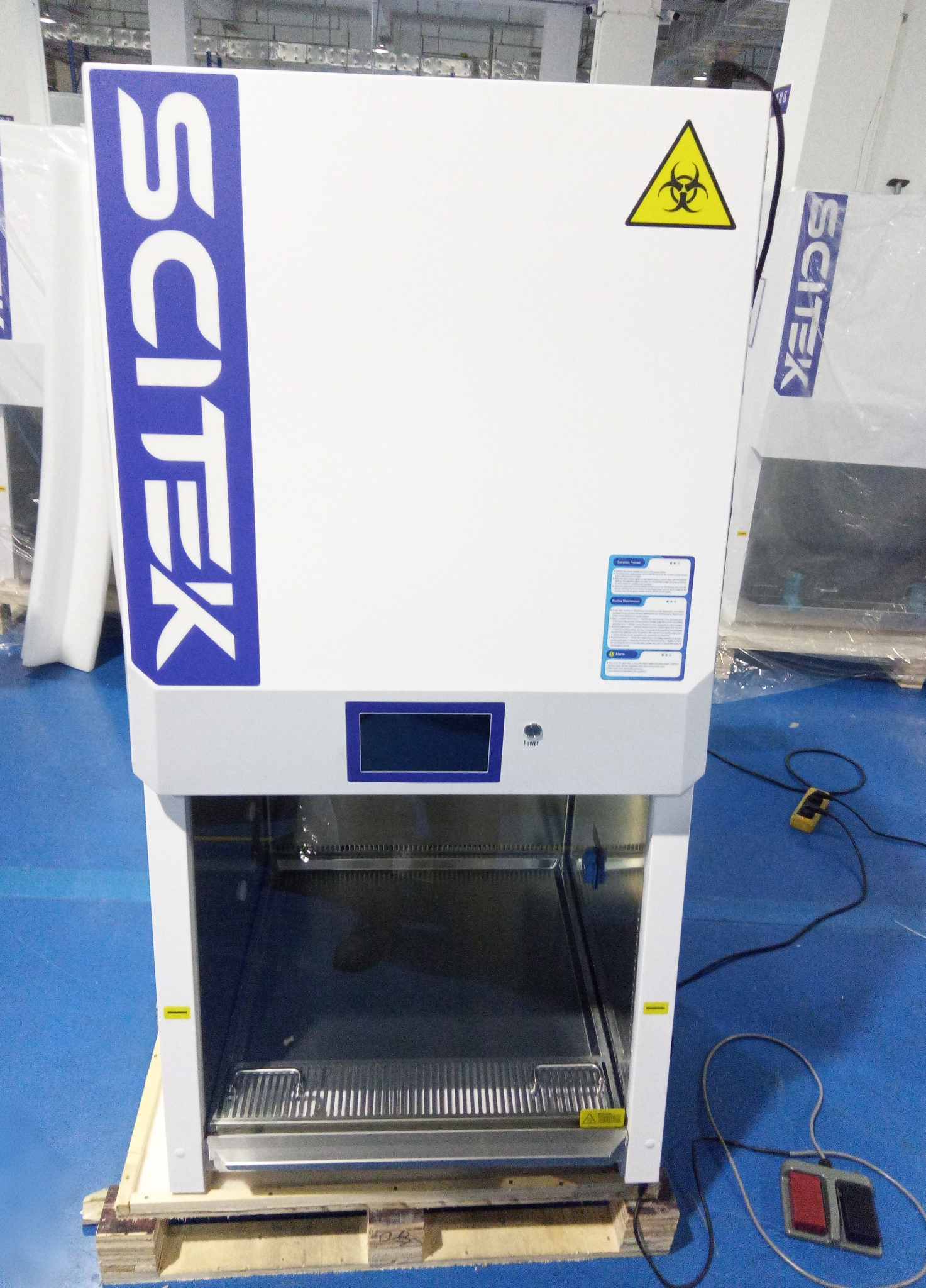

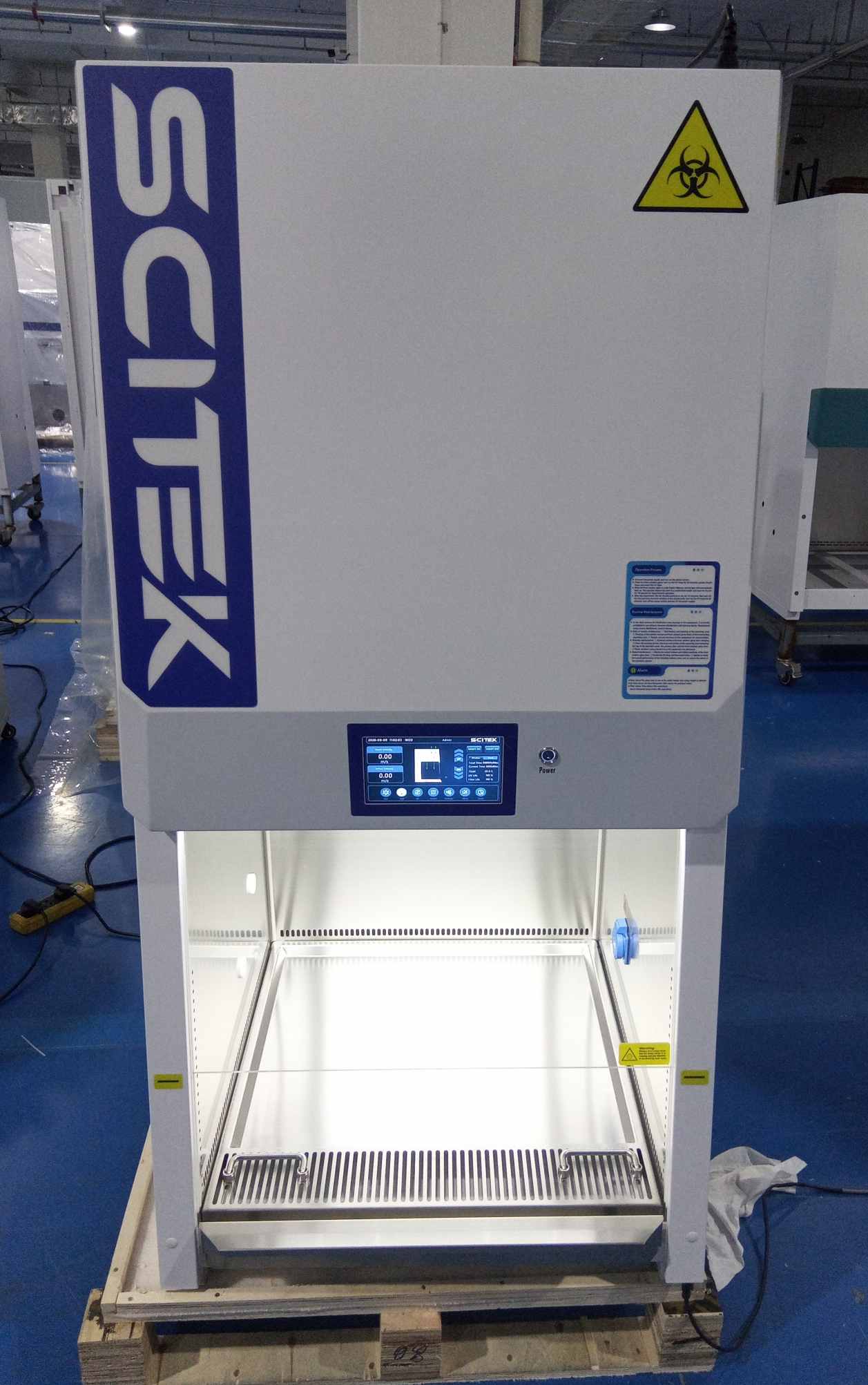

This BSC Class II Type A2 has a front protective screen and transparent window design, and is equipped with multiple safety indicators and alarm devices to monitor the operating status of the equipment in real time to ensure the safety of use.

class ii cabinet (7)

The Class II type A2 biological safety cabinet's compact construction saves laboratory space and is suitable for placement in tight working environments.

biological safety cabinet class 2 (1)

This class ii cabinet ensures efficient circulation and filtration of internal air, providing a clean working environment. The interior is equipped with a HEPA filter, which effectively filters microorganisms and particles in the air to ensure the cleanliness of the operating environment.

class ii cabinet (11)

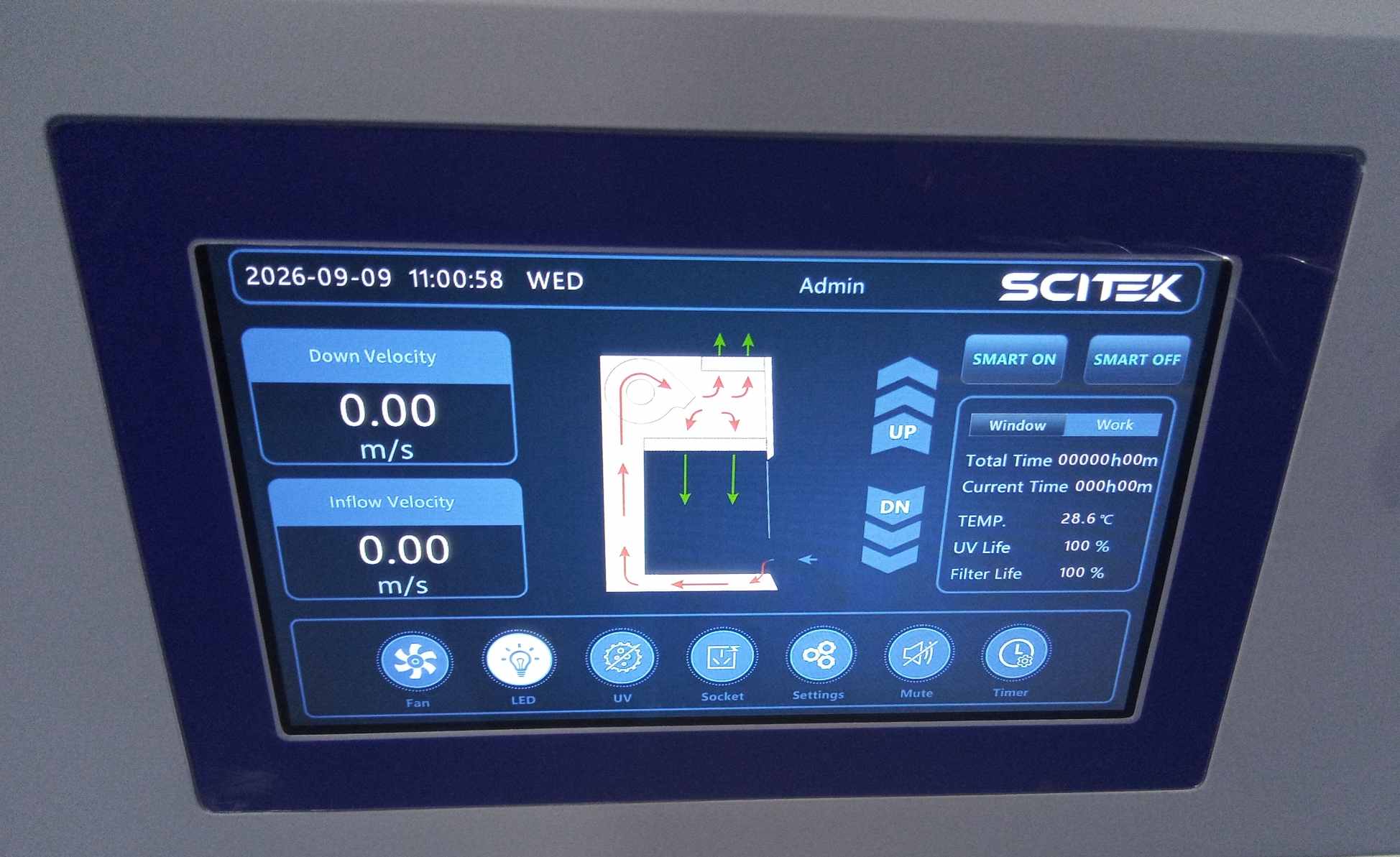

Real-time monitoring and display front window status/Velocity/Pressure, Date/Time/Temperature/filter and UV lamp life/System working status etc.

biological safety cabinet class 2 (2)

class ii cabinet (2)

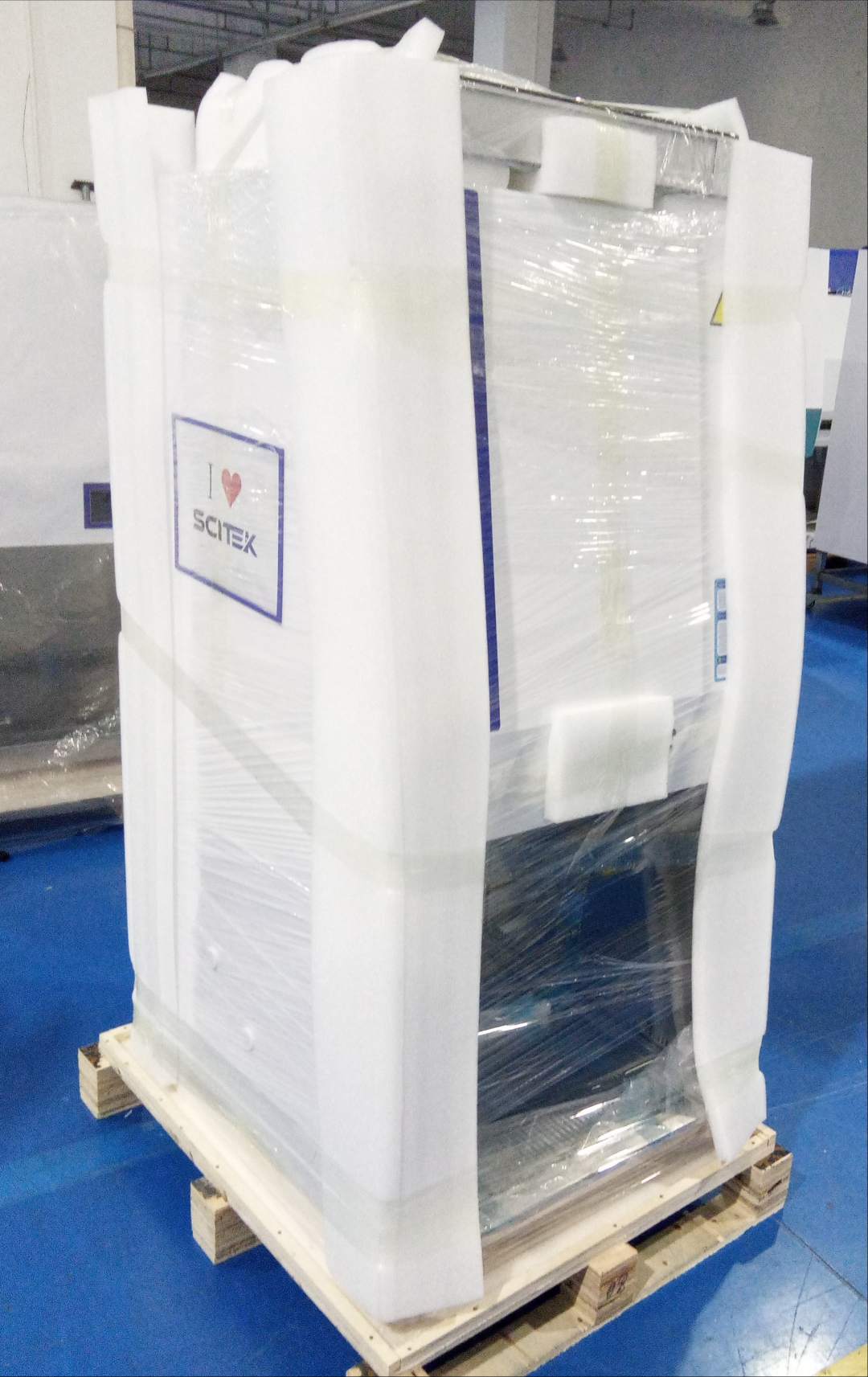

The interior of the package is designed with a shockproof structure to reduce the impact of vibration on the A2 biosafety cabinet during transport and ensure the safe arrival of the equipment.
