Model : ICB-R150C; ICB-R250C; ICB-R350C; ICB-R460C
Capacity (L) : 150; 250; 350; 460 Circulation Mode : Forced convection Temperature Range : With light: 10~65 °C; Without light: 0~65 °C Sensor : PT100 Humidity Range : 45~95% RH Illuminance (lx) : 0~45000 (supports the input of illuminance)

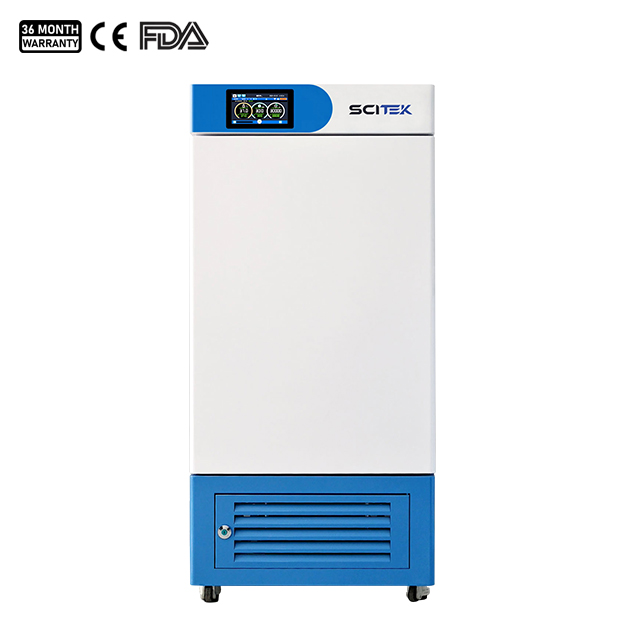

Climate Incubator ICB-RC offers freely programmable and adjustable 99-step temperature and light intensity parameters. it is energy-efficient and suitable for any project.
Climate Incubator ICB-RC offers freely programmable and adjustable 99-step temperature and light intensity parameters.
it is energy-efficient and suitable for any project.
Advantages:
1. Double-door structure, the inner door is made of high-quality tempered glass, observation of samples easily.
2. A controller is installed on the door, and with the 7.0-inch color LCD touch screen.
3. The lighting intensity is adjustable in multiple levels, and it allows for free combination programming and operation
of 99 segments of temperature and illuminance parameters.
4. With the functions of data storage, export via a USB flash drive and scheduled power on/off.
5. Top lighting design with full-spectrum LED light sources. It is characterized by high illuminance, low heat radiation,
and an extremely long service life.
6. Equipped with an under-temperature protection function and an independent digital display
high-precision over-temperature limiter.
7. Once the temperature exceeds the limit, the heating output will be automatically cut off
to ensure the safety of samples and the equipment.
8. It uses a variable-frequency compressor, which offers advantages such as
energy conservation, low noise, and no frosting.
9. Built-in humidification system, and with the functions of automatic water intake, water shortage alarm
and automatic defrosting function.
Specifications:
Model
ICB-R150C
ICB-R250C
ICB-R350C
ICB-R460C
Capacity
150 L
250 L
350 L
460 L
Circulation Mode
Forced convection
Internal Size (W×D×H) (mm)
405×500×755
505×545×915
585×600×1050
650×650×1110
External Size (W×D×H) (mm)
600×650×1350
700×705×1550
780×750×1605
845×805×1710
Display
7 inch LCD touch screen
Temperature Range
With Light: 10~65 °C; Without Light: 0~65 °C
Temperature Resolution
0.1 °C
Temperature Fluctuation
±1 °C (The experimental condition is no-load, with an ambient temperature of 20°C and a humidity of 50%RH)
Sensor
PT100
Humidity Range
45~95% RH
Humidity Fluctuation
±3%
Illuminance (lx)
0~45000 (supports the input of illuminance)
Illumination Control
5-level relative illuminance control
Light Source
4-layer top-mounted LED illumination
Controller
PID
Timer
Each segment is 0~999 mins (99×5 segments program)
Material
Internal
304 mirror stainless steel
External
Electrostatic spraying of galvanized sheet
Shelves
4
Shelf Loading Capacity
15 kg
Refrigerant
R134A (CFC free)
Consumption (W)
800
1000
1200
1600
Working Environment Temperature
10~30 °C
Power Supply
AC 110/220 V, 50/60 Hz
Shipping Size (W×D×H) (mm)
770×735×1520
820×800×1660
870×860×1800
990×1040×1970
Gross Weight (kg)
87
112
139
168
Other Functions
Scheduled power on and off, historical temperature data curve query, U disk data storage and export, deviation correction, menu key locking, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting
Safety Device
Temperature exceeds the limit, the heating will be automatically cut off. In case of a long-term low temperature situation, the refrigeration system will be cut off to protect the samples. Loop self-diagnosis.
Optional Accessory
Lighting partition, printer
Application:
Climate Incubator ICB-RC offers freely programmable and adjustable 99-step temperature and light intensity parameters.
it is energy-efficient and suitable for any project.
Advantages:
1. Double-door structure, the inner door is made of high-quality tempered glass, observation of samples easily.
2. A controller is installed on the door, and with the 7.0-inch color LCD touch screen.
3. The lighting intensity is adjustable in multiple levels, and it allows for free combination programming and operation
of 99 segments of temperature and illuminance parameters.
4. With the functions of data storage, export via a USB flash drive and scheduled power on/off.
5. Top lighting design with full-spectrum LED light sources. It is characterized by high illuminance, low heat radiation,
and an extremely long service life.
6. Equipped with an under-temperature protection function and an independent digital display
high-precision over-temperature limiter.
7. Once the temperature exceeds the limit, the heating output will be automatically cut off
to ensure the safety of samples and the equipment.
8. It uses a variable-frequency compressor, which offers advantages such as
energy conservation, low noise, and no frosting.
9. Built-in humidification system, and with the functions of automatic water intake, water shortage alarm
and automatic defrosting function.
Specifications:
Model
ICB-R150C
ICB-R250C
ICB-R350C
ICB-R460C
Capacity
150 L
250 L
350 L
460 L
Circulation Mode
Forced convection
Internal Size (W×D×H) (mm)
405×500×755
505×545×915
585×600×1050
650×650×1110
External Size (W×D×H) (mm)
600×650×1350
700×705×1550
780×750×1605
845×805×1710
Display
7 inch LCD touch screen
Temperature Range
With Light: 10~65 °C; Without Light: 0~65 °C
Temperature Resolution
0.1 °C
Temperature Fluctuation
±1 °C (The experimental condition is no-load, with an ambient temperature of 20°C and a humidity of 50%RH)
Sensor
PT100
Humidity Range
45~95% RH
Humidity Fluctuation
±3%
Illuminance (lx)
0~45000 (supports the input of illuminance)
Illumination Control
5-level relative illuminance control
Light Source
4-layer top-mounted LED illumination
Controller
PID
Timer
Each segment is 0~999 mins (99×5 segments program)
Material
Internal
304 mirror stainless steel
External
Electrostatic spraying of galvanized sheet
Shelves
4
Shelf Loading Capacity
15 kg
Refrigerant
R134A (CFC free)
Consumption (W)
800
1000
1200
1600
Working Environment Temperature
10~30 °C
Power Supply
AC 110/220 V, 50/60 Hz
Shipping Size (W×D×H) (mm)
770×735×1520
820×800×1660
870×860×1800
990×1040×1970
Gross Weight (kg)
87
112
139
168
Other Functions
Scheduled power on and off, historical temperature data curve query, U disk data storage and export, deviation correction, menu key locking, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting
Safety Device
Temperature exceeds the limit, the heating will be automatically cut off. In case of a long-term low temperature situation, the refrigeration system will be cut off to protect the samples. Loop self-diagnosis.
