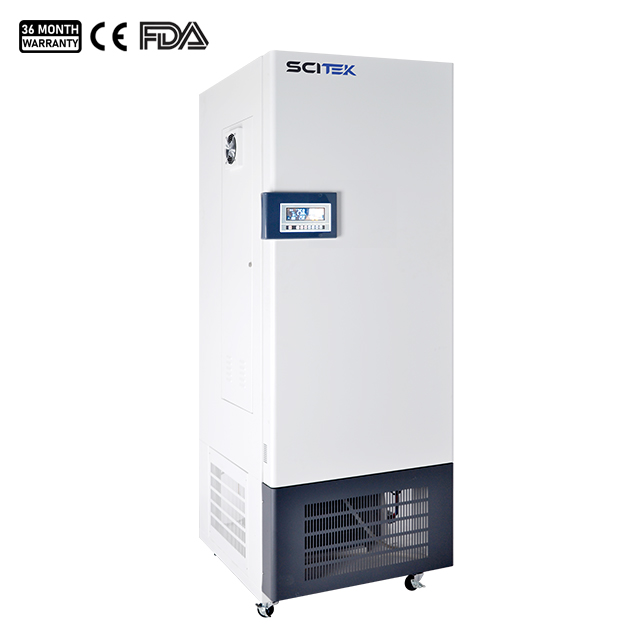

Vertical Artificial Climate Incubator 250L/300L/400L/500L

Model : ICB-250CY; ICB-300CY; ICB-400CY; ICB-500CY

Capacity : 250L / 300L/400L/500L
Illuminance (Lx) : 0~6000, 6 levels adjustable
Circulation Mode : Forced convection
Temperature Range : With lighting: 10~50°C; without lighting: 5~50°C
Availability:
Quantity:
Inquiry Add to Inquiry List

Advantages:


  1. The SUS304 stainless steel inner container features a curved design for easy cleaning.

  2. A fan creates micro-air circulation for improved temperature uniformity.

  3. A microcomputer-based intelligent P.I.D. temperature controller provides precise temperature control.

  4. It features parameter memory and automatic resumption of operation upon incoming power.

  5. Equipped with casters for easy mobility.

  6. It uses a high-efficiency, low-consumption compressor and a fluorine-free, environmentally friendly refrigerant.

  7. Equipped with a built-in water tank and automatic water refill port.

  8. When humidification water is depleted, the humidifier heater automatically disconnects from the power supply.


Climate Chamber Specifications:

ModelICB-250CYICB-300CYICB-400CYICB-500CY
Capacity(L)250300400500
Circulation ModeForced convection
Size(WxDxH)Internal (mm)470×449×1178490×464×1278560×600×1198660×650×1198
External (mm)672×792×1825691×807×1925764×932×1860864×982×1860
TemperatureRange (℃)With lighting: 10~50°C; without lighting: 5~50°C

Fluctuation (℃)±0.5°C

Resolution (℃)0.1

Uniformity (℃)±2°C
SensorPT100

HumidityRangeWith lighting: 50%~80%RH (18~45°C); without lighting: 50%~90%RH (15~45°C)

Resolution1%RH

Illumination(Lx)0~6000, 6 levels adjustable
Light Source/Lighting MethodLED, 6500K color temperature / 2 sides

Timer0~99hrs

Timer1~9999min (Optional 30xsegmentsx100cycles)

MaterialInternalSUS304 Stainless steel

ExternalCold rolled steel electrostatic spraying exterior

Shelves3pcs, per shelf loading is 15kg

Internal SocketOptional

RefrigerantR134a (CFC free)

Consumption(W)24002900

3400

3900

Working Environment Temperature10~30°C


Power SupplyAC 110/220V, 50/60Hz

G.W.(kg)176188

218

286

Shipping Size (WxDxH) (mm)750*960*1960770*970*2090

850*1050*2020

1060*1180*2020

Safety Device

Over temperature alarm, temp probe damage alarm, humidity probe damage alarm

Optional

Independent external temperature protection device; temperature SMS alarm module (data traffic card not included) with mobile phone APP query function; RS485 communication serial port; RS485 to USB adapter interface; micro thermal printer or dot matrix printer.
