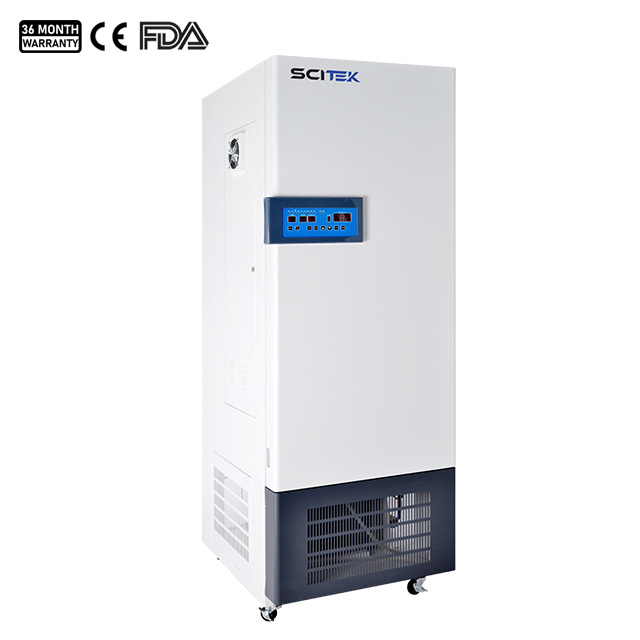

Lighting Incubator

Model : ICB-150LY; ICB-250LY; ICB-300LY; ICB-400LY; ICB-500LY

Capacity : 150L/ 250L/ 300L/ 400L/ 500L
Circulation Mode : Forced convection
Illumination : 0~6000, 6 levels adjustable
Temperature Range : With lighting: 10~50°C; without lighting: 5~50°C
It is widely used in biogenetic engineering, medicine, agriculture, forestry, environmental science, animal husbandry, aquatic products and other production, scientific research, teaching and other departments.
Availability:
Quantity:
Inquiry Add to Inquiry List

Application:


It is widely used in biogenetic engineering, medicine, agriculture, forestry, environmental science, animal husbandry, aquatic products and other production, scientific research, teaching and other departments.


Advantage:


  1. The SUS304 stainless steel inner container features a curved design for easy cleaning.

  2. A fan creates micro-air circulation for improved temperature uniformity.

  3. A microcomputer-based intelligent P.I.D. temperature controller provides precise temperature control.

  4. It features parameter memory and automatic resumption of operation upon incoming power.

  5. Equipped with casters for easy mobility.

  6. It uses a high-efficiency, low-consumption compressor and a fluorine-free, environmentally friendly refrigerant.

Plant Growth Incubator Specifications:

Model

ICB-150LY

ICB-250LYICB-350LYICB-400LYICB-500LY
Capacity(L)

150

250300400500
Circulation ModeForced convection
Size(WxDxH)Internal (mm)420x408x928470x449x1178490x464x1278560x600x1198660x650x1198
External (mm)621x752x1575672x792x1825691x807x1925764x932x1860864x982x1860
TemperatureRange (℃)With lighting: 10~50°C; without lighting: 5~50°C
Fluctuation (℃)±0.5°C
Resolution (℃)0.1°C
Uniformity (℃)±2°C
Light Source/Lighting MethodLED, 6500K color temperature / 2 sides
Timer0~99hrs
MaterialInternalSUS304 Stainless steel
ExternalCold rolled steel electrostatic spraying exterior
Shelves3pcs, per shelf loading is 15kg
RefrigerantR134A (CFC free)
Consumption(W)10001500200025003000
Working environment temperature10~30°C
Power supplyAC 110/220V, 50/60Hz
N.W./G.W. (kg)139176188218286
Shipping Size (WxDxH) (mm)690×870×1720750×950×1960760×940×2080850×1050×2020960×1090×2020
Safety DeviceOver temperature alarm, temp probe damage alarm
OptionalIndependent external temperature protection device; temperature SMS alarm module (data traffic card not included) with mobile phone APP query function; RS485 communication serial port; RS485 to USB adapter interface; micro thermal printer or dot matrix printer.
