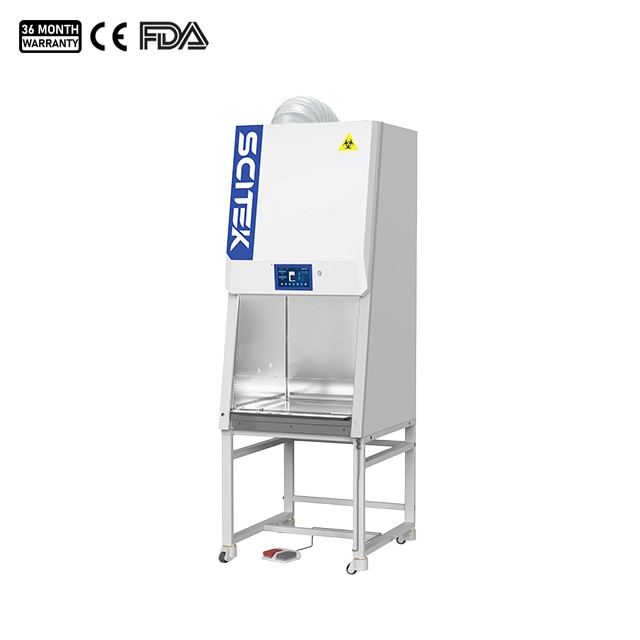

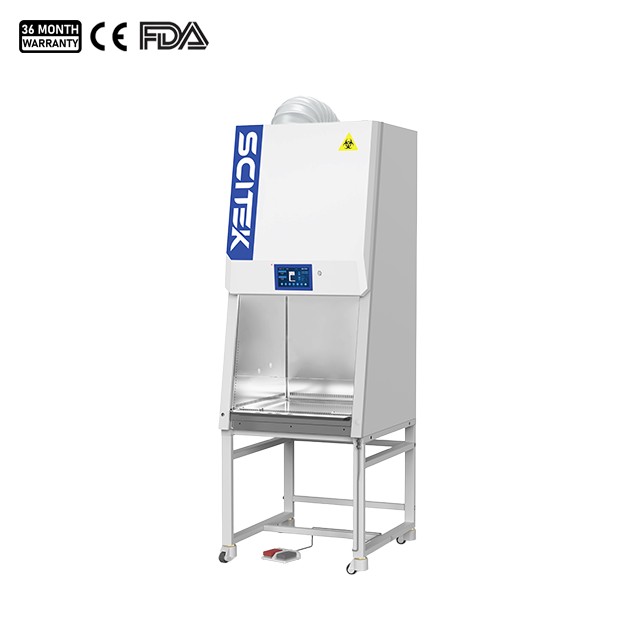

Biological Safety Cabinet Class II B2, 2FT

Model : BSC-IIB2-2F

External Size(W×D×H) : 710x780x1430mm
Airflow System : 70% air recirculation, 30% air exhaust
Work Surface Height : 750mm
Front Window : Motorized, toughened glass

Class II Type B2 biological safety cabinet with advanced ergonomic design excel in user comfort and functionality.

Availability:

Quantity:



Inquiry Add to Inquiry List

Class II B2 Biosafety Cabinet Features:

UV sterilization function and timing function can be set by appointment.
Motorized front window, control limit and travel limit double protection, ergonomic 10° tilt Angle, improve the operation comfort.
With memory function in case of power-failure.
Work area surrounded by negative pressure, prevent leakage,improve Biosafety.
Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
Standard with foot switch: adjust front window to up and down, to avoid airflow turbulence caused by arm movement.
Optional upgraded LED lamp.

Class II B2 BSC Specifications:

Model		BSC-IIB2-2F
Internal Size (W×D×H)(mm)		610×550×600
External Size (W×D×H)(mm)		710x760x2050
Max.Opening		370mm
Work Surface Height		750mm
Control System	Display	7”LCD touch screen
Airflow System	Alarm	Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height
	Airflow Mode	100% air exhaust
	Downflow Velocity	0.35m/s±0.025m/s
	Inflow Velocity	0.52 m/s±0.025m/s
	Inflow Air Volume	240m³/h (141CFM)
	Downflow Air Volume	560m³/h (330CFM)
	Exhaust Air Volume	800m³/h (471CFM)
Air filtration System	HEPA Filter	2pcs H14 HEPA filter, ≥99.995% efficiency at 0.3μm
Air filtration System	Cleanliness Grade	Class 100 (ISO14644.1 Class 5)
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 stainless steel
	Front Window	Motorized, toughened glass
Electrical System	UV Lamp	15W×1 (Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer)
	LED Lamp	10W×2
	Max.Consumption	350W (Not include socket consumption)
	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤65dB(A)
Vibration of Work Surface		≤2μm
Standard Accessory		1. Base Stand 2. LCD Touch Screen; 3. LED Lamp×2; 4. UV Lamp×1; 5. Explosion-Proof/Waterprof Socket×1; 6. Motorized Front Window; 7. Footmaster Caster; 8. Foot Switch; 9. Removable shallow-plate stainless steel work surface; 10. Air Velocity Sensor; 11. Exhaust Blower; 12.6m Exhaust Duct (Φ300mm).
Optional Accessory		1. Gas tap; 2. Water tap; 3. Pressure Sensor; 4. IV Bar With Hooks; 5. ULPA filter; 6. Upgraded LED Lamp;
Net Weight		65kg
Gross Weight		80kg
Main Unit		850×990×1640mm
Exhaust Blower		730×660×500mm
Shipping Size (W×D×H)(mm)		850×990×1640
Shipping Volume		1.4 m³

Environment conditions:

Temperature range: 5~40℃
Relative humidity: ≤90%(At +40℃)
Atmospheric pressure: 86kPa-106kPa
Maximum dust concentration: 3500 particles /L(particle size ≥0.5μm)

Optional upgrade LED lamp can be choosed.

Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate.
RG0 without blue light, protects the operator from blue light.

Class II B2 Biosafety Cabinet Details Show:

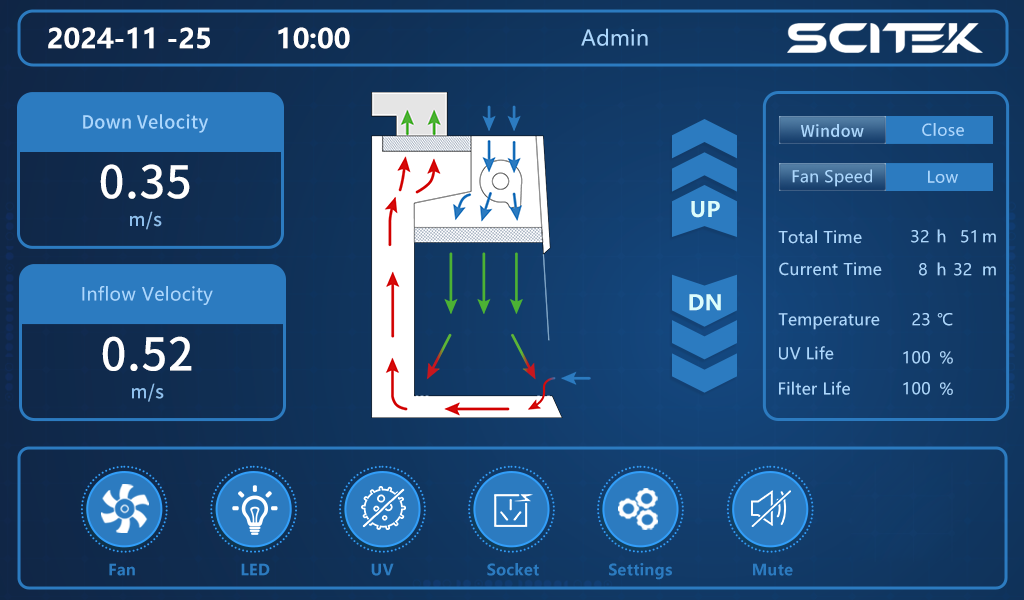

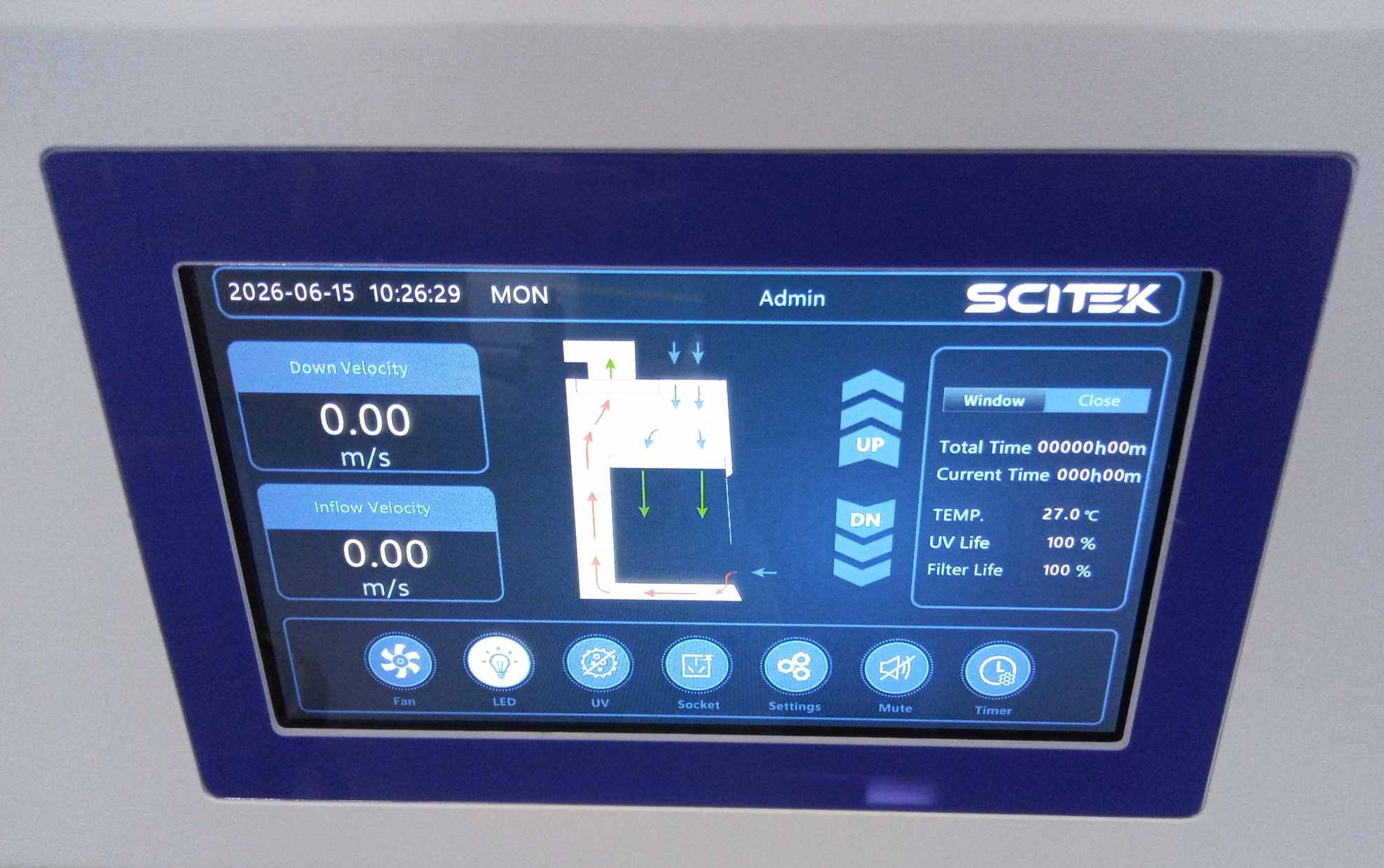

7'' LCD Touch Screen (Real-time monitoring and display Front window status/Air velocity/Date/Time/Temperature/-Filter and UV lamp life/System working status etc.)

Air Velocity sensor

Name2 Air Velocity Sensor (Real-time monitoring and display air velocity and precise control.)

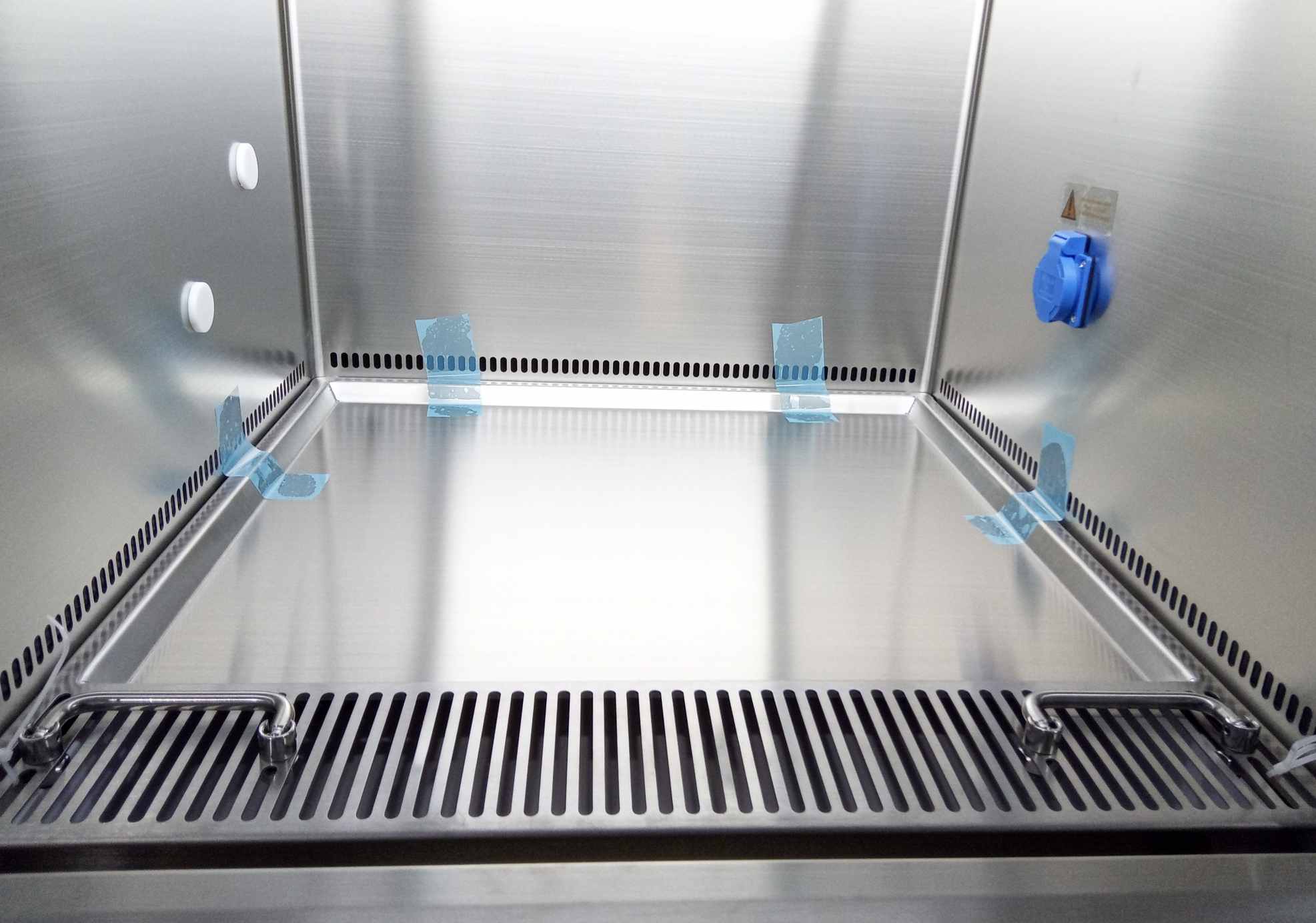

Removable Work Zone, 304 Stainless Steel. (User friendly design: Easy to pull out, convenient for cleaning and disinfection.)

Foot Switch (Standard)

1(3)

Waterproof Socket (IP54)

Standard Base Stand

Optional Upgrade LED Lamp

Gas Tap (Optional)

Water Tap (Optional)

IV Bar with hooks (Optional)

bsc ii

Details of Class II Cabinet:

class ii cabinet (5)

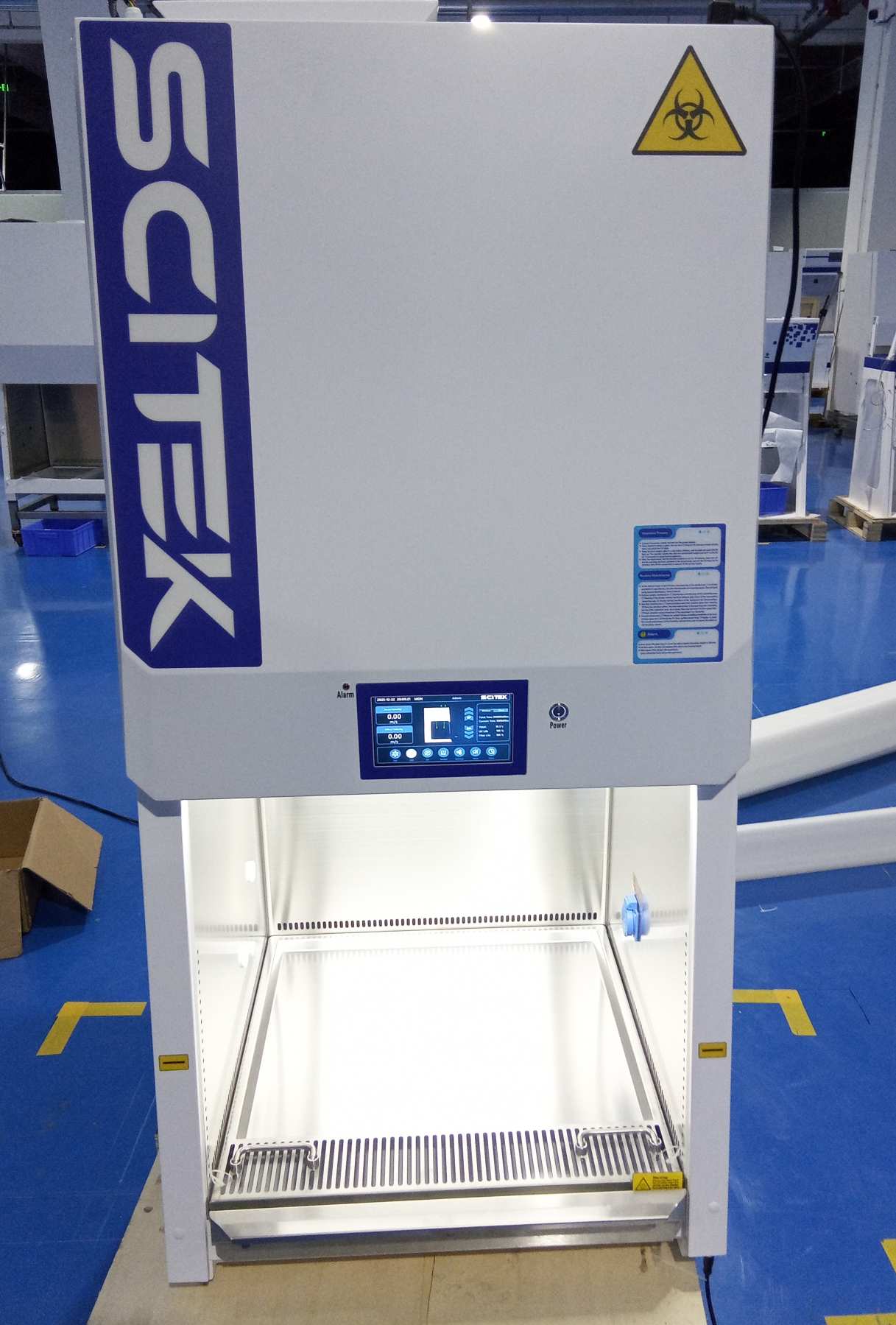

This BSC Class II Type B2 has a front protective screen and transparent window design, and is equipped with multiple safety indicators and alarm devices to monitor the operating status of the equipment in real time to ensure the safety of use.

class ii cabinet (7)

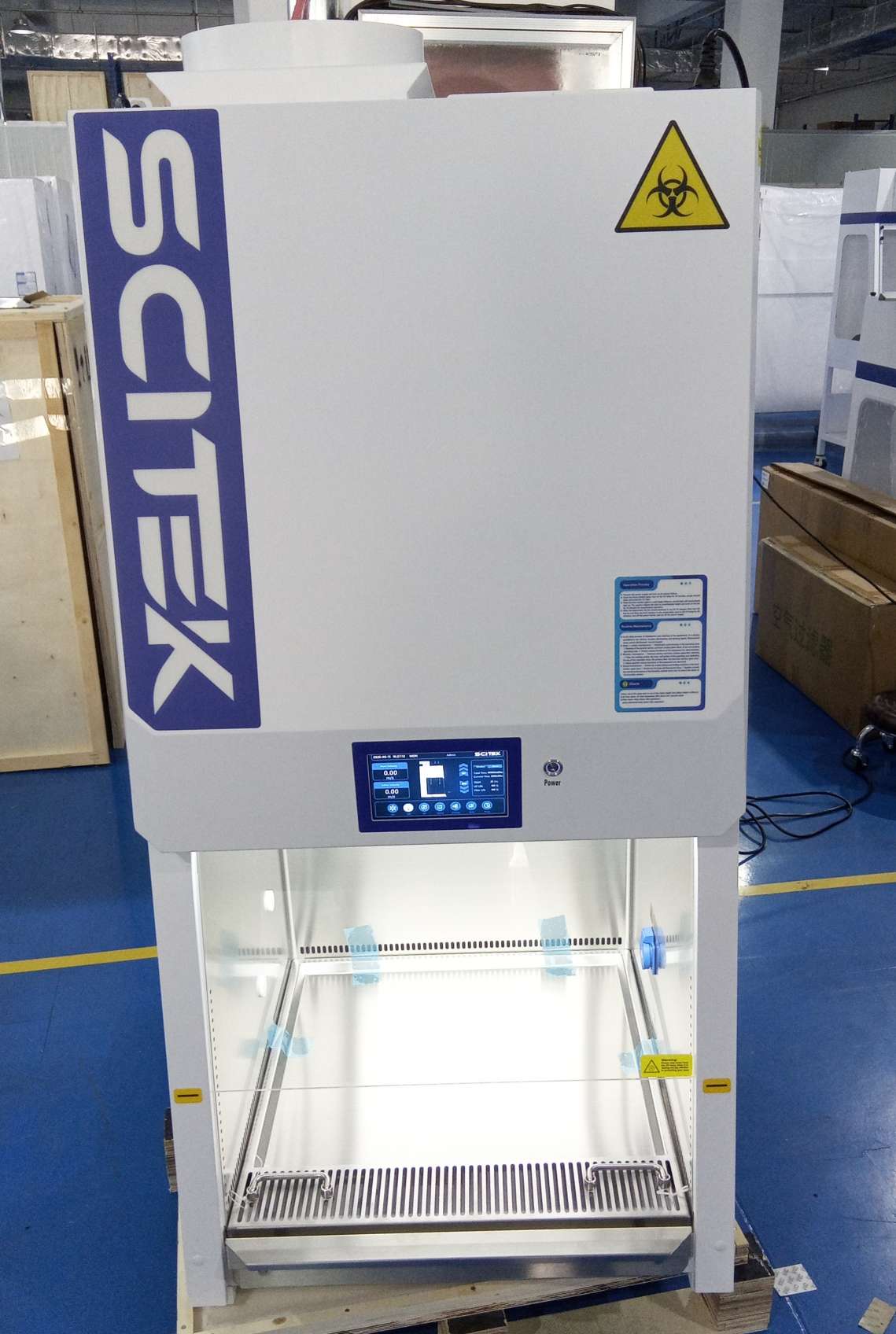

The Class II type B2 biological safety cabinet's compact construction saves laboratory space and is suitable for placement in tight working environments.

biological safety cabinet class 2 (2)

class ii cabinet (2)

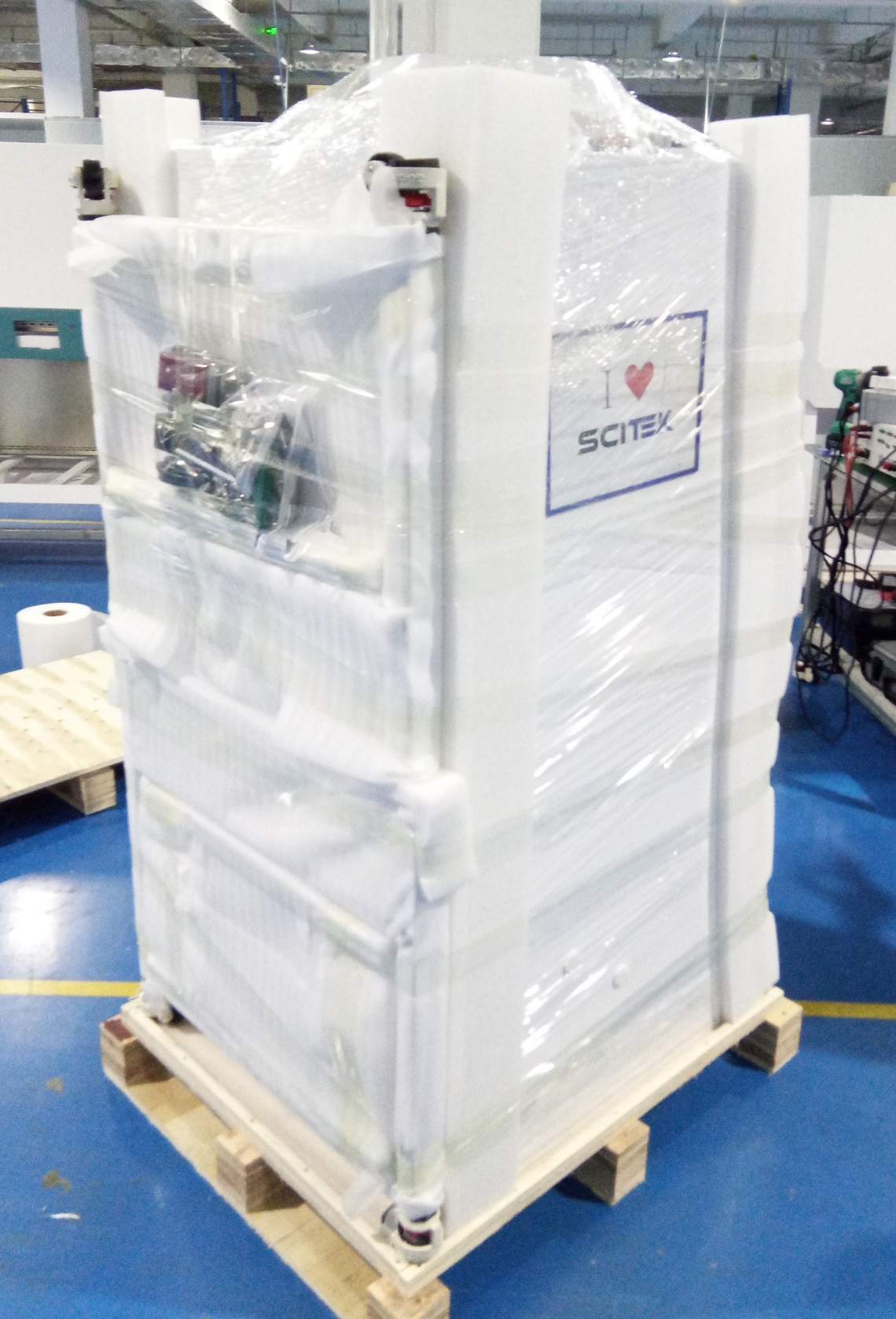

The interior of the package is designed with a shockproof structure to reduce the impact of vibration on the B2 biosafety cabinet during transport and ensure the safe arrival of the equipment.

biological safety cabinet class 2 (7)

Clear marking and labelling for easy identification and handling.

class ii cabinet (12)

biological safety cabinet class 2 (5)

Accessories include power cord, Air velocity sensor, Foot switch, LED lamp, and instructions.
