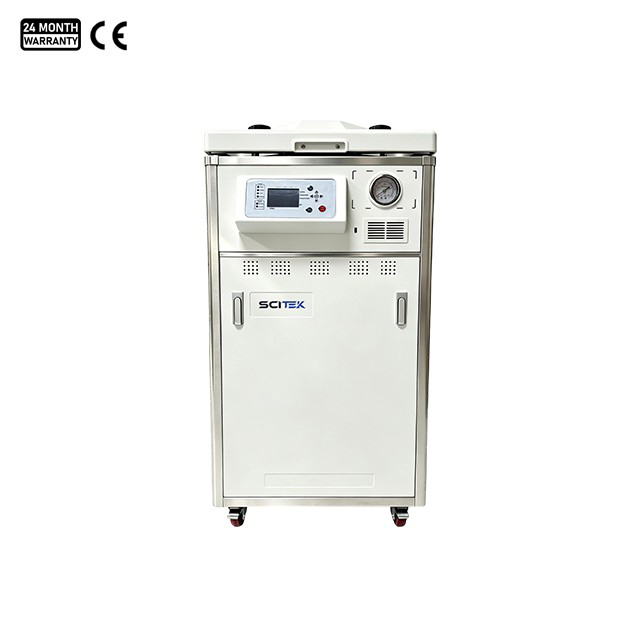

Vertical Top-loading Steam Sterilizer Application:
Widely used in laboratories across sectors such as university research, biopharmaceuticals, healthcare, and inspection and quarantine. Commonly used for the efficient sterilization of culture media, glassware, surgical instruments, and laboratory waste.
Vertical Top-loading Steam Sterilizer Feature:
The sterilizer body is constructed from 304 stainless steel, with a wall thickness of 2.0 mm.
The lid closure mechanism employs a double-screw rotary sealing structure, ensuring simple and safe operation.
The LCD screen displays the sterilization process, with automatic cycle control during sterilization and automatic shutdown upon completion.
One-click sterilization temperature selection: allows setting of required sterilization temperature and duration for different items.
Air-cooled rapid cooling device ensures rapid temperature reduction of the pot body upon completion of sterilization.
Over-temperature and over-pressure alarm function,automatic pressure relief venting,temperature deviation correction function,with temperature verification interface.
Equipped with casters at the bottom for easy mobility.
Self-expanding sealing ring structure.
Sterilization time reservation function to support scheduled startup for users.
Built-in automatic fault detection & diagnosis system.
Dual safety protection system consisting of a mechanical safety relief valve and an electronically controlled overpressure protector.
Integrated water cut-off protection, anti-dry burning protection and electric leakage protection systems.
Vertical Top-loading Steam Sterilizer Specification:
Model | ST-V40FE | ST-V60FE | ST-V80FE |
Capacity (L) | 40 | 60 | 80 |
Design Pressure | 0.24 MPa |
Rated Working Pressure | 0.217 MPa |
Rated Working Temperature | 134 ℃ |
Design Temperature | 138 ℃ |
Sterilization Temperature Setting Range | 50–134 ℃ |
Sterilization Time Setting Range | 0–9999 min |
Function | Automatic exhaust; | Manual exhaust; | Manual exhaust; |
Internal circulation; | External exhaust; | External exhaust; |
With waste water tank; | No waste water tank; | No waste water tank; |
Power Supply | AC 220/110V,50/60Hz |
Consumption | 3.5 kW |
Standard Mesh Basket (Dia×H) (mm) | 335×190 (×1) | 335×360 (×1) | 335×190 (×1), 335×360 (×1) |
Chamber Size (Dia×H)(mm) | Φ355×400 | Φ355×550 | Φ355×700 |
External Size (W×D×H)(mm) | 530×620×1005 | 530×620×1005 | 530×620×1155 |
Shipping Size (W×D×H)(mm) | 670×790×1160 | 670×790×1160 | 670×790×1320 |
G.W. (kg) | 95 | 101 | 110 |
Optional | Printer, USB port, pulsating vacuum function. | Printer, USB interface, internal circulation function, pulsating vacuum function. | Printer, USB interface, internal circulation function, pulsating vacuum function. |
