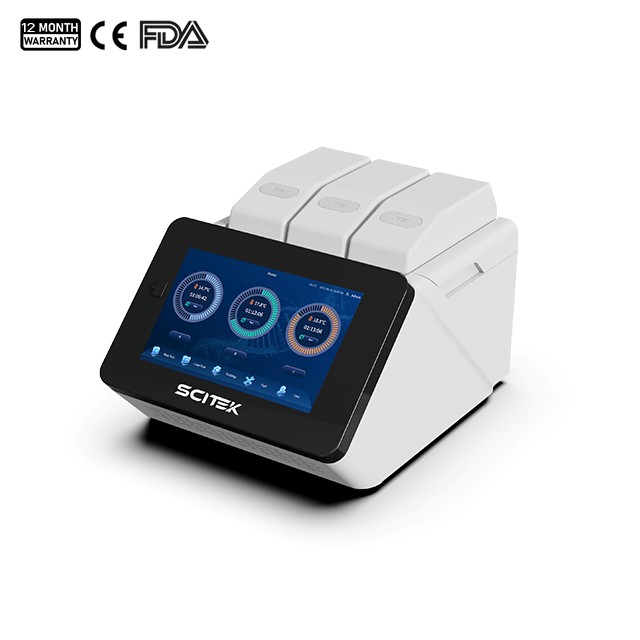

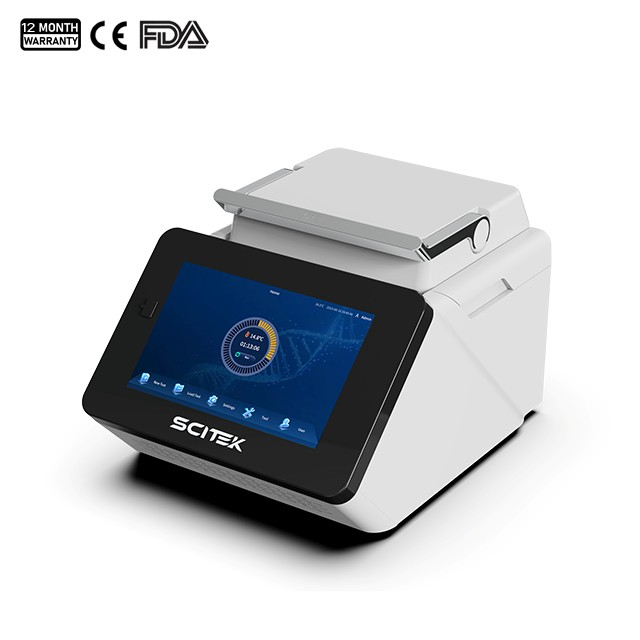

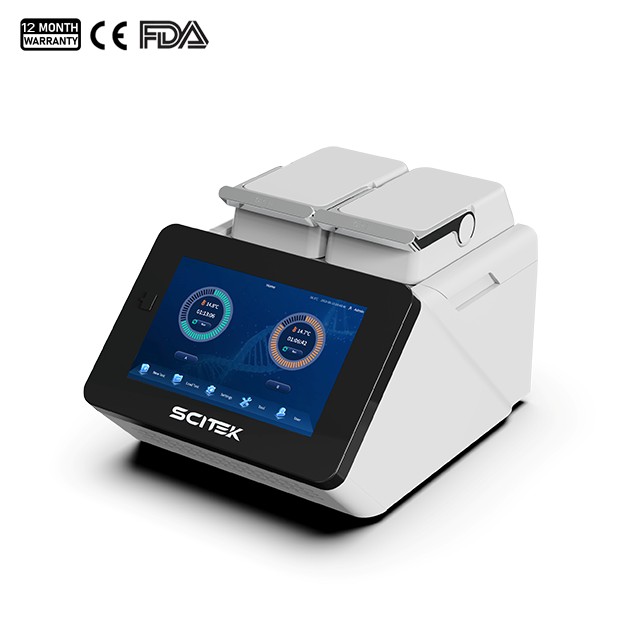

A gradient PCR thermal cycler is a specialized device designed to optimize annealing temperatures during the PCR process. Equipped with advanced gradient temperature control technology and high-performance, long-life Peltier-controlled cooling and heating block, it enables precise, zone-specific temperature regulation. Empower laboratories to efficiently conduct a wide range of molecular biology experiments with precision, stability, and reliability.
Gradient Thermal Cycler Feature:
1. A 10-inch LCD touchscreen, it features distinct single/dual/triple-channel modes to comprehensively accommodate the diverse requirements of the laboratory.
2. Peltier-controlled block ensures precise temperature control in every zone, providing a reliable amplification environment for precious templates and reagents.
3. User-friendly design with an adaptive, lever-operated heated lid, the unit allows for single-step closure and compression. It flexibly accommodates tubes of varying heights, effectively eliminating the risk of liquid leakage while ensuring comprehensive safety.
4. Real-time display of the operating status, along with support for secure account and password settings, ensures data security and controls access permissions.
5. Data can be easily imported and exported via the USB port, supports USB software updates, multi-file storage functionality can be customized.
Gradient Thermal Cycler Specification:
| Model | PCR-TC96SM | PCR-TC96DM | PCR-TC96TM |
|---|
| Sample Capacity | 96×0.2 mL PCR tube |
| 12×PCR 8 strips |
| 1×0.2 mL 96-well PCR plate | / |
| Block | 1×96 | 2×48 | 3×32 |
| Temperature Range | 0–105℃ |
| Thermal Cycle Mode | Peltier |
| Max.Temperature Change Rate | 5.0 ℃/s |
| Uniformity | ±0.2 ℃ |
| Accuracy | ±0.1 ℃ |
| Resolution | ±0.1 ℃ |
| Temperature Control | Block\Tube |
| Gradient Temp. Control Range | 30–105 ℃ |
| Lid Temperature Range | 30–115℃ |
| Gradient Span | 1–42 °C,enter 0 to turn off the gradient | 1–25 °C,enter 0 to turn off the gradient |
| Number of Program Storage | 20000+ (USB Flash) |
| Communication Interface | USB,WIFI |
| User Defined File System | Up to 30 steps and 199 cycles in a single program |
| Power Supply | AC 220/110 V, 50/60 Hz |
| Consumption (W) | 600 | 1000 | 1500 |
| External Size (W×D×H) | 264×422×310 mm |
| Shipping Size (W×D×H) | 370×580×410 mm |
| N.W/G.W. | 11/15 kg |
